Home Shower (Non-Jet Pump) DH-3ND1MS
DH-3ND1MS
A Splash Of Goodness In Every Shower
The N series Home Shower has a luxurious, sleek elegant design. It offers reliable safety with a stylish appearance that matches bathroom spaces. The water temperature is maintained by electronic control, which lets you set the temperature with large LCD panel operation. The Magic Health function relaxes body and mind for a more comfortable shower time.
Features
Luxury Shower Style
The shower is used so often, day in and day out, that it has become an essential part of our daily lives. Panasonic sees the shower as an important element to not only keep our bodies clean, but also to refresh our minds and keep us healthy. We make shower time more comfortable by raising the basic performance of your shower while also enhancing comfort, health, and safety. The end result is a more luxurious, more rewarding shower experience.
Comfort
Stylish and Easy to See
Large LCD Display
The NDP1/ND1 is equipped with a stylish, easy-to-see LCD screen on the main unit. This convenient display shows you the set shower temperature, mode, and time at a glance. The shower temperature can also be adjusted and the mode switched with a simple touch button operation.
The NDP1/ND1 is equipped with a stylish, easy-to-see LCD screen on the main unit. This convenient display shows you the set shower temperature, mode, and time at a glance. The shower temperature can also be adjusted and the mode switched with a simple touch button operation.
The Comfort of a Steady Temperature
Built-in Temperature Sensor
The temperature sensor is built into the main unit lets you maintain a constant shower temperature.
You don’t need to worry about the temperature changing while you shower, so you can enjoy showering in comfort.
The temperature sensor is built into the main unit lets you maintain a constant shower temperature.
You don’t need to worry about the temperature changing while you shower, so you can enjoy showering in comfort.
Easy
Easy Switching Shower
3-Way Shower Selector
The switch selector on the shower head gives you 3-way control of the shower flow: Normal, Spot, or Wide.
The Selector Button is built into the grip, so it’s easy to press, and you can switch the shower flow with a single hand.
The switch selector on the shower head gives you 3-way control of the shower flow: Normal, Spot, or Wide.
The Selector Button is built into the grip, so it’s easy to press, and you can switch the shower flow with a single hand.
Easy & Safety Push
One Push ON/OFF Switch
A large, easy-to-press ON/OFF switch on the main unit. The large button can be pressed even while showering with your eyes closed. One push lets you turn off the water and the electricity. It’s a quicker, more convenient way to turn off the water.
A large, easy-to-press ON/OFF switch on the main unit. The large button can be pressed even while showering with your eyes closed. One push lets you turn off the water and the electricity. It’s a quicker, more convenient way to turn off the water.
Health
e-CYCLE technology
Thermal effects
With the e-CYCLE shower, your body does not experience any hot flashes after you step out of the bathroom. Keeping your body’s temperature in check, you will experience the same warmth even 15 minutes after your shower, ensuring your body feels good, and improving overall blood circulation.
With the e-CYCLE shower, your body does not experience any hot flashes after you step out of the bathroom. Keeping your body’s temperature in check, you will experience the same warmth even 15 minutes after your shower, ensuring your body feels good, and improving overall blood circulation.
e-CYCLE technology
Healing Relax Effect
Increases in emotions such as joy and relaxation, while reducing negative feelings such as anger and sadness are apparent after the e-CYCLE shower. Stress levels also drop, and users feel more relaxed and comfortable. You will also experience an increase in energy and feel more awake.
Increases in emotions such as joy and relaxation, while reducing negative feelings such as anger and sadness are apparent after the e-CYCLE shower. Stress levels also drop, and users feel more relaxed and comfortable. You will also experience an increase in energy and feel more awake.
e-HYBRID technology
Hyper Thermic effect
Our e-HYBRID shower technology combines a mixture of water and bubbles. This generates ultrasonic waves that vibrate the body and produce a cleansing effect. The ultrasonic waves also generate thermal energy that results in a Hyper Thermic effect. The negative ions create a renewal effect to the body and further enhance daily health.
Our e-HYBRID shower technology combines a mixture of water and bubbles. This generates ultrasonic waves that vibrate the body and produce a cleansing effect. The ultrasonic waves also generate thermal energy that results in a Hyper Thermic effect. The negative ions create a renewal effect to the body and further enhance daily health.
Eco & Saving
Gentle on the environment
Magic Health not only keeps the body and mind healthy, it is also gentle on the environment. With e-CYCLE technology, its continuous cycle of generating 40 seconds of hot water and 30 seconds of cold water reduces 43% of the electricity usage. e-HYBRID also reduces water use by up to 20%, and eco e-HYBRID technology reduces waste and helps save energy. Magic Health refreshes you without causing you to worry about the electricity bill or water use.
Magic Health not only keeps the body and mind healthy, it is also gentle on the environment. With e-CYCLE technology, its continuous cycle of generating 40 seconds of hot water and 30 seconds of cold water reduces 43% of the electricity usage. e-HYBRID also reduces water use by up to 20%, and eco e-HYBRID technology reduces waste and helps save energy. Magic Health refreshes you without causing you to worry about the electricity bill or water use.
Maintaining Cleanliness
The antibacterial material containing Ag+ (silver) prevents mold generation. It prevents mold in the shower head, which often occurs in the humid environment of the bathroom, so the shower head remains constantly clean.
9-Safety Points
1 Insulated Structure
• Comply with IEC 60529 for protection
• provided by enclosure against access to hazardous parts with a finger and foreign objects
• Prevent electrical shock
• provided by enclosure against access to hazardous parts with a finger and foreign objects
• Prevent electrical shock
2 Water Splash Proof Case Cover
• Comply with IEC 60529 (IP25) for protection
• The joint between the front plate and back plate has a water-resistant design
• Prevent fire/electrical shock
• The joint between the front plate and back plate has a water-resistant design
• Prevent fire/electrical shock
3 Non-Flammable Material Compliance
• UL-94-V0 Classification Material
• Self extinguish, noncombustible material for external casing (Front Plate/Back Plate)
• Prevent fire
• Self extinguish, noncombustible material for external casing (Front Plate/Back Plate)
• Prevent fire
4 One Push ON/OFF Switch / Main Switch ON/OFF
• Switch off both main power line and water supply line directly
*The R Series only switches ON/OFF the main power line.
• Prevent burning and electric shock
*The R Series only switches ON/OFF the main power line.
• Prevent burning and electric shock
5 Manual Reset Thermostat
• Cut off power supply in the event of component failure resulting in continuous heating in abnormal conditions
• Prevent fire
• Prevent fire
6 Durable Copper Heater Unit*¹ / Reinforced Polyamide Heater Unit*²
• Self extinguish, non-combustible
• material for container
• Heat Resistant
• Prevent fire
*¹ 3ND1, 3NDP1, 4HP1, 3NS2, 3NP2, 3NS1
*² 3MP2, 3MP1, 3MT1, 3MS1, 3RP1, 3RL1
• material for container
• Heat Resistant
• Prevent fire
*¹ 3ND1, 3NDP1, 4HP1, 3NS2, 3NP2, 3NS1
*² 3MP2, 3MP1, 3MT1, 3MS1, 3RP1, 3RL1
7 Auto Thermal Cut-Out (55°C)
• Cut off power supply in the event of water temperature exceeds hazards limit
• Prevent from burns (first-degree burn)
• Prevent from burns (first-degree burn)
8 Built-in Earth Leakage Breaker (ELB)
• Mechanical Type, Double Pole Switch
• Double safety as it cuts off both neutral and live line completely if electricity leakage occurs
• Power supply cuts off automatically when unit has current leakage
• Prevent electric shock
• Double safety as it cuts off both neutral and live line completely if electricity leakage occurs
• Power supply cuts off automatically when unit has current leakage
• Prevent electric shock
9 Water Flow Sensor
• Cut off power supply if the water flow is too low which can lead to water temperature from becoming very hot
• Prevent over-heating
• Prevent over-heating

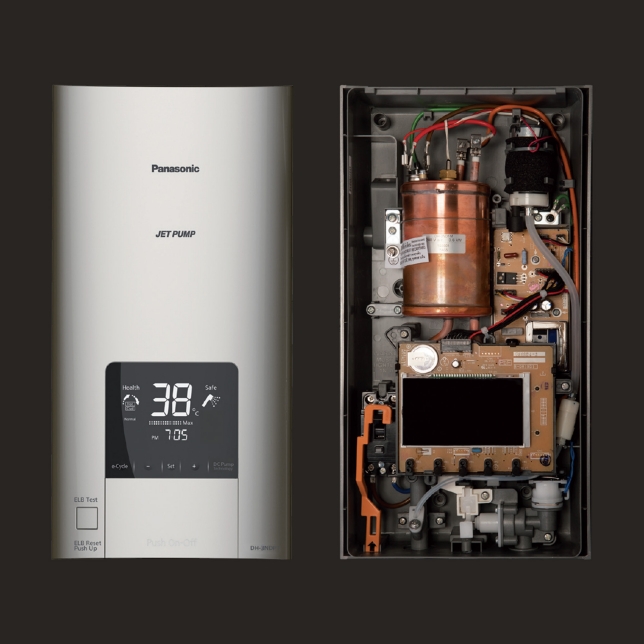

Japan Technology
Control Circuit Board
Temperature Sensor
ELB
Triac*
Air Pump*
Specs
Size and Weight
- Height
- 380mm
- Width
- 200mm
- Depth
- 89mm
- Weight
- 2.2kg
Power consumption: 3.6 kW
Power Supply: 240 V, 50Hz
Large LCD Display
One Push Stop System
Power supply
-
240 V, 50Hz
Power consumption
-
3.6 kW
Water Pressure (kgf / cm²)
-
Max
-
3.87 kgf / cm²
-
-
Min
-
0.1 kgf / cm²
-
Water Pressure (kPa)
-
Max
-
380 kPa
-
-
Min
-
9.8 kPa
-
Jet Pump
-
No
Power Selection
-
Digital Temperature Control with LCD
Power Stop System
-
One Push Stop System
Water Stop System
-
One Push Stop System
Body
-
Color
-
Skin Silver
-
-
Dimension (H x W x D) mm
-
380 x 200 x 89
-
Shower Head
-
Color
-
Skin Silver
-
-
Design
-
Oval
-
-
Spray Type
-
3-Way
-
-
Shower Plate
-
Ag+ Anti Bacteria
-
Body Weight (Net)
-
Kg
-
2.2kg
-
e-CYCLE
-
Yes
e-HYBRID
-
Yes
Large LCD Display
-
Yes
9 Safety Device
-
Push On-Off Switch
-
Yes
-
-
Built-in ELB
-
Yes
-
-
Heater Unit
-
Copper
-
-
Auto Thermal Cut Off
-
55°C
-
-
Manual Reset Thermostat
-
Yes
-
-
Water Flow Sensor
-
Yes
-
-
Water Splash Proof
-
IP25
-
-
Structure
-
Insulated
-
-
Material
-
Non Flammable Material Compliance
-
