Home Shower (Jet Pump) DH-3NP2MS
DH-3NP2MS
A Splash Of Goodness In Every Shower
The N series Home Shower DH-3NP2MS has a Luxurious, sleek elegant design. It offers reliable safety with a stylish appearance that matches bathroom spaces.
Features
Luxury Shower Style
The shower is used so often, day in and day out, that it has become an essential part of our daily lives. Panasonic sees the shower as an important element to not only keep our bodies clean, but also to refresh our minds and keep us healthy. We make shower time more comfortable by raising the basic performance of your shower while also enhancing comfort, health, and safety. The end result is a more luxurious, more rewarding shower experience.
Low Noise Operation
Low Noise DC Pump
The DC pump gives you both a powerful water flow and low noise operation. You can feel free to take a shower late at night or after the family has gone to sleep.
The DC pump gives you both a powerful water flow and low noise operation. You can feel free to take a shower late at night or after the family has gone to sleep.
*Made In Japan DC pump
The Comfort of a Steady Temperature
Built-in Temperature Sensor
The temperature sensor is built into the main unit lets you maintain a constant shower temperature.
You don’t need to worry about the temperature changing while you shower, so you can enjoy showering in comfort.
The temperature sensor is built into the main unit lets you maintain a constant shower temperature.
You don’t need to worry about the temperature changing while you shower, so you can enjoy showering in comfort.
Easy Switching Shower
3-Way Shower Selector
The switch selector on the shower head gives you 3-way control of the shower flow: Normal, Spot, or Wide.
The Selector Button is built into the grip, so it’s easy to press, and you can switch the shower flow with a single hand.
The switch selector on the shower head gives you 3-way control of the shower flow: Normal, Spot, or Wide.
The Selector Button is built into the grip, so it’s easy to press, and you can switch the shower flow with a single hand.
Easy & Safety Push
One Push ON/OFF Switch
A large, easy-to-press ON/OFF switch on the main unit. The large button can be pressed even while showering with your eyes closed. One push lets you turn off the water and the electricity. It’s a quicker, more convenient way to turn off the water.
A large, easy-to-press ON/OFF switch on the main unit. The large button can be pressed even while showering with your eyes closed. One push lets you turn off the water and the electricity. It’s a quicker, more convenient way to turn off the water.
Maintaining Cleanliness
The antibacterial material containing Ag+ (silver) prevents mold generation. It prevents mold in the shower head, which often occurs in the humid environment of the bathroom, so the shower head remains constantly clean.
9-Safety Points
1 Insulated Structure
• Comply with IEC 60529 for protection
• provided by enclosure against access to hazardous parts with a finger and foreign objects
• Prevent electrical shock
• provided by enclosure against access to hazardous parts with a finger and foreign objects
• Prevent electrical shock
2 Water Splash Proof Case Cover
• Comply with IEC 60529 (IP25) for protection
• The joint between the front plate and back plate has a water-resistant design
• Prevent fire/electrical shock
• The joint between the front plate and back plate has a water-resistant design
• Prevent fire/electrical shock
3 Non-Flammable Material Compliance
• UL-94-V0 Classification Material
• Self extinguish, noncombustible material for external casing (Front Plate/Back Plate)
• Prevent fire
• Self extinguish, noncombustible material for external casing (Front Plate/Back Plate)
• Prevent fire
4 One Push ON/OFF Switch / Main Switch ON/OFF
• Switch off both main power line and water supply line directly
*The R Series only switches ON/OFF the main power line.
• Prevent burning and electric shock
*The R Series only switches ON/OFF the main power line.
• Prevent burning and electric shock
5 Manual Reset Thermostat
• Cut off power supply in the event of component failure resulting in continuous heating in abnormal conditions
• Prevent fire
• Prevent fire
6 Durable Copper Heater Unit*¹ / Reinforced Polyamide Heater Unit*²
• Self extinguish, non-combustible
• material for container
• Heat Resistant
• Prevent fire
*¹ 3ND1, 3NDP1, 4HP1, 3NS2, 3NP2, 3NS1
*² 3MP2, 3MP1, 3MT1, 3MS1, 3RP1, 3RL1
• material for container
• Heat Resistant
• Prevent fire
*¹ 3ND1, 3NDP1, 4HP1, 3NS2, 3NP2, 3NS1
*² 3MP2, 3MP1, 3MT1, 3MS1, 3RP1, 3RL1
7 Auto Thermal Cut-Out (55°C)
• Cut off power supply in the event of water temperature exceeds hazards limit
• Prevent from burns (first-degree burn)
• Prevent from burns (first-degree burn)
8 Built-in Earth Leakage Breaker (ELB)
• Mechanical Type, Double Pole Switch
• Double safety as it cuts off both neutral and live line completely if electricity leakage occurs
• Power supply cuts off automatically when unit has current leakage
• Prevent electric shock
• Double safety as it cuts off both neutral and live line completely if electricity leakage occurs
• Power supply cuts off automatically when unit has current leakage
• Prevent electric shock
9 Water Flow Sensor
• Cut off power supply if the water flow is too low which can lead to water temperature from becoming very hot
• Prevent over-heating
• Prevent over-heating

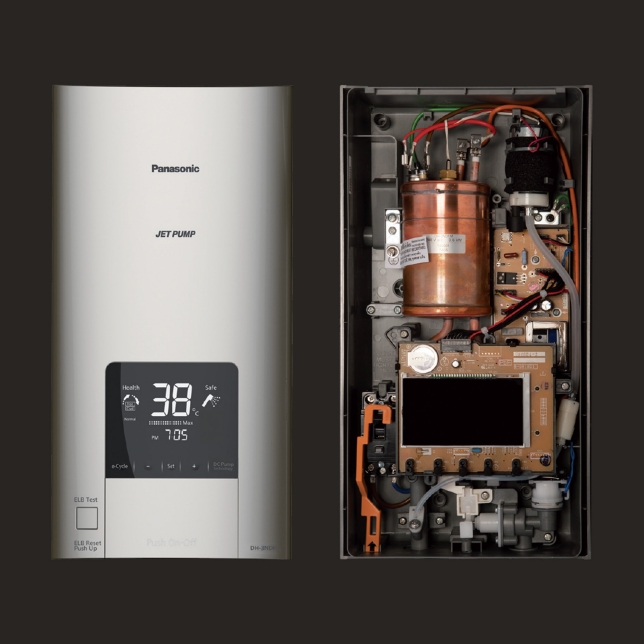

Japan Technology
Control Circuit Board
Temperature Sensor
ELB
DC Pump*
Triac*
Specs
Size and Weight
- Height
- 380mm
- Width
- 200mm
- Depth
- 89mm
- Weight
- 2.6kg
Power consumption: 3.6 kW
Power Supply: 240 V, 50Hz
Easy & Safety ON/OFF Push
Power supply
-
240 V, 50Hz
Power consumption
-
3.6 kW
Water Pressure (kgf / cm²)
-
Max
-
3.87 kgf / cm²
-
-
Min
-
0.05 kgf / cm²
-
Water Pressure (kPa)
-
Max
-
380 kPa
-
-
Min
-
4.9 kPa
-
Jet Pump
-
DC PUMP
Power Selection
-
Electric Power Control
Power Stop System
-
One Push Stop System
Water Stop System
-
One Push Stop System
Body
-
Color
-
Crystal Silver
-
-
Dimension (H x W x D) mm
-
380 x 200 x 89
-
Shower Head
-
Color
-
Crystal Silver
-
-
Design
-
Oval
-
-
Spray Type
-
3-Way
-
-
Shower Plate
-
Ag+ Anti Bacteria
-
Body Weight (Net)
-
Kg
-
2.6
-
e-CYCLE
-
No
e-HYBRID
-
No
Large LCD Display
-
No
9 Safety Device
-
Push On-Off Switch
-
Yes
-
-
Built-in ELB
-
Yes
-
-
Heater Unit
-
Copper
-
-
Auto Thermal Cut Off
-
55°C
-
-
Manual Reset Thermostat
-
Yes
-
-
Water Flow Sensor
-
Yes
-
-
Water Splash Proof
-
IP25
-
-
Structure
-
Insulated
-
-
Material
-
Non Flammable Material Compliance
-
