14.5kg Easy Hygiene & Convenient
Top Load Washing Machine NA-FD145V3BT
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products

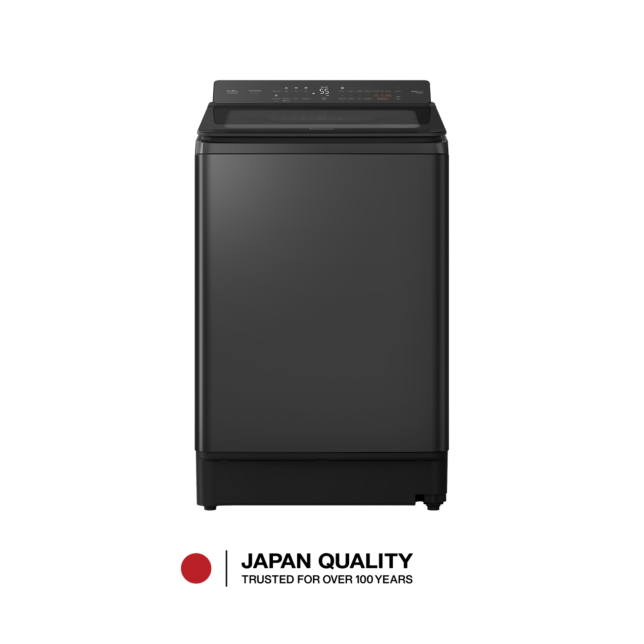

NA-FD145V3BT
Easy Hygiene
Steams Away Bacteria & Allergen
Conveniently keep your laundry hygienic with just one touch, eliminating 99.99%*¹ of bacteria and 99%*¹ of allergen, along with powerful wash technologies.
* All images are for illustrative purposes only.
Features
Worry-free Laundry, Hygienic & Clean
Enjoy carefree fun, knowing your laundry can be thoroughly cleaned with the combination of hot wash and steam, as well as powerful wash technology to remove bacteria and stains effectively.
Steams Away 99.99%*¹ of Bacteria and 99%*¹ of Allergen
StainMaster+ combines steam with 60ºC hot water to remove 99.99%*¹ of bacteria and 99%*¹ allergen effectively. Designed to maintain the hygiene of your family's laundry whilst using less energy, water, and time*², promoting sustainable laundry.
Lifts Stains Away with Fine Foam
The ActiveFoam System creates a fine and dense foam that penetrates deep into the fabric to easily lift dirt and mud stains for a cleaner wash.
Blasts Stains Away with Powerful Wash
Experience a cleaner wash with the Water Bazooka that blasts stains away easily. Powered by TD Inverter, it generates 6x more power for greater wash and rinse results while using less energy*³.
Easy Cleaning & Odour Removal
Removes Oily Stains & Sebums with 40°C Hot Wash
StainMaster+ removes oily stains and sebum on collars and sleeves with just one touch using the ideal temperature of 40ºC hot wash without pre-washing.
Removes Odour, Enhances Fragrance
The Odour/Aroma+ course keeps clothes fresh even after a long day of work. Its unique soaking and agitating patterns remove up to 73%*⁴ of odours and enhance laundry fragrance by up to 33%*⁴ with a regular dosage of softener.
Smartly Optimises Wash & Consumptions
Simply load your laundry and let the AI Smart Wash take care of the rest. The intelligent AI ECONAVI sensing technology feature delivers an optimised and efficient wash.
LEARN MORE
Intelligent Sensing Technology Sense. Adjust & Optimise
The AI ECONAVI features intelligent sensors that sense laundry load and water temperature. It then automatically adjusts the water level and washing time according to your laundry needs, helping you to save on overall consumption.
Easily Reach & Load Larger Items
Easy to Reach
With lowered front height, you can easily reach the bottom of the tub to remove washed items.
Easy to Load & Unload
The wider tub opening makes it easier to load and unload even large items.
Sleek & Stylish Design
Add a touch of style to your home with a sleek design and frameless flat glass lid featuring an easy-to-operate control panel. Experience the perfect addition to any living space, making laundry a stylish and enjoyable experience.
Frequently Asked Questions
You can use the Tub Hygiene function to clean the tub once every month.
You can refer to and follow the steps in the operation manual.
The tub is automatically cleaned by high-speed spinning after each wash cycle. This prevents detergent residue from adhering, which can cause black mould, bacteria, and foul odours, reducing the frequency of using the Tub Hygiene programme.
Panasonic's StainMaster+ features 40°C Collar/Sleeves and 40°C Oily settings to remove specific intensive stains without pre-treatment.
Specs

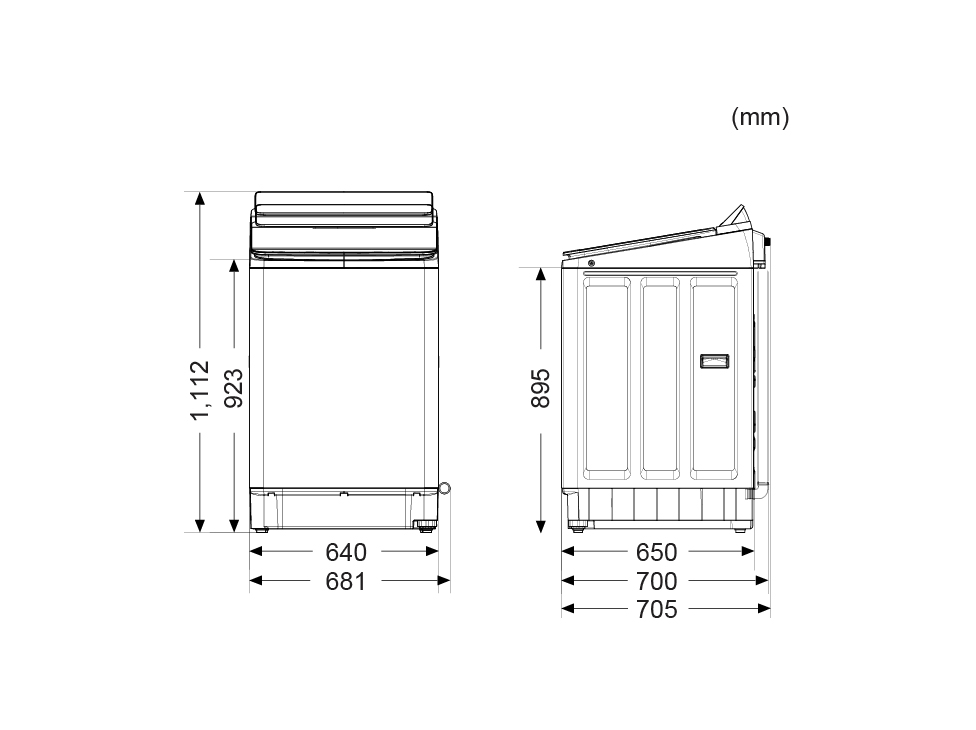

Size and Weight
- Height
- 1,112mm
- Width
- 640mm
- Depth
- 705mm
- Weight
- 49kg
*Please check the minimum space requirements for installation.
99.99%* Bacteria Elimination- 99%* Allergen Removal
- Mud Removal
- Oily Sauce Removal
- Collar/Sleeve Stain Removal
- Powerful Wash
- Easy Stain Lifting
- Washing Made Easy
- Tub Cleaning
Wash Capacity: 14.5 kg
StainMaster+ steams away 99.99%*¹ of bacteria and 99%*¹ allergen
ActiveFoam lifts stains away with fine foam
Water Bazooka powered by TD Inverter blasts stains easily with a powerful wash
AI Smart Wash with AI ECONAVI intelligent sensing technology automatically optimises wash performance
Loading Capacity
-
Washing Capacity
-
14.5kg
-
Basic Specifications
-
Dimension (W x D x H) mm
-
640 x 705 x 1,112
-
-
Net Weight (kg)
-
49
-
-
Voltage
-
220-240V
-
-
Frequency
-
50Hz
-
-
Inverter
-
TD Inverter with BLDC motor
-
-
Built-in Heater
-
Yes
-
-
Water Supply Hose (connecting type)
-
Joint type
-
-
Colour (Body)
-
Dark Black
-
-
Pulsator
-
Active Wave Pulsator (SUS)
-
-
Control Panel Type
-
Membrane sheet w/o UV printing
-
-
LED Colour
-
White
-
Regulations
-
Safety Regulations
-
MS (SIRIM)
-
-
(MEPS) Energy Label
-
4 stars
-
-
(WELS) Water Label
-
1 star
-
Wash Features
-
ECONAVI
-
Yes
-
-
StainMaster+ (Collar/Sleeve, Oil, Bacteria Elimination Odour/Aroma+, Mud, Soya/Sauce )
-
Yes (with Water Bazooka + Auto Tub Clean)
-
-
ActiveFoam System
-
Yes
-
-
Water Bazooka
-
Yes
-
Convenient Features
-
Soft Closing with Damper
-
Yes
-
-
Tempered Glass Lid
-
Yes
-
-
Auto Power Off
-
Yes
-
-
Auto Re-start
-
Yes
-
-
Auto Tub Clean
-
Yes
-
-
Preset
-
Yes
-
-
Remaining Time Indication
-
Yes
-
-
Child Lock (With LED)
-
Yes
-
-
Button Sound
-
Yes
-
Programs
-
Number of Programs
-
10 (Direct Button)
-
-
Normal
-
Yes (with Water Bazooka + Auto tub clean)
-
-
Speedy (or Energy save)
-
Yes (with Auto tub clean)
-
-
Delicate
-
Yes (with Auto tub clean)
-
-
Water Save
-
Yes (for WELS)
-
-
Blanket
-
Yes (with Water Bazooka + Auto Tub Clean)
-
-
Bedding
-
-
-
-
Tub Hygiene
-
Yes (with Water Bazooka + Auto Tub Clean)
-
-
Soak
-
Yes (with Water Bazooka + Auto Tub Clean)
-
-
Air Dry (90min.)
-
Yes
-
-
Tangle Care
-
Yes (with Auto tub clean)
-
Manual Settings
-
Process Setting Button
-
Yes
-
-
Washing Time
-
Yes (3/6/9/12min.)
-
-
No. of Rinse
-
Yes (1/2/3/Refill)
-
-
Spinning Time
-
Yes (1/3/5/7min.)
-
-
Water Level Setting
-
Yes (10 levels)
-
Others
-
SAZANAMI Drum
-
Yes
-
-
Big Lint Filter
-
Yes (Big cassette 1)
-
-
Detergent Case (drawer type)
-
Drawer type
-
3-in-1 with 2 propellers
-
-
Cover
-
With see-through window
-
-
-
Sub Detergent Case for Manual / Low Water Pressure
-
Yes
-
Notes
-
* Dimensions are without hose
*1 Bacteria Elimination rate: 99.99% Escherichia coli & 99.99% Staphylococcus aureus. As certified by the Institute of Biotechnology (Vietnam No.270324.4TN/VCCM). Test conditions apply / Report Issue Date: 27th/Mar/2024. Allergen removal rate: 99% Mite. As certified by Biostir.Inc., Japan / Test condition apply / Report Issue Date: 13th/Dec/202
*2 Based on Panasonic R&D internal testing.
*3 40% more energy saving compared to a full load washed by the Panasonic NA-F160A6 in an internal testing.
*4 Odour removal and enhanced fragrance efficiency was certified by Vietnam Association of natural products sciences (Vietnam No: 07/BC-HSPTN). Test conditions apply [Report Issue Date] 20th/Mar/2024
*5 Panasonic R&D Internal Testing/TEST CONDITION: Normal wash. Comparison between AI ECONAVI-enabled operation (amount of laundry: 4.0kg, water temperature: above 35 °C) and AI ECONAVI – disabled operation (amount of laundry: 18.0kg (rated capacity), water temperature: below 15 °C) Test was conducted based on IEC60456 except for water temperature.
