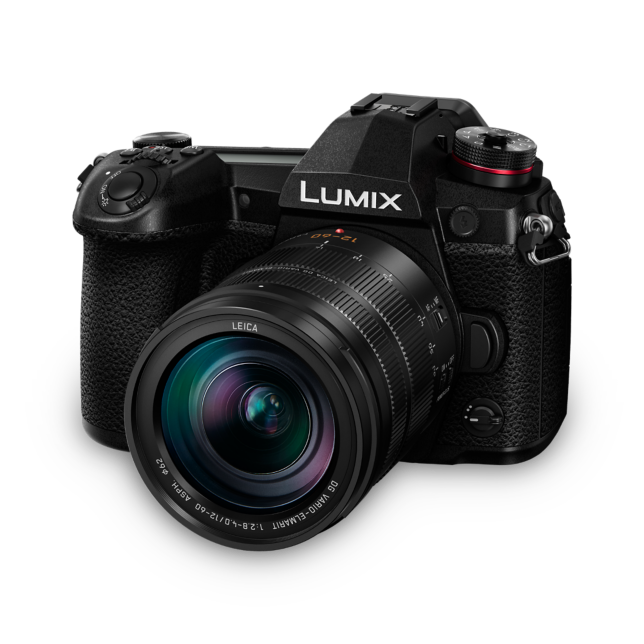

LUMIX G9 Camera DC-G9LGA-K
*Suggested Retail Price
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
DC-G9LGA-K
The Ultimate Agility.
The highest image quality along with the fastest performance and most intuitive operability LUMIX has every offered — all in a compact body.
Features
20.3MP MOS sensor with AR coating
An AR (Anti Reflection) coating effectively suppresses flare to capture the expression of light as it is, even in a harsh shooting environment surrounded by strong light such as backlight, achieving high-quality visual beauty for both still images and videos.
Ultra-fast autofocus and AFC burst
Panasonic's innovative DFD (Depth From Defocus) technology is constantly evolving and it's just got even better. DFD allows the LUMIX G9 to calculate focal lens movement by comparing depth of field values of two images at incredibly high speed. By combining the AF drive with a maximum read speed of 480 fps, the LUMIX G9 can achieve the industry's fastest level Autofocus in up to 0.04 seconds* and the world’s fastest 20 fps burst shooting with AFC** (60 fps burst shooting with AFS).
*In 1-Area AF, at wide-end with H-ES12060 (CIPA) in LVF120 fps setting. **For a Digital Single Lens Mirrorless camera as of 8 November, 2017.
Autofocus featuring AI technology
Panasonic’s advanced deep learning technology makes possible the recognition of human faces, eyes, heads,* and bodies, as well as common animals (dogs, cats and birds).**
*Please update the firmware to version 2.4 or later. **Please update the firmware to version 2.0 or later.
4K 60p/50p smooth video recording
The LUMIX G9 takes outstanding shooting performance to another level with high-precision, silky smooth 4K 60p/50p (QFHD 4K: 3840 x 2160) video recording. The firmware version 2.0 enables 4K 30p/25p/24p 4:2:2 10-bit recording in MOV format and VFR (variable frame rate) recording.
V-Log L recording (optional)
The Upgrade Software Key DMW-SFU1 (sold separately)* and LUMIX G9 firmware version 2.0 enable V-Log L recording. Since V-Log L has the same V-Gamut characteristics as V-Log, LUTs used with V-Log can be used in color grading. And footage from VariCam series cameras can be seamlessly included in the edit.**
*Please refer to the bundled instruction manual for the activation procedure. **V-Log/V-Gamut and LUTs
https://pro-av.panasonic.net/en/cinema_camera_varicam_eva/support/lut/index.html
https://pro-av.panasonic.net/en/cinema_camera_varicam_eva/support/lut/index.html
The largest-level 0.83x OLED LVF in mirrorless camera
A super high-resolution 3,680k-dot OLED LVF (Live View Finder) brings gorgeous visibility and makes for perfect framing even under direct sunlight. The highest-level 0.83x magnification in mirrorless camera category (35mm camera equivalent) makes it easy to see image detail, your settings and icons, and, the long eye point distance of 21mm is excellent for people who wear spectacles. Best of all, the OLED LVF ensures your pictures match up to exactly how you intended them.
Large Status LCD
A status LCD that lets you instantly confirm the settings is provided for the first time on a LUMIX camera. Convenient for shooting with frequent settings adjustments, and for simply framing with the viewfinder and rear monitor. Also handy for scenes such as nighttime shots, when the light of the rear monitor bothers you.
6.5-stop Dual I.S. 2
It's difficult to handhold a camera at the best of times, but don't fret: with the 5-axis Dual I.S. 2 (Image Stabilizer), intelligent compensation comes to your aid. This is the equivalent to 6.5 doublings of exposure duration, meaning you can use a 6.5-stop slower shutter speed up to tele-end.* The LUMIX G9 eliminates shake in both body and lens even at the telephoto setting. It also works in both photo and video recording, including 4K video. The astonishing power of the 5-axis Body I.S. with 6.5-stop compensation power corrects shake for all lenses, even those not equipped with O.I.S.**
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used. **Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.
USB power supply for extended shooting
USB power supply compatibility. Since you can shoot while connected to the battery charger, you don't need to worry about the remaining battery power and you can concentrate fully on shooting. An essential function for nature shooting where you need to wait patiently for the shot to happen.
Surprisingly detailed 80MP RAW recording
High Resolution mode is capable of 80-megapixel RAW recording. After shooting the 20.3-megapixel sensor 8 times, a single image is created. This professional function is widely used for producing exhibits.
Get Inspired
Specs
Size and Weight
- Height
- 97.3mm
- Width
- 136.9mm
- Depth
- 91.6mm
- Weight
- 658g
All values are approximate. Weight with SD card and battery. Lens is excluded. Dimensions exclude protrusions.
Micro Four Thirds System Standard- 20.3 Megapixels
- 4K Video Recording Capability
- 6K PHOTO
- Burst Shooting
- 5-axis Dual I.S. 2 (Image Stabilizer)
- 3680k-dot OLED Live View Finder
- 1040k-dot Free-angle Monitor
- Status LCD
- Splash, Dust and Freeze-resistant
- Wi-Fi
- Bluetooth
20.3-megapixel Digital Live MOS sensor with AR coating
Ultra-fast autofocus and AFC 20 fps / AFS 60 fps burst shooting
4K 60p/50p smooth video recording
6.5-stop 5-axis Dual I.S. 2 and 6.5-stop Body I.S. (Image Stabilizer)
TYPE
-
Type
-
Digital Single Lens Mirrorless camera
-
-
Recording media
-
SD Memory Card, SDHC Memory Card, SDXC Memory Card
(Compatible with UHS-I / UHS-II UHS Speed Class 3 standard SDHC / SDXC Memory Cards)
-
-
Image sensor size
-
17.3 x 13.0 mm (in 4:3 aspect ratio)
-
-
Lens mount
-
Micro Four Thirds mount
-
IMAGE SENSOR
-
Type
-
Live MOS Sensor
-
-
Total pixels
-
21.77 Megapixels
-
-
Camera effective pixels
-
20.33 Megapixels
-
-
Color filter
-
Primary color filter
-
-
Dust reduction system
-
Supersonic wave filter
-
IMAGE STABILIZATION SYSTEM
-
Image stabilization system
-
Image sensor shift type (5-axis / 6.5-stop*), Dual I.S. (Dual I.S. 2 compatible)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm), when H-ES12060 is used.
-
STILL IMAGE
-
Recording file format
-
JPEG (DCF, Exif 2.31), RAW
6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
-
-
File size (Pixels)
-
[4:3] 5184x3888(L) / 3712x2784(M) / 2624x1968(S) / 10368x7776(XL)* / 7296x5472(LL)* / 4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) *High Resolution Mode.
[3:2] 5184x3456(L) / 3712x2480(M) / 2624x1752(S) / 10368x6912(XL)* / 7296x4864(LL)* / 5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) *High Resolution Mode.
[16:9] 5184x2920(L) / 3840x2160(M) / 1920x1080(S) / 10368x5832(XL)* / 7296x4104(LL)* / 3840x2160(4K PHOTO) *High Resolution Mode.
[1:1] 3888x3888(L) / 2784x2784(M) / 1968x1968(S) / 7776x7776(XL)* / 5472x5472(LL)* / 2880x2880(4K PHOTO) *High Resolution Mode.
-
MOTION PICTURE
-
Recording file format
-
MOV: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz) (*6)
MP4: H.264/MPEG-4 AVC, H.265/HEVC (*6) (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch))
AVCHD Progressive, AVCHD (Audio format: Dolby Audio 2ch)
-
-
Aspect ratio
-
4:3, 3:2, 16:9, 1:1
-
-
Image quality
-
RAW, RAW+Fine, RAW+Standard, Fine, Standard
-
-
Color space
-
sRGB, AdobeRGB
-
-
MOV (*2) (*6)
-
[4K] 3840x2160
-
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM)
25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM)
23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
-
-
[Full HD] 1920x1080
-
59.94p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM)
50.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM)
59.94p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
50.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
29.97p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM)
25.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
-
-
-
MP4 (*2)
-
[4K] 3840x2160
-
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (AAC)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (AAC)
-
-
[Full HD] 1920x1080
-
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
-
-
-
MP4 HEVC (*2) (*6)
-
[4K] 3840x2160
-
29.97p, 72Mbps (4:2:0 10-bit LongGOP) (AAC)
25.00p, 72Mbps (4:2:0 10-bit LongGOP) (AAC)
23.98p, 72Mbps (4:2:0 10-bit LongGOP) (AAC)
-
-
-
AVCHD (*2)
-
[Full HD] 1920x1080
-
50.00p, 28Mbps (LongGOP) (Dolby)
50.00i, 24Mbps (LongGOP) (Dolby) (Sensor output is 25.00fps)
50.00i, 17Mbps (LongGOP) (Dolby) (Sensor output is 50.00fps)
-
-
-
High speed video, MP4 (*2) *When Creative Video Mode is selected.
-
[4K] 3840x2160
-
30p, 100Mbps (Sensor output is 60fps / 50fps / 48fps)
-
-
[Full HD] 1920x1080
-
30p, 20Mbps (Sensor output is 180fps / 150fps)
-
-
-
Variable frame rate, MOV (*2) (*6)
-
[4K] 3840x2160
-
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
-
-
[Full HD] 1920x1080
-
59.94p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
50.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
-
-
-
Variable frame rate, AVCHD (*2) (*6)
-
[Full HD] 1920x1080
-
50.00i, 24Mbps (LongGOP) (Dolby) (Sensor output is 25.00fps)
-
-
-
Continuous recordable time (Motion picture)
-
AVCHD [FHD/50p]: Approx. 130 min (rear monitor), 120 min (LVF) with H-FS12060, Approx. 120 min (rear monitor), 110 min (LVF) with H-ES12060
AVCHD [FHD/50i]: Approx. 130 min (rear monitor), 120 min (LVF) with H-FS12060, Approx. 120 min (rear monitor), 120 min (LVF) with H-ES12060
MP4 [4K/60p, 4K/50p]: Approx. 120 min (rear monitor), 110 min (LVF) with H-FS12060, Approx. 110 min (rear monitor), 110 min (LVF) with H-ES12060
MP4 [4K/30p, 4K/25p]: Approx. 130 min (rear monitor), 120 min (LVF) with H-FS12060, Approx. 130 min (rear monitor), 120 min (LVF) with H-ES12060
-
-
Actual recordable time (Motion picture)
-
AVCHD [FHD/50p]: Approx. 65 min (rear monitor), 60 min (LVF) with H-FS12060, Approx. 60 min (rear monitor), 55 min (LVF) with H-ES12060
AVCHD [FHD/50i]: Approx. 65 min (rear monitor), 60 min (LVF) with H-FS12060, Approx. 60 min (rear monitor), 60 min (LVF) with H-ES12060
MP4 [4K/60p, 4K/50p]: Approx. 60 min (rear monitor), 55 min (LVF) with H-FS12060, Approx. 55 min (rear monitor), 55 min (LVF) with H-ES12060
MP4 [4K/30p, 4K/25p]: Approx. 65 min (rear monitor), 60 min (LVF) with H-FS12060, Approx. 65 min (rear monitor), 60 min (LVF) with H-ES12060
-
WIRELESS
-
Wi-Fi
-
Wi-Fi2.4GHz (STA/AP) (IEEE802.11b/g/n)
Wi-Fi5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
-
-
Bluetooth
-
Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
-
-
QR code connection / Password-less connection
-
Yes / Yes (ON / OFF selectable)
-
VIEWFINDER
-
Type
-
OLED Live View Finder (3,680k dots)
-
-
Field of view
-
Approx. 100%
-
-
Magnification
-
Approx. 1.66x / 0.83x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-¹
-
-
Eye point
-
Approx. 21 mm from eyepiece lens
-
-
Diopter adjustment
-
-4.0 - +3.0 (dpt)
-
-
Eye sensor
-
Yes
-
-
Display speed
-
120fps / 60fps
-
REAR MONITOR
-
Type
-
TFT LCD monitor with static touch control
-
-
Monitor size
-
Free-angle 3.0-inch (7.5cm) / 3:2 aspect
-
-
Pixels
-
Approx. 1,040k dots
-
-
Field of view
-
Approx. 100%
-
-
Monitor adjustment
-
Brightness, Contrast, Saturation, Red-Green, Blue-Yellow
-
STATUS LCD
-
Status LCD
-
Yes
-
FOCUS
-
Type
-
Contrast AF system
-
-
DFD technology
-
Yes
-
-
Post Focus
-
Yes
-
-
Focus Stacking
-
Yes
-
-
Focus mode
-
AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF
-
-
AF mode
-
Auto Detection (Face, Eye, Body (*6), Animal (*6)) / Tracking / 225-Area / Custom Multi / 1-Area* / Pinpoint *Human/Animal Detection AF can be set ON or OFF. (*8)
(Full area touch is available) (Scalable AF frame size and flexible AF position)
-
-
AF detective range
-
EV -4 - 18 (ISO100 equivalent)
-
-
AF assist lamp
-
Yes
-
-
AF lock
-
Yes (AF/AE LOCK button)
-
-
AF custom setting
-
AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
-
-
Others
-
One Shot AF, Shutter AF, Half Press Release, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter
-
EXPOSURE CONTROL
-
Light metering system
-
1,728-zone multi-pattern sensing system
-
-
Light metering mode
-
Multiple / Center Weighted / Spot / Highlight Weighted (*6)
-
-
Metering range
-
EV 0 - 18 （F2.0 lens, ISO100 equivalent)
-
-
Exposure mode
-
Program AE, Aperture Priority AE, Shutter Priority AE, Manual
-
-
ISO sensitivity (Standard output sensitivity)
-
Still image: Auto / Intelligent ISO / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)
Creative Video Mode: Auto / 100 (Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3 EV step)
-
-
Exposure compensation
-
1/3 EV step ±5EV (±3EV for motion picture)
-
-
AE lock
-
Yes (AF/AE LOCK button)
-
WHITE BALANCE
-
White balance
-
AWB / AWBc / AWBw (*6) / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
-
-
White balance adjustment
-
Blue/Amber bias, Magenta/Green bias
-
-
Color temperature setting
-
2500-10000K in 100K
-
SHUTTER
-
Type
-
Focal-plane shutter
-
-
Shutter speed
-
Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
Electronic first curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Electronic shutter: 1/32,000 - 1
Motion picture: 1/16,000 - 1/25
-
-
Shutter life
-
Approx. 200,000 images
-
-
Self timer
-
10sec, 3 images / 2sec / 10sec
-
-
Remote control
-
Remote control with Bulb function by DMW-RSL1 (sold separately)
-
BRACKET
-
AE bracket
-
3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
-
-
Aperture bracket
-
3, 5 or all positions in 1 EV step
-
-
Focus bracket
-
1 to 999 images, focus steps can be set in 10 levels
-
-
White balance bracket
-
3 images in blue/amber axis or in magenta/green axis, color temperature setting
-
BURST SHOOTING
-
Burst speed
-
[Mechanical shutter / Electronic first curtain shutter]
AFS/MF: H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) *When H-ES12060 is used.
AFF/AFC: H: 9 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View) *When H-ES12060 is used.
[Electronic shutter]
AFS/MF: SH2: 60 frames/sec, SH1: 20 frames/sec, H: 12 frames/sec, M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFF/AFC: SH2: 20 frames/sec, SH1: 20 frames/sec, H: 9 frames/sec (with Live View), M: 7 frames/sec (with Live View), L: 2 frames/sec (with Live View)
-
-
Number of recordable images
-
[H/M/L]
More than approx. 60 images (when there are RAW files with the particular speed.)
More than approx. 600 images (when there are no RAW files and using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".)
(depending on memory card size, battery power, picture size, and compression)
[SH2/SH1]
Approx. 50 images
(depending on memory card size, battery power, picture size, and compression)
-
6K PHOTO / 4K PHOTO (*2)
-
Burst speed
-
[6K PHOTO] 30 frames/sec
[4K PHOTO] 60 frames/sec, 30 frames/sec
-
-
Exif information
-
Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)
-
-
Marking function
-
Yes (in 6K/4K Burst (S/S) mode)
-
INTERVAL RECORDING
-
Time lapse shot
-
Yes
-
-
Stop motion animation
-
Yes
-
FLASH
-
Flash type
-
TTL External Flash (sold separately)
-
-
Flash mode
-
Auto*, Auto/Red-eye Reduction*, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off *For iA, iA+ only.
-
-
Synchronization speed
-
Less than 1/250 second
-
-
Flash output adjustment
-
1/3EV step ±3EV
-
-
Flash synchronization
-
1st Curtain Sync., 2nd Curtain Sync.
-
-
Synchronization for flash dimming and exposure compensation
-
Yes
-
-
Wireless control
-
Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
-
-
Flash sync socket
-
Yes
-
SILENT MODE
-
Silent mode
-
Yes
-
LIVE VIEW
-
Digital zoom
-
2x, 4x
-
-
Extra Tele Conversion
-
Still image: Max. 2x
4K PHOTO: 1.6x (4:3), 1.5x (3:2), 1.4x (16:9, 1:1)
Motion picture: 2.7x (FHD), 1.4x (4K)
-
-
Other functions
-
Level Gauge, Real-time Histogram, Guide Lines (3 patterns), Center Marker, Highlight display (Still image / motion picture), Zebra pattern (Still image / motion picture)
-
DIRECTION DETECTION FUNCTION
-
Direction detection function
-
Yes
-
FUNCTION BUTTON
-
REC
-
Wi-Fi / Q.MENU / Video Record / LVF/Monitor Switch / LVF/Monitor Disp. Style / AF-Point Scope / AF/AE LOCK / AF-ON / AF-ON: Near Shift (*6) / AF-ON: Far Shift (*6) / Preview / One Push AE / Touch AE / Level Gauge / Focus Area Set / Zoom Control / 1 Shot RAW+JPG / 1 Shot Spot Metering / 1 Shot 6K/4K PHOTO / Operation Lock / Dial Operation Switch / Destination Slot / Photo Style / Filter Select / Aspect Ratio / Picture Size / Quality / AFS/AFF / Metering Mode / Burst Shot Setting / 6K/4K PHOTO / Self Timer / High Resolution Mode / Bracket / Highlight Shadow / i. Dynamic / i. Resolution / Min. Shtr Speed / Post Focus / HDR / Shutter Type / Flash Mode / Flash Adjust. / Wireless Flash Setup / Ex. Tele Conv. / Digital Zoom / Stabilizer / E-Stabilization (Video) (*5) / I.S. Lock (Video) / 4K Live Cropping / Motion Pic. Set / Picture Mode in Rec. / Variable Frame Rate (*6) / Mic Rec Level Disp. (*5) / Mic Level Adj. / Mic. Directivity Adjust / Silent Mode / Peaking / Histogram / Frame Marker (*8) / Guide Line / Zebra Pattern / LUT View Assist (Monitor) (*6) (*7) / LUT View Assist (HDMI) (*6) (*7) / HLG View Assist (Monitor) (*6) / HLG View Assist (HDMI) (*6) / Live View Boost (*5) / Monochrome Live View / Constant Preview / Rec Area / WFM (*6) (*7) / Focus Ring Lock (*5) / Step Zoom / Zoom Speed / Night Mode / ON/OFF of each item in White Balance / ON/OFF of each item in Photo Style / AF Mode/MF / Rec/Playback Switch / Off / Restore to Default
-
-
PLAY
-
Wi-Fi / LVF/Monitor Switch / Rec/Playback Switch / Slot Change / 6K/4K Photo Play / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / RAW Processing / 6K/4K PHOTO Bulk Saving / Copy / Night Mode / LUT View Assist (Monitor) (*6) (*7) / LUT View Assist (HDMI) (*6) (*7) / HLG View Assist (Monitor) (*6) / HLG View Assist (HDMI) (*6) / Off / Restore to Default
-
-
Fn Lever
-
AF Mode / Quality / Photo Style / Long Shtr NR / Stabilizer / 6K/4K PHOTO (Pre-Burst) / Self Timer / Silent Mode / Shutter Type / Bracket / Touch Screen / Touch Pad AF / Auto Review (Photo) / Peaking / Night Mode / Front/Rear/Control Dial Lock / Off / Restore to Default
-
FILTER
-
PhotoStyle
-
Standard / Vivid / Natural / Monochrome / L. Monochrome / L. Monochrome D (*5) / Scenery / Portrait / Custom 1, 2, 3, 4 / Cinelike D / Cinelike V / V-Log L (*6) (*7) / Hybrid Log Gamma (*6)
-
-
Creative Control
-
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
*For photos only.
-
MOTION PICTURE FUNCTION
-
Vertical position information (*8)
-
ON / Off
-
-
Luminance level
-
8-bit: 0-255 / 16-235 (*6) / 16-255
10-bit (*6) : 0‒1023 / 64‒940 / 64‒1023
-
-
Wave form monitor (*6) (*7)
-
Yes
-
-
Red REC frame indicator (*8)
-
Yes
-
PLAYBACK
-
Playback mode
-
30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max. 16x), Slideshow (All / Picture Only / Video Only, duration & effect is selectable), Playback Mode (Normal / Picture Only / Video Only), Protect, Rating, Title Edit, Face Recognition Edit, RAW Processing, 6K/4K PHOTO Bulk Saving, 6K/4K PHOTO Noise Reduction, Light Composition, Clear Retouch, Text Stamp, Copy, Resize, Cropping, Rotate, Video Divide, Time Lapse Video, Stop Motion Video, Rotation Display, Picture Sort, Delete Confirmation, Creating Still Pictures from a Motion Picture
-
-
Protection
-
Single / Multi or Cancel
-
-
Erase
-
Single / Multi / All / Except Rating
-
-
Direct print
-
PictBridge compatible
-
INTERFACE
-
USB
-
USB 3.0 Micro-B, SuperSpeed USB 3.0 Gen 1
-
HDMI (*3)
-
Monitor-through
-
When a mode other than [4K/60p]/[4K/50p] is selected for [Rec Quality]:
4:2:2 10bit, 4:2:2 8bit
When [4K/60p]/[4K/50p] mode is selected in [Rec Quality]:
4:2:2 10bit*, 4:2:0 8bit *When 4:2:2 10bit mode is selected, it is not possible to record motion picture or still picture on the memory card in the camera unit.
-
-
Playback
-
HDMI TypeA / VIERA Link
Video: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
Audio: Stereo
-
-
Audio video output
-
No
-
-
Remote input
-
φ2.5mm for remote
-
-
External microphone input
-
φ3.5mm for external microphone
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
-
-
Headphone output
-
φ3.5mm for headphone
-
-
Microphone
-
Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
-
-
Speaker
-
Monaural
-
-
SD card slot
-
Slot 1, Slot 2
-
POWER
-
Battery
-
Li-ion Battery Pack (7.2V, 1860mAh, 14Wh) (included)
USB power supply, USB power charging
-
-
Battery life (CIPA standard)
-
Approx. 400 images (rear monitor), 380 images (LVF), 920 images (Power Save LVF mode*) with H-FS12060
Approx. 380 images (rear monitor), 360 images (LVF), 890 images (Power Save LVF mode*) with H-ES12060
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
-
-
Battery grip
-
DMW-BGG9 (sold separately)
-
DIMENSIONS / WEIGHT
-
Dimensions (W x H x D)
-
136.9 x 97.3 x 91.6 mm / 5.39 x 3.83 x 3.61 inch (excluding protrusions)
-
-
Weight
-
Approx. 658g / 1.45 lb (SD card x 1, Battery, Body)
Approx. 586g / 1.30 lb (Body only)
-
OPERATING ENVIRONMENT
-
Operating temperature (*4)
-
-10°C to 40°C (14°F to 104°F)
-
-
Operating humidity
-
10%RH to 80％RH
-
Software
-
Recording
-
LUMIX Tether
・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
-
-
Playback / Editing
-
・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.0PE is available for download at Panasonic website using computer connected to the Internet.
http://panasonic.jp/support/global/cs/soft/download/d_pfs10pe.html (For Windows)
・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
-
-
Standard accessories
-
Body Kit
Battery Charger (AC Adaptor, USB connection Cable included), Battery Pack, Body Cap, Hot Shoe Cover, Eye Cup, Flash Syncro Socket Cap, Cover for the Battery Grip Connector, USB Connection Cable, Shoulder Strap
Lens Kit
Battery Charger (AC Adaptor, USB connection Cable included), Battery Pack, Body Cap, Hot Shoe Cover, Eye Cup, Flash Syncro Socket Cap, Cover for the Battery Grip Connector, USB Connection Cable, Shoulder Strap, Lens Cap, Lens Hood, Lens Rear Cap
・ The DC-G9 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.
-
NOTE
-
(*2) About motion picture recording / 6K PHOTO/4K PHOTO recording
- 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD] or [MP4(under 28Mbps)].
- Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K], [MOV], [High Speed Video], [Variable Frame Rate] or [6K PHOTO/4K PHOTO].
(SD speed class is the speed standard regarding continuous writing.)
- Recording stops when the continuous recording time exceeds 10 minutes in [4K/60p] [4K/50p] [4K/High Speed Video] [4K/30p/VFR 60fps or more] [4K/25p/VFR 50fps or more] [4K/24p/VFR 48fps or more] [6K PHOTO] [4K PHOTO/60fps].
- Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds in [4K/30p] [4K/25p] [4K/24p] [4K/30p/VFR less than 60fps] [4K/25p/VFR less than 50fps] [4K/24p/VFR less than 48fps] [FHD].
- Motion pictures with [MP4] in [4K] or [MOV]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can record a motion picture in a single file.
- Motion pictures with [MP4] in [FHD]:
- You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
(*3) For [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".
(*4) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
(*5) Firmware must be updated to the latest version 1.1 or later.
(*6) Firmware must be updated to the latest version 2.0 or later.
(*7) Upgrade Software Key (DMW-SFU1) is required.
(*8) Firmware must be updated to the latest version 2.4.
Related Products
Where to Buy
Accessories
Lenses
H-H014A
LUMIX G 14mm / F2.5 II ASPH.
Filters / Mount Adaptors
DMW-LND62
ND Filter
DMW-LPL62
PL Filter
DMW-LMCH62
MC Protector
DMW-MA1
Mount Adaptor
DMW-MA2M
Mount Adaptor
DMW-MA3R
Mount Adaptor
Flashes / Microphones
DMW-FL580L
External Flash
DMW-FL200L
External Flash
VW-LED1
LED Video Light
VW-VMS10
Microphones
