BAYU Jr 3-Blade Ceiling Fan
F-M12D2VBHH
Retail Sales Price:RM 439.00
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
F-M12D2VBHH
Leading Innovation in Comfort
• New 3-Blade Design
• Enhanced Safety Features
• Remote Control with 3-Preset Speed
• 1,3,6-Hour Off Timer
• 3,6-Hour Sleep Timer
• No hook required
• Hanger plate included
• Enhanced Safety Features
• Remote Control with 3-Preset Speed
• 1,3,6-Hour Off Timer
• 3,6-Hour Sleep Timer
• No hook required
• Hanger plate included
Features
Multi-Level Safety Protection
It is crucial to consider the safety and reliability features of the fan when you select a ceiling fan. Panasonic practices safety policy to prevent any dangerous mishaps.
- Prevention of body falling off
- Prevention of blade falling off
- Prevent motor from overheating
- Prevention of body falling off
- Prevention of blade falling off
- Prevent motor from overheating
Safety wire
Safety wire secures the fan motor to the ceiling hook to prevent detachment of the fan motor from rod.
Cut-off Safety Switch
Cut off power supply while detecting dangerous wear and tear of the shaft or bolt.
Blade Safety Plate
A fall prevention plate is installed on the blade to prevent fan blade to detach and dropping from the ceiling in case it damages.
Installation Tips
• Safety Wire must be fixed correctly and connected at all times.
• Do not use modified parts other than original supplied parts.
• Do not install at a location directly hit by wind.
• Do not use modified parts other than original supplied parts.
• Do not install at a location directly hit by wind.
Sleeping Mode
These fan are equipped with Sleep Mode, by which fan speed and timer will gradually reduce until the fan is off. This function not only creates an optimal sleeping environment but also enhances energy saving as well.
Note
• Sleep mode is disabled at speed 1 and 1 hour setting.
• Operation pattern will be different subject to different model and setting, please refer to the operation instruction for details.
• Sleep mode is disabled at speed 1 and 1 hour setting.
• Operation pattern will be different subject to different model and setting, please refer to the operation instruction for details.
Specs
Enhanced Safety Features
Remote Control with 3-Preset Speed
1,3,6-Hour Off Timer
3,6-Hour Sleep Timer
Model No
-
F-M12D2VBHH
Remote Control
-
Yes
Color
-
Silver

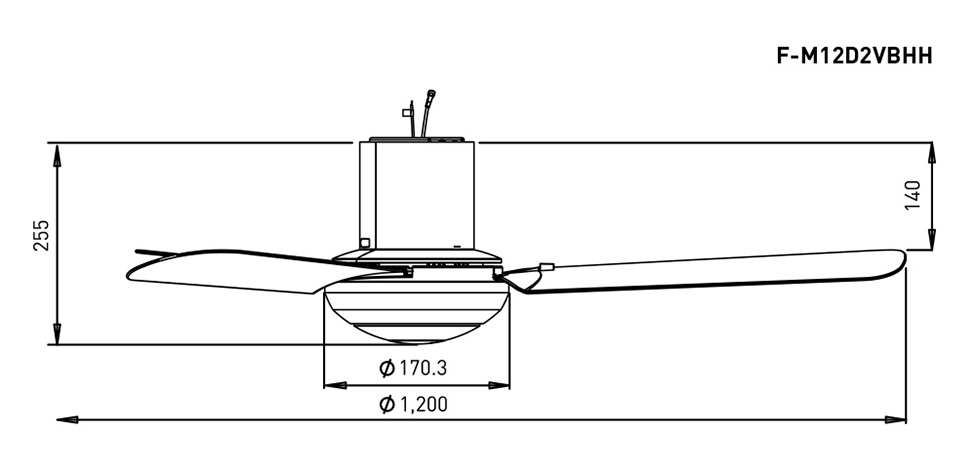

Dimension
-
Width (mm)
-
Ø1200 mm (48”)
-
-
Height (mm)
-
255mm
-
Power Consumption
-
Low (W)
-
20
-
-
High (W)
-
82
-
Fan Speed
-
Low (RPM)
-
103
-
-
High (RPM)
-
228
-
Air Velocity
-
(m/min)
-
185
-
Air Delivery
-
(m³/min)
-
187
-
Off Timer
-
1,3,6 Hour
Sleep Timer
-
3,6 Hour
