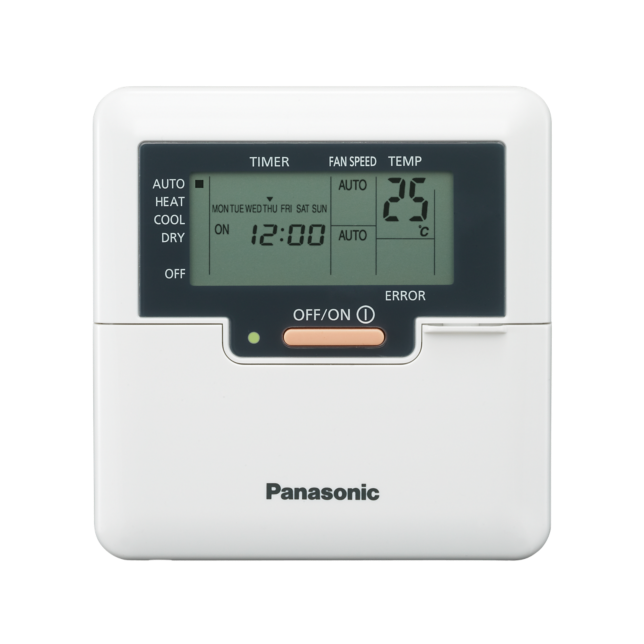

Wired Remote Controller for Wall Mounted Air Conditioner

CZ-RD514C

Wired Remote Controller for Wall Mounted AC

Wired remote for wall mounted air conditioners. It supports basic AC operations and timer control.

CZ-RD514C

Basic function: ON/OFF, Mode setting, Fan speed setting, Temperature setting, Air flow direction.

Timer setting: Daily timer, weekly timer. (a maximum of 6 settings/day and 42 settings/week can be programmed)

Error code display.

	CZ-RD514C
Dimensions (mm)	H 120 x W 116 x D 15.5
Net Weight	125g
Storage Temperature	-30 to 60˚C
Voltage	DC 5V ±0.25V
Working Condition	Operating temperature range (Indoor: -10~60˚C) Operating humidity range (40~95% RH)
Timer Errors	The timer errors shall be within ±30 sec at 25˚C ±2˚C in a month.
