Standard Non-Inverter R32 PN Series

Retail Sales Price:from RM 1,584.00

Energy Labels

Model Number	CS-PN9WKH-1_CU-PN9WKH-1	CS-PN12WKH-1_CU-PN12WKH-1	CS-PN18XKH-1B_CU-PN18XKH-1B	CS-PN24XKH-1_CU-PN24XKH-1	CS-PN30XKH-1_CU-PN30XKH-1
Horsepower	1.0 HP	1.5 HP	2.0 HP	2.5HP	3.0HP
Energy Efficiency Label

Standard Non-Inverter PN Series

Experience Instant Cooling Comfort

Panasonic Standard Non-Inverter PN Series features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room, while Quiet mode reduces the noise level of the indoor units for quiet operation. Features environmentally friendly R32 refrigerant.

*BIG FLAP is applicable to CS-PN9WKH-1 and CS-PN12WKH-1. AEROWINGS is applicable to CS-PN18XKH-1B, CS-PN24XKH-1 and CS-PN30XKH-1.

Please Select Your User Type

Standard Non-Inverter PN Series

Retail Sales Price:from RM 1,584.00

Specs

CS-PN9WKH-1_CU-PN9WKH-1

CS-PN12WKH-1_CU-PN12WKH-1

CS-PN18XKH-1B_CU-PN18XKH-1B

CS-PN24XKH-1_CU-PN24XKH-1

CS-PN30XKH-1_CU-PN30XKH-1

POWERFUL Mode
R32 Refrigerant
BIG FLAP
AEROWINGS
Quiet Mode
Sleep Mode

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Big bottom flap helps direct cool air across the room (Applicable to selected models)

AEROWINGS concentrates cool air for further and faster airflow across the room (Applicable to selected models)

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Compact design that fits perfectly anywhere

Environmentally friendly R32 refrigerant

	CS-PN9WKH-1_CU-PN9WKH-1	CS-PN12WKH-1_CU-PN12WKH-1	CS-PN18XKH-1B_CU-PN18XKH-1B	CS-PN24XKH-1_CU-PN24XKH-1	CS-PN30XKH-1_CU-PN30XKH-1
Model Name	PN9WKH-1	PN12WKH-1	PN18XKH-1B	PN24XKH-1	PN30XKH-1
Cooling Capacity (kW)	2.78 kW	3.52 kW	5.33 kW	6.85 kW	8.80 kW
Cooling Capacity (Btu/h)	9,500 Btu/h	12,000 Btu/h	18,200 Btu/h	23,400 Btu/h	30,000 Btu/h
EER (Btu/hW)	11.59 Btu/hW	11.21 Btu/hW	11.23 Btu/hW	10.68 Btu/hW	12.40 Btu/hW
EER (W/W)	3.39 W/W	3.29 W/W	3.29 W/W	3.13 W/W	3.64 W/W
CSPF (W/W)	3.48 W/W	3.43 W/W	3.52 W/W	3.36 W/W	-
Voltage (V)	230 V	230 V	230 V	230 V	230 V
Current (A)	3.7 A	4.8 A	7.1 A	9.7 A	10.6 A
Power Input (W)	820 W	1,070 W	1,620 W	2,190 W	2,420 W
Moisture Removal (L/h)	1.6 L/h	2.0 L/h	2.9 L/h	3.9 L/h	5.0 L/h
Moisture Removal (Pt/h)	3.4 Pt/h	4.2 Pt/h	6.1 Pt/h	8.2 Pt/h	10.6 Pt/h
Indoor Unit Air Circulation	10.9 m³/min (385 ft³/min)	11.6 m³/min (409 ft³/min)	18.4 m³/min (650 ft³/min)	20.5 m³/min (724 ft³/min)	25.5 m³/min (900 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	38/26 dB(A)	41/29 dB(A)	43/39 dB(A)	47/42 dB(A)	51/46 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)	290 mm x 779 mm x 209 mm	290 mm x 779 mm x 209 mm	295 mm x 1,040 mm x 244 mm	295 mm x 1,040 mm x 244 mm	309 mm x 1,212 mm x 269 mm
Indoor Unit Dimensions (H x W x D) (inch)	11-7/16 inch x 30-11/16 inch x 8-1/4 inch	11-7/16 inch x 30-11/16 inch x 8-1/4 inch	11-5/8 inch x 40-31/32 inch x 9-5/8 inch	11-5/8 inch x 40-31/32 inch x 9-5/8 inch	12-3/16 inch x 47-23/32 inch x 10-19/32 inch
Indoor Unit Net Weight	8 kg (18 lb)	8 kg (18 lb)	12 kg (26 lb)	12 kg (26 lb)	16 kg (35 lb)
Outdoor Unit Air Circulation	28.8 m³/min (1,020 ft³/min)	29.8 m³/min (1,050 ft³/min)	39.3 m³/min (1,390 ft³/min)	40.3 m³/min (1,420 ft³/min)	54.4 m³/min (1,920 ft³/min)
Outdoor Unit Noise Level (H / L / Q-Lo)	48 dB(A)	51 dB(A)	53 dB(A)	55 dB(A)	56 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	511 mm x 650 mm x 230 mm	542 mm x 780 mm x 289 mm	619 mm x 824 mm x 299 mm	619 mm x 824 mm x 299 mm	695 mm x 875 mm x 320 mm
Outdoor Unit Dimensions (H x W x D) (inch)	20-1/8 inch x 25-19/32 inch x 9-1/16 inch	21-11/32 inch x 30-23/32 inch x 11-13/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch	27-3/8 inch x 34-15/32 inch x 12-5/8 inch
Outdoor Unit Net Weight	21 kg (46 lb)	26 kg (57 lb)	35 kg (77 lb)	41 kg (90 lb)	53 kg (117 lb)
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)	ø 9.52 mm (3/8 inch)	ø 12.70 mm (1/2 inch)	ø 15.88 mm (5/8 inch)	ø 15.88 mm (5/8 inch)
Pipe Extension (Chargeless Pipe Length)	7.5 m	7.5 m	7.5 m	7.5 m	7.5 m
Pipe Extension (Maximum Pipe Length)	20 m	20 m	30 m	30 m	40 m
Pipe Extension (Maximum Elevation Length)	15 m	15 m	20 m	20 m	30 m
*Pipe Extension (Additional Refrigerant Gas)**	10 g/m	10 g/m	15 g/m	25 g/m	25 g/m
Power Supply	Indoor	Indoor	Indoor	Indoor	Outdoor
Sleep Mode	Yes	Yes	Yes	Yes	Yes
Powerful Mode	Yes	Yes	Yes	Yes	Yes
Soft Dry Operation Mode	Yes	Yes	Yes	Yes	Yes
Quiet Mode	Yes	Yes	Yes	Yes	Yes
Airflow Direction Control (Up & Down)	Yes	Yes	Yes	Yes	Yes
Manual Horizontal Airflow Direction Control	Yes	Yes	Yes	Yes	Yes
Odour Removing Function	Yes	Yes	Yes	Yes	Yes
Removable Washable Panel	Yes	Yes	Yes	Yes	Yes
24-Hour ON & OFF Real Setting Timer	Yes	Yes	Yes	Yes	Yes
LCD Wireless Remote Control	Yes	Yes	Yes	Yes	Yes
Wired Remote Control	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)
Random Auto Restart	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes	Yes	Yes	Yes	Yes
Long Piping (max.)	20 m	20 m	30 m	30 m	40 m
Top Panel Maintenance Access	Yes	Yes	Yes	Yes	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

Documents

Panasonic Air Conditioner Standard Non Inverter R32 (PN) Leaflet (PDF - 5.7 MB)

Case Studies

Features

Environmentally Friendly R32 Refrigerant

Panasonic air conditioners use environmentally friendly R32 refrigerant. An excellent heat transfer medium with a higher cooling capacity, this refrigerant reduces energy costs. It also has low global warming potential, making it friendlier to the environment.

LEARN MORE

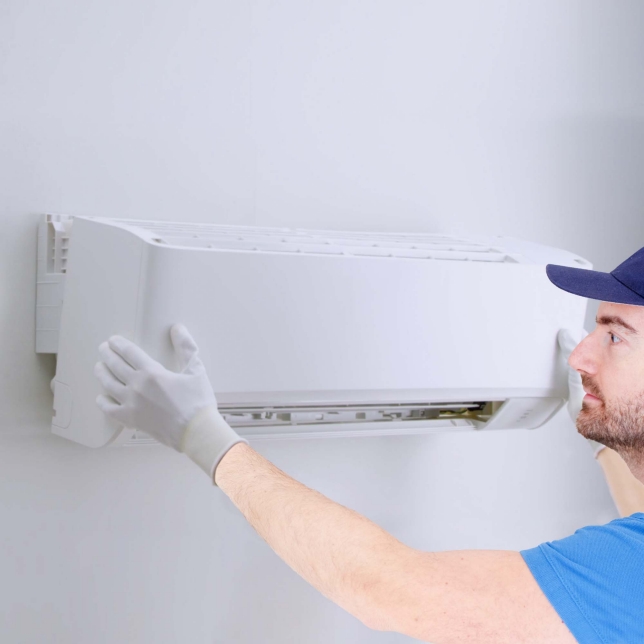

Installation and Servicing Made Easier

Panasonic air conditioners come with many design innovations and improvements. No more struggling to disassemble components, not being able to see what you’re doing, squeeze in pipes or having to juggle tools with one hand. Working with Panasonic air conditioners is now faster, easier and simpler than ever.

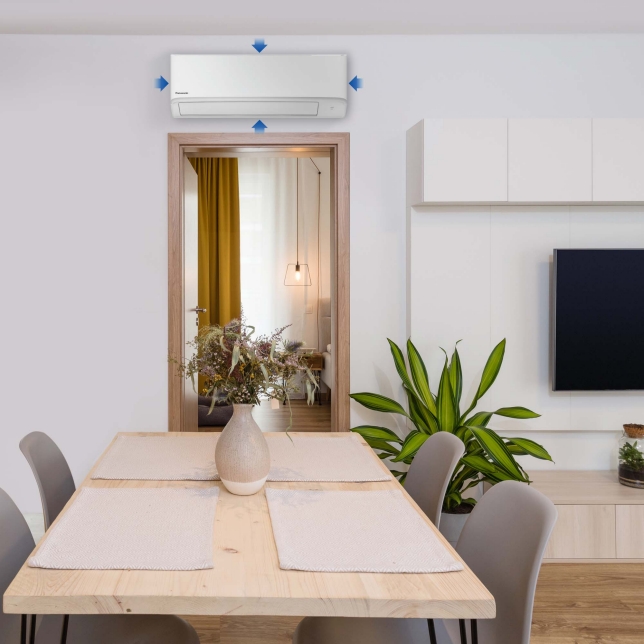

Fits Perfectly Anywhere

Panasonic air conditioners are designed to be compact enough to fit easily in tight, narrow spaces such as close to ceilings, close to corner walls, and above doors and windows. The designed structure makes installation and maintenance easy.

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.
