R32 Inverter NX Series Ceiling Exposed

SHOP NOW
Contact Us

R32 Inverter NX Series Ceiling Exposed

Delivers superior air purification and convenience with a new IoT remote controller

R32 Inverter NX Series Ceiling Exposed units provide a new level of air quality thanks to the further and wider airflow distribution of the nanoe X Generator Mark2, as well as extra convenience with a new IoT remote controller.
  • nanoe X Generator Mark2
  • Comfort Cloud App
  • CONEX
  • Inverter

Please Select Your User Type

Zoom In
Zoom Out
Close
R32 Inverter NX Series Ceiling Exposed
Contact Us

Features

Btu/h (rated)

17,100

20,500

24,200

29,000

34,100

42,700

45,500/47,800

42,700

45,500/47,800

Phase

1Ø Phase

1Ø Phase

1Ø Phase

3Ø Phase

Indoor Unit

S-1821PT3H

S-2430PT3H

S-3448PT3H

S-3448PT3H

Outdoor Units (Deluxe)

U-18PRH1H5-1

U-21PRH1H5-1

U-24PRH1H5-1

-

U-34PRH1H5-1

U-43PRH1H5-1

U-48PRH1H5-1

U-43PRH1H8-1

U-48PRH1H8-1

Outdoor Units (Standard)

U-18PR1H5-1

U-21PR1H5-1

U-24PR1H5-1

U-30PR1H5-1

U-34PR1H5-1

U-43PR1H5-1

U-48PR1H5-1

U-43PR1H8-1

U-48PR1H8-1

More Efficient Air Protection with nanoe X Generator Mark2

24-hour nanoe™ X Air Protection

Get 24 hours of quality air for you and your loved ones by turning nanoe™ X on using Panasonic Comfort Cloud anywhere, anytime. nanoe™ X functions in the cooling mode and is maintenance-free, helping you enjoy cleaner air while keeping your costs down.

LEARN MORE
24-hour nanoe™ X Air Protection

Odour Reduction to 1.8 Level

[Odour intensity] 5: Very strong odour, 4: Strong odour, 3: Easily detectable odour, 2: Weak, recognisable odour (cognitive threshold concentration), 1: Barely detectable odour (detection threshold concentration), 0: No odour
Note: The test result is obtained using a 4-Way Cassette. *Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark1 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced to 1.8 in 120 minutes (L19YK032-01) **Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark2 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced to 1.8 in 60 minutes (L19YK032-01)
Odour Reduction to 1.8 Level

Precise Control, Easy Comfort

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.

Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6BLW are required per unit.

LEARN MORE
A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

Convenient Centralised Control

With the built-in network adaptor and Panasonic Comfort Cloud app, connected up to 20 air conditioning units at 1 location (up to 10 locations), remotely access all air conditioning features, track and monitor the usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6BLW are required per unit.

LEARN MORE
Convenient Centralised Control

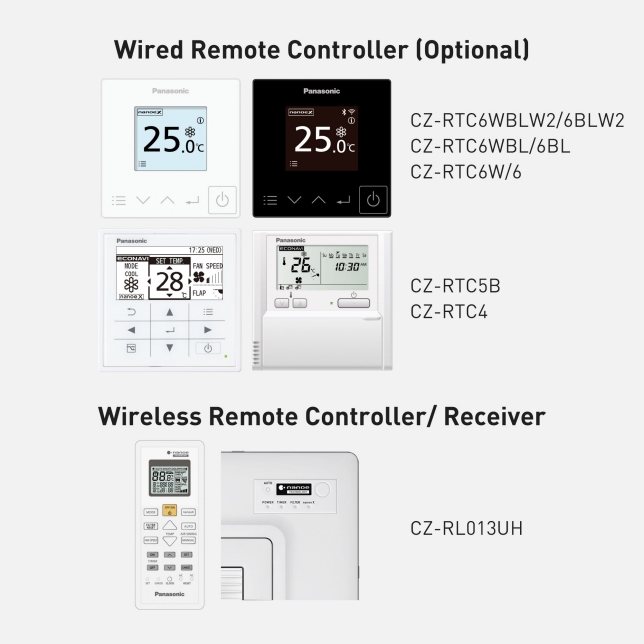

Other Control Options

Besides Smart Control CONEX, wireless remote controllers* and conventional wired remote controllers RTC5B and RTC4 are also available.

*Wireless remote controller is included in the same box with IDU.

LEARN MORE
Other Control Options

Comfortable and Wide Airflow Distribution

The wide air discharge opening widens the airflow to the left and the right, helping provide comfortable temperature throughout the entire room.
Comfortable and Wide Airflow Distribution

Economy Mode

Saves up to 20%* energy. The air conditioner determines the stable condition and moderately shifts the set temperature in 0.5-degree steps to regulate the energy-saving operation (maximum 2 degrees).
*When operating in cooling mode at 25°C or lower.
Economy Mode

Specs

S-1821PT3H

Photo of S-1821PT3H

S-2430PT3H

Photo of S-2430PT3H

S-3448PT3H

Photo of S-3448PT3H
  • nanoe X Generator Mark2nanoe X Generator Mark2
  • Comfort Cloud AppComfort Cloud App
  • CONEXCONEX
  • InverterInverter

nanoe™ X patented air purification technology

CONEX: A next-generation remote control

The slim design makes thickness only 235 mm

Compact-looking, stylish design

Comfortable, long-distance airflow distribution

Random auto restart

S-1821PT3H S-2430PT3H S-3448PT3H
Air Volume 15.0 m³/min, 530 cfm 21.0 m³/min, 740 cfm 35.0 m³/min, 1,235 cfm
Sound Pressure Level (Hi/Lo) 38/29 dB (A) 40/32 dB (A) 46/38 dB (A)
Sound Power Level (Hi/Lo) 56/47 dB 58/50 dB 64/56 dB
Dimension H235 x W960 x D690 mm H235 x W1,275 x D690 mm H235 x W1,590 x D690 mm
Net Weight 26 kg 34 kg 40 kg

Documents

Combination

Outdoor Unit

R32 Inverter NX Series Deluxe

The higher energy efficiency of the R32 refrigerant provides superior energy savings. This series also ensures powerful operation even in extremely hot environments.

R32 Inverter NX Series Standard

The higher energy efficiency of the R32 refrigerant provides superior energy savings. These outdoor units are designed to fit into any space or layout.

Individual Controller

CZ-RTC6W/CZ-RTC6

A sleek, modern controller with nanoe™ X and ECONAVI control functions

CZ-RTC6WBL/CZ-RTC6BL

CONEX is a next-gen remote that connects to two apps via Bluetooth®. The Panasonic H&C Control app offers intuitive operation for owners on their devices and quick set-up for installers. The H&C Diagnosis App aids in swift, accurate fault detection and repair.

CZ-RTC6WBLW/CZ-RTC6BLW

A next-gen remote connecting to three apps via Wireless LAN and Bluetooth®. Panasonic Comfort Cloud also enables remote control. The Panasonic H&C Control App allows for easy operation and swift installer setup. H&C Diagnosis App ensures rapid, accurate repairs.

CZ-RTC5B

User-friendly, sleek, clear design with energy-saving functions and convenient extra features. These distinctive characteristics set this remote control apart.

CZ-RTC4

Perform basic air conditioner functions and timer controls, alongside Panasonic's energy-saving ECONAVI technology operations.

CZ-ESWC2

Achieve simplified, centralised control of up to 64 air-conditioning units (64 groups, 64 indoor units) throughout the entire building. Primarily enabled by the timer function, this system makes HVAC management effortless.

Centalised Controller

CZ-64ESMC3

Efficient management with centralised control of up to 64 units (64 groups, 64 indoor units). This solution includes four energy-saving functions, demand control, and timer functions, all designed to improve overall management efficiency.

CZ-ANC3

Enable simple, centralised control of up to 64 units (16 groups, 64 indoor units). This system specialises in ON/OFF control for easy and efficient management.

CZ-256ESMC3

Control up to 256 indoor units* centrally, promoting comfort and energy efficiency across the building with four energy-saving functions and demand control. The system offers swift AC cost calculations for tenants and enables remote monitoring and control via the internet.

CZ-CFUSCC1

AC Smart Cloud communication adaptor. Control up to 128 groups (128 indoor units) with ease.

CZ-CSWKC2

P-AIMS (Panasonic - Air Conditioning Intelligent Management System) integrates monitoring and control of air conditioners from your PC. By coupling basic software with optional ones, it enables comprehensive monitoring and control of all types of building equipment.

Accessory

CZ-CAPC3

Control and status monitoring of individual indoor units, as well as external electrical devices up to 250V AC, 10A, is achievable through contact signals.

CZ-CAPBC2

Each individual indoor unit, or any external electrical device up to 250V AC, 10 A, can be controlled and monitored for status via contact signal.

CZ-CFUNC2

Optional CZ-CFUNC2 adaptor enables seamless connection with 3rd party BMS systems.

CZ-CLNC2

Communication converter for LonWorks to S-Link integration.

CZ-CAPWFC1

The optional Wireless LAN adaptor facilitates the connection of multiple indoor units to the Panasonic Comfort Cloud App. This integration empowers you with control and monitoring functions from your mobile devices.

Smart Connectivity+

SER8150

Panasonic's VRF Smart Connectivity+ is an advanced solution that prioritises energy management, delivering exceptional energy savings and comfort. With its user-friendly installation, operation, and running, it ensures a seamless experience.
