LUMIX S5D pilnkadra bezspoguļu kamera DC-S5D

DC-S5DN
(DC-S5D + S-R1840)

PILNKADRA JAUDA

LUMIX DC-S5DN (komplekts ar S5D korpusu un LUMIX S 18-40 mm / F4.5-6.3 tālummaiņas objektīvu)
LUMIX S5D nodrošina izcilu foto un video attēlu kvalitāti visā jutības diapazonā ergonomiskā korpusā, kas paredzēts satura veidotājiem, kuri rūpējas par kvalitāti.
Tuvināt
Tālināt
Aizvērt
DC-S5DN
(DC-S5D + S-R1840)

Iespējas

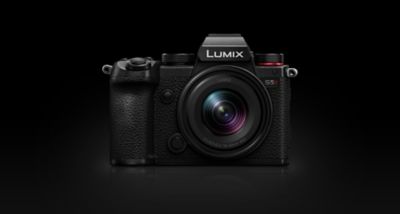

Hibrīds un kompakts korpuss

Šajā hibrīda bezspoguļu kamerā ir pilna kadra attēla sensors, 10-bitu 4K 60p/50p ieraksta iespēja, vairāk nekā 14 V-Log iestatījuma punkti un vēl — viss neticami kompaktā un vieglā korpusā.
Hibrīds un kompakts korpuss

24.2 MP CMOS sensors ar Dual Native ISO tehnoloģiju

24.2MP CMOS sensors nodrošina augstu jutību un vislabāko attēlu kvalitāti gan fotogrāfijās, gan video. Dual Native ISO tehnoloģija* vēl vairāk uzlabo video kvalitāti.
*Dual Native ISO darbojas automātiski.
24.2 MP CMOS sensors ar Dual Native ISO tehnoloģiju

Dažādi ierakstīšanas režīmi

Ierakstīšanas režīmi, kas atbilst dažādām vajadzībām, ietver 4K 60p/50p* 4:2:0 10 bitu un C4K/4K 30p/25p 4:2:2 10 bitu režīmu, kā arī 4K 8 bitu režīmu bez videoieraksta laika ierobežojuma.
*ASP-C vai "PIKSELIS/PIKSELIS" iestatījumos.
Dažādi ierakstīšanas režīmi

HDMI tiešā izvade profesionālai filmu veidošanai

4:2:2 10 bitu iekšējā ierakstīšana / HDMI izvade

10-bitu iestatījumā 4:2:2 10-bitu HDMI izvade tiek atbalstīta līdz ar vienlaicīgu ierakstīšanu ārējā diskā vai SD kartē.*
*Ierakstīšana SD kartē nav pieejama C4K/4K 60p/50p 4:2:2 10 bitu HDMI izvades laikā.
4:2:2 10 bitu iekšējā ierakstīšana / HDMI izvade

RAW video datu izvade

LUMIX S5D nodrošina maksimālo 29,97p 5,9K (5888x3312, 16:9), 59,94p 4,1K (4128x2176, 17:9) un 50,00p 3,5K (3536x2656, 4:3) 12 bitu RAW video datu izvadi, izmantojot HDMI, lai saglabātu tos kā ProRes RAW uz ATOMOS NINJA V HDR monitoru-ieraksta iekārtām.* Blackmagic RAW var ierakstīt arī ar Video Assist 12G HDR.**

*[ProRes RAW] ･Informāciju par attiecīgo ATOMOS Ninja V programmaparatūras versiju skatiet ATOMOS tīmekļa vietnē. ･Lai rediģētu RAW video, kas ierakstīti ar ATOMOS Ninja V, ir nepieciešama programmatūra, kas atbalsta ProRes RAW. Izmantojiet LUT (Look up table), kas pieejama šajā klientu atbalsta vietnē, lai veiktu tādu pašu krāsu gradāciju kā V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ･Atkarībā no situācijas visas funkcijas var nebūt pieejamas.
**[Blackmagic RAW] ･Informāciju par Blackmagic Video Assist 12G HDR attiecīgo aparātprogrammatūru skatiet Blackmagic Design tīmekļa vietnē. ･Lai atskaņotu un rediģētu Blackmagic RAW datus, ir nepieciešams DaVinci Resolve vai DaVinci Resolve Studio. Lai iesniegtu projektus, izmantojot Blackmagic RAW datus izšķirtspējā, kas pārsniedz 3840x2160, ir nepieciešama DaVinci Resolve Studio programmatūra. ･Pieejamās funkcijas ir atkarīgas no situācijas.

RAW video datu izvade

14+ iestatījuma punktu V-Log un V-Gamut “VariCam Look”

Funkcijas V-Log un V-Gamut ir iepriekš instalētas. Pateicoties vairāk nekā 14 iestatījuma punktiem dinamiskajā diapazonā un plašai krāsu gammai, veiktspēja konkurē pat ar VariCam profesionālajām kino kamerām.
14+ iestatījuma punktu V-Log un V-Gamut “VariCam Look”

Autofokusa sistēma ar mākslīgā intelekta tehnoloģiju

Ar ātru (aptuveni 0,08 s**) un precīzu autofokusu un dziļās mācīšanās tehnoloģiju, kas atpazīst cilvēku sejas, acis, galvas un ķermeņus, kā arī dzīvniekus.
*Šī fotogrāfija tika uzņemta ar līdzvērtīgas veiktspējas modeli.
**11EV, ar platākajā pozīcijā S-R24105 (CIPA) LVF120 kadru/s iestatījumā.
Autofokusa sistēma ar mākslīgā intelekta tehnoloģiju

96 MP augstas izšķirtspējas režīms ar JPEG

Tagad fotogrāfijas var saglabāt tieši JPEG formātā, lai iegūtu smalki detalizētus, 96 megapikseļu ekvivalenta attēlus, kas raksturīgi LUMIX.
*Šī fotogrāfija tika uzņemta ar līdzvērtīgas veiktspējas modeli.
96 MP augstas izšķirtspējas režīms ar JPEG

6,5-punktu dubultais A.S. 2

Piecu asu dubultais A.S. 2 (attēla stabilizators) apvieno Body I.S. (korpusa attēla stabilizētāja) un Lens O.I.S. (objektīva attēla stabilizētāja) vadību, nodrošinot korekciju ar 6,5 iestatījumu punktiem.*
*Pamatojoties uz CIPA standartu (nobīdes/slīpuma virziens: fokusa attālums f=200 mm, ja tiek izmantots S-E70200 modelis).
6,5-punktu dubultais A.S. 2

Noturība pret putekļiem un šļakatām

Izturīgais korpuss ir noturīgs pret putekļiem un šļakatām*, jo salaiduma vietām, pogām un citām funkcionālajām detaļām ir nodrošināta hermētiska un cita veida aizsardzība.
*Kamera ir šļakatu noturīga, savienojumā ar lēcām, kas ir īpaši radītas, lai atbalstītu šo funkciju. Apzīmējums “izturīgs pret putekļiem un šļakatām” negarantē, ka šai kamerai neradīsies bojājumi tiešā saskarē ar putekļiem un ūdeni.
Noturība pret putekļiem un šļakatām

Iedvesmai

Specifikācijas

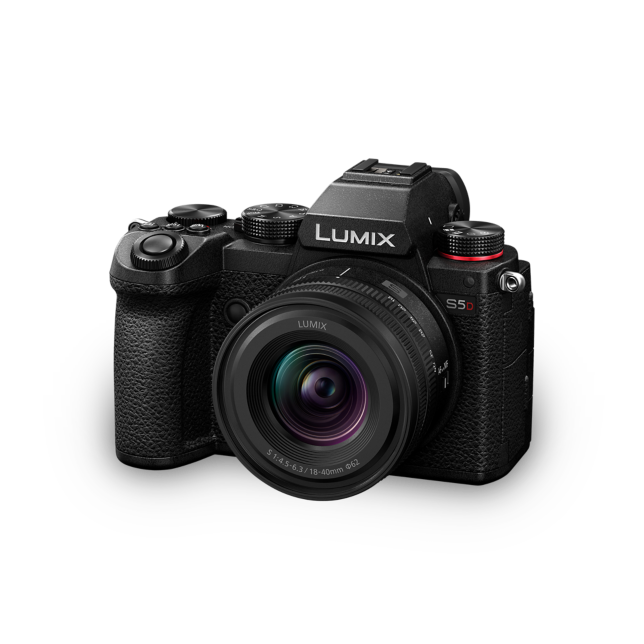

Fotoattēla LUMIX S5D pilnkadra bezspoguļu kamera DC-S5D

Izmērs un svars

Augstums
97.1mm
Platums
132.6mm
Dziļums
81.9mm
Svars
714g

Visas vērtības ir aptuvenas. Objektīvs nav iekļauts. Svars ar zibspuldzes stiprinājuma pārsegu, akumulatoru un SD karti. Korpuss tikai 630 g. Izmēri bez izvirzījumiem.

  • L-MountL-Mount
  • 24,2 megapikseļi24,2 megapikseļi
  • 4K video ierakstīšanas iespēja4K video ierakstīšanas iespēja
  • 14+ iestatījuma punktu V-Log14+ iestatījuma punktu V-Log
  • Piecu asu dubultais A.S. 2 (attēla stabilizētājs)Piecu asu dubultais A.S. 2 (attēla stabilizētājs)
  • 2 360 000 punktu OLED tiešā skata meklētājs2 360 000 punktu OLED tiešā skata meklētājs
  • 1 840 000 punktu brīvā leņķa monitors1 840 000 punktu brīvā leņķa monitors
  • Noturīgs pret putekļiem un šļakatāmNoturīgs pret putekļiem un šļakatām
  • Wi-FiWi-Fi
  • BluetoothBluetooth

Foto/video hibrīda bezspoguļu kamera ar kompaktu, vieglu korpusu.

24,2 MP pilnkadra CMOS sensors ar Dual Native ISO tehnoloģiju.

4K 60p/50p 4:2:0 10 bitu, C4K/4K 30p/25p 4:2:2 10 bitu, 4K 8 bitu bez video ierakstīšanas laika ierobežojuma un 14+ iestatījuma punktu V-Log/V-Gamut.

Liela ātruma, augstas precizitātes autofokuss un dziļās mācīšanās tehnoloģija cilvēku/dzīvnieku atpazīšanai.

TYPE

  • Type

    • Digital Single Lens Mirrorless camera

  • Lens mount

    • L-Mount

IMAGE SENSOR

  • Type

    • 35mm full-frame (35.6mm x 23.8mm) CMOS sensor

  • Camera effective pixels / Total pixels

    • 24.20 megapixels / 25.28 megapixels

  • AR (Anti Reflection) coating

    • Yes

  • Aspect ratio / Color filter

    • 3:2 / Primary color filter

  • Dust reduction system

    • Image sensor shift type

LATITUDE

  • 14+ stops (V-Log)

STILL IMAGE

  • Recording file format

    • Still image
      • JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
    • 6K PHOTO** / 4K PHOTO**
      • 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
        4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
        Extracted still images: JPEG (DCF, Exif 2.31)

  • Aspect ratio

    • 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1

  • File size (Pixels) / When using full-frame lenses

    • 3:2
      • 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution Mode.
        5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
    • 4:3
      • 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution Mode.
        4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
    • 16:9
      • 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution Mode.
        3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
    • 1:1
      • 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution Mode.
        2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
    • 65:24
      • 6000x2208(L)
    • 2:1
      • 6000x3000(L)

  • File size (Pixels) / When using APS-C/Super 35mm lenses

    • 3:2
      • 3984x2656(L) / 2880x1920(M) / 2064x1376(S) / 3504x2336(4K PHOTO)
    • 4:3
      • 3536x2656(L) / 2560x1920(M) / 1840x1376(S) / 3328x2496(4K PHOTO)
    • 16:9
      • 3984x2240(L) / 2880x1624(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
    • 1:1
      • 2656x2656(L) / 1920x1920(M) / 1376x1376(S) / 2880x2880(4K PHOTO)

  • Image quality

    • RAW / RAW+Fine / RAW+Standard / Fine / Standard

  • Color space

    • sRGB, AdobeRGB

MOTION PICTURE

  • Recording file format

    • MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit))
      MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))

  • Switch NTSC / PAL

    • Yes (NTSC (59.94Hz) / PAL(50.00Hz))

  • MOV** / NTSC (59.94Hz) / Full-frame

    • [C4K] 4096x2160
      • 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • [4K] 3840x2160
      • 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • [FHD] 1920x1080
      • 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.

  • MOV** / NTSC (59.94Hz) / APS-C / Pixel by Pixel

    • [C4K] 4096x2160
      • 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • [4K] 3840x2160
      • 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
        59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • [Anamorphic 4K] 3328x2496 (4:3)
      • 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • [FHD] 1920x1080
      • 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.

  • MOV** / PAL (50.00Hz) / Full-frame

    • [C4K] 4096x2160
      • 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • [4K] 3840x2160
      • 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • [FHD] 1920x1080
      • 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.

  • MOV** / PAL (50.00Hz) / APS-C / Pixel by Pixel

    • [C4K] 4096x2160
      • 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • [4K] 3840x2160
      • 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
        50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • [Anamorphic 4K] 3328x2496 (4:3)
      • 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
        50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    • [FHD] 1920x1080
      • 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
        25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.

  • MP4** / NTSC (59.94Hz) / Full-frame

    • [4K] 3840x2160
      • 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • [FHD] 1920x1080
      • 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4** / NTSC (59.94Hz) / APS-C / Pixel by Pixel

    • [4K] 3840x2160
      • 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • [FHD] 1920x1080
      • 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4** / PAL (50.00Hz) / Full-frame

    • [4K] 3840x2160
      • 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • [FHD] 1920x1080
      • 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

  • MP4** / PAL (50.00Hz) / APS-C / Pixel by Pixel

    • [4K] 3840x2160
      • 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
        25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • [FHD] 1920x1080
      • 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

HDMI RAW DATA OUTPUT

  • Compatible external devices

    • ATOMOS HDMI field monitor/recorder "Ninja V+"
      *Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V.
      *Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
      https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
      *All functions may not be available depending on the situation.

      Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR
      *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
      *DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
      *All functions may not be available depending on the situation.

  • Rec quality / NTSC (59.94Hz) / Full-frame

    • [5.9K] 5888x3312
      • 29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)

  • Rec quality / NTSC (59.94Hz) / APS-C

    • [4.1K] 4128x2176 (17:9)
      • 59.94p, 12-bit (LPCM)
        29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)
    • [Anamorphic 3.5K] 3536x2656 (4:3)
      • 29.97p, 12-bit (LPCM)
        23.98p, 12-bit (LPCM)

  • Rec quality / PAL (50.00Hz) / Full-frame

    • [5.9K] 5888x3312
      • 25.00p, 12-bit (LPCM)

  • Rec quality / PAL (50.00Hz) / APS-C

    • [4.1K] 4128x2176 (17:9)
      • 50.00p, 12-bit (LPCM)
        25.00p, 12-bit (LPCM)
    • [Anamorphic 3.5K] 3536x2656 (4:3)
      • 50.00p, 12-bit (LPCM)
        25.00p, 12-bit (LPCM)

  • Audio format

    • LPCM (2ch 48kHz/16-bit)

SLOW & QUICK

  • MP4** / NTSC (59.94Hz) / Full-frame

    • [FHD] 1920x1080
      • 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps
        *Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more.

  • MP4** / NTSC (59.94Hz) / APS-C / Pixel by Pixel

    • [4K] 3840x2160
      • 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        1, 2, 5, 10, 15, 30, 60 fps

  • MP4** / PAL (50.00Hz) / Full-frame

    • [FHD] 1920x1080
      • 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps
        *Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more.

  • MP4** / PAL (50.00Hz) / APS-C / Pixel by Pixel

    • [4K] 3840x2160
      • 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        1, 2, 5, 10, 15, 30, 60 fps

VIEWFINDER

  • Type

    • OLED Live View Finder

  • Pixels

    • Approx. 2.36 million dots

  • Field of view / Magnification

    • Approx. 100% / Approx. 0.74x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2

  • Eye point / Diopter adjustment

    • Approx. 20 mm at infinity; -1.0 m-1 / -4.0 - +4.0 (dpt)

  • Eye sensor

    • Yes

  • Display speed

    • 120fps / 60fps

  • Display time lag

    • Approx. 0.005sec

REAR MONITOR

  • Type

    • TFT LCD monitor with static touch control

  • Monitor size

    • Free-angle, 3.0-inch (about 7.62cm), 3:2 aspect

  • Pixels

    • Approx. 1.84 million dots

  • Field of view

    • Approx. 100%

FOCUS

  • Type

    • Contrast AF system

  • DFD technology

    • Yes

  • Focus mode

    • AFS (Single) / AFC (Continuous) / MF

  • AF mode

    • Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3
      (Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF.

  • AF detective range

    • EV -6 - 20 (F1.4, ISO100 equivalent, AFS)

  • AF custom setting

    • AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction

  • AF assist lamp

    • Yes

  • AF lock

    • Set the Fn button in custom menu to AF lock

  • Post Focus / Focus Stacking

    • Yes / Yes

  • Others

    • AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode, 1-Area AF Moving Speed, Loop Movement Focus Frame, AFC Start Point (225-Area), Lens Focus Resume, Focus Ring Control

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system

  • Light metering mode

    • Multiple / Center Weighted / Spot / Highlight Weighted

  • Metering range

    • EV0-18 (F2.0 lens, ISO100 equivalent)

  • Mode dial

    • Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
      *The same exposure operations as P/A/S/M mode is available.

  • ISO sensitivity (Standard output sensitivity)

    • Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO

  • Dual Native ISO

    • [Normal]
      Native ISO: 100, 640
      Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO

      [V-Log]
      Native ISO: 640, 4000
      Auto: Auto / 320* / 640-51200 *Extended ISO

      [HLG]
      Native ISO: 400, 2500
      Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO

      [Cinelike D2 / Cinelike V2]
      Native ISO: 200, 1250
      Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO

  • Exposure compensation

    • 1/3 EV step ±5EV (±3EV for motion picture)

  • AE lock

    • Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

  • Image sensor shift type (5-axis / 5.0-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
    Dual I.S. (6.5-stop* Dual I.S. 2 compatible) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4

  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias

  • Color temperature setting

    • 2500-10000K in 100K

SHUTTER

  • Type

    • Focal-plane shutter

  • Shutter speed

    • Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
      Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
      Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
      Motion picture: 1/16,000 - 1/25
      Creative Video M mode / MF mode: 1/16,000 - 1/2

  • Self timer

    • 10sec, 3 images / 2sec / 10sec

  • Remote control

    • Remote control by DMW-RS2 (sold separately)

  • Silent mode / Shutter type

    • Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

  • AE bracket

    • 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst

  • Aperture bracket

    • 3, 5 or all positions in 1 EV step

  • Focus bracket

    • 1 to 999 images, focus steps can be set in 10 levels

  • White balance bracket

    • 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

  • Burst speed

    • Mechanical shutter / Electronic front curtain shutter
      • AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
        AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    • Electronic shutter
      • AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
        AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)

  • Number of recordable images

    • RAW / RAW+JPEG: More than 24 images
      JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.)
      * When recording is performed under the test conditions specified by Panasonic.

6K PHOTO** / 4K PHOTO**

  • Burst speed

    • 6K PHOTO: 30 frames/sec
      4K PHOTO: 60 frames/sec, 30 frames/sec

  • Exif information

    • Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

FLASH

  • Flash type

    • TTL External Flash (sold separately)

  • Flash mode

    • Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.

  • Flash synchronization

    • 1st Curtain Sync, 2nd Curtain Sync.

  • Flash output adjustment

    • 1/3EV step ±3EV

  • Synchronization speed

    • Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.

  • Wireless control

    • Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

EXTRA TELE CONVERSION

  • 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

  • Photo Style

    • Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Standard (HLG) / Monochrome (HLG) / Like2100 (HLG) / My Photo Style 1-10

  • Picture adjustment

    • Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB
      *Adjustable settings vary depending on the Photo Style mode.

FILTER

  • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
    *For photos only.

MOTION PICTURE FUNCTION

  • Vertical Position Information

    • ON / OFF

  • Master pedestal level

    • 31 steps

  • Luminance level

    • 8-bit: 0-255 / 16-235 / 16-255
      10-bit: 0‒1023 / 64‒940 / 64‒1023

  • Wave form monitor / Vectorscope

    • Selectable

  • LUT display

    • LUT View Assist (Monitor) / LUT View Assist (HDMI)

  • Time code

    • Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.)

  • SS/Gain operation

    • Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB

  • Knee control

    • Yes (in Like709 mode)

FUNCTION BUTTON

  • REC

    • Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Post-Focus / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Slow & Quick Setting / Time Code Display / Sound Rec Level Disp. / Sound Rec Level Adj. / Sound Rec Level Limiter / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Live Cropping / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Restore to Default

  • PLAY

    • Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default

LEVEL GAUGE

  • Yes

PRINT

  • PictBridge compatible

INTERFACE

  • USB

    • USB Type-C® (USB 10Gbps)

  • HDMI***

    • Monitor-through
      • When a mode other than [C4K/60p]/[C4K/50p]/[4K/60p]/[4K/50p] is selected for [Rec Quality]:
        4:2:2 10bit, 4:2:2 8bit, 4:2:0 8bit

        When [C4K/60p]/[C4K/50p/[4K/60p]/[4K/50p] mode is selected in [Rec Quality]:
        4:2:2 10bit*, 4:2:0 8bit *When 4:2:2 10bit mode is selected, it is not possible to record motion picture or still picture on the memory card in the camera unit.

        Info Display: ON / OFF (selectable)
        HLG View Assist (HDMI): AUTO / MODE1 / MODE2 / OFF (selectable)
    • Playback
      • microHDMI TypeD / VIERA Link, Audio: Stereo
        NTSC (59.94Hz): Auto / C4K/60p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
        PAL (50.00Hz): Auto / C4K/50p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p

  • Remote input

    • φ2.5mm

  • External microphone / external audio device input

    • φ3.5mm for external microphone / external audio device
      MIC (Plug-in Power) / MIC / LINE is selectable.
      Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).

  • Headphone output

    • φ3.5mm

  • Microphone

    • Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).

  • XLR microphone

    • Yes with DMW-XLR1 (sold separately)

  • Speaker

    • Monaural

  • SD card slot

    • SD Memory Card, SDHC Memory Card, SDXC Memory Card
      Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
      Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards.

WIRELESS

  • Wi-Fi

    • 2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
      5GHz bands (STA) (IEEE 802.11a/n/ac)

  • Bluetooth

    • Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

  • Yes.
    *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

  • Battery

    • Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
      USB power supply, USB power charging

  • Battery life (CIPA standard)

    • Approx. 430 images (rear monitor), 450 images (LVF), 1,500 images (Power Save LVF mode*) with S-R1840
      Approx. 410 images (rear monitor), 430 images (LVF), 1,450 images (Power Save LVF mode*) with S-R28200
      *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.

  • Continuous recordable time (Motion picture)**

    • MP4 [FHD/60p]: Approx. 140 min (rear monitor), 140 min (LVF) *When using S-R1840. When the battery is fully charged.
      MP4 [FHD/60p]: Approx. 130 min (rear monitor), 140 min (LVF) *When using S-R28200. When the battery is fully charged.

  • Actual recordable time (Motion picture)**

    • MP4 [FHD/60p]: Approx. 70 min (APS-C, Pixel by Pixel) (rear monitor), 70 min (APS-C, Pixel by Pixel) (LVF) *When using S-R1840. When the battery is fully charged.
      MP4 [FHD/60p]: Approx. 65 min (APS-C, Pixel by Pixel) (rear monitor), 70 min (APS-C, Pixel by Pixel) (LVF) *When using S-R28200. When the battery is fully charged.

  • Battery grip

    • DMW-BGS5 (sold separately)

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • Approx. 132.6 x 97.1 x 81.9 mm / 5.22 x 3.82 x 3.22 inch (excluding protrusions)

  • Weight

    • Approx. 714g / 1.58 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
      Approx. 630g / 1.39 lb (Body, Hot Shoe Cover) (excluding body cap)

OPERATING ENVIRONMENT

  • Operating temperature

    • 0°C to 40°C (32°F to 104°F)

  • Operating humidity

    • 10%RH to 80%RH

STANDARD ACCESSORIES

  • Software

    • Recording
      • LUMIX Tether
        ･ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
        http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
    • Playback / Editing
      • ･ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
        https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
        ･ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Adwaa's website using computer connected to the Internet.
        http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)

  • Standard accessories

    • DC-S5D Kit
      Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack

      DC-S5DN Kit
      Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Lens Cap, Lens Rear Cap

      DC-S5DH Kit
      Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Lens Cap, Lens Hood, Lens Rear Cap

      ･ The DC-S5D Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

  • ** About motion picture recording / 6K PHOTO/4K PHOTO recording

    - 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.

    - The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
    Motion pictures with 72Mbps or less: SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
    Motion pictures with 200Mbps or less: SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher

    - Recording stops when the continuous recording time exceeds 30 minutes in [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] [4K-A/50p] [C4K/4:2:2 10-bit] [4K/4:2:2 10-bit] [4K-A/4:2:2 10-bit] [4K/4:2:0 10-bit] [4K-A/4:2:0 10-bit] [S&Q].
    - Recording stops when the continuous recording time exceeds 15 minutes in [6K PHOTO] [4K PHOTO].

    - A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
    Motion pictures with less than 72Mbps: 30 minutes
    Motion pictures with 72Mbps or more: 3 hours 4 minutes

    - A new file will be created to continue recording if the file size exceeds the following conditions.
    [MP4] in [FHD]: 4GB
    [MP4] in [4K]: 96GB
    [MOV]: 192GB

    - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

    *** For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".
Atvērt jaunu lapu drukāšanai

Saistītie produkti

DC-S5M2N
(DC-S5M2 + S-R1840)

Pilna kadra bezspoguļu kamera ar fāzu hibrīdo autofokusu, Aktīvo attēla stabilizāciju, Augsta līmeņa video režīmu, C4K/4K 60 p/50 p 4:2:2 10 bitu neierobežota ilguma ierakstu u. c. (komplekts ar S5...

DC-S5M2XN
(DC-S5M2X + S-R1840)

Pilna kadra bezspoguļu kamera ar fāzu hibrīdo autofokusu, Aktīvo attēla stabilizāciju, Augsta līmeņa video režīmu, C4K/4K 60 p/50 p 4:2:2 10 bitu neierobežota ilguma ierakstu u. c. (komplekts ar S5...

DC-S9N
(DC-S9 + S-R1840)

LUMIX DC-S9N (komplekts ar S9 korpusu un LUMIX S 18-40mm / F4.5-6.3 tālummaiņas objektīvu) Radiet aizraujošu saturu tieši jaunajā LUMIX S9 pilnkadra kamerā, kas aprīkota ar profesionālām funkcijām,...

DC-S9

Izmantojiet jauno LUMIX S9 pilnkadru kameru, lai tieši izveidotu saistošu saturu; kamerā ir daudz profesionāla līmeņa funkciju, bet rediģēšanas iemaņas nav nepieciešamas — no uzņemšanas līdz public...

DC-S9H
(DC-S9 + S-R28200)

LUMIX DC-S9H (komplekts ar S9 korpusu un LUMIX S 28–200 mm/F4–7,1 tālummaiņas objektīvu) Izmantojiet jauno LUMIX S9 pilnkadru kameru, lai tieši izveidotu saistošu saturu; kamerā ir daudz profesionā...

DC-S9K
(DC-S9 + S-R2060)

LUMIX DC-S9K (komplekts ar S9 korpusu un LUMIX S 20–60 mm/F3,5–5,6 objektīvu) Izmantojiet jauno LUMIX S9 pilnkadru kameru, lai tieši izveidotu saistošu saturu; kamerā ir daudz profesionāla līmeņa f...

DC-S5

Pilna kadra bezspoguļu kamera ar 24,2 MP MOS sensoru, 4K 60p/50p 10 bitu video un vēl vairāk — tas viss kompaktā un vieglā korpusā.

DC-S5K

Pilna kadra bezspoguļu kamera ar 24,2 MP MOS sensoru, 4K 60p/50p 10 bitu video un vēl vairāk — tas viss kompaktā un vieglā korpusā. 20-60mm objektīva komplekts

DC-S1K

Pilna kadra digitālā viena objektīva bezspoguļu kamera ar 24,2 MP MOS sensoru, 4K 60p/50p video ierakstīšanu un dažādām profesionāla līmeņa funkcijām. 20–60 mm objektīva komplekts

DC-S1H

Pilna kadra DSLM (Digitālā bezspoguļa ar vienu objektīvu) kamera ar V-Log/V-Gamut ar 14+ dinamiskā diapazona iestatījuma punktiem, 6K pilna kadra attēla uzņemšanu un 10 bitu kino 4K/4K 60p/50p iera...

DC-S1R

Pilna kadra DSLM (Digitālā viena objektīva bezspoguļu) kamera ar 47,3 MP MOS sensoru un 187 MP augstas izšķirtspējas režīmu.

DC-S1RM

Pilna kadra DSLM (Digitālā viena objektīva bezspoguļu) kamera ar 47,3 MP MOS sensoru un 187 MP augstas izšķirtspējas režīmu. 24–105 mm objektīva komplekts

DC-S1

Pilna kadra DSLM (Digitālā viena objektīva bezspoguļu) kamera ar 24,2 MP MOS sensoru, 4K 60p/50p video ierakstīšana un izcila video ierakstīšanas veiktspēja profesionāļiem.

DC-S1M

Pilna kadra DSLM (Digitālā viena objektīva bezspoguļu) kamera ar 24,2 MP MOS sensoru, 4K 60p/50p video ierakstīšana un izcila video ierakstīšanas veiktspēja profesionāļiem. 24–105 mm objektīva komp...

Piederumi

Objektīvi

S-R1635

L-Mount 16-35 mm platleņķa tālummaiņas objektīvs

S-E2470

L-Mount 24-70mm standarta tālummaiņas objektīvs

S-E70200

L-Mount 70–200 mm telefoto tālummaiņas objektīvs

S-R70200

LUMIX S PRO 70–200 mm F4 O.I.S.

S-X50

LUMIX S PRO 50 mm F1.4

S-R1840

L-Mount 18–40 mm platleņķa tālummaiņas objektīvs

S-R1428

L-Mount 14–28 mm platleņķa tālummaiņas objektīvs

S-R2060

L-Mount 20–60 mm standarta tālummaiņas objektīvs

S-R24105

LUMIX S 24–105 mm F4 MACRO O.I.S.

S-R28200

L-Mount 28–200 mm platleņķa tālummaiņas objektīvs

S-R70300

L-Mount 70-300 mm telefoto tālummaiņas objektīvs

S-S18

L-Mount 18 mm objektīvs ar fiksētu fokusa attālumu

S-S24

L-Mount 24 mm objektīvs ar fiksētu fokusa attālumu

S-S35

L-Mount 35 mm objektīvs ar fiksētu fokusa attālumu

S-S50

L-Mount 50 mm objektīvs ar fiksētu fokusa attālumu

S-S85

L-Mount 85mm objektīvs ar fiksētu fokusa attālumu

S-E100

L-Mount 100 mm makroobjektīvs ar fiksētu fokusa attālumu

S-R26

L-Mount 26 mm makroobjektīvs ar fiksētu fokusa attālumu

Akumulators / akumulatora turētājs

DMW-BGS5

Akumulatora turētājs kamerai LUMIX S5

DMW-BLK22

Akumulatora bloks kamerai LUMIX S5

DMW-BTC15

Akumulatora lādētājs modelim DMW-BLF19 vai DMW-BLK22

DMW-BTCD15

Akumulatora lādētājs modelim DMW-BLK22 vai DMW-BLF19. (Tikai akumulatora lādētāja bloks. Maiņstrāvas adapteris, USB savienojuma kabelis un maiņstrāvas kabelis nav iekļauti komplektācijā.)

DMW-DCC18

DC savienotājs kamerām, kas saderīgs ar akumulatoru DMW-BLK22

DMW-AC11

AC adapteris lietošanai ar DC savienotāju DMW-DCC18

DMW-DCC17

Līdzstrāvas savienotājs kamerām saderīgs ar akumulatora bloku modelim DMW-BLF19 vai DMW-BLK22

DMW-AC10E

Maiņstrāvas adapteris

Fotoattēla DMW-AC10E

Aizslēga tālvadības pults / trijkāja rokturis

DMW-RS2

Aizslēga tālvadības pults

Fotoattēla DMW-RS2

DMW-SHGR2

Kompakts un viegls rokturis / mini statīvs ar USB C tipa savienojumu, kas ļauj sākt un apturēt video ierakstu un atbrīvot aizslēgu.

DMW-SHGR1

Kompakts un viegls rokturis/mini trijkājis, kas ļauj sākt un apturēt video ierakstu un atbrīvot aizslēgu.

XLR mikrofona adapteris / mikrofoni

DMW-XLR1

XLR mikrofonu adapteris

Fotoattēla DMW-XLR1

DMW-MS2

Mikrofoni

Fotoattēla DMW-MS2

DMW-VMS10

Mikrofoni

Fotoattēla DMW-VMS10

VW-LED1

LED video apgaismojums

Fotoattēla VW-LED1

Pleca siksna

DMW-SSTG9

Pleca siksna

Fotoattēla DMW-SSTG9
Skatīt visus piederumus

Saņemt atbalstu

LUMIX S5D pilnkadra bezspoguļu kamera DC-S5D

Apmeklēt šī produkta atbalsta lapu
