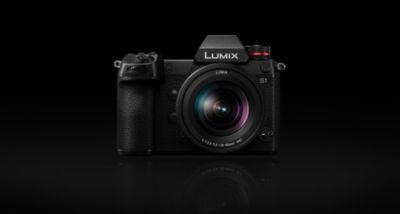

LUMIX S kamera DC-S1K

DC-S1K

Izcils hibrīds. Veicina fotografēšanas un video filmēšanas kaislību.

Jauns 24,2 MP CMOS sensors nodrošina neticami reālistiskas nianses. 4K videoieraksts bez laika ierobežojuma papildina profesionālā līmeņa video veiktspēju. LUMIX S1K komplektā ir iekļauts kompaktais, vieglais standarta tālummaiņas objektīvs S-R2060mm, kas nodrošina īpaši platu 20–60 mm tālummaiņas attālumu.

* Maksimālais ieraksta laiks — 29 minūtes 59 sekundes ar 4K 60p/50p.

Aparātprogrammatūras atjauninājums V1.7

DC-S1K

Iespējas

24.2MP CMOS sensors: Maksimāls jutīgums un attēla kvalitāte

Neatkarīgi no tā, vai uzņemat fotogrāfijas vai video, LUMIX S1 nodrošina elpu aizraujošu attēla kvalitāti bez kompromisiem. Nodrošinot pietiekamu gaismas kondensāciju uz vienu pikseli, 24,2 megapikseļu CMOS sensors piedāvā plašu dinamikas diapazonu un asu, dabisku izteiksmi pat ar augstas jutības iestatījumiem. Izmantojot Veneras Engine jaudu, kamera nodrošina maksimālu jutību ar iespaidīgo ISO 51200. Profesionāli fotogrāfi un videogrāfi noteikti novērtēs šo īpaši augsta jutīguma veiktspējas kombināciju ar īpaši augstu attēla kvalitāti.

Venus Engine skaistums

Apvienojot CMOS sensoru ar skaisto Venus Engine, tiek atveidotas satriecošas krāsu nianses un dabiskā faktūru izteiksmība. Multipixel Luminance Generation un Intelligent Detail Processing tehnoloģijas atveido intensīvu spilgtumu un kontrastu. Pateicoties trīsdimensiju krāsu kontroles enerģijai un bagātīgajiem krāsu toņiem, sākot no tumšajiem līdz pat spilgtajiem, kā arī augstas precizitātes Multi Process NR, jūsu attēli kļūs par īstu krāsu eksploziju, pat ar augstiem ISO jutīguma iestatījumiem.

Saderība ar piecu asu dubulto A.S. 2

Apvienojot korpusa A.S. (piecu asu) kamerā un O.A.S. (divu asu optisko attēla stabilizētāju) LUMIX S sērijas objektīvos*, piecu asu duālais A.S. 2 kompensē pat spēcīgu izplūšanu, dodot iespēju lietot par septiņiem punktiem lēnāku aizslēga ātrumu. ** Piecu asu korpusa A.S. pārsteidzošā efektivitāte ar 5,5 iedaļu kompensācijas jaudu*** neitralizē satricinājumu visos objektīvos, pat tajos, kas nav aprīkoti ar O.A.S.

* Piecu asu dubulto A.S.2 var lietot ar objektīviem S-R24105, S-E70200, S-R70200 un S-R70300, sākot no 2021. gada 18. februāra. ** Pamatojoties uz CIPA standartu (nobīdes/slīpuma virziens: fokusēšanas attālums f=200 mm, ja tiek izmantots S-E70200). *** Pamatojoties uz CIPA standartu (nobīdes/slīpuma virziens: fokusēšanas attālums f=50 mm, ja tiek izmantots S-X50).

4K 60p/50p vienmērīga video ierakstīšana

Jaunais CMOS sensors un jaunā programma Venus Engine apvienojumā ar Panasonic 4K tehnoloģiju nodrošina iespaidīgu 4K 60p/50p video (QFHD 4K: 3840 x 2160 MP4) pilna kadra formātā.*
Turklāt LUMIX S1 ir paredzēts nepārspējamai siltuma izkliedēšanai, tādēļ tas spēj piedāvāt gan 4K 30p/25p/24p, gan pilna HD ierakstīšanu bez termiņa ierobežojuma. Spēja veikt ierakstīšanu ilgākā laika posmā padara šo kameru par ideālu izvēli plašam profesionālam lietojumam.

* Maksimālais ieraksta laiks - 29 minūtes 59 sekundes ar 4K 60p/50p.
** Izņemot liela ātruma video ierakstīšanu. Ja apkārtējās vides temperatūra ir augsta, vai tiek veikta nepārtraukta ierakstīšana, kamera var apturēt ierakstīšanu, lai sevi aizsargātu. Pagaidiet, līdz kamera atdziest.

4K 60p/50p vienmērīga video ierakstīšana

4:2:2 10 bitu ieraksts iekšējā atmiņā / V-Log ieraksts (pēc izvēles)

Jauninājuma programmatūras kods DMW-SFU2 (tiek pārdots atsevišķi)* un LUMIX S1 aparātprogrammatūras versija 1.2 nodrošina savā klasē vislabāko vairāk nekā 14 iestatījuma punktu V-Log ierakstu. Aparātprogrammatūras versija 2.0 iespējo C4K/4K 60p/50p 4:2:0 10-bitu, C4K 30p/25p/24p 4:2:2 10-bitu, 6K/24p (3:2) 4:2:0 10-bitu un anamorfo 4K ierakstu.**

* Aktivizēšanas procedūru, lūdzu, skatiet komplektā iekļautajā lietošanas rokasgrāmatā. ** Lietotājiem, kuriem jau ir DMW-SFU2, nav papildu jāiegādājas DMW-SFU2. Kamera nav jānaunina ar DMW-SFU2, ja kādreiz jau ir veikta jaunināšana ar DMW-SFU2.

4:2:2 10 bitu ieraksts iekšējā atmiņā / V-Log ieraksts (pēc izvēles)

Progresīvā atpazīšanas tehnoloģija

Panasonic progresīvā tehnoloģija nodrošina vienotu sensora, programmas un objektīva vadību, lai nodrošinātu ātrdarbīgu, lielas precizitātes fokusu visos leņķos. Sevišķi ātrā sensora-objektīva komunikācija ar 480 kadri/s un Panasonic DFD tehnoloģiju palīdz realizēt ātrdarbīgu, lielas precizitātes automātisko fokusu aptuveni 0,08 sekundēs.* Turklāt vāja apgaismojuma automātiskais fokuss darbojas ar iespaidīgu -6 EV.** Augstāka jutība un optimizēta sensora pielāgošana ir palielinājusi izgaismojuma noteikšanas veiktspēju, kas padara iespējamu asāku fokusēšanu pat tikai zvaigžņu gaismā. Progresīvā AI tehnoloģija spēj atpazīt ne tikai cilvēka ķermeni, bet arī, piemēram, suņus, kaķus un putnus.

* 11EV, ar platā gala S-R24105 (CIPA) LVF120 kadri/s iestatījumā.
** Pie ISO100, F1.4, AFS. 100% kontrasta mērķis.

5,760 000 punktu izšķirtspējas reālskata meklētājs (Real View Finder)

Reālskata meklētājs (Real View Finder) nodrošina pasaulē labāko 5760 000 punktu izšķirtspēju, un ir lielākais savā klasē.* Izcilā skaidrība un asums liek justies tā, it kā jūs aplūkotu šo objektu ar savu aci, un palīdz koncentrēties fotoattēlu uzņemšanas laikā. Ar objektīvu, kas nodrošina minimālu deformāciju no centra uz stūriem un augstam palielinājumam par 0,78 x, reālskata meklētājs (Real View Finder) atbalsta gan perfektu kadrēšanu, gan augstas precizitātes fokusēšanu. Adaptīvais OLED displejs piedāvā ārkārtīgi zemu 0,005 sekunžu minimālo aizkaves laiku un īpaši augstu 120 kadri/s atjaunināšanas ātrumu, kas palīdz paturēt kadrā ātri kustīgus objektus.

* Pilna kadra digitālo viena objektīva spoguļkameru klasē sākot no 2019. gada 1. februāra.

5,760 000 punktu izšķirtspējas reālskata meklētājs (Real View Finder)

Izturīgs korpuss plašam laika apstākļu diapazonam

Izturīgais korpuss ir piemērots fotografēšanai dažādos problemātiskos apstākļos. Magnija sakausējuma spiedienlējuma korpuss ir ļoti izturīgs, savukārt blīvējums palīdz aizsargāt katru savienojuma vietu, ciparnīcu un pogas. Kamera kopumā ir izturīga pret putekļiem un šļakatām* un paredzēta lietošanai līdz pat -10 °C zemā temperatūrā. Apvienojot šīs iezīmes, fotografēšana ir kā produktīva tā patīkama dažādos laika apstākļos.

* Apzīmējums "izturīgs pret šļakatām" negarantē, ka šai kamerai neradīsies bojājumi tiešā saskarē ar putekļiem un ūdeni.

Izturīgs korpuss plašam laika apstākļu diapazonam

Atlasiet piemērotāko objektīvu

LUMIX S1 kamerā tiek izmantots L-Mount objektīva stiprinājuma standarts, kas ļauj jums izvēlēties no plašā Panasonic, Leica un Sigma augstas kvalitātes objektīvu klāsta.

Iedvesmai

Specifikācijas

Izmērs un svars

Augstums: 110.0mm

Platums: 148.9mm

Dziļums: 96.7mm

Svars: 1,017g

Visas vērtības ir aptuvenas. Svars ar SD karti un akumulatoru (svars ar XQD karti un akumulatoru ir 1021 g). Objektīvs ir iekļauts. Izmēri bez izvirzījumiem.

L-Mount
24,2 megapikseļi
4K video ierakstīšanas iespēja
6K PHOTO režīms
Piecu asu dubultais A.S. 2 (attēla stabilizētājs)
5 760 000 punktu OLED tiešā skata meklētājs
Trīs asīs noliecams monitors ar 2 100 000 punktu izšķirtspēju
Statusa LCD
Izturība pret šļakstiem, putekļiem un salu
Wi-Fi
Bluetooth

24,2 MP pilna kadra CMOS sensors

4K 30p/25p/24p video ierakstīšana bez laika ierobežojuma un 4K 60p/50p video

4:2:2 10-bitu ierakstīšana iekšējā atmiņā un V-Log/V-Gamut ar 14+ iestatījuma punktiem (pēc izvēles)

Liela ātruma un augstas precizitātes AF, izmantojot īpaši ātro sensora-objektīva komunikāciju ar 480 kadriem sekundē un Panasonic DFD (Depth From Defocus – defokusēšanas radīts dziļums) tehnoloģiju

TYPE

Type
- Digital Single Lens Mirrorless camera
Recording media
- XQD Memory Card, SD Memory Card / SDHC Memory Card* / SDXC Memory Card*, CFexpress Card (CFexpress Ver2.0 Type B) ******
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens mount
- L-Mount

IMAGE SENSOR

Type
- 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels
- 24.20 megapixels / 25.28 megapixels
Aspect ratio / Color filter
- 3:2 / Primary color filter
Dust reduction system
- Supersonic wave filter

LATITUDE

LATITUDE
- 14+ stops (V-Log)*****

STILL IMAGE

Aspect ratio
- 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
- Aspect ratio
  - 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard
Color Space
- sRGB, AdobeRGB
Recording file format
- Still image
  - JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
- 6K PHOTO** / 4K PHOTO**
  - 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
    4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
    Extracted still images: JPEG (DCF, Exif 2.31)
File size(Pixels)
- When using full-frame lenses / 3:2
  - 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* *High Resolution Mode. RAW file.
    5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 4:3
  - 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* *High Resolution Mode. RAW file.
    4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 16:9
  - 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* *High Resolution Mode. RAW file.
    3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 1:1
  - 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* *High Resolution Mode. RAW file.
    2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
- When using full-frame lenses / 65:24
  - 6000x2208(L)
- When using full-frame lenses / 2:1
  - 6000x3000(L)
- When using APS-C lenses / 3:2
  - 3984x2656(L) / 2880x1920(M) / 2064x1376(S)
- When using APS-C lenses / 4:3
  - 3536x2656(L) / 2560x1920(M) / 1840x1376(S)
- When using APS-C lenses / 16:9
  - 3984x2240(L) / 2880x1624(M) / 1920x1080(S)
- When using APS-C lenses / 1:1
  - 2656x2656(L) / 1920x1920(M) / 1376x1376(S)

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*))***** *When attaching DMW-XLR1 (sold separately).
  MP4: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch)), MP4 HEVC: H.265/HEVC (Audio format: AAC (2ch))
  AVCHD Progressive (Audio format: Dolby Audio (2ch)), AVCHD (Audio format: Dolby Audio (2ch))
MOV**/***** [4K] 3840x2160
- 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)*****
  50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)*****
  29.97p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM)***** *HLG is selectable.
  25.00p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM)***** *HLG is selectable.
  23.98p, 150Mbps (4:2:2 10-bit LongGOP) (LPCM)***** *HLG is selectable.
MOV**/***** [FHD] 1920x1080
- 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM)***** *HLG is selectable.
  50.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM)***** *HLG is selectable.
  29.97p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM)***** *HLG is selectable.
  25.00p, 100Mbps (4:2:2 10-bit LongGOP) (LPCM)***** *HLG is selectable.
MP4** [4K] 3840x2160
- 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
  50.00p, 150Mbps (4:2:0 8-bit LongGOP) (LPCM)
  29.97p, 100Mbps (4:2:0 8-bit LongGOP) (AAC)
  25.00p, 100Mbps (4:2:0 8-bit LongGOP) (AAC)
  23.98p, 100Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4** [FHD] 1920x1080
- 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
  50.00p, 28Mbps (4:2:0 8-bit LongGOP) (AAC)
  29.97p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
  25.00p, 20Mbps (4:2:0 8-bit LongGOP) (AAC)
MP4 HEVC** [4K] 3840x2160
- 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (AAC) (HEVC, HLG recording)
  25.00p, 72Mbps (4:2:0 10-bit LongGOP) (AAC) (HEVC, HLG recording)
  23.98p, 72Mbps (4:2:0 10-bit LongGOP) (AAC) (HEVC, HLG recording)
AVCHD Progressive** AVCHD** [FHD] 1920x1080
- 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)
  50.00i, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 25.00fps)
  50.00i, 17Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 50.00fps)
  23.98p, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)
MP4** High speed video *When Creative Video Mode is selected. [4K] 3840x2160
- 29.97p (Sensor output is 60fps)
  25.00p (Sensor output is 50fps)
  23.98p (Sensor output is 48fps)
MP4** High speed video *When Creative Video Mode is selected. [FHD] 1920x1080
- 29.97p (Sensor output is 180fps / 150fps)
  25.00p (Sensor output is 150fps / 125fps)
Continuous recordable time (Motion picture)**
- Approx. 150 min (rear monitor), 140 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.
Actual recordable time (Motion picture)**
- Approx. 75 min (rear monitor), 70 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 5,760k dots
Field of view / Magnification
- Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps / 60fps
Display time lag
- Approx. 0.005sec

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Triaxial tilt, 3.2-inch (8.0cm), 3:2 aspect
Pixels
- Approx. 2,100k dots
Field of view
- Approx. 100%

STATUS LCD

STATUS LCD
- Yes

FOCUS

Type
- Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+ / 1-Area / Pinpoint / Custom 1, 2, 3
  (Full area touch is available) (Scalable AF frame size and flexible AF position)
AF detective range
- EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist lamp
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking
- Yes / Yes
Others
- AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Exposure mode
- Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
ISO sensitivity (Standard Output Sensitivity)
- Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
Exposure compensation
- 1/3 EV step ±5EV (±3EV for motion picture)
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

IMAGE STABILIZATION SYSTEM
- Image sensor shift type (5-axis)
  6.0-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.]

  Dual I.S. (Dual I.S. 2 compatible)
  6.5-stop* * Firmware must be updated to version 1.2 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=105mm, when S-R24105 is used.] Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-R70200 is used.]
  7.0-stop* * Firmware must be updated to version 1.3 or later. Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm, when S-E70200 is used.]

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
  Motion picture: 1/16,000 - 1/25
Shutter life
- Approx. 400,000 images
Self timer
- 10sec, 3 images / 2sec / 10sec
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture Bracket
- 3, 5 or all positions in 1 EV step
Focus Bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed -Mechanical shutter / Electronic front curtain shutter
- AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
  AFC: H: 6 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Burst speed -Electronic shutter
- AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
  AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images
- RAW: More than 90 images
  RAW+JPEG: More than 70 images
  JPEG: More than 999 images
  *Using a Sony Corporation XQD G Series Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.

6K PHOTO / 4K PHOTO

Burst speed
- 6K PHOTO: 30 frames/sec
  4K PHOTO: 60 frames/sec, 30 frames/sec
Exif information
- Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

FLASH

Flash type
- TTL External Flash (sold separately)
Flash Mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Synchronization speed
- Less than 1/320 second *The guide number decreases at 1/320 second. Only when set to M mode or S mode.
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket
- Yes

EXTRA TELE CONVERSION

EXTRA TELE CONVERSION
- 2.0x (EX S), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

Photo Style
- Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D / Cinelike V / Like709 / V-Log***** / Standard (HLG) / Monochrome (HLG) / Like2100 / My Photo Style 1-10
Picture adjustment
- Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Sharpness / Noise Reduction / ISO / WB
  *Adjustable settings vary depending on the Photo Style mode.

FILTER

FILTER
- Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
  *For photos only.

MOTION PICTURE FUNCTION

Luminance level
- 8-bit: 0-255 / 16-235***** / 16-255
  10-bit*****: 0‒1023 / 64‒940 / 64‒1023
Wave form monitor
- Yes*****
LUT display*****
- LUT View Assist (Monitor)***** / LUT View Assist (HDMI)*****

FUNCTION BUTTON

REC
- Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode/MF / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift****** / AF-ON: Far Shift****** / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Flicker Decrease (Photo) / Post-Focus / Motion Pic. Rec Format / Motion Pic. Rec Quality / Sound Rec Level Disp. / Sound Rec Level Adj. / Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / LVF Magnification / Dial Operation Switch / Preview / Preview Aperture Effect******* / Constant Preview / Level Gauge / Histogram / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / LUT View Assist (Monitor)***** / LUT View Assist (HDMI)***** / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM***** / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Off (Disable Press and Hold)******* / Restore to Default
PLAY
- Magnify from AF Point / HLG View Assist(Monitor) / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / HLG View Assist (HDMI) / LUT View Assist (HDMI)***** / HLG View Assist (HDMI)***** / 6K/4K Photo Play / No Setting / Restore to Default

Fn LEVER

Fn LEVER
- AF Mode / Photo Style / Picture Quality / Long Exposure NR / Focus Peaking / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / 6K/4K PHOTO (Pre-Burst) / Focus Ring Lock / Touch Screen / Touch Pad AF / Auto Review (Photo) / Live View Boost / Night Mode / Sheer Overlay / Front/Rear/Control Dial Lock / No Setting / Restore to Default

LEVEL GAUGE

LEVEL GAUGE
- Yes

OSD LANGUAGE

OSD LANGUAGE
- Japanese, English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Romanian, Netherlandic, Turkish, Portuguese, Finnish, Danish, Swedish, Greek, Russian

PRINT

PRINT
- PictBridge compatible

INTERFACE

USB
- SuperSpeed USB 3.1 Gen1 Type-C
HDMI*** Monitor-through
- MP4: 4:2:2 8bit (Except for [4K/60p]/[4K/50p]) / 4:2:0 8bit
  MOV: 4:2:2 10bit***** (When [4K/60p]/[4K/50p] mode is selected in [Rec Quality], it is not possible to record motion picture or still picture on the memory card in the camera unit.)
HDMI*** Playback
- HDMI TypeA / VIERA Link
  Video: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
  Audio: Stereo
Audio video output
- No
Remote input
- φ2.5mm
External microphone / external audio device input
- φ3.5mm for external microphone / external audio device
  MIC (Plug-in Power) / MIC / LINE is selectable.
  Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
Headphone output
- φ3.5mm
Microphone
- Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
Speaker
- Monaural
Card slot
- Slot 1: XQD Memory Card, CFexpress Card*******
  Slot 2: SD Memory Card, SDHC Memory Card*, SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

WIRELESS

Wi-Fi
- 2.4GHz (STA/AP) (IEEE802.11b/g/n)
  5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
  1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 ch
Bluetooth
- Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT

DUST AND SPLASH RESISTANT*
- Yes.
  *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.4V, 3050mAh, 23Wh) (bundled)
  USB power supply, USB power charging
Battery life (CIPA standard)/When using CFexpress Card
- Approx. 380 images (rear monitor), 360 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
  Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R2060
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery life (CIPA standard)/ When using XQD memory card
- Approx. 380 images (rear monitor), 360 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
  Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R2060
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery life (CIPA standard)/ When using SD memory card
- Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105
  Approx. 420 images (rear monitor), 400 images (LVF), 1,200 images (Power Save LVF mode*) with S-R2060
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Battery grip
- DMW-BGS1 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 148.9 x 110.0 x 96.7 mm / 5.86 x 4.33 x 3.81 inch (excluding protrusions)
Weight
- Approx. 1,021g / 2.25 lb (XQD Memory Card x 1, Battery, Body)
  Approx. 1,017g / 2.24 lb (SD Memory Card x 1, Battery, Body)
  Approx. 899g / 1.98 lb (Body only)

OPERATING ENVIRONMENT

Operating temperature****
- -10oC to 40oC (14oF to 104oF)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software- Recording
- LUMIX Tether
  ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording,
  and save remotely recorded images to the PC. Check the site below to download and install the software.
  http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
Software- Playback / Editing
- ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
  https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
  ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
  http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-S1 Kit
  Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, AC Mains Lead, USB Connection Cable (C-C), USB Connection Cable (A-C), Cable Holder
  ・ The DC-S1 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

INTERCHANGEABLE LENS-1

Lens Name
- LUMIX S 20-60mm F3.5-5.6
Lens Construction
- 11 elements in 9 groups (2 aspherical lenses, 3 ED lenses, 1 UHR lens)
Mount
- L-Mount
Optical Image Stabilizer
- No
Focal Length
- f=20-60mm
Aperture Type
- 9 diaphragm blades / Circular aperture diaphragm
Maximum Aperture
- F3.5 (Wide) - F5.6 (Tele)
Minimum Aperture
- F22
Closest Focusing Distance
- 0.15m/0.49ft (at focal length 20-26mm) / 0.4m/1.31ft (at focal length 60mm)
Maximum magnification
- 0.43x
Diagonal Angle of View
- 94°(Wide) - 40°(Tele)
Dust and Splash Resistant
- Yes*
Recommended Operating Temperature
- -10oC to 40oC (14oF to 104oF)
General
- Filter Size
  - φ67mm
- Max. Diameter
  - φ77.4mm / 3.05inch
- Overall Length
  - Approx. 87.2mm / 3.43inch (from the tip of the lens to the base side of the lens mount)
- Weight [g]
  - Approx. 350g (excluding lens cap, lens rear cap and lens hood)
- Weight [oz]
  - Approx. 12.35oz (excluding lens cap, lens rear cap and lens hood)
- Standard Accessories
  - Lens cap, Lens rear cap, Lens hood

NOTE

NOTE
- ** About motion picture recording / 6K PHOTO/4K PHOTO recording
  - 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
  - Use an SD memory card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [AVCHD].
  - Use an XQD or SD memory card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [MP4(under 28Mbps)].
  - Use an XQD or SD memory card with SD Speed Class with ""UHS-I / UHS-II UHS Speed Class 3 (U3)"" when recording motion pictures with [MP4] in [4K] [High Speed Video], [MOV] or [6K PHOTO/4K PHOTO].
  (SD speed class is the speed standard regarding continuous writing.)
  - Recording stops when the continuous recording time exceeds 10 minutes with [MP4] in [6K PHOTO].
  - Recording stops when the continuous recording time exceeds 15 minutes with [MP4] in [High Speed Video] [4K PHOTO].
  - Recording stops when the continuous recording time exceeds 29 minutes and 59 seconds with [MP4] in [4K/60p] [4K/50p].
  - MP4 motion pictures with [MP4] in [4K]:
  - When using an XQD memory card of 32 GB or less, or an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
  - When using an XQD memory card over 32 GB, or an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  - MP4 motion pictures with [MP4] in [FHD]:
  - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
  - XQD is a registered trademark of Sony Corporation.

  *** For [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as""4K compatible"".

  **** The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

  ***** Firmware must be updated to version 1.2 or later. Upgrade Software Key (DMW-SFU2) is required.

  ****** Firmware must be updated to version 1.2 or later.

  ******* Firmware must be updated to version 1.3 or later.
