LUMIX S kamera DC-S1H

DC-S1H

Kinematogrāfisks rezultāts, neierobežots radošums.

V-Log/V-Gamut ar 14+ dinamiskā diapazona iestatījuma punktiem, 6K pilna kadra attēla uzņemšanu, 10 bitu kino 4K/4K 60p/50p ierakstīšanu un neierobežotu ierakstīšanas laiku. LUMIX S1H ir jaunā pilna kadra bezspoguļa kamera, kas nodrošina kino kvalitātes video uzņemšanu.

Aparātprogrammatūras atjauninājums V2.3

Tuvināt
Tālināt
Aizvērt
DC-S1H

Iespējas

Jauni izstrādātais pilna kadra sensors ar Dual Native ISO tehnoloģiju

LUMIX S1H jaunizstrādātais 24,2 megapikseļu pilna kadra CMOS sensors ietver Dual Native ISO tehnoloģiju. Attēla sensors var izmantot dubultās bāzes ISO iestatījumu, kas samazina troksni un rada izcilu attēla kvalitāti no zema līdz augstam jutīgumam. Šis līdzeklis darbojas kopā ar Venus Engine, lai nodrošinātu maksimālo ISO 51200 / paplašināto ISO 204800, nodrošinot minimālu troksni un vienlaikus augstu jutību un brīnišķīgu tumšu laukumu atveidi kadrā. Turklāt zemas caurlaides filtrs efektīvi samazina muarē rakstu. Ikreiz, kad nepieciešama profesionāla līmeņa fotografēšana zemā apgaismojumā, LUMIX S1H ir gatavs darbībai.
Jauni izstrādātais pilna kadra sensors ar Dual Native ISO tehnoloģiju

Plašs ierakstīšanas formātu klāsts ikviena veida video uzņemšanai

LUMIX S1H ar pilna diapazona ierakstīšanas režīmiem aptver visas nozares, sākot ar kino un beidzot ar TV apraidi. Papildus C4K/4K 60p/50p* 4:2:0 10 bitiem un C4K/4K 30p/25p/24p 4:2:2 10 bitiem kamera tagad piedāvā 6K/24p 4:2:0 10 bitus 3:2 un 5.9K 30p/25p/24p 4:2:0 10 bitus 16:9. Ir pieejams arī anamorfais režīms 4K. Ultra augstā attēla kvalitāte, pielāgojamība un izteiksmīgums — LUMIX S1H ir gatavs mūsdienu prasīgajai fotoattēlu uzņemšanai.
* Super 35 mm un PIXEL/PIXEL iestatījumos.
Plašs ierakstīšanas formātu klāsts ikviena veida video uzņemšanai

4:2:2 10 bitu ieraksts iekšējā atmiņā/HDMI izvade

C4K/4K 30p/25p/24p 4:2:2 10 bitu video, kam ir neticami bagātīgs krāsu profils, ir ierakstāms kamerā. Ja ir iestatīta 10 bitu ierakstīšana, kamera nodrošina 4:2:2 10 bitu HDMI izvadi, nodrošinot iespēju uzņemt augstas attēla kvalitātes fotoattēlus ar ārēju ierakstītāju. 4:2:2 10 bitu video aptuveni 128 reizes pārsniedz informācijas apjomu 4:2:0 8 bitu versijā un spēj atveidot vairāk nekā 1 miljardu krāsu. Šis apjomīgais krāsu informācijas apjoms ir ļoti vērtīgs pēcražošanā, ļaujot pielāgot krāsu dinamiski un radikāli, pat pārvērst dienasgaismas ainas par nakts ainām. Ekspresīvi jaudīgā pilna kadra kamera 4K video uzņemšanu paceļ jaunā, aizraujošā līmenī.
* HDMI, HDMI logotips un High-Definition Multimedia Interface ir HDMI Licensing LLC preču zīmes vai reģistrētas preču zīmes Amerikas Savienotajās Valstīs un citās valstīs.
4:2:2 10 bitu ieraksts iekšējā atmiņā/HDMI izvade

RAW video datu izvade profesionālai filmu veidošanai

Aparātprogrammatūras jauninājums nodrošina maksimālo izejas kvalitāti 29,97p 5,9K (5888x3312, 16:9) / 59,94p 4K (4128x2176, 17:9) un anamorfos 3,5K (3536x2656, 4:3) 12-bitu RAW video datus caur HDMI, lai saglabātu kā Apple ProRes RAW Atomos Ninja V 4K HDR monitorā-ieraksta ierīcē.* Blackmagic RAW var ierakstīt arī Video Assist 12G HDR.**
* Atjauniniet aparātprogrammatūru uz versiju 2.1 vai jaunāku.
** Atjauniniet aparātprogrammatūru uz versiju 2.4 vai jaunāku.
RAW video datu izvade profesionālai filmu veidošanai

V-Log/ V-Gamut ar 14+ dinamiskā diapazona iestatījuma punktiem

S1H nodrošina dažādas radošas iespējas, tostarp vairāk nekā 14 dinamiskā diapazona iestatījuma punktus un ļoti plašu krāsu spektru, savukārt V-Log un V-Gamut ir iepriekš instalēti, nodrošinot to, ka LUMIX S1H uzņēmumus var viegli montēt kopā ar materiāliem, kas uzņemti ar ļoti dažādām kamerām, tostarp ar VariCam.

LUMIX S1H V-Log nodrošina vairāk nekā 14 dinamiskā diapazona iestatījuma punktus, kas atbilst HDR PQ prasībai, savukārt V-Gamut nodrošina pilnu HDR krāsu spektru, radot lietotājam iespēju uzņemt HDR kvalitātē. Lietošanas ērtībai izmantotā LUT tiek rādīta kameras monitorā, reāllaikā sniedzot datus par galarezultātu vienmēr un visur.

Galarezultāts ir baudāmāka krāsu un radošuma pieredze.
V-Log/ V-Gamut ar 14+ dinamiskā diapazona iestatījuma punktiem

Pirmais ventilators pilna kadra DSLM kamerā* sniedz atbalstu neierobežotai video ierakstīšanai

Pirmo reizi pilna kadra digitālajā viena objektīva bezspoguļa kameru vēsturē * LUMIX S1H ir iebūvēts ventilators kā standarta aprīkojums, kas parasti ir pieejams tikai profesionālajās kamerās. Ventilators ir daļa no jaunizstrādātās siltumizkliedes konstrukcijas, kas atbalsta neierobežotu video ierakstīšanu. Pret putekļiem un šļakatām izturīgais dizains,** zemas vibrācijas, kas rada minimālu ietekmi uz attēla stabilizēšanas sistēmu, un ultra klusā veiktspēja ir šīs jaunās konstrukcijas papildu iezīmes.Ventilatoru var izmantot ar četriem dažādiem iestatījumiem.
* Pilna kadra digitālo viena objektīva spoguļkameru klasē sākot no 2019. gada 27. augusta. ** Apzīmējums "izturīgs pret putekļiem un šļakatām" negarantē, ka šai kamerai neradīsies bojājumi tiešā saskarē ar putekļiem un ūdeni.
Pirmais ventilators pilna kadra DSLM kamerā* sniedz atbalstu neierobežotai video ierakstīšanai

Unikāla video izteiksme (VFR, HFR)

Sākot no pamata funkcijām, līdz modernai tehnoloģijai – LUMIX S1H ir izstrādāta, lai sniegtu izcilu, daudzpusīgu video uzņemšanu. VFR funkcionalitāte atbalsta gan filmēšanu ar augstāku kadru skaitu, gan zemāku kadru skaitu. HFR ierakstīšana ietver audio un autofokusu, kas lietotājiem ļauj izveidot lēnas kustības video pēcapstrādē.
* Apzīmējums "izturīgs pret putekļiem un šļakatām" negarantē, ka šai kamerai neradīsies bojājumi, nonākot tiešā saskarē ar putekļiem un ūdeni.
Unikāla video izteiksme (VFR, HFR)

Sasveramais un brīvā leņķa aizmugurējais monitors
izturīgais korpuss ļoti dažādiem laikapstākļiem

Jaunizstrādātais sasveramais un brīvā leņķa aizmugurējais monitors apvieno gan sasverama, gan brīva leņķa monitora sniegtās priekšrocības. Pat pieslēdzot kamerai HDMI vai USB kabeli, monitoru var brīvi kustināt. Lielais statusa LCD ekrāns sniedz optimizētu informāciju gan par foto, gan video iestatījumiem, nodrošinot vieglu piekļuvi laika kodiem, audio līmeņa mērītājam un citām funkcijām.

Magnija sakausējuma spiedienlējuma korpuss ir ļoti izturīgs, savukārt blīvējums palīdz aizsargāt katru savienojuma vietu, ciparnīcu un pogas. Kamera kopumā ir izturīga pret putekļiem un šļakatām*, kā arī paredzēta lietošanai līdz pat -10 °C temperatūrā.
* Apzīmējums "izturīgs pret putekļiem un šļakatām" negarantē, ka šai kamerai neradīsies bojājumi, nonākot tiešā saskarē ar putekļiem un ūdeni.
Sasveramais un brīvā leņķa aizmugurējais monitors izturīgais korpuss ļoti dažādiem laikapstākļiem

Iedvesmai

Specifikācijas

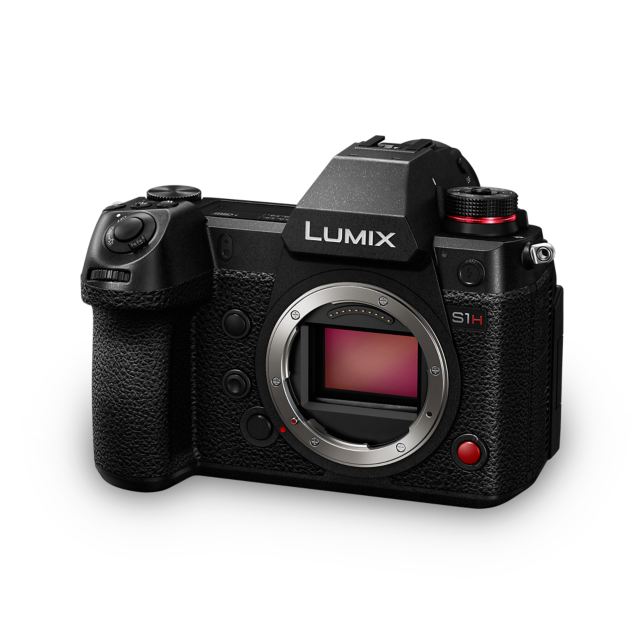

Fotoattēla LUMIX S kamera DC-S1H

Izmērs un svars

Augstums
114.2mm
Platums
151.0mm
Dziļums
110.4mm
Svars
1164g

Visas vērtības ir aptuvenas. Svars ar SD karti un akumulatoru. Objektīvs ir iekļauts. Izmēri bez izvirzījumiem.

  • L-MountL-Mount
  • 24,2 megapikseļi24,2 megapikseļi
  • 4K video ierakstīšanas iespēja4K video ierakstīšanas iespēja
  • 6K 24P video ierakstīšanas iespēja6K 24P video ierakstīšanas iespēja
  • 14+ iestatījuma punktu V-Log14+ iestatījuma punktu V-Log
  • Piecu asu dubultais A.S. 2 (attēla stabilizētājs)Piecu asu dubultais A.S. 2 (attēla stabilizētājs)
  • 5 760 000 punktu OLED tiešā skata meklētājs5 760 000 punktu OLED tiešā skata meklētājs
  • 2 330 000 punktu sasverams brīvā leņķa monitors2 330 000 punktu sasverams brīvā leņķa monitors
  • Statusa LCDStatusa LCD
  • Izturība pret šļakstiem, putekļiem un saluIzturība pret šļakstiem, putekļiem un salu
  • Wi-FiWi-Fi
  • BluetoothBluetooth

V-Log/V-Gamut

14+ dinamiskā diapazona iestatījuma punktiem

6K/24p 10 bitu

video ierakstīšana (3:2)

C4K/4K 60p/50p 10 bitu

Video ierakstīšana

TYPE

  • Type

    • Digital Single Lens Mirrorless camera

  • Recording media

    • SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
      *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

  • Lens mount

    • L-Mount

IMAGE SENSOR

  • Type

    • 35mm full-frame (35.6mm x 23.8mm) CMOS sensor

  • Camera effective pixels / Total pixels

    • 24.20 megapixels / 25.28 megapixels

  • Aspect ratio / Color filter

    • 3:2 / Primary color filter

  • Dust reduction system

    • Supersonic wave filter

LATITUDE

  • LATITUDE

    • 14+ stops (V-Log)

STILL IMAGE

  • Recording file format

    • Still image
      • JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
    • 6K PHOTO*** / 4K PHOTO***
      • 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
        4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
        Extracted still images: JPEG (DCF, Exif 2.31)

  • Aspect ratio

    • Aspect ratio
      • 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1

  • File size (Pixels)

    • When using full-frame lenses, 3:2
      • 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* *High Resolution Mode. RAW file.
        5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
    • When using full-frame lenses, 4:3
      • 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* *High Resolution Mode. RAW file.
        4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
    • When using full-frame lenses, 16:9
      • 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* *High Resolution Mode. RAW file.
        3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
    • When using full-frame lenses, 1:1
      • 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* *High Resolution Mode. RAW file.
        2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
    • When using full-frame lenses, 65:24
      • 6000x2208(L)
    • When using full-frame lenses, 2:1
      • 6000x3000(L)
    • When using Super 35mm (APS-C) lenses, 3:2
      • 3888x2592(L) / 2784x1856(M) / 1968x1312(S) / 3504x2336(4K PHOTO)
    • When using Super 35mm (APS-C) lenses, 4:3
      • 3536x2656(L) / 2560x1920(M) / 1840x1376(S) / 3328x2496(4K PHOTO)
    • When using Super 35mm (APS-C) lenses, 16:9
      • 4064x2288(L) / 2816x1584(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
    • When using Super 35mm (APS-C) lenses, 1:1
      • 2656x2656(L) / 1920x1920(M) / 1376x1376(S) / 2880x2880(4K PHOTO)

  • Image quality

    • RAW / RAW+Fine / RAW+Standard / Fine / Standard

  • Color space

    • sRGB, AdobeRGB

MOTION PICTURE

  • Recording file format

    • MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
      MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
      AVCHD Progressive, AVCHD (Audio format: Dolby Audio (2ch))

  • System frequency

    • 59.94Hz / 50.00Hz / 24.00Hz

  • MOV*** High-res audio is selectable only when using the DMW-XLR1 (sold separately).

    • 59.94Hz Full-frame
      • [6K] 5952x3968 (3:2) 23.98p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [5.4K] 5376x3584 (3:2) 29.97p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [5.9K] 5888x3312 29.97p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [5.9K] 5888x3312 23.98p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [C4K] 4096x2160 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [C4K] 4096x2160 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [4K] 3840x2160 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [4K] 3840x2160 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 119.88p, 150Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra)* / 50Mbps (4:2:2 10-bit LongGOP)* (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 47.95p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 59.94Hz Super 35mm / Pixel by Pixel
      • [C4K] 4096x2160 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [C4K] 4096x2160 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [C4K] 4096x2160 47.95p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [C4K] 4096x2160 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [C4K] 4096x2160 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [4K] 3840x2160 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [4K] 3840x2160 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160 47.95p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [4K] 3840x2160 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [4K] 3840x2160 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [Anamorphic 4K] 3328x2496 (4:3) 47.95p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [Anamorphic 4K] 3328x2496 (4:3) 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [Anamorphic 4K] 3328x2496 (4:3) 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 119.88p, 150Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *When Super 35mm is selected. HLG is selectable.
        [FHD] 1920x1080 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra)* / 50Mbps (4:2:2 10-bit LongGOP)* (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 47.95p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 50.00Hz Full-frame
      • [5.4K] 5376x3584 (3:2) 25.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [5.9K] 5888x3312 25.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [C4K] 4096x2160 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [4K] 3840x2160 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 100.00p, 150Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra)* / 50Mbps (4:2:2 10-bit LongGOP), (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 50.00Hz Super 35mm / Pixel by Pixel
      • [C4K] 4096x2160 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [C4K] 4096x2160 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [C4K] 4096x2160 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [4K] 3840x2160 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [4K] 3840x2160 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [4K] 3840x2160 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [Anamorphic 4K] 3328x2496 (4:3) 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [Anamorphic 4K] 3328x2496 (4:3) 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
        [Anamorphic 4K] 3328x2496 (4:3) 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 100.00p, 150Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *When Super 35mm is selected. HLG is selectable.
        [FHD] 1920x1080 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra)* / 50Mbps (4:2:2 10-bit LongGOP)* (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 24.00Hz Full-frame
      • [6K] 5952x3968 (3:2) 24.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [5.9K] 5888x3312 24.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [C4K] 4096x2160 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [4K] 3840x2160 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 48.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    • 24.00Hz Super 35mm / Pixel by Pixel
      • [C4K] 4096x2160 48.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [C4K] 4096x2160 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [4K] 3840x2160 48.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [4K] 3840x2160 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [Anamorphic 4K] 3328x2496 (4:3) 48.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable
        [Anamorphic 4K] 3328x2496 (4:3) 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 48.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
        [FHD] 1920x1080 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.

  • MP4***

    • 59.94Hz Full-frame
      • [4K] 3840x2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
        [4K] 3840x2160 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
        [4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 59.94Hz Super 35mm / Pixel by Pixel
      • [4K] 3840x2160 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
        [4K] 3840x2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
        [4K] 3840x2160 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
        [4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 50.00Hz Full-frame
      • [4K] 3840x2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP)(H.265/HEVC, AAC)
        [4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 50.00Hz Super 35mm / Pixel by Pixel
      • [4K] 3840x2160 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
        [4K] 3840x2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
        [4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
        [FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    • 24.00Hz Full-frame / Super 35mm / Pixel by Pixel
      • -

  • AVCHD Progressive*** / AVCHD***

    • 59.94Hz Full-frame / Super 35mm / Pixel by Pixel
      • [FHD] 1920x1080 59.94p (Sensor output is 59.94fps), 28Mbps (4:2:0 8-bit LongGOP) (Dolby)
        [FHD] 1920x1080 59.94i (Sensor output is 59.94fps), 17Mbps (4:2:0 8-bit LongGOP) (Dolby)
        [FHD] 1920x1080 59.94i (Sensor output is 29.97fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)
        [FHD] 1920x1080 23.98p (Sensor output is 23.98fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)
    • 50.00Hz Full-frame / Super 35mm / Pixel by Pixel
      • [FHD] 1920x1080 50.00p (Sensor output is 50.00fps), 28Mbps (4:2:0 8-bit LongGOP) (Dolby)
        [FHD] 1920x1080 50.00i (Sensor output is 50.00fps), 17Mbps (4:2:0 8-bit LongGOP) (Dolby)
        [FHD] 1920x1080 50.00i (Sensor output is 25.00fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)
    • 24.00Hz Full-frame / Super 35mm / Pixel by Pixel
      • -

  • Continuous recordable time

    • Continuous recordable time (Motion picture)***
      • AVCHD [FHD/60p]: Approx. 160 min (Full-frame), 140 min (Super 35mm), 150 min (Pixel by Pixel) *When using S-R24105. When the battery is fully charged.
        MP4 [4K/60p]: Approx. 120 min (Super 35mm, Pixel by Pixel) *When using S-R24105. When the battery is fully charged.
        MOV [C4K/24p/4:2:2 10-bit/ALL-Intra]: Approx. 130 min (Full-frame, Super 35mm, Pixel by Pixel) *When using S-R24105. When the battery is fully charged.

  • Actual recordable time

    • Actual recordable time (Motion picture)***
      • AVCHD [FHD/60p]: Approx. 80 min (Full-frame), 70 min (Super 35mm), 75 min (Pixel by Pixel) *When using S-R24105. When the battery is fully charged.
        MP4 [4K/60p]: Approx. 60 min (Super 35mm, Pixel by Pixel) *When using S-R24105. When the battery is fully charged.
        MOV [C4K/24p/4:2:2 10-bit/ALL-Intra]: Approx. 65 min (Full-frame, Super 35mm, Pixel by Pixel) *When using S-R24105. When the battery is fully charged.

VARIABLE FRAME RATE

  • MOV***

    • 59.94Hz Full-frame
      • [FHD] 1920x1080 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 59.94Hz Super 35mm
      • [C4K] 4096x2160 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [C4K] 4096x2160 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [4K] 3840x2160 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (LPCM)
        [Anamorphic 4K] 3328x2496 (4:3) 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3) 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 59.94Hz Pixel by Pixel
      • [C4K] 4096x2160 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [C4K] 4096x2160 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3) 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3) 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    • 50.00Hz Full-frame
      • [FHD] 1920x1080 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 50.00Hz Super 35mm
      • [C4K] 4096x2160 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3) 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x108050.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        [FHD] 1920x1080 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 50.00Hz Pixel by Pixel
      • [C4K] 4096x2160 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3) 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 24.00Hz Full-frame
      • [FHD] 1920x1080 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 24.00Hz Super 35mm
      • [C4K] 4096x2160 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [4K] 3840x2160 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3)24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
        *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
    • 24.00Hz Pixel by Pixel
      • [C4K] 4096x2160 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)　
        [4K] 3840x2160 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [Anamorphic 4K] 3328x2496 (4:3) 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
        [FHD] 1920x1080 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)

  • AVCHD Progressive*** / AVCHD***

    • 59.94Hz Full-frame / Super 35mm / Pixel by Pixel
      • [FHD] 1920x1080 59.94i (Maximum output of sensor is 60fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)
        [FHD] 1920x1080 23.98p (Maximum output of sensor is 60fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)
    • 50.00Hz Full-frame / Super 35mm / Pixel by Pixel
      • [FHD] 1920x1080 50.00i (Maximum output of sensor is 60fps), 24Mbps (4:2:0 8-bit LongGOP) (Dolby)

HDMI RAW DATA OUTPUT

  • Compatible external devices

    • Compatible external devices
      • ATOMOS Ninja V 4K HDR Monitor-Recorder (AtomosOS 10.52 or higher)******
        Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR (version 3.4 or higher)********
        *This does not guarantee all of the capabilities that the compatible external recorder may have.

  • Rec quality

    • NTSC (59.94Hz) Full-frame
      • [5.9K] 5888x3312 29.97p, 12-bit (LPCM, High-Res Audio)
        [5.9K] 5888x3312 23.98p, 12-bit (LPCM, High-Res Audio)
    • NTSC (59.94Hz) Super 35mm
      • [4K] 4128x2176 (17:9) 59.94p, 12-bit (LPCM, High-Res Audio)
        [4K] 4128x2176 (17:9) 29.97p, 12-bit (LPCM, High-Res Audio)
        [4K] 4128x2176 (17:9) 23.98p, 12-bit (LPCM, High-Res Audio)
        [Anamorphic 3.5K] 3536x2656 (4:3) 29.97p, 12-bit (LPCM, High-Res Audio)
        [Anamorphic 3.5K] 3536x2656 (4:3) 23.98p, 12-bit (LPCM, High-Res Audio)
    • PAL (50.00Hz) Full-frame
      • [5.9K] 5888x3312 25.00p, 12-bit (LPCM, High-Res Audio)
    • PAL (50.00Hz) Super 35mm
      • [4K] 4128x2176 (17:9) 50.00p, 12-bit (LPCM, High-Res Audio)
        [4K] 4128x2176 (17:9) 25.00p, 12-bit (LPCM, High-Res Audio)
        [Anamorphic 3.5K] 3536x2656 (4:3) 50.00p, 12-bit (LPCM, High-Res Audio)
        [Anamorphic 3.5K] 3536x2656 (4:3) 25.00p, 12-bit (LPCM, High-Res Audio)

  • Audio format

    • LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*) *High-res audio is selectable only when using the DMW-XLR1 (sold separately).

VIEWFINDER

  • Type

    • OLED Live View Finder

  • Pixels

    • Approx. 5.76 million dots

  • Field of view / Magnification

    • Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2

  • Eye point / Diopter adjustment

    • Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)

  • Eye sensor

    • Yes

  • Display speed

    • 120fps / 60fps

  • Display time lag

    • Approx. 0.005sec

REAR MONITOR

  • Type

    • TFT LCD monitor with static touch control

  • Monitor size

    • Tilt free-angle, 3.2-inch (8.0cm), 3:2 aspect

  • Pixels

    • Approx. 2.33 million dots

  • Field of view

    • Approx. 100%

STATUS LCD

  • STATUS LCD

    • 1.8-inch, 303 x 230 dots (effective pixels 287 x 214 dots), Monochrome LCD monitor

FOCUS

  • Type

    • Contrast AF system

  • DFD technology

    • Yes

  • Focus mode

    • AFS (Single) / AFC (Continuous) / MF

  • AF mode

    • Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3
      (Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF.*******

  • AF detective range

    • EV -6 - 20 (F1.4, ISO100 equivalent, AFS)

  • AF custom setting

    • AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction

  • AF assist lamp

    • Yes

  • AF lock

    • Set the Fn button in custom menu to AF lock

  • Post Focus / Focus Stacking

    • Yes / Yes

  • Others

    • AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode, 1-Area AF Moving Speed, Loop Movement Focus Frame, AFC Start Point (225-Area), Lens Focus Resume, Focus Ring Control

EXPOSURE CONTROL

  • Light metering system

    • 1,728-zone multi-pattern sensing system

  • Light metering mode

    • Multiple / Center Weighted / Spot / Highlight Weighted

  • Metering range

    • EV0-18 (F2.0 lens, ISO100 equivalent)

  • Exposure mode

    • Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure

  • ISO sensitivity (Standard output sensitivity)

    • Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO

  • Dual Native ISO

    • [Normal]
      Native ISO: 100, 640
      Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
      Low: Auto / 50* / 100-800 *Extended ISO
      High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO

      [V-Log]
      Native ISO: 640, 4000
      Auto: Auto / 320* / 640-51200 *Extended ISO
      Low: Auto / 320* / 640-5000 *Extended ISO
      High: Auto / 2000* / 4000-51200 *Extended ISO

      [HLG]
      Native ISO: 400, 2500
      Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
      Low: Auto / 400-3200
      High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO

      [Cinelike D2 / Cinelike V2]
      Native ISO: 200, 1250
      Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
      Low: Auto /100* / 200-1600 *Extended ISO
      High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO

  • Exposure compensation

    • 1/3 EV step ±5EV (±3EV for motion picture)

  • AE lock

    • Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

  • IMAGE STABILIZATION SYSTEM

    • Image sensor shift type (5-axis / 6.0-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=50mm when S-X50 is used.]
      Dual I.S. (6.5-stop* Dual I.S. 2 compatible) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=105mm when S-R24105** is used. focusing distance f=200mm when S-R70200** is used.] **Firmware must be updated to the latest version.

WHITE BALANCE

  • White balance

    • AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4

  • White balance adjustment

    • Blue/Amber bias, Magenta/Green bias

  • Color temperature setting

    • 2500-10000K in 100K

SHUTTER

  • Type

    • Focal-plane shutter

  • Shutter speed

    • Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
      Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
      Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
      Motion picture: 1/16,000 - 1/25 (When using Synchro Scan)
      Creative Video M mode / MF mode: 1/16,000 - 1/2

  • Shutter life

    • Approx. 400,000 images

  • Self timer

    • 10sec, 3 images / 2sec / 10sec

  • Remote control

    • Remote control by DMW-RS2 (sold separately)

  • Silent mode / Shutter type

    • Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

  • AE bracket

    • 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst

  • Aperture bracket

    • 3, 5 or all positions in 1 EV step

  • Focus bracket

    • 1 to 999 images, focus steps can be set in 10 levels

  • White balance bracket

    • 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

  • Burst speed

    • Mechanical shutter / Electronic front curtain shutter
      • AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
        AFC: H: 6 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    • Electronic shutter
      • AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
        AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)

  • Number of recordable images

    • RAW / RAW+JPEG: More than 60 images
      JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".)
      * Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.

6K PHOTO*** / 4K PHOTO***

  • Burst speed

    • 6K PHOTO: 30 frames/sec
      4K PHOTO: 60 frames/sec, 30 frames/sec

  • Exif information

    • Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

FLASH

  • Flash type

    • TTL External Flash (sold separately)

  • Flash mode

    • Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.

  • Flash synchronization

    • 1st Curtain Sync, 2nd Curtain Sync.

  • Flash output adjustment

    • 1/3EV step ±3EV

  • Synchronization speed

    • Less than 1/320 second *The guide number decreases at 1/320 second. Only when set to M mode or S mode.

  • Wireless control

    • Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

  • Flash sync socket

    • Yes

EXTRA TELE CONVERSION

  • EXTRA TELE CONVERSION

    • 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using Super 35mm (APS-C) lenses), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

  • Photo Style

    • Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Standard (HLG) / Monochrome (HLG) / Like2100 / My Photo Style 1-10

  • Picture adjustment

    • Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Sharpness / Noise Reduction / Dual Native ISO Setting / ISO / WB
      *Adjustable settings vary depending on the Photo Style mode.

FILTER

  • FILTER

    • Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
      *For photos only.

MOTION PICTURE FUNCTION

  • Vertical Position Information ******

    • ON / OFF

  • Master pedestal level

    • 31 steps

  • Luminance level

    • 8-bit: 0-255 / 16-235 / 16-255
      10-bit: 0‒1023 / 64‒940 / 64‒1023

  • Wave form monitor / Vectorscope

    • Selectable

  • LUT display

    • LUT View Assist (Monitor) / LUT View Assist (HDMI)

  • Synchro scan

    • Yes

  • Time code

    • Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When system frequency [59.94Hz] is selected.)

  • SS/Gain operation

    • Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB

  • Color bars / 1kHz test tone

    • Yes (SMPTE / EBU / ARIB) / Yes

  • Knee control

    • Yes (in Like709 mode)

FUNCTION BUTTON

  • REC

    • Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Flicker Decrease (Photo) / Post-Focus / Motion Pic. Rec Format / Motion Pic. Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / LVF Magnification / Dial Operation Switch / Preview / Preview Aperture Effect****** / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Video Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Video-Priority Display / Status-LCD Display (Video) / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / Fan Mode / No Setting / Off (Disable Press and Hold)****** / Restore to Default

  • PLAY

    • Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold)****** / Restore to Default

LEVEL GAUGE

  • LEVEL GAUGE

    • Yes

OSD LANGUAGE

  • OSD LANGUAGE

    • Japanese, English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Romanian, Netherlandic, Turkish, Portuguese, Finnish, Danish, Swedish, Greek

PRINT

  • PRINT

    • PictBridge compatible

INTERFACE

  • USB

    • SuperSpeed USB 3.1 Gen1 Type-C

  • HDMI****

    • Monitor-through
      • 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
        4:2:2 8bit (When [Rec Quality] is set to [4:2:2 8bit].)
        Info Display: ON / OFF (selectable)
        Down Convert: Auto / 4K/30p/25p / 1080p / 1080i / OFF
        HLG View Assist (HDMI): AUTO / MODE1 / MODE2 / OFF (selectable)
    • Playback
      • HDMI TypeA / VIERA Link, Audio: Stereo
        59.94Hz: Auto / C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
        50.00Hz: Auto / C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
        24.00Hz: Auto / C4K/24p / 4K/24p / 1080p

  • Remote input

    • φ2.5mm

  • External microphone / external audio device input

    • φ3.5mm for external microphone / external audio device
      MIC (Plug-in Power) / MIC / LINE is selectable.
      Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).

  • Headphone output

    • φ3.5mm

  • Microphone

    • Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).

  • XLR microphone

    • Yes with DMW-XLR1 (sold separately)

  • Speaker

    • Monaural

  • SD card slot

    • Slot 1, Slot 2

  • TC IN/OUT

    • Yes with BNC Converter Cable (bundled)

  • Fan

    • Auto1 / Auto2 / Normal / Slow

  • Tally lamp

    • Yes (front/rear)

WIRELESS

  • Wi-Fi

    • 2.4GHz (STA/AP) (IEEE802.11b/g/n)
      5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
      1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 ch

  • Bluetooth

    • Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

  • DUST AND SPLASH RESISTANT*

    • Yes.
      *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

  • Battery

    • Li-ion Battery Pack (7.4V, 3050mAh, 23Wh) (bundled)
      USB power supply, USB power charging

  • Battery life (CIPA standard)

    • Approx. 400 images (rear monitor), 380 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105
      *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.

  • Battery grip

    • DMW-BGS1 (sold separately)

DIMENSIONS / WEIGHT

  • Dimensions (W x H x D)

    • Approx. 151.0 x 114.2 x 110.4 mm / 5.94 x 4.50 x 4.35 inch (excluding protrusions)

  • Weight

    • Approx. 1,164g / 2.57 lb (SD Memory Card x 1, Battery, Body)
      Approx. 1,052g / 2.32 lb (Body only)

OPERATING ENVIRONMENT

  • Operating temperature*****

    • -10oC to 40oC (14oF to 104oF)

  • Operating humidity

    • 10%RH to 80％RH

STANDARD ACCESSORIES

  • Software

    • Recording
      • LUMIX Tether
        ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
        http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
    • Playback / Editing
      • ・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
        https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
        ・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
        http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)

  • Standard accessories

    • Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, AC Mains Lead, USB Connection Cable (C-C), USB Connection Cable (A-C), BNC Converter Cable, Cable Holder

      ・ The DC-S1H Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

NOTE

  • NOTE

    • *** About motion picture recording / 6K PHOTO/4K PHOTO recording
      - 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
      - Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [AVCHD] or [MP4(under 28Mbps)].
      - Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K], [MOV], [VFR], [6K PHOTO] or [4K PHOTO].
      (SD speed class is the speed standard regarding continuous writing.)
      - Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
      - MP4 motion pictures with [MP4] in [4K]:
      - When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
      - When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
      - MP4 motion pictures with [MP4] in [FHD]:
      - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
      - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
      The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
      It may cause problems such as freezing when played on these devices.
      - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

      **** For [6K] [5.9K] [5.4K] [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

      ***** The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
Atvērt jaunu lapu drukāšanai

Piederumi

Objektīvi

S-R1635

LUMIX S PRO 16-35mm F4

S-E2470

LUMIX S PRO 24-70mm F2.8

S-X50

LUMIX S PRO 50 mm F1.4

S-E70200

LUMIX S PRO 70-200mm F2.8 O.I.S.

S-R70200

LUMIX S PRO 70–200 mm F4 O.I.S.

S-R2060

LUMIX S 20–60 mm F3,5–5,6

S-R24105

LUMIX S 24–105 mm F4 MACRO O.I.S.

S-S85

L-Mount 85mm objektīvs ar fiksētu fokusa attālumu

Akumulators / akumulatora turētājs

DMW-BGS1

Akumulatora turētājs

DMW-BLJ31

Battery

DMW-BTC14

Akumulatora lādētājs

XLR mikrofona adapteris / mikrofoni

DMW-MS2

Microphone

DMW-XLR1

XLR mikrofonu adapteris

Aizslēga tālvadības pults / acs vāciņš

DMW-EC6

Acs vāciņš

DMW-RS2

Aizslēga tālvadības pults

Zibspuldzes

DMW-FL200L

Ārējā zibspuldze

Fotoattēla DMW-FL200L

DMW-FL360L

Ārējā zibspuldze

Fotoattēla DMW-FL360L

DMW-FL580L

Ārējā zibspuldze

VW-LED1

LED video apgaismojums

Fotoattēla VW-LED1

Citas iespējas

DMW-AC10E

Maiņstrāvas adapteris

Fotoattēla DMW-AC10E

DMW-DCC16

Līdzstrāvas savienotājs

DMW-SSTG9

Pleca siksna

Fotoattēla DMW-SSTG9
Skatīt visus piederumus

Saņemt atbalstu

LUMIX S kamera DC-S1H

Apmeklēt šī produkta atbalsta lapu

Lejupielādēt ārējo barošanu

Paziņojums par “LUMIX CLUB” Panasonic digitālajām kamerām
