LUMIX S1RII pilnkadra bezspoguļu kamera DC-S1RM2

DC-S1RM2

Atklājiet neredzētas detaļas.

Hibrīda modelis ar 44,3 MP pilnkadra sensoru un LUMIX pirmo 8K izšķirtspējas videoierakstu. Nodrošina izcilu foto un video kvalitāti, lielisku funkcionalitāti un uzticamību, vienlaikus racionalizējot satura veidotāju darbplūsmu.

Video Player is loading.

Current Time 0:00

Duration 3:40

Loaded: 0%

Stream Type LIVE

Remaining Time 3:40

Video Player is loading.

Current Time 0:00

Duration 0:00

Loaded: 0%

Stream Type LIVE

Remaining Time 0:00

DC-S1RM2

Iespējas

Vairāk nekā tikai fotoattēli un videoklipi. Rezonē ar aizrautību radīt.

LUMIX S1RII ir izstrādāta kā ideāls partneris satura veidotājiem, kuri vēlas realizēt augstas izšķirtspējas mākslinieciskos paņēmienus. Šim modelim ir jauns 44,3 MP pilnkadra sensors un augstas veiktspējas procesors ar L² tehnoloģiju, kas kopīgi nodrošina delikātu un dabisku realitātes atveidi. Kompaktais korpuss, kas aprīkots ar uzlabotu darbspēju un uzticamību, nodrošina pilnīgi jaunu fotografēšanas pieredzes līmeni, atbalstot jūsu radošās darbības visā darba procesā.

Video Player is loading.

Current Time 0:00

Duration 3:40

Loaded: 0%

Stream Type LIVE

Remaining Time 3:40

Iespaidīgs fotoattēlu uzņemšanas rezultāts. Iemūžiniet mirkli 44,3 MP izšķirtspējā.

Reālistiskas detaļas ar jauno 44,3 MP sensoru

Elpu aizraujošas dabas ainavas, izsmalcināti mākslas darbi un cilvēku ikdienas dzīve. Pateicoties LUMIX attēlu veidošanas filozofijai "Notvert visu", unikālā krāsu zinātne un jaunais 44,3 MP sensors visu spilgti atdzīvina. Tā atbalsta arī uzņemšanu augstā izšķirtspējā, turot kameru rokās.

･ 44,3 megapikseļu pilnkadra sensors
･ Augstas izšķirtspējas režīms ar 177 megapikseļu ekvivalentu izšķirtspēju

Nepārtraukta AFC uzņemšana ar ātrumu 40 kadri sekundē

Pateicoties jaunajam sensoram, kas nodrošina gan augstas izšķirtspējas, gan ātrdarbīgu sērijveida attēlu uzņemšanu, LUMIX S1RII var izmantot arī situācijās, kas ir izaicinošas augstas izšķirtspējas kamerām, piemēram, fotogrāfējot sporta aktivitātes un dabu.

･ AFS/AFC 40 kadri/s sērijveida uzņemšana ar elektronisko aizvaru
･ AFS/AFC* 10 kadri/s sērijveida uzņemšana ar mehānisko aizvaru

*Ja ir iestatīta ātruma prioritāte H+ sērijveida attēlu uzņemšanas režīmā.

Nepārtraukta AFC uzņemšana ar ātrumu 40 kadri sekundē

Uzlabotas video funkcijas. LUMIX pirmais 8K video.

Augsta izšķirtspēja un plašs dinamiskais diapazons

LUMIX S1RII nodrošina gan video ierakstīšanu 8K izšķirtspējā, gan plaša dinamiskā diapazona ierakstīšanas iespējas, ļaujot jums turpināt veidot video materiālus bez jebkādiem ierobežojumiem. Varat arī iemūžināt skaistus mirkļus fantastiski palēninātas kustības videoklipos.

･ 8,1K (17:9) / 8K (16:9) 10 bitu, 5,9K 60p 10 bitu, C4K 120p 10 bitu
･ ProRes RAW HQ iekšējā ierakstīšana
･ 14 iestatījuma punktu V-Log un V-Gamut (kad ir IESLĒGTS dinamiskā diapazona paplašināšana (Log).)

Droša palīdzība video veidošanā un paplašināmība

LUMIX S1RII ir aprīkota ar dažādiem atbalsta rīkiem, tostarp False Color funkciju un jauno lietotni LUMIX Flow, sistēma piedāvā vispusīgu palīdzību video uzņemšanā, ļaujot jums ar pārliecību pievērsties video uzņemšanai. Turklāt, izmantojot atsevišķi iegādājamo mikrofona adapteri, varat ierakstīt 32 bitu plūstošo skaņu.

･ Nepareiza krāsa, viļņu forma, vektora tvērums, histogramma un daudz kas cits
･ Lietotne LUMIX Flow atbalsta uz scenārijiem balstītu video veidošanu
･ 32 bitu plūstošā ierakstīšana (nepieciešams pēc izvēles iegādājamais DMW-XLR2).

Savā klasē vadošais autofokuss un attēla stabilizācija

Fāzes hibrīda autofokuss ar uzlabotu mākslīgā intelekta tehnoloģiju

LUMIX S1RII ir aprīkota ar uzlabotu fāzes hibrīda autofokusu, kas nodrošina ātrdarbīgu, ļoti precīzu un augstas precizitātes izsekošanas efektivitāti. Apvienojot modernu mākslīgā intelekta tehnoloģiju, kas uzlabo cilvēka atpazīšanas precizitāti, ar uzlabotu autofokusa izsekošanas efektivitāti, kamera pastāvīgi izseko un fokusē objektu, kuru vēlaties fotografēt, pat situācijās, kad redzami vairāki cilvēki, piemēram, sportā.

･ Fāzes hibrīda autofokuss
･ Uzlabota mākslīgā intelekta tehnoloģija
･ Cilvēku/dzīvnieku/auto/motociklu/velosipēdu/vilcienu/lidmašīnu atpazīšana

8,0 punktu 5 asu I.S. tehnoloģija* / Aktīvā I.S. tehnoloģija

LUMIX S1RII stabilizē gan fotoattēlu, gan videoklipu kadrējumu, turot kameru rokās. Uzņemot videoklipus, ierīce samazina ievērojamo drebēšanu un perspektīvas izkropļojumus, kas var rasties, kad filmējat ejot. Tajā ir ietverts arī jauns režīms bez apgriešanas, kas noder, ja tiek izmantots platleņķa objektīvs.***

8,0 punktu 5 asu B. I.S.* / 7,0 punktu 5 asu duālo I.S. 2**
Aktīvā attēla stabilizācija + Uzlabotā E.I.S. ar režīmu bez apgriešanas

*Centrs: 8,0 punkti; Perifērijas: 7,0 punkti. Pamatojoties uz CIPA 2024 standartu (nobīdes/slīpuma/rotācijas virziens: fokusēšanas attālums f=60 mm, ja tiek izmantots S-R2060 modelis). 5 asis.]
**Centrs: 7,0 punktu; Perifērijas: 7,0 punkti. Pamatojoties uz CIPA 2024 standartu (nobīdes/slīpuma/rotācijas virziens: fokusēšanas attālums f=105 mm, ja tiek izmantots S-R24105 modelis). 5 asis.]
***Šo funkciju var iestatīt, izmantojot LUMIX S sērijas objektīvu.

8,0 punktu 5 asu I.S. tehnoloģija* / Aktīvā I.S. tehnoloģija

Intuitīva vadība, kas sinhronizējas ar satura veidotāja darbu

Ļoti pielāgojams monitors jebkuram stilam

Jaunizstrādātais grozāmais aizmugures monitors ar brīvu leņķi ļauj komponēt kadrus uz optiskās ass. Varat pagriezt monitoru, kamēr kabelis joprojām ir pievienots, kas padara to ļoti noderīgu arī video satura veidošanā. Fotografējot ārpus telpām, augstas izšķirtspējas OLED skatu meklētājs ar aptuveni 5760 000 punktu nodrošina dabisku kadrēšanu.

･ 1840 000 punktu sasverams un brīva leņķa aizmugurējais monitors
･ 5760 000 punktu OLED reālā skata meklētājs

Kompakts korpuss, kas neapdraud darbspēju

LUMIX S1RII kameras pogas, regulēšanas slēdži un kursorsvira ir izvietoti, rūpīgi ievērojot ergonomiku. Izsmalcināta kompakta konstrukcija, kas sver aptuveni 795 g, ir radīta, neapdraudot darbspēju.

･ Optimāls pogu un regulēšanas slēdžu izvietojums
･ Kursorsvira paredzēta vienmērīgai darbībai
･ Nemanāmi paplašiniet telefoto, izmantojot apgriešanas tālummaiņu un hibrīda tālummaiņu

Izcila uzticamība un efektivitāte

Izstrādāta, lai izturētu galējās temperatūras no -10 °C līdz 40 °C

LUMIX S1RII ir izstrādāta darbam temperatūrā līdz pat - 10 °C,* un ir pārbaudīta arī lietošanai līdz pat 40 °C temperatūrā. Pat skarbos lauka apstākļos ierīce vienmēr atbalstīs jūsu aizraušanos ar fotogrāfiju un video uzņemšanu.

･ Putekļu/šļakatu/sala izturīgs dizains
･ Magnija sakausējuma korpuss

*Ja ir pievienots Panasonic objektīvs, kas atbalsta darba temperatūru līdz - 10 °C.

Izstrādāta, lai izturētu galējās temperatūras no -10 °C līdz 40 °C

Savietojama ar dažādiem ierakstīšanas datu nesējiem

LUMIX S1RII ir aprīkota ar divu karšu slotu. 1. slots ir saderīgs ar CFexpress B tipa kartēm, nodrošinot vienmērīgu ātrdarbīgu sērijveida attēlu uzņemšanu un liela bitu pārraides ātruma video ierakstīšanu. Tā atbalsta arī tiešu ierakstīšanu USB-SSD, sniedzot jums iespēju izvēlēties ierakstīšanas datu nesēju, kas vislabāk atbilst jūsu vajadzībām.

1. slots: CFexpress B tipa karte
･ 2. slots: SD atmiņas karte (UHS-I/UHS-II UHS 3. ātruma klase, UHS-II video ātruma klase 90)
USB-SSD ierakstīšana

Savietojama ar plašu programmatūras klāstu

LUMIX S1RII atbalsta plašu programmatūras klāstu – no ikdienas lietošanai paredzētās, līdz profesionāla satura veidošanai paredzētajai. Tas ietver lietotni LUMIX Lab, kas ļauj rediģēt un augšupielādēt saturu, izmantojot vienu pieturas punktu; Capture One, ko izmanto profesionāli fotogrāfi; LUMIX Flow – lietotni, kas padara pieejamāku videoklipu veidošanu; un Frame.io Camera to Cloud – mākoņpakalpojumu, kas ļauj kopīgot saturu un sadarboties tā izstrādē.

･ Lietotne LUMIX Lab / Lietotne LUMIX Flow
･ Savietojama ar Capture One piesaisti
･ Savietojama ar Frame.io Camera to Cloud

Rūpes par vidi un zaļajām iniciatīvām

LUMIX veic pasākumus, lai pievērstu lielāku uzmanību vides aizsardzībai, piemēram, pakāpeniski pārtraucot izmantot plastmasu.

Iedvesmai

Specifikācijas

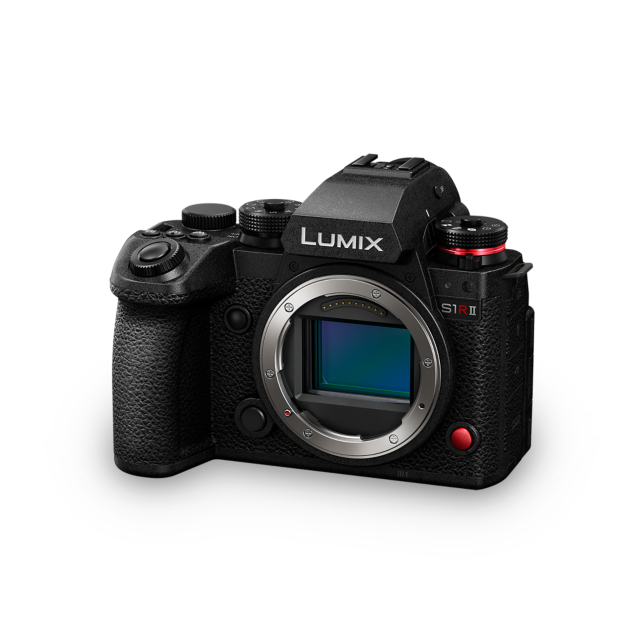

Fotoattēla LUMIX S1RII pilnkadra bezspoguļu kamera DC-S1RM2

Izmērs un svars

Augstums: 102.3mm

Platums: 134.3mm

Dziļums: 91.8mm

Svars: 795g

Visas vērtības ir aptuvenas. Objektīvs nav iekļauts. Svars ar stiprinājuma pārsegu, akumulatoru un SD karti. Korpuss tikai 712 g. Izmēri bez izvirzījumiem.

L-Mount
44,3 megapikseļi
AFS/AFC sērijveida attēlu uzņemšana ar ātrumu 40 kadri sekundē
Fāzu hibrīdais autofokuss
8K 30p video, 5,9K 60p video
ProRes RAW HQ video
1 840 000 punktu sasverams un brīvā leņķa monitors
5 760 000 punktu OLED tiešā skata meklētājs
Saderība ar piecu asu dubulto A.S. 2
Izturība pret šļakstiem, putekļiem un salu
Lietotne LUMIX Lab
Lietotne LUMIX Flow

44,3 megapikseļu pilnkadra sensors

AFS/AFC sērijveida attēlu uzņemšana ar ātrumu 40 kadri/s, izmantojot elektronisko aizvaru

LUMIX pirmais 8,1 K (17:9) / 8K (16:9) video

Fāzes hibrīda autofokuss ar uzlabotu mākslīgā intelekta tehnoloģiju

Savā klasē vadošā attēla stabilizācija

Jaunizstrādāts 1840 000 punktu sasverams un brīvā leņķa aizmugurējais monitors

TYPE

Type
- Digital Single Lens Mirrorless camera
Lens mount
- L-Mount

IMAGE SENSOR

Type
- 35mm full-frame (35.8mm x 23.9mm) CMOS sensor
Camera effective pixels / Total pixels
- 44.3 megapixels / 45.9 megapixels
AR (Anti Reflection) coating
- Yes
Aspect ratio / Color filter
- 3:2 / Primary color filter
Dust reduction system
- Image sensor shift type
Shutter Behavior at Power Off
- ON / OFF

LATITUDE

14 stops (V-Log) (Dynamic Range Expansion (Log) ON)
13 stops (V-Log) (Dynamic Range Expansion (Log) OFF)

STILL IMAGE

Recording file format
- JPEG (DCF, Exif 3.0), RAW
Aspect ratio
- 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (Pixels) / When using full-frame lenses
- 3:2
  - 8144x5424(L) / 5808x3872(M) / 4128x2752(S) / 1920x1280(XS) / 16288x10848(XL)* / 11504x7664(LL)* *High Resolution mode.
- 4:3
  - 7232x5424(L) / 5168x3872(M) / 3664x2752(S) / 1712x1280(XS) / 14464x10848(XL)* / 10224x7664(LL)* *High Resolution mode.
- 16:9
  - 8144x4584(L) / 5808x3272(M) / 4128x2320(S) / 1920x1080(XS) / 16288x9168(XL)* / 11504x6480(LL)* *High Resolution mode.
- 1:1
  - 5424x5424(L) / 3872x3872(M) / 2752x2752(S) / 1280x1280(XS) / 10848x10848(XL)* / 7664x7664(LL)* *High Resolution mode.
- 65:24
  - 8144x3008(L)
- 2:1
  - 8144x4072(L)
File size (Pixels) / When using APS-C
- 3:2
  - 5360x3568(L) / 3840x2560(M) / 2688x1792(S) / 1920x1280(XS)
- 4:3
  - 4752x3568(L) / 3424x2560(M) / 2384x1792(S) / 1712x1280(XS)
- 16:9
  - 5360x3016(L) / 3840x2160(M) / 2688x1512(S) / 1920x1080(XS)
- 1:1
  - 3568x3568(L) / 2560x2560(M) / 1792x1792(S) / 1280x1280(XS)
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
Color space
- sRGB, AdobeRGB

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes, Apple ProRes RAW
  MP4: H.264/MPEG-4 AVC, H.265/HEVC
Audio format
- 4ch Audio Recording: OFF
  - MOV
    Linear format: LPCM (2ch stereo 48kHz/24-bit, 96kHz/24-bit*)
    Float format**: LPCM (2ch stereo 48kHz/32-bit, 96kHz/32-bit)
    *When attaching Φ3.5mm microphone or DMW-XLR2 (sold separately). **When attaching DMW-XLR2 (sold separately).
    MP4
    Linear format: AAC (2ch stereo 48kHz/16-bit)
- 4ch Audio Recording: XLR*
  - MOV
    Linear format: LPCM (4ch monaural 48kHz/24-bit)
    Float format: LPCM (4ch monaural 48kHz/32-bit)
    *When attaching DMW-XLR2 (sold separately).
- 4ch Audio Recording: XLR*+Camera
  - MOV
    Linear format: LPCM (4ch monaural 48kHz/24-bit, 96kHz/24-bit**)
    *When attaching DMW-XLR2 (sold separately). **When attaching Φ3.5mm microphone or DMW-XLR2 (sold separately).
System frequency
- 59.94Hz / 50.00Hz / 24.00Hz
Image area of video
- Full / APS-C / PIXEL/PIXEL
Proxy
- ON / OFF
  Proxy Rec Quality: H / M / L
  Real Time LUT (Proxy): ON / OFF
  *When the following functions are being used, proxy recording is not available: [MP4], [Rec Quality] exceeding a resolution of C4K, [Rec Quality] with [4:3] or [3:2] aspect ratio, [Rec Quality] with a high frame rate video, and [Streaming].
MOV (*¹) (*²) (*³) / 59.94Hz / FULL
- [8.1K] 8128x4288 (17:9)
  - 29.97p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [8K] 7680x4320 (16:9)
  - 29.97p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [6.4K] 6432x4288 (3:2)
  - 29.97p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.9K] 5888x3312 (16:9)
  - 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.8K] 5760x3040 (17:9)
  - 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160 (17:9)
  - 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
- [4K] 3840x2160 (16:9)
  - 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
- [FHD] 1920x1080 (16:9)
  - 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    59.94p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    29.97p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    23.98p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
MOV (*¹) (*²) (*³) / 59.94Hz / PIXEL/PIXEL (*⁶)
- [5.9K] 5888x3312 (16:9)
  - 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.8K] 5760x3040 (17:9)
  - 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160 (17:9)
  - 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160 (16:9)
  - 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV (*¹) (*²) (*³) / 59.94Hz / APS-C / PIXEL/PIXEL (*⁶)
- [4.7K] 4736x3552 (4:3)
  - 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160 (17:9)
  - 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
- [4K] 3840x2160 (16:9)
  - 59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
- [FHD] 1920x1080 (16:9)
  - 119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    59.94p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    29.97p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    23.98p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
MOV (*¹) (*²) (*³) / 50.00Hz / FULL
- [8.1K] 8128x4288 (17:9)
  - 25.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [8K] 7680x4320 (16:9)
  - 25.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [6.4K] 6432x4288 (3:2)
  - 25.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.9K] 5888x3312 (16:9)
  - 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.8K] 5760x3040 (17:9)
  - 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160 (17:9)
  - 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
- [4K] 3840x2160 (16:9)
  - 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
- [FHD] 1920x1080 (16:9)
  - 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    50.00p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    25.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
MOV (*¹) (*²) (*³) / 50.00Hz / PIXEL/PIXEL (*⁶)
- [5.9K] 5888x3312 (16:9)
  - 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.8K] 5760x3040 (17:9)
  - 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160 (17:9)
  - 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160 (16:9)
  - 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV (*¹) (*²) (*³) / 50.00Hz / APS-C / PIXEL/PIXEL (*⁶)
- [4.7K] 4736x3552 (4:3)
  - 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160 (17:9)
  - 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
- [4K] 3840x2160 (16:9)
  - 50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
- [FHD] 1920x1080 (16:9)
  - 100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    50.00p, 50Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    25.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
MOV (*¹) (*²) (*³) / 24.00Hz / FULL
- [8.1K] 8128x4288 (17:9)
  - 24.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [8K] 7680x4320 (16:9)
  - 24.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [6.4K] 6432x4288 (3:2)
  - 24.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.9K] 5888x3312 (16:9)
  - 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.8K] 5760x3040 (17:9)
  - 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160 (17:9)
  - 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
- [4K] 3840x2160 (16:9)
  - 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
- [FHD] 1920x1080 (16:9)
  - 120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    120.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    24.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
MOV (*¹) (*²) (*³) / 24.00Hz / PIXEL/PIXEL (*⁶)
- [5.9K] 5888x3312 (16:9)
  - 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.8K] 5760x3040 (17:9)
  - 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160 (17:9)
  - 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160 (16:9)
  - 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV (*¹) (*²) (*³) / 24.00Hz / APS-C / PIXEL/PIXEL (*⁶)
- [4.7K] 4736x3552 (4:3)
  - 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160 (17:9)
  - 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
- [4K] 3840x2160 (16:9)
  - 48.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁵)
- [FHD] 1920x1080 (16:9)
  - 120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    120.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    48.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    24.00p, 25Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) (*⁴)
MP4 (*¹) (*²) / 59.94Hz / FULL
- [8K] 7680x4320 (16:9)
  - 29.97p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    23.98p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
- [4K] 3840x2160 (16:9)
  - 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080 (16:9)
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 (*¹) (*²) / 59.94Hz / APS-C / PIXEL/PIXEL (*⁶)
- [4K] 3840x2160 (16:9)
  - 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080 (16:9)
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 (*¹) (*²) / 50.00Hz / FULL
- [8K] 7680x4320 (16:9)
  - 25.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
- [4K] 3840x2160 (16:9)
  - 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080 (16:9)
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 (*¹) (*²) / 50.00Hz / APS-C / PIXEL/PIXEL (*⁶)
- [4K] 3840x2160 (16:9)
  - 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080 (16:9)
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 (*¹) (*²) / 24.00Hz / FULL
- -
MP4 (*¹) (*²) / 24.00Hz / APS-C / PIXEL/PIXEL
- -
ProRes (*¹) (*²) (*³) / 59.94Hz / FULL
- [5.8K] 5760x3040 (17:9)
  - 29.97p, 1.9Gbps (ProRes 422 HQ) (LPCM)
    29.97p, 1.3Gbps (ProRes 422) (LPCM)
    23.98p, 1.5Gbps (ProRes 422 HQ) (LPCM)
    23.98p, 1.0Gbps (ProRes 422) (LPCM)
- [C4K] 4096x2160 (17:9)
  - 59.94p, 1.9Gbps (ProRes 422 HQ) (LPCM) (*⁴)
    59.94p, 1.3Gbps (ProRes 422) (LPCM) (*⁴)
    29.97p, 972Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    29.97p, 648Mbps (ProRes 422) (LPCM) (*⁴)
    23.98p, 778Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    23.98p, 519Mbps (ProRes 422) (LPCM) (*⁴)
- [4K] 3840x2160 (16:9)
  - 59.94p, 1.8Gbps (ProRes 422 HQ) (LPCM) (*⁴)
    59.94p, 1.2Gbps (ProRes 422) (LPCM) (*⁴)
    29.97p, 911Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    29.97p, 608Mbps (ProRes 422) (LPCM) (*⁴)
    23.98p, 729Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    23.98p, 486Mbps (ProRes 422) (LPCM) (*⁴)
- [FHD] 1920x1080 (16:9)
  - 119.88p, 901Mbps (ProRes 422 HQ) (LPCM)
    119.88p, 601Mbps (ProRes 422) (LPCM)
    59.94p, 454Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    59.94p, 302Mbps (ProRes 422) (LPCM) (*⁴)
    29.97p, 227Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    29.97p, 151Mbps (ProRes 422) (LPCM) (*⁴)
    23.98p, 181Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    23.98p, 121Mbps (ProRes 422) (LPCM) (*⁴)
ProRes (*¹) (*²) (*³) / 59.94Hz / PIXEL/PIXEL (*⁶)
- [5.8K] 5760x3040 (17:9)
  - 29.97p, 4.2Gbps (ProRes RAW HQ) (LPCM)
    29.97p, 2.8Gbps (ProRes RAW) (LPCM)
    29.97p, 1.9Gbps (ProRes 422 HQ) (LPCM)
    29.97p, 1.3Gbps (ProRes 422) (LPCM)
    23.98p, 3.4Gbps (ProRes RAW HQ) (LPCM)
    23.98p, 2.2Gbps (ProRes RAW) (LPCM)
    23.98p, 1.5Gbps (ProRes 422 HQ) (LPCM)
    23.98p, 1.0Gbps (ProRes 422) (LPCM)
ProRes (*¹) (*²) (*³) / 59.94Hz / APS-C / PIXEL/PIXEL (*⁶)
- [4.7K] 4736x3552 (4:3)
  - 29.97p, 1.8Gbps (ProRes 422 HQ) (LPCM)
    29.97p, 1.2Gbps (ProRes 422) (LPCM)
    23.98p, 1.5Gbps (ProRes 422 HQ) (LPCM)
    23.98p, 986Mbps (ProRes 422) (LPCM)
- [C4K] 4096x2160 (17:9)
  - 59.94p, 1.9Gbps (ProRes 422 HQ) (LPCM) (*⁴)
    59.94p, 1.3Gbps (ProRes 422) (LPCM) (*⁴)
    29.97p, 972Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    29.97p, 648Mbps (ProRes 422) (LPCM) (*⁴)
    23.98p, 778Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    23.98p, 519Mbps (ProRes 422) (LPCM) (*⁴)
- [4K] 3840x2160 (16:9)
  - 59.94p, 1.8Gbps (ProRes 422 HQ) (LPCM) (*⁴)
    59.94p, 1.2Gbps (ProRes 422) (LPCM) (*⁴)
    29.97p, 911Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    29.97p, 608Mbps (ProRes 422) (LPCM) (*⁴)
    23.98p, 729Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    23.98p, 486Mbps (ProRes 422) (LPCM) (*⁴)
- [FHD] 1920x1080 (16:9)
  - 119.88p, 901Mbps (ProRes 422 HQ) (LPCM)
    119.88p, 601Mbps (ProRes 422) (LPCM)
    59.94p, 454Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    59.94p, 302Mbps (ProRes 422) (LPCM) (*⁴)
    29.97p, 227Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    29.97p, 151Mbps (ProRes 422) (LPCM) (*⁴)
    23.98p, 181Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    23.98p, 121Mbps (ProRes 422) (LPCM) (*⁴)
ProRes (*¹) (*²) (*³) / 50.00Hz / FULL
- [5.8K] 5760x3040 (17:9)
  - 25.00p, 1.6Gbps (ProRes 422 HQ) (LPCM)
    25.00p, 1.1Gbps (ProRes 422) (LPCM)
- [C4K] 4096x2160 (17:9)
  - 50.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) (*⁴)
    50.00p, 1.1Gbps (ProRes 422) (LPCM) (*⁴)
    25.00p, 811Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    25.00p, 541Mbps (ProRes 422) (LPCM) (*⁴)
- [4K] 3840x2160 (16:9)
  - 50.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) (*⁴)
    50.00p, 1.0Gbps (ProRes 422) (LPCM) (*⁴)
    25.00p, 760Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    25.00p, 507Mbps (ProRes 422) (LPCM) (*⁴)
- [FHD] 1920x1080 (16:9)
  - 100.00p, 757Mbps (ProRes 422 HQ) (LPCM)
    100.00p, 505Mbps (ProRes 422) (LPCM)
    50.00p, 378Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    50.00p, 252Mbps (ProRes 422) (LPCM) (*⁴)
    25.00p, 189Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    25.00p, 126Mbps (ProRes 422) (LPCM) (*⁴)
ProRes (*¹) (*²) (*³) / 50.00Hz / PIXEL/PIXEL (*⁶)
- [5.8K] 5760x3040 (17:9)
  - 25.00p, 3.5Gbps (ProRes RAW HQ) (LPCM)
    25.00p, 2.3Gbps (ProRes RAW) (LPCM)
    25.00p, 1.6Gbps (ProRes 422 HQ) (LPCM)
    25.00p, 1.1Gbps (ProRes 422) (LPCM)
ProRes (*¹) (*²) (*³) / 50.00Hz / APS-C / PIXEL/PIXEL (*⁶)
- [4.7K] 4736x3552 (4:3)
  - 25.00p, 1.5Gbps (ProRes 422 HQ) (LPCM)
    25.00p, 1.0Gbps (ProRes 422) (LPCM)
- [C4K] 4096x2160 (17:9)
  - 50.00p, 1.6Gbps (ProRes 422 HQ) (LPCM) (*⁴)
    50.00p, 1.1Gbps (ProRes 422) (LPCM) (*⁴)
    25.00p, 811Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    25.00p, 541Mbps (ProRes 422) (LPCM) (*⁴)
- [4K] 3840x2160 (16:9)
  - 50.00p, 1.5Gbps (ProRes 422 HQ) (LPCM) (*⁴)
    50.00p, 1.0Gbps (ProRes 422) (LPCM) (*⁴)
    25.00p, 760Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    25.00p, 507Mbps (ProRes 422) (LPCM) (*⁴)
- [FHD] 1920x1080 (16:9)
  - 100.00p, 757Mbps (ProRes 422 HQ) (LPCM)
    100.00p, 505Mbps (ProRes 422) (LPCM)
    50.00p, 378Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    50.00p, 252Mbps (ProRes 422) (LPCM) (*⁴)
    25.00p, 189Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    25.00p, 126Mbps (ProRes 422) (LPCM) (*⁴)
ProRes (*¹) (*²) (*³) / 24.00Hz / FULL
- [5.8K] 5760x3040 (17:9)
  - 24.00p, 1.5Gbps (ProRes 422 HQ) (LPCM)
    24.00p, 1.0Gbps (ProRes 422) (LPCM)
- [C4K] 4096x2160 (17:9)
  - 24.00p, 779Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    24.00p, 519Mbps (ProRes 422) (LPCM) (*⁴)
- [4K] 3840x2160 (16:9)
  - 24.00p, 730Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    24.00p, 487Mbps (ProRes 422) (LPCM) (*⁴)
- [FHD] 1920x1080 (16:9)
  - 120.00p, 908Mbps (ProRes 422 HQ) (LPCM)
    120.00p, 606Mbps (ProRes 422) (LPCM)
    24.00p, 182Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    24.00p, 121Mbps (ProRes 422) (LPCM) (*⁴)
ProRes (*¹) (*²) (*³) / 24.00Hz / PIXEL/PIXEL (*⁶)
- [5.8K] 5760x3040 (17:9)
  - 24.00p, 3.4Gbps (ProRes RAW HQ) (LPCM)
    24.00p, 2.2Gbps (ProRes RAW) (LPCM)
    24.00p, 1.5Gbps (ProRes 422 HQ) (LPCM)
    24.00p, 1.0Gbps (ProRes 422) (LPCM)
ProRes (*¹) (*²) (*³) / 24.00Hz / APS-C / PIXEL/PIXEL (*⁶)
- [4.7K] 4736x3552 (4:3)
  - 24.00p, 1.5Gbps (ProRes 422 HQ) (LPCM)
    24.00p, 987Mbps (ProRes 422) (LPCM)
- [C4K] 4096x2160 (17:9)
  - 24.00p, 779Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    24.00p, 519Mbps (ProRes 422) (LPCM) (*⁴)
- [4K] 3840x2160 (16:9)
  - 24.00p, 730Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    24.00p, 487Mbps (ProRes 422) (LPCM) (*⁴)
- [FHD] 1920x1080 (16:9)
  - 120.00p, 908Mbps (ProRes 422 HQ) (LPCM)
    120.00p, 606Mbps (ProRes 422) (LPCM)
    24.00p, 182Mbps (ProRes 422 HQ) (LPCM) (*⁴)
    24.00p, 121Mbps (ProRes 422) (LPCM) (*⁴)

SLOW & QUICK

MOV (*¹) (*²) / 59.94Hz / FULL
- [5.9K] 5888x3312 (16:9)
  - 29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.8K] 5760x3040 (17:9)
  - 29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160 (17:9)
  - 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    29.97p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    23.98p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
- [4K] 3840x2160 (16:9)
  - 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    29.97p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    23.98p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
- [FHD] 1920x1080 (16:9)
  - 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    29.97p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    23.98p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
MOV (*¹) (*²) / 59.94Hz / APS-C
- [C4K] 4096x2160 (17:9)
  - 59.94p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
- [4K] 3840x2160 (16:9)
  - 59.94p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
- [FHD] 1920x1080 (16:9)
  - 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    59.94p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    29.97p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    29.97p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    23.98p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    23.98p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
MOV (*¹) (*²) / 50.00Hz / FULL
- [5.9K] 5888x3312 (16:9)
  - 25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.8K] 5760x3040 (17:9)
  - 25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160 (17:9)
  - 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    25.00p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
- [4K] 3840x2160 (16:9)
  - 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    25.00p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
- [FHD] 1920x1080 (16:9)
  - 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    25.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
MOV (*¹) (*²) / 50.00Hz / APS-C
- [C4K] 4096x2160 (17:9)
  - 50.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
- [4K] 3840x2160 (16:9)
  - 50.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
- [FHD] 1920x1080 (16:9)
  - 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    50.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
    25.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    25.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
MOV (*¹) (*²) / 24.00Hz / FULL
- [5.9K] 5888x3312 (16:9)
  - 24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.8K] 5760x3040 (17:9)
  - 24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160 (17:9)
  - 24.00p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
- [4K] 3840x2160 (16:9)
  - 24.00p (Maximum output of sensor is 120fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
- [FHD] 1920x1080 (16:9)
  - 24.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
MOV (*¹) (*²) / 24.00Hz / APS-C
- [C4K] 4096x2160 (17:9)
  - 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
- [4K] 3840x2160 (16:9)
  - 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)
- [FHD] 1920x1080 (16:9)
  - 24.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM) (*⁴)
    24.00p (Maximum output of sensor is 120fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM) (*⁴)

EXTERNAL USB-SSD RECORDING (*⁷)

Yes (ON / OFF)

STREAMING

Wi-Fi / Protocol
- RTMPS
Wi-Fi / 59.94Hz
- [FHD] 1920x1080
  - 59.94p, 8Mbps (H.264)
    29.97p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
Wi-Fi / 50.00Hz
- [FHD] 1920x1080
  - 50.00p, 8Mbps (H.264)
    25.00p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)
USB Tethering / Protocol
- RTMPS
USB Tethering / 59.94Hz
- [4K] 3840x2160
  - 29.97p, 12.5Mbps (H.264)
- [FHD] 1920x1080
  - 59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
USB Tethering / 50.00Hz
- [4K] 3840x2160
  - 25.00, 12.5Mbps (H.264)
- [FHD] 1920x1080
  - 50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 6Mbps / 3Mbps (H.264)
- [HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 5.76 million dots
Field of view / Magnification
- Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m⁻¹, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m⁻¹ / -4.0 - +2.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps* / 60fps *During live view in photo recording mode.

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels
- Approx. 1.84 million dots
Field of view
- Approx. 100%

FOCUS (*⁸)

Type
- Phase Detection AF system / Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
  *Automatic Detection can be turned ON to switch between Human / Animal / Car / Motorcycle/Bike / Train / Airplane. Except when Pinpoint is set. Target Parts can also be set.
AF detective range
- EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Focus ring control
- Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
Others
- AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, Focus Frame Moving Speed, Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), AFS Behavior in Video Mode, Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume, AF Micro Adjustment

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Recording mode
- Mode dial
  - Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Custom 1, 2, 3, 4, 5 / Intelligent Auto
- Photo/Video/S&Q switch
  - Photo Mode / Video Mode / Slow&Quick Mode
- Custom mode
  - The settings can be registered for each of the photo, video, and S&Q modes.
Exposure compensation
- 1/3 EV step ±5EV (±3EV for motion picture)
ISO sensitivity (Standard output sensitivity)
- Still image
  - [Normal]
    Auto / 40* / 80-51200 / 102400* (1/3 or 1 EV step) *Extended ISO

    [V-Log]
    Auto / 100* / 200-51200 (1/3 or 1 EV step) *Extended ISO
- Motion picture
  - [Normal]
    Auto / 40* / 80-51200 / 102400* (1/3 or 1 EV step) *Extended ISO

    [V-Log]
    When Dynamic Range Expansion (log) OFF: Auto / 100* / 200-51200 (1/3 or 1 EV step) *Extended ISO
    When Dynamic Range Expansion (log) ON: Auto / 200* / 400-51200 (1/3 or 1 EV step) *Extended ISO

    [HLG]
    Auto / 320-51200 / 102400* (1/3 or 1 EV step) *Extended ISO
Dual Native ISO
- [Normal]
  Auto (Base ISO 80 / 400): Auto / 40* / 80-51200 / 102400* *Extended ISO
  Low (Base ISO 80): Auto / 40* / 80-800 *Extended ISO
  High (Base ISO 400): Auto / 200* / 400-51200 / 102400* *Extended ISO

  [V-Log / Dynamic Range Expansion (log) OFF]
  Auto (Base ISO 200 / 1000): Auto / 100* / 200-51200 *Extended ISO
  Low (Base ISO 200): Auto / 100* / 200-2000 *Extended ISO
  High (Base 1000): Auto / 500* / 1000-51200 *Extended ISO

  [V-Log / Dynamic Range Expansion (log) ON]
  Auto (Base ISO 400 / 2000): Auto / 200* / 400-51200 *Extended ISO
  Low (Base ISO 400): Auto / 200* / 400-4000 *Extended ISO
  High (Base 2000): Auto / 1000* / 2000-51200 *Extended ISO

  [HLG]
  Auto (Base ISO 320 / 1600): Auto / 320-51200 / 102400* *Extended ISO
  Low (Base ISO 320): Auto / 320-3200
  High (Base ISO 1600): Auto / 1600-51200 / 102400* *Extended ISO

  [Cinelike A2 / Cinelike D2 / Cinelike V2]
  Auto (Base ISO 160 / 800): Auto / 80* / 160-51200 / 102400* *Extended ISO
  Low (Base ISO 160): Auto /80* / 160-1600 *Extended ISO
  High (Base ISO 800): Auto / 400* / 800-51200 / 102400* *Extended ISO
Synchro scan
- Still image / Motion picture
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

B.I.S.
- 5-axis
  Center: 8.0-stop, Periphery: 7.0-stop
  *Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=60mm when S-R2060 is used.]
Dual I.S. 2
- 5-axis
  Center: 7.0-stop, Periphery: 7.0-stop
  *Based on the CIPA 2024 standard [Yaw/Pitch/Roll direction: focusing distance f=105mm when S-R24105 is used.]

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter Image Priority mode: Bulb (Max. 60 sec), 1/8,000 - 60
  Electronic shutter Speed Priority mode: Bulb (Max. 60 sec), 1/16,000 - 60
  Motion picture: 1/10,000 - 1/25*
  Motion picture M mode / MF mode: 1/10,000 - 1/2*
  *To set the shutter speed longer than the frame rate, please set Shutter Speed Limiter function to OFF.
Self timer
- 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control
- Remote control by DMW-RS2 (sold separately)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket
- 3, 5 or all positions
Focus bracket
- Yes
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed
- Mechanical shutter / Electronic front curtain shutter
  - H Image Priority: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
    H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
    H+ Image Priority: 9 frames/sec (AFC)
    H+ Speed Priority: 10 frames/sec (AFC)
    M: 5 frames/sec (AFS/AFC/MF) (with Live View)
    L: 2 frames/sec (AFS/AFC/MF) (with Live View)
- Electronic shutter
  - SH: 40 frames/sec (AFS/AFC/MF)
    SH PRE: 40 frames/sec (AFS/AFC/MF)
    H Image Priority: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
    H Speed Priority: 10 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
    H+ Image Priority: 9 frames/sec (AFC)
    H+ Speed Priority: 10 frames/sec (AFC)
    M: 5 frames/sec (AFS/AFC/MF) (with Live View)
    L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Number of recordable images
- H/H+/M/L*
  RAW+JPEG: More than 60 images
  RAW: More than 70 images
  JPEG: More than 80 images
  *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
  *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".

  SH
  RAW / RAW+JPEG / JPEG: 70 images

FLASH

Flash type
- Sold separately
Synchronization speed
- Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
Flash mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash output adjustment
- 1/3EV step ±3EV
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

COLOR SETTINGS

Photo Style
- Photo Style
  - Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / LEICA Monochrome / Cinelike A2 / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
    *Set to ON from Show/Hide Photo Style to select.
- Picture adjustment
  - Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / Dual Native ISO / ISO / WB / LUT / LUT 1 / LUT 2 / LUT Opacity / LUT 1 Opacity / LUT 2 Opacity
    *Adjustable settings vary depending on the Photo Style mode, whether a LUT is applied, and the base Photo Style of the applied LUT.
Filter
- Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
LUT Library
- Supported file types: .vlt, .cube
  Vlog_709 / Set 1-39 (Set 1-3: Sample LUT)
  *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in Log View Assist, LUT can be applied from these settings.

ZOOM FUNCTION

Hybrid zoom
- Still image / Motion picture
Crop zoom
- Still image / Motion picture

MOTION PICTURE FUNCTION

Time lapse shot
- Yes
Stop motion animation
- Yes
Live cropping
- Yes
SS/Gain operation
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level
- 8-bit: 0-255 / 16-235 / 16-255
  10-bit: 0-1023 / 64-940 / 64-1023
Master pedestal level
- 31 steps
Color bars / Test tone
- Yes (SMPTE / EBU / ARIB) / Yes
LUT view assist
- Monitor / HDMI
HLG view assist
- Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display
- 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
False Color
- Yes
Wave form monitor / Vectorscope
- Selectable
Knee control
- Yes (in Like709 mode)
Other functions
- Red REC Frame Indicator, Streaming Blue Frame Indicator

VERTICAL POSITION INFORMATION

Still image / Motion picture (ON/OFF)

LEVEL GAUGE

FUNCTION BUTTON

REC
- Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Apply LUT / REAL TIME LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Control (Photo Mode) / Exposure Control (Video Mode) / Synchro Scan (Photo) / Synchro Scan (Video) / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting (Photo) / AF Custom Setting (Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / Focus Frame Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / [Hybrid Zoom (Photo) / Crop Zoom / Live View Composite / Rec. File Format / Rec Quality / Rec Quality (My List) / Proxy Recording / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Audio Recording / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Hybrid Zoom(Video) / Crop Zoom / Focus Transition / Live Cropping / Live Cropping Settings / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Video Mode) / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / LUT Select(LUT View Assist) / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Image Flip (Monitor) / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select (LUT View Assist) / HLG View Assist (Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / False Color / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Streaming / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Same Setting as Photo Mode / Restore to Default
PLAY
- Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Video Mode) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / Send Images to Frame.io / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default

INTERFACE

USB
- USB Type-C^® (USB 10Gbps)
HDMI (*⁹)
- HDMI
  - HDMI TypeA
    Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
- Monitor-through
  - 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
    4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
    Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF
- Playback
  - 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
    50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
    24.00Hz: C4K/24p / 4K/24p / 1080p
    *Only for playback.
Remote input
- φ2.5mm
Audio
- Build-in microphone
  - Stereo
    Wind Noise Canceller: OFF / Standard / High
- External microphone / External audio device input
  - φ3.5mm for external microphone / external audio device
    MIC (Plug-in Power) / MIC / LINE
    Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
    Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
- XLR microphone
  - Yes with DMW-XLR2 (sold separately)
- 4ch mic input
  - Yes with DMW-XLR2 (sold separately)
- Speaker
  - Monaural
- Headphone output
  - φ3.5mm
Card slot
- Slot 1: CFexpress Type B Card
  Slot 2: SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

Count up
- Rec Run / Free Run
Time code mode
- Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code output
- ON / OFF

FAN

Auto1 / Auto2 / Fast / Normal / Slow* / OFF** *SLOW setting cannot be used depending on the video recording quality. **OFF can not be set when in Video mode.

LAMP

Tally Lamp (front/rear) / Card Access Light / Charging Light/Network Connection Light

WIRELESS

Wi-Fi
- 2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
  5GHz bands (STA/AP) (IEEE 802.11a/n/ac)
  Security: WPA/WPA2/WPA3
Bluetooth
- Bluetooth^® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
  USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)
- When using CFexpress Card
  - Approx. 340 images (rear monitor), 280 images (LVF), 950 images (Power Save LVF mode*) with S-R24105 / DMW-BLK22
    *Using a Nextorage CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
- When using SD memory card
  - Approx. 350 images (rear monitor), 280 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105 / DMW-BLK22
    *Using a Nextorage SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Continuous recordable time (Motion picture) (*¹)
- When using CFexpress Card
  - MP4 [4K/60p (FULL)]: Approx. 50 min with S-R24105
    MP4 [FHD/30p (FULL)]: Approx. 80 min with S-R24105
- When using SD memory card
  - MP4 [4K/60p (FULL)]: Approx. 50 min with S-R24105
    MP4 [FHD/30p (FULL)]: Approx. 80 min with S-R24105
Actual recordable time (Motion picture) (*¹)
- When using CFexpress Card
  - MP4 [4K/60p (FULL)]: Approx. 25 min with S-R24105
    MP4 [FHD/30p (FULL)]: Approx. 40 min with S-R24105
- When using SD memory card
  - MP4 [4K/60p (FULL)]: Approx. 25 min with S-R24105
    MP4 [FHD/30p (FULL)]: Approx. 40 min with S-R24105
Battery grip
- DMW-BG2 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 134.3 x 102.3 x 91.8 mm / 5.29 x 4.03 x 3.61 inch (Body only, excluding protrusions)
  Approx. 134.3 x 102.3 x 187.8 mm / 5.29 x 4.03 x 7.40 inch (with S-R24105, excluding protrusions)
Weight
- Approx. 795g / 1.75 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
  Approx. 712g / 1.57 lb (Body, Hot Shoe Cover) (excluding body cap)

OPERATING ENVIRONMENT

Operating temperature
- -10℃ to 40℃ (14℉ to 104℉)
  ･The performance of the battery (number of pictures that can be taken/available recording time) may decrease temporarily at temperatures between -10℃ to 0℃ (14℉ to 32℉).
  ･When using in low temperatures (-10℃ to 0℃ (14℉ to 32℉)), attach a Panasonic lens with a minimum recommended operating temperature of -10℃ (14℉).
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software
- LUMIX Lab / LUMIX Flow
  ･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
  https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)

  LUMIX Tether
  ･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
  http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

  ･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Adwaa's website using computer connected to the Internet.
  http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-S1RM2 Kit
  Battery Pack, Battery Charger, Shoulder Strap, Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector

  DC-S1RM2M Kit
  Battery Pack, Battery Charger, Shoulder Strap, Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Lens Cap, Lens Hood, Lens Rear Cap

  ･The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

(*1) About motion picture recording

- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
Motion pictures with 400Mbps or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
Motion pictures with 600Mbps or less: CFexpress card, SD memory card with Video Speed Class 90
Motion pictures with 800Mbps or more, S&Q video with ALL-Intra, or ProRes: CFexpress card

- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes

- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV] in 600Mbps or less: 192GB
[MOV] in 800Mbps: 640GB
[ProRes] in [5.8K]: 640GB

- The recording time varies depending on the shooting format and the operating conditions. It will stop automatically once the internal temperature gets too high.

(*2) HLG is selectable in [4:2:2 10bit] or [4:2:0 10bit].

(*3) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR2 (sold separately).

(*4) Proxy video recording is available.

(*5) Proxy video recording is available. When Proxy Recording is set to ON, Crop Zoom is not available.

(*6) When Image Area of Video is set to PIXEL/PIXEL, Crop Zoom is not available.

(*7) Please use DC Coupler DMW-DCC18 (sold separately) or Battery Grip DMW-BG2 / Battery Pack DMW-BLK22 (sold separately) when using the following settings. For video and S&Q video when set as MOV/MP4 with exceeding a resolution of C4K; or ProRes video with frame rate of 31 fps or above and exceeding a resolution of C4K.

(*8) About AF
- Automatic Detection is not available for High Frame Rate video shooting above 4K 60p (C4K/4K 100p/120p).
- Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting above 4K 60p (C4K/4K 100p/120p).

(*9) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).
To output motion pictures with 4K 120p/100p or 8K30p/25p/24p, use an Ultra High Speed HDMI cable (Type A - Type A plug).

Atvērt jaunu lapu drukāšanai

Saistītie produkti

DC-S1R

Pilna kadra DSLM (Digitālā viena objektīva bezspoguļu) kamera ar 47,3 MP MOS sensoru un 187 MP augstas izšķirtspējas režīmu.

DC-S1RM

Pilna kadra DSLM (Digitālā viena objektīva bezspoguļu) kamera ar 47,3 MP MOS sensoru un 187 MP augstas izšķirtspējas režīmu. 24–105 mm objektīva komplekts

DC-S1

Pilna kadra DSLM (Digitālā viena objektīva bezspoguļu) kamera ar 24,2 MP MOS sensoru, 4K 60p/50p video ierakstīšana un izcila video ierakstīšanas veiktspēja profesionāļiem.

DC-S1M

Pilna kadra DSLM (Digitālā viena objektīva bezspoguļu) kamera ar 24,2 MP MOS sensoru, 4K 60p/50p video ierakstīšana un izcila video ierakstīšanas veiktspēja profesionāļiem. 24–105 mm objektīva komp...

DC-S1RM2M
(DC-S1RM2 + S-R24105)

LUMIX DC-S1RM2M (komplekts ar S1RM2 korpusu un LUMIX S 24-105 mm / F4 objektīvu) Hibrīda modelis ar 44,3 MP pilnkadra sensoru un LUMIX pirmo 8K izšķirtspējas videoierakstu. Nodrošina izcilu foto un...

DC-S5M2N
(DC-S5M2 + S-R1840)

Pilna kadra bezspoguļu kamera ar fāzu hibrīdo autofokusu, Aktīvo attēla stabilizāciju, Augsta līmeņa video režīmu, C4K/4K 60 p/50 p 4:2:2 10 bitu neierobežota ilguma ierakstu u. c. (komplekts ar S5...

DC-S5M2XN
(DC-S5M2X + S-R1840)

DC-S5DN
(DC-S5D + S-R1840)

LUMIX DC-S5DN (komplekts ar S5D korpusu un LUMIX S 18-40 mm / F4.5-6.3 tālummaiņas objektīvu) Pilna kadra bezspoguļu kamera ar 24,2 MP MOS sensoru, 4K 60p/50p 10 bitu video un vēl vairāk — tas viss...

DC-S9N
(DC-S9 + S-R1840)

LUMIX DC-S9N (komplekts ar S9 korpusu un LUMIX S 18-40mm / F4.5-6.3 tālummaiņas objektīvu) Radiet aizraujošu saturu tieši jaunajā LUMIX S9 pilnkadra kamerā, kas aprīkota ar profesionālām funkcijām,...

DC-S9

Izmantojiet jauno LUMIX S9 pilnkadru kameru, lai tieši izveidotu saistošu saturu; kamerā ir daudz profesionāla līmeņa funkciju, bet rediģēšanas iemaņas nav nepieciešamas — no uzņemšanas līdz public...

DC-S9H
(DC-S9 + S-R28200)

LUMIX DC-S9H (komplekts ar S9 korpusu un LUMIX S 28–200 mm/F4–7,1 tālummaiņas objektīvu) Izmantojiet jauno LUMIX S9 pilnkadru kameru, lai tieši izveidotu saistošu saturu; kamerā ir daudz profesionā...

DC-S9K
(DC-S9 + S-R2060)

LUMIX DC-S9K (komplekts ar S9 korpusu un LUMIX S 20–60 mm/F3,5–5,6 objektīvu) Izmantojiet jauno LUMIX S9 pilnkadru kameru, lai tieši izveidotu saistošu saturu; kamerā ir daudz profesionāla līmeņa f...

DC-S5

Pilna kadra bezspoguļu kamera ar 24,2 MP MOS sensoru, 4K 60p/50p 10 bitu video un vēl vairāk — tas viss kompaktā un vieglā korpusā.

DC-S5K

Pilna kadra bezspoguļu kamera ar 24,2 MP MOS sensoru, 4K 60p/50p 10 bitu video un vēl vairāk — tas viss kompaktā un vieglā korpusā. 20-60mm objektīva komplekts

DC-S1K

Pilna kadra digitālā viena objektīva bezspoguļu kamera ar 24,2 MP MOS sensoru, 4K 60p/50p video ierakstīšanu un dažādām profesionāla līmeņa funkcijām. 20–60 mm objektīva komplekts

DC-S1H

Pilna kadra DSLM (Digitālā bezspoguļa ar vienu objektīvu) kamera ar V-Log/V-Gamut ar 14+ dinamiskā diapazona iestatījuma punktiem, 6K pilna kadra attēla uzņemšanu un 10 bitu kino 4K/4K 60p/50p iera...
