Wall-Mounted X-Deluxe Inverter R32 MXPU Series

Purify Around-the-Clock with nanoe™ X

Panasonic Wall-Mounted X-Deluxe Inverter MXPU Series comes with nanoe™ X air purification system which provides 24-hour nanoe™ X protection. Equipped with built-in Wi-Fi, connect to the Panasonic Comfort Cloud App to control air conditioning units anywhere, anytime. POWERFUL Mode offers instant cooling during start-up, while AEROWINGS offers further and faster airflow. Enjoy cooling comfort while saving energy with Inverter technology and R32 refrigerant.
  • nanoe X Generator Mark 1
  • Panasonic Comfort Cloud App
  • Inverter
  • POWERFUL Mode

Please Select Your User Type

Zoom In
Zoom Out
Close
Wall-Mounted X-Deluxe Inverter R32 MXPU Series
Contact Us

Specifications

CS-MXPU9YKZ

Photo of CS-MXPU9YKZ

CS-MXPU12YKZ

Photo of CS-MXPU12YKZ

CS-MXPU18YKZ

Photo of CS-MXPU18YKZ

CS-MXPU24YKZ

Photo of CS-MXPU24YKZ

CS-MXPU28YKZ

Photo of CS-MXPU28YKZ
  • nanoe X Generator Mark 1nanoe X Generator Mark 1
  • Built-in Wi-FiBuilt-in Wi-Fi
  • POWERFUL ModePOWERFUL Mode
  • nanoe-Gnanoe-G
  • AEROWINGSAEROWINGS
  • InverterInverter
  • R32 RefrigerantR32 Refrigerant
  • Quiet ModeQuiet Mode

nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours

Manage your air conditioner using your mobile device with Comfort Cloud App

AEROWINGS concentrates cool air for further and faster airflow across the room

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Energy savings with Inverter and environmentally friendly R32 refrigerant

CS-MXPU9YKZ CS-MXPU12YKZ CS-MXPU18YKZ CS-MXPU24YKZ CS-MXPU28YKZ
Cooling Capacity (kW) 2.8 kW 3.5 kW 5.0 kW 6.0 kW 7.1 kW
Cooling Capacity (Btu/h) 9,550 Btu/h 11,900 Btu/h 17,100 Btu/h 20,500 Btu/h 24,200 Btu/h
Power Source Single Phase, 220V - 240V, 50Hz Single Phase, 220V - 240V, 50Hz Single Phase, 220V - 240V, 50Hz Single Phase, 220V - 240V, 50Hz Single Phase, 220V - 240V, 50Hz
Sound Pressure Level (H/L) 43/28 dB(A) 44/28 dB(A) 45/34 dB(A) 49/39 dB(A) 49/39 dB(A)
Air Circulation (H) 12.7 m³/min (450 ft³/min) 13.1 m³/min (460 ft³/min) 13.3 m³/min (470 ft³/min) 20.2 m³/min (715 ft³/min) 20.5 m³/min (725 ft³/min)
Dimensions (H x W x D) (mm) 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 295 mm x 1,040 mm x 244 mm 295 mm x 1,040 mm x 244 mm
Net Weight 8 kg 8 kg 9 kg 14 kg 14 kg
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm ø 6.35 mm ø 6.35 mm ø 6.35 mm ø 6.35 mm
Refrigerant Pipe Diameter (Gas Side) ø 9.52 mm ø 9.52 mm ø 9.52 mm ø 12.70 mm* ø 12.70 mm*
Power Supply Outdoor Outdoor Outdoor Outdoor Outdoor
Inverter Control Yes Yes Yes Yes Yes
Sleep Mode Yes Yes Yes Yes Yes
Quiet Mode Yes Yes Yes Yes Yes
POWERFUL Mode Yes Yes Yes Yes Yes
ECO Mode with A.I. Yes (Temperature shift) Yes (Temperature shift) Yes (Temperature shift) Yes (Temperature shift) Yes (Temperature shift)
Soft Dry Operation Mode Yes Yes Yes Yes Yes
Personal Airflow Creation No No No Yes Yes
Airflow Direction Control (Up & Down) Yes Yes Yes No No
Manual Horizontal Airflow Direction Control Yes Yes Yes No No
nanoe™ X Yes (Generator Mark 1) Yes (Generator Mark 1) Yes (Generator Mark 1) Yes (Generator Mark 1) Yes (Generator Mark 1)
nanoe-G Yes Yes Yes Yes Yes
Odour-Removing Function Yes Yes Yes Yes Yes
Removable, Washable Panel Yes Yes Yes Yes Yes
24-Hour Dual ON & OFF Real Setting Timer Yes Yes Yes Yes Yes
LCD Wireless Remote Control Yes Yes Yes Yes Yes
Wireless LAN Remote Control For Internet Connection Yes (Built-in) Yes (Built-in) Yes (Built-in) Yes (Built-in) Yes (Built-in)
Wired Remote Control Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional)
Random Auto Restart (32 Restart Patterns) Yes Yes Yes Yes Yes
Blue Fin Condenser Yes Yes Yes Yes Yes
Top-Panel Maintenance Access Yes Yes Yes Yes Yes
Self-Diagnostic Function Yes Yes Yes Yes Yes
Note *Pipe size expander CZ-MA2PA is not required when outdoor units CU-4U34YBZ are connected to CS-MXPU24YKZ and CS-MXPU28YKZ. *Pipe size expander CZ-MA2PA is not required when outdoor units CU-4U34YBZ are connected to CS-MXPU24YKZ and CS-MXPU28YKZ.

Documents

Combination

R32 Multi-Split Air Conditioning System

Connect Up to 4 Indoor Units, Wide Cooling Capacity Range, Inverter, R32 Refrigerant, Quiet Mode, High Durability, Flexible Installation.

Case Studies

Features

Wide Cooling Capacity to Suit Your Needs and Preferences

Model

CS-MXPU9YKZ

CS-MXPU12YKZ

CS-MXPU18YKZ

CS-MXPU24YKZ

CS-MXPU28YKZ

Btu/h

9,550

11,900

17,100

20,500

24,200

kW

2.8

3.5

5.0

6.0

7.1

Stay Safe Indoors with 24-hour nanoe™ X Air Protection

Stay Safe Indoors with 24-hour nanoe™ X Air Protection

nanoe™ X technology with the benefits of hydroxyl radicals effectively inhibits adhered and airborne pollutants while reducing frequently encountered odours for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify spaces, providing a cleaner and comfortable environment for work and play 24/7.

LEARN MORE

*Energy consumption may vary depending on models.

nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

A global contract research organization Texcell has verified the inhibitory effect of the nanoe™ X technology, with known benefits of hydroxyl radicals on the adhered novel coronavirus (SARS-CoV-2). 99.7% of adhered novel coronavirus (SARS-CoV-2) activity was inhibited within 24 hours in a 6.7m³ test space.
Notes: (1) The virus infectious titer was measured and used to calculate the inhibition rate. (2) This verification was designed to generate basic research data on the effects of nanoe™ X on the adhered novel coronavirus in laboratory conditions. Actual effects will vary depending on the environment and usage of the product.
LEARN MOREបើកទំព័រថ្មី
nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

Effective in Removing 99% of Dust Particles

Effective in removing 99% of dust particles*, nanoe-G releases negative ions to capture dust particles as small as PM2.5, carrying them back to the filter to provide a cleaner indoor environment.
*Testing organisation: FCG Research Institute, Inc. Testing method: nanoe-G-equipped air conditioner was operated and tested in a 23m³ sized test room. Test result: Removed 99% of particles in 202 minutes (compared to the initial concentration). (25034) Not a result of experiments in an actual use environment. Results may vary based on usage, and seasonal and environmental variables (temperature and humidity).
LEARN MORE
Effective in Removing 99% of Dust Particles

Better Living, Together with Energy-saving and Eco-friendly Technologies

Better Living, Together with Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.

LEARN MORE

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect & Control Your Air Conditioners Anywhere, Anytime

With the built-in Wi-Fi and Panasonic Comfort Cloud App, connect up to 20 air conditioning units at 1 location (up to 10 locations), and control them from anywhere, at home or away. Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

Easy Installation, Perfect Fit

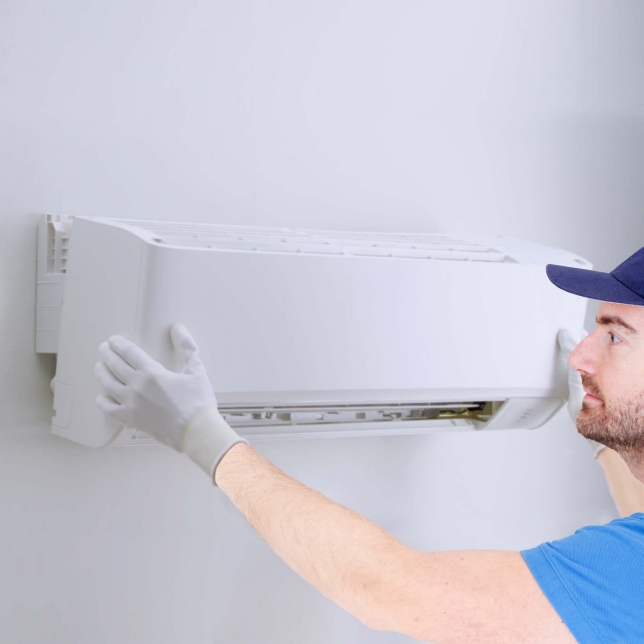

Installation and Servicing Made Easier

Panasonic air conditioners come with many design innovations and improvements. No more struggling to disassemble components, not being able to see what you’re doing, squeeze in pipes or having to juggle tools with one hand. Working with Panasonic air conditioners is now faster, easier and simpler than ever.
Installation and Servicing Made Easier

Fits Perfectly Anywhere

Panasonic air conditioners are designed to be compact enough to fit easily in tight, narrow spaces such as close to ceilings, close to corner walls, and above doors and windows. The designed structure makes installation and maintenance easy.
Fits Perfectly Anywhere

Convenient Control at Your Fingertips

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Wireless Remote Controller

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.
Optional Wired Remote Controller

Pipe Size Reducer & Expander

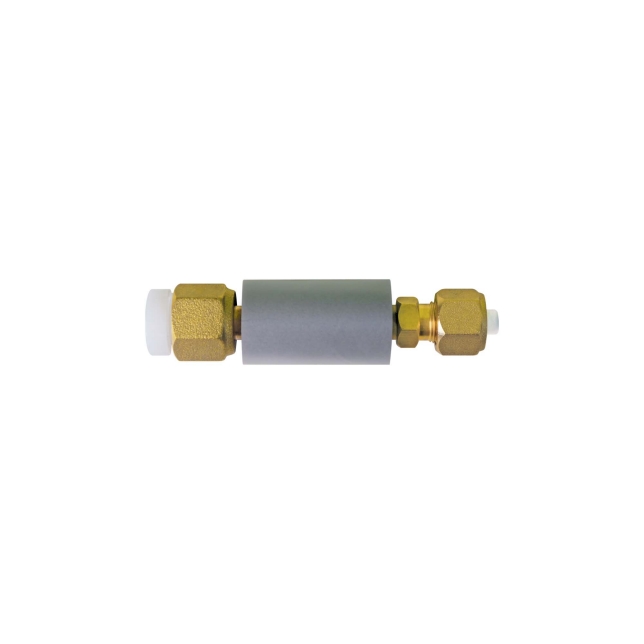

Pipe Size Reducer CZ-MA1PA (Optional)

Use at the indoor unit’s connection port to reduce the connection size on the indoor unit from ½” (12.70 mm) to ⅜” (9.52 mm).
Pipe Size Reducer CZ-MA1PA (Optional)

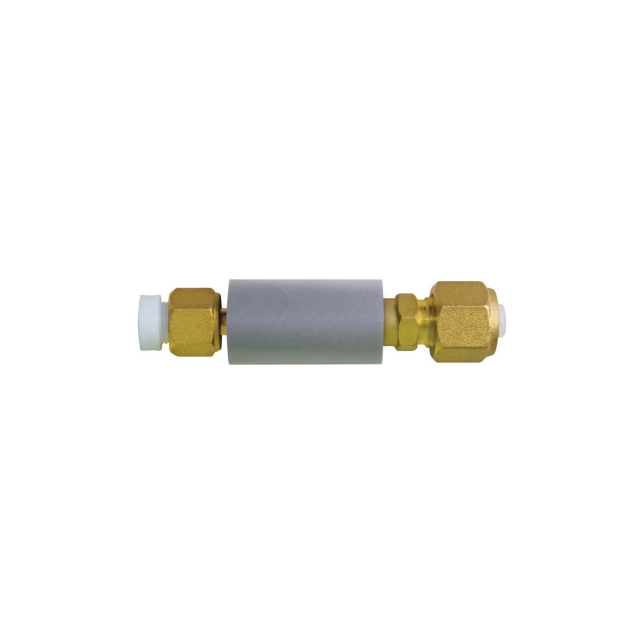

Pipe Size Expander CZ-MA2PA (Optional)

Use at the outdoor unit’s connection port to increase the connection size on the outdoor unit from ⅜” (9.52 mm) to ½” (12.70 mm).
Pipe Size Expander CZ-MA2PA (Optional)
