Wall-Mounted X-Deluxe Inverter R32 MXPU Series

Purify Around-the-Clock with nanoe™ X

Panasonic Wall-Mounted X-Deluxe Inverter MXPU Series comes with nanoe™ X air purification system which provides 24-hour nanoe™ X protection. Equipped with built-in Wi-Fi, connect to the Panasonic Comfort Cloud App to control air conditioning units anywhere, anytime. POWERFUL Mode offers instant cooling during start-up, while AEROWINGS offers further and faster airflow. Enjoy cooling comfort while saving energy with Inverter technology and R32 refrigerant.

Please Select Your User Type

Wall-Mounted X-Deluxe Inverter R32 MXPU Series

Features

Wide Cooling Capacity to Suit Your Needs and Preferences

Model
Model	CS-MXPU9YKZ	CS-MXPU12YKZ	CS-MXPU18YKZ	CS-MXPU24YKZ	CS-MXPU28YKZ
Btu/h	9,550	11,900	17,100	20,500	24,200
kW	2.8	3.5	5.0	6.0	7.1

24-hour nanoe™ X Air Protection

nanoe™ X technology with the benefits of hydroxyl radicals effectively inhibits adhered and airborne pollutants while reducing frequently encountered odours for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify spaces, providing a cleaner and comfortable space 24/7 for patrons, employees and you.

LEARN MORE

*Energy consumption may vary depending on models.

nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

A global contract research organization Texcell has verified the inhibitory effect of the nanoe™ X technology, with known benefits of hydroxyl radicals on the adhered novel coronavirus (SARS-CoV-2). 99.7% of adhered novel coronavirus (SARS-CoV-2) activity was inhibited within 24 hours in a 6.7m³ test space.

Notes: (1) The virus infectious titer was measured and used to calculate the inhibition rate. (2) This veriﬁcation was designed to generate basic research data on the effects of nanoe™ X on the adhered novel coronavirus in laboratory conditions. Actual effects will vary depending on the environment and usage of the product.

LEARN MORE

nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

Effective in Removing 99% of Dust Particles

Effective in removing 99% of dust particles*, nanoe-G releases negative ions to capture dust particles as small as PM2.5, carrying them back to the filter to provide a cleaner indoor environment.

*Testing organisation: FCG Research Institute, Inc. Testing method: nanoe-G-equipped air conditioner was operated and tested in a 23m³ sized test room. Test result: Removed 99% of particles in 202 minutes (compared to the initial concentration). (25034) Not a result of experiments in an actual use environment. Results may vary based on usage, and seasonal and environmental variables (temperature and humidity).

LEARN MORE

Effective in Removing 99% of Dust Particles

Connect & Control Your Air Conditioners Anywhere, Anytime

With the built-in Wi-Fi and Panasonic Comfort Cloud App, connect up to 20 air conditioning units at 1 location (up to 10 locations), and control them from anywhere, at home or away. Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.

LEARN MORE

Comfort Cooling Environment for Your Needs

Stay Cool with Faster, Further Airflow

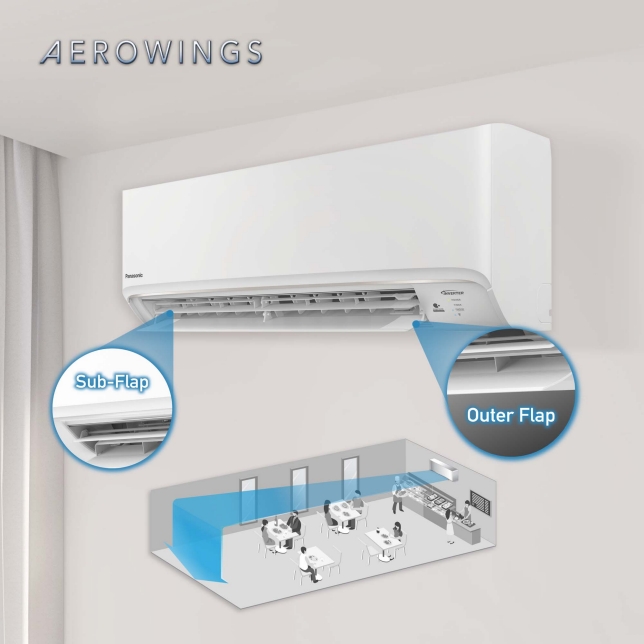

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode cools the place faster by decreasing the setting temperature by 2°C and operating the indoor fan at a higher speed to create powerful instant cooling during start-up.

Calm and Peaceful Environment with Quiet Mode

Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum, and noise level is reduced by 3 dB(A)* from normal settings. This mode is ideal for a calm and peaceful atmosphere at your premises.

*Noise level reduced by 3 dB(A) from normal settings is applicable to CS-MXPU9YKZ and CS-MXPU12YKZ only.

Calm and Peaceful Environment with Quiet Mode

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Specifications

CS-MXPU9YKZ

CS-MXPU12YKZ

CS-MXPU18YKZ

CS-MXPU24YKZ

CS-MXPU28YKZ

nanoe X Generator Mark 1
Built-in Wi-Fi
POWERFUL Mode
nanoe-G
AEROWINGS
Inverter
R32 Refrigerant
Quiet Mode

nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours

Manage your air conditioner using your mobile device with Comfort Cloud App

AEROWINGS concentrates cool air for further and faster airflow across the room

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Energy savings with Inverter and environmentally friendly R32 refrigerant

	CS-MXPU9YKZ	CS-MXPU12YKZ	CS-MXPU18YKZ	CS-MXPU24YKZ	CS-MXPU28YKZ
Cooling Capacity (kW)	2.8 kW	3.5 kW	5.0 kW	6.0 kW	7.1 kW
Cooling Capacity (Btu/h)	9,550 Btu/h	11,900 Btu/h	17,100 Btu/h	20,500 Btu/h	24,200 Btu/h
Power Source	Single Phase, 220V - 240V, 50Hz	Single Phase, 220V - 240V, 50Hz	Single Phase, 220V - 240V, 50Hz	Single Phase, 220V - 240V, 50Hz	Single Phase, 220V - 240V, 50Hz
Sound Pressure Level (H/L)	43/28 dB(A)	44/28 dB(A)	45/34 dB(A)	49/39 dB(A)	49/39 dB(A)
Air Circulation (H)	12.7 m³/min (450 ft³/min)	13.1 m³/min (460 ft³/min)	13.3 m³/min (470 ft³/min)	20.2 m³/min (715 ft³/min)	20.5 m³/min (725 ft³/min)
Dimensions (H x W x D) (mm)	290 mm x 779 mm x 209 mm	290 mm x 779 mm x 209 mm	290 mm x 779 mm x 209 mm	295 mm x 1,040 mm x 244 mm	295 mm x 1,040 mm x 244 mm
Net Weight	8 kg	8 kg	9 kg	14 kg	14 kg
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm	ø 6.35 mm	ø 6.35 mm	ø 6.35 mm	ø 6.35 mm
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm	ø 9.52 mm	ø 9.52 mm	ø 12.70 mm*	ø 12.70 mm*
Power Supply	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor
Inverter Control	Yes	Yes	Yes	Yes	Yes
Sleep Mode	Yes	Yes	Yes	Yes	Yes
Quiet Mode	Yes	Yes	Yes	Yes	Yes
POWERFUL Mode	Yes	Yes	Yes	Yes	Yes
ECO Mode with A.I.	Yes (Temperature shift)	Yes (Temperature shift)	Yes (Temperature shift)	Yes (Temperature shift)	Yes (Temperature shift)
Soft Dry Operation Mode	Yes	Yes	Yes	Yes	Yes
Personal Airflow Creation	No	No	No	Yes	Yes
Airflow Direction Control (Up & Down)	Yes	Yes	Yes	No	No
Manual Horizontal Airflow Direction Control	Yes	Yes	Yes	No	No
nanoe™ X	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)
nanoe-G	Yes	Yes	Yes	Yes	Yes
Odour-Removing Function	Yes	Yes	Yes	Yes	Yes
Removable, Washable Panel	Yes	Yes	Yes	Yes	Yes
24-Hour Dual ON & OFF Real Setting Timer	Yes	Yes	Yes	Yes	Yes
LCD Wireless Remote Control	Yes	Yes	Yes	Yes	Yes
Wireless LAN Remote Control For Internet Connection	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)
Wired Remote Control	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)
Random Auto Restart (32 Restart Patterns)	Yes	Yes	Yes	Yes	Yes
Blue Fin Condenser	Yes	Yes	Yes	Yes	Yes
Top-Panel Maintenance Access	Yes	Yes	Yes	Yes	Yes
Self-Diagnostic Function	Yes	Yes	Yes	Yes	Yes
Note				*Pipe size expander CZ-MA2PA is not required when outdoor units CU-4U34YBZ are connected to CS-MXPU24YKZ and CS-MXPU28YKZ.	*Pipe size expander CZ-MA2PA is not required when outdoor units CU-4U34YBZ are connected to CS-MXPU24YKZ and CS-MXPU28YKZ.
