PM 2.5

Effect

Evidence

Effect

Breakdown/inhibition of hazardous substances^¹ found in PM 2.5

Breakdown effects of harmful substances such as aromatic acid (benzoic acid), paraffin (hexadecane) has been verified.¹

What are hazardous substances ?

PM 2.5 particles include a variety of hazardous substances with sources that are unlikely to be eliminated.

[PM 2.5 Generation routes]
For these reasons, it can be said that we are constantly exposed to risks from various hazardous substances.

Generation route 1
Direct emission

Generation route 2
Chemical reactions make particles

Hazardous substances fall to the ground due to weather conditions
A: Gaseous substances
B: Also enter rooms

A image of a people in a nursery while nanoe™ X operation

Are they breathing truly fresh air?

In today’s urban environments, quality indoor air is a precious commodity. nanoe™ X helps keep the air indoors fresher and cleaner, breaking down airborne PM 2.5 to support the health of your loved ones.

Effects on hazardous substances

Aromatic carboxylic acid¹
Benzoic acid

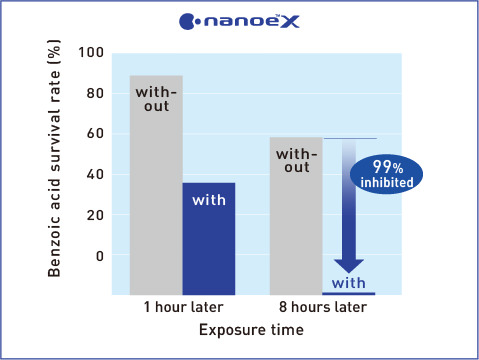

A graph showing that nanoe™ X has a significant effect on aromatic carboxylic acid (benzoic acid)

Paraffin¹
Hexadecane

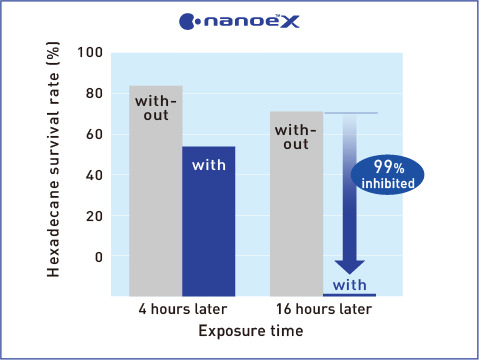

A graph showing that nanoe™ X has a significant effect on paraffin (hexadecane)

Quality lifestyle through nanoe™ X

Proven hazardous substances with nanoe™ X

Hazardous substances	Properties of substances	IARC² Evaluation of carcinogenic risks to humans
Aromatic carboxylic acid (Benzoic acid)	Considered to be one cause of acid rain	-
Paraffin (Hexadecane)	Contained in gasoline and diesel exhaust gas, and considered to be one cause of oil odour	-
Benz [a] anthracene (BaA)	Considered to be high carcinogenic risk	2B Possibly carcinogenic to humans
Benzo [b] fluoranthene (BbF)	Considered to be high carcinogenic risk	2B Possibly carcinogenic to humans
Benzo [a] pyrene (BaP)	Considered to be high carcinogenic risk	1 Carcinogenic to humans
Indeno [1,2,3-cd] pyrene (IcP)	Considered to be high carcinogenic risk	2B Possibly carcinogenic to humans
Dibenzo [a,h] anthracene (Dha)	Considered to be high carcinogenic risk	2A Probably carcinogenic to humans

How nanoe™ X works

nanoe™ X reaches hazardous substance.

Hydroxyl radicals denature hazardous substance.

Hazardous substance is inhibited.¹

¹Testing organisation: Panasonic Product Analysis Center. Testing method: measured the amount of adhered organic substances in an approximately 23 m3-sized test chamber. Inhibition method: nanoe™ released. Test results: Aromatic carboxylic acid (benzoic acid) broken down at least 99% in approximately 8 hours; (Y17NF096) Paraffin (hexadecane) broken down at least 99% in approximately 16 hours. (Y17NF089)

Results may vary based on usage, and seasonal and environmental variables (temperature and humidity). nanoe™ X and nanoe™ inhibit activity or growth of pollutants, but do not prevent illness.

²International Agency for Research on Cancer, IARC; A cancer-dedicated WHO (World Health Organization) agency that conducts cancer-prevention research.

Evidence

nanoe™

	Target	*Results¹**	Test space	Exposure time (hr)	Testing organisation	Report No.
Carcinogen	Benz [a] anthracene [BaA]	78％ decomposed	36 L	8	Panasonic Product Analysis Center	Y13NF141
	Benz [a] anthracene [BaA]	80％ decomposed	36 L	8	SGS	SHES160600431171
	Benzo [b] fluoranthene [BbF]	79％ decomposed	36 L	8	Panasonic Product Analysis Center	Y13NF142
	Benzo [b] fluoranthene [BbF]	70％ decomposed	36 L	8	SGS	SHES160600431171
	Benzo [a] pyrene [BaP]	97％ decomposed	36 L	8	Panasonic Product Analysis Center	Y13NF143
	Benzo [a] pyrene [BaP]	99％ decomposed	36 L	8	SGS	SHES160600431171
	Indeno [1,2,3-cd] pyrene [IcP]	97％ decomposed	36 L	8	Panasonic Product Analysis Center	Y13NF144
	Indeno [1,2,3-cd] pyrene [IcP]	80％ decomposed	36 L	8	SGS	SHES160600431171
	Dibenzo [a,h] anthracene [DHa]	81％ decomposed	36 L	8	Panasonic Product Analysis Center	Y13NF145
	Dibenzo [a,h] anthracene [DHa]	72％ decomposed	36 L	8	SGS	SHES160600431171
Exhaust gas, acid rain	Aromatic carboxylic acid (benzoic acid)	99％ decomposed	Approx. 23 m³	16	Panasonic Product Analysis Center	Y13NF135
	Aromatic carboxylic acid (benzoic acid)	99％ decomposed	Approx. 23 m³	16	SGS	SHES160600431171
	Paraffin (hexadecane)	99％ decomposed	Approx. 23 m³	24	Panasonic Product Analysis Center	Y13NF136
	Paraffin (hexadecane)	99％ decomposed	Approx. 23 m³	24	SGS	SHES160600431171

nanoe™ X

	Target	*Results¹**	Test space	Exposure time (hr)	Testing organisation	Report No.
Carcinogen	Benz [a] anthracene [BaA]	78％ decomposed	36 L	8	Panasonic Product Analysis Center	Y13NF141
	Benz [a] anthracene [BaA]	80％ decomposed	36 L	8	SGS	SHES160600431171
	Benzo [b] fluoranthene [BbF]	79％ decomposed	36 L	8	Panasonic Product Analysis Center	Y13NF142
	Benzo [b] fluoranthene [BbF]	70％ decomposed	36 L	8	SGS	SHES160600431171
	Benzo [a] pyrene [BaP]	97％ decomposed	36 L	8	Panasonic Product Analysis Center	Y13NF143
	Benzo [a] pyrene [BaP]	99％ decomposed	36 L	8	SGS	SHES160600431171
	Indeno [1,2,3-cd] pyrene [IcP]	97％ decomposed	36 L	8	Panasonic Product Analysis Center	Y13NF144
	Indeno [1,2,3-cd] pyrene [IcP]	80％ decomposed	36 L	8	SGS	SHES160600431171
	Dibenzo [a,h] anthracene [DHa]	81％ decomposed	36 L	8	Panasonic Product Analysis Center	Y13NF145
	Dibenzo [a,h] anthracene [DHa]	72％ decomposed	36 L	8	SGS	SHES160600431171
Exhaust gas, acid rain	Aromatic carboxylic acid (benzoic acid)	99％ decomposed	Approx. 23 m³	16	Panasonic Product Analysis Center	Y13NF135
		99％ decomposed	Approx. 23 m³	16	SGS	SHES160600431171
		99％ decomposed	Approx. 23 m³	8	Panasonic Product Analysis Center	Y17NF096
	Paraffin (hexadecane)	99％ decomposed	Approx. 23 m³	24	SGS	SHES160600431171
		99％ decomposed	Approx. 23 m³	16	Panasonic Product Analysis Center	Y17NF089
		92％ decomposed	267 m²	8	Environmental Technology Research Center	ETRC257
