Allergens

Effect

Evidence

Licensed in VDI 6022

Certification of a HVAC system under VDI 6022 guarantees that the system fulfills the market’s strictest hygiene requirements.

VDI 6022 – Part 5 Certification

‘Avoidance of allergenic exposure’

Inhibits a wide range of harmful bacteria, viruses, mould, pollen and allergens.

Panasonic nanoe™ X technology has, after rigorous testing in the strictest test conditions, been awarded VDI6022 certification, which guarantees the highest level of effectiveness against exposure to common allergens such as Pollen, mould, and many common pet allergens present within indoor spaces.

Pollen

Mould

Allergens

VDI 6022 – Part 1 & 1.1 Certification

‘Ventilation and indoor-air quality’

Panasonic nanoe™ X technology improving indoor air quality.

Panasonic nanoe™ X technology has been tried and tested for over 20 years and is proven to inhibit a wide range of harmful bacteria, viruses, mould, pollen and allergens.

*1,Certification mark of part5 is only valid for Generater Mark3.
*2,Certification mark of part1 is only valid for Generater Mark3.
*3,Certification mark of part1.1 is only valid for Generater Mark2 and Mark3.

Effect

Inhibits pet-derived allergens and major allergens.

In addition to allergens* from sources such as dog/cat dander*, mite faeces/carcasses*, and airborne mould*, other major allergens* can also be inhibited.

A image of a people in a nursery while nanoe™ X operation

A sensitive age

Could there be allergens lurking in the carpet? At home or at the nursery, nanoe™ X helps keep your loved ones secure by penetrating deep into fabrics to inhibit a wide range of allergens, giving you peace of mind.

Effects on allergens

Inhibition* effect verified by disappearance of coloured section (band) that reacts to allergens.

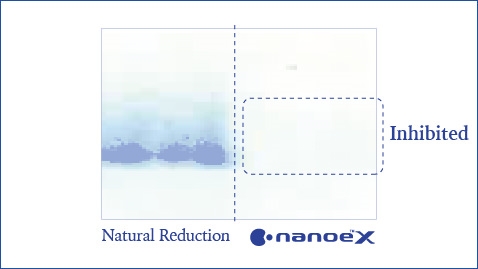

Mites
Dermatophagoides farinae

An illustration showing that nanoe™ X highly effective against the mite allergen Dermatophagoides farinae

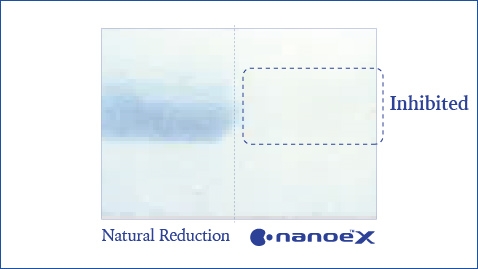

Insects
Cockroaches

An illustration showing that nanoe™ X highly effective against insect allergens like cockroaches

Mould
Aspergillus

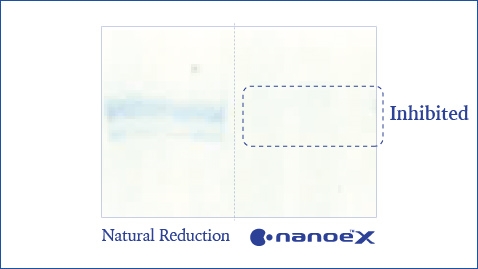

An illustration showing that nanoe™ X is highly effective against mould like Aspergillus

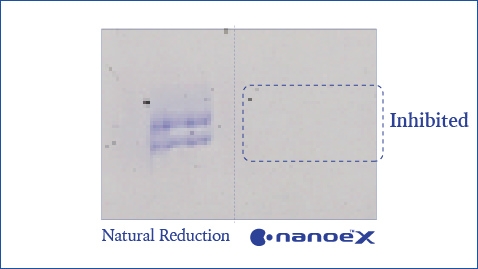

Tree and shrub pollen
Cedar

An illustration showing that nanoe™ X is highly effective against the pollen of trees like cedar and shrubs

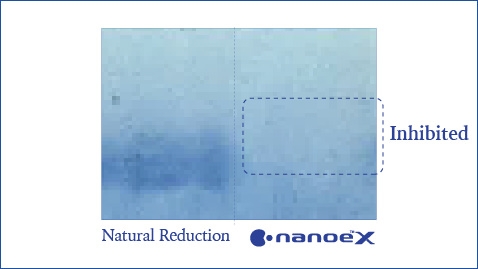

Animals
Cats

An illustration showing that nanoe™ X is highly effective against allergens like cat dander

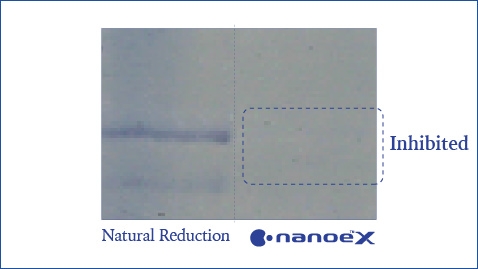

Grass pollen
Ragweed

An illustration showing that nanoe™ X is highly effective against grass pollens like ragweed

Proven allergens with nanoe™ X

Mites	Dermatophagoides farinae / Dermatophagoides pteronyssinus
Mould	Alternaria / Aspergillus / Candida / Malassezia
Animals	Dog (dander) / Cat (dander)
Insects	Cockroach / Moth
Tree and shrub pollen	Cedar / Cypress / Alnus japonica / Japanese white birch / Olive / Juniper / Casuarina
Grass pollen	Orchard grass / Timothy grass / Ragweed / Miscanthus / Artemisia / Humulus japonicus

Detailed comparative evidence here

How nanoe™ X works

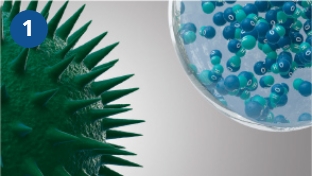

nanoe™ X reaches allergens.

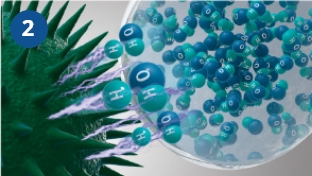

Hydroxyl radical denature allergen proteins.

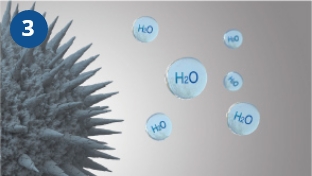

Allergen is inhibited.^*

^*Testing organisation: Panasonic Product Analysis Center. Testing method: Verified using the electrophoresis method in an approximately 23 m3-sized test chamber. Inhibition method: nanoe™ released. Target substances: Allergens (Dermatophagoides pteronyssinus, Dermatophagoides farina, Cedar, Cypress, Orchard grass, Ragweed, Alnus japonica, Japanese white birch, Artemisia, Olive, Juniper, Casuarina, Miscanthus, Timothy grass, Humulus japonicus, Alternaria, Aspergillus, Candida, Malassezia, cockroach, moth, dog (dander), cat (dander)). Test result: Inhibitory effect confirmed in 24 hours. (4AA33-160615-F01, 4AA33-170301-F15, 4AA33-151001-F01, 4AA33-151028-F01, 4AA-33-160601-F01, 4AA33-160601-F02, 4AA33-160701-F01, 1V332-180301-F01, 4AA33-160615-F02, 4AA33-160615-F03, 4AA33-160620-F01)

Results may vary based on usage, and seasonal and environmental variables (temperature and humidity). nanoe™ X and nanoe™ inhibit activity or growth of Allergens, but do not prevent infection.

Evidence

nanoe™

	Target	*Results¹**	Test space	Exposure time (hr)	Testing organisation	Report No.
Adhering	Mite	98％ inhibited	45 L	2	Panasonic Product Analysis Center	E02-080204IN-02
	Mite	60％ inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	BAA33-130304-F04
	Aspergillus	93.9％ inhibited	45 L	2	Institute of Tokyo Environmental Allergy	11MAR076_1
	Dog	99.8％ inhibited	45 L	1		11M-RPTAPR047_1
	Cat	98.6％ inhibited	45 L	2		11M-RPTAPR051_1
	Cedar	99％ inhibited	45 L	2	Panasonic Product Analysis Center	E02-080303IN-03
		88％ inhibited	Approx. 23 m³	8	Panasonic Product Analysis Center	BAA33-130402-F01
		87％ inhibited	Approx. 23 m³	8	SGS	SHES160600431171
	Cypress	Inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	1V332-171010-F04
	Cypress	Inhibited	45 L	1	Shinshu University, Faculty of Textile Science and Technology
	Orchardgrass	Inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	1V332-171010-F02
	Orchardgrass	Inhibited	45 L	1	Shinshu University, Faculty of Textile Science and Technology
	Ragweed	Inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	1V332-171010-F01
	Ragweed	Inhibited	45 L	1	Shinshu University, Faculty of Textile Science and Technology

nanoe™ X

	Target	*Results¹**	Test space	Exposure time (hr)	Testing organisation	Report No.
Adhering	Mite	98％ inhibited	45 L	2	Panasonic Product Analysis Center	E02-080204IN-02
	Mite	60% inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	BAA33-130304-F04
	Aspergillus	93.9% inhibited	45 L	2	Institute of Tokyo Environmental Allergy	11MAR076_1
	Aspergillus	Inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-160615-F02
	Dermatophagoides pteronyssinus	Inhibited	Approx. 24 m³	24	Panasonic Product Analysis Center	4AA33-160615-F01
	Alternaria	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-160615-F02
	Candida	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-160615-F02
	Malassezia furfur	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-160615-F02
	Dog	99.8% inhibited	45 L	1	Institute of Tokyo Environmental Allergy	11M-RPTAPR047_1
	Dog	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-160620-F01
	Cat	98.6% inhibited	45 L	2	Institute of Tokyo Environmental Allergy	11M-RPTAPR051_1
	Cat	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-160620-F01
	Rabbit	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	1V332-180614-Y03
	Guinea pig	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	1V332-180806-Y04
	Hamster	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	1V332-180806-Y02
	Mouse	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	1V332-180806-Y03
	Canary	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	1V332-190202-Y03
	Parakeet	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	1V332-180806-Y01
	Cockroach	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-160615-F03
	Psocid	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-160615-F03
	Psocoptera	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	1V332-190130-Y01
	Cedar	99% inhibited	45 L	2	Panasonic Product Analysis Center	E02-080303IN-03
		99% inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-151001-F01
		97% inhibited	Approx. 23 m³	8		4AA33-151001-F01
		98.9% inhibited	24 m³	8		1V332-170703-F08
	Cedar Note: Electrophoresis	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-151015-F01
	Cypress	inhibited	45 L	1	Shinshu University, Faculty of Textile Science and Technology
	Cypress	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-151028-F01
	Orchardgrass	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-151028-F01
	Orchardgrass	inhibited	45 L	1	Shinshu University, Faculty of Textile Science and Technology
	Ragweed	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-151028-F01
	Ragweed	inhibited	45 L	1	Shinshu University, Faculty of Textile Science and Technology
	White birch	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-160601-F01
	Mugwort	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center
	Alder	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center
	Pampas grass	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-160601-F02
	Olive	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center
	Juniper	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center
	Casuarina	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center
	Timothy grass	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	4AA33-160701-F01
	Humulus japonicus	inhibited	Approx. 23 m³	24	Panasonic Product Analysis Center	1V332-180301-F01

nanoe™ X (nanoe™ X Generator Mark 2)

	Target	*Results¹**	Test space	Exposure time (hr)	Testing organisation	Report No.	PDF
Adhering	Cedar	99% inhibited	23 m³	12	Panasonic Product Analysis Center	L19YA009

nanoe™ X (nanoe™ X Generator Mark 3)

	Target	*Results¹**	Test space	Exposure time (hr)	Testing organisation	Report No.
Adhering	Cedar pollen	Inhibited over 99%	Approx. 24m³	3	Panasonic Product Analysis Center	H21YA017-1
	Dermatophagoides pteronyssinus	Inhibited over 99%	Approx. 24m³	6	Panasonic Product Analysis Center	H21YA046-1
	Ragweed	Inhibited 98%	Approx. 23m²	6	Panasonic Holdings Corporation Product Analysis Center	H23YA033
	Mites	Inhibited 97%	Approx. 23m²	6	Panasonic Holdings Corporation Product Analysis Center	H23YA034
	Cat	Inhibited 94%	Approx. 23m²	6	Panasonic Holdings Corporation Product Analysis Center	H23YA035

nanoe™ X: improving protection 24/7

Effects of nanoe™ X—unique Panasonic technology
