Odours

Effect

Evidence

Effect

Eliminates frequently encountered odours

nanoe™ X particles, which are smaller than steam particles, penetrate deep into fabrics, allowing for highly effective deodorisation.^1–5 Hydroxyl radicals reach the sources of the odours and inhibit them.

Cigarette smoke odour¹

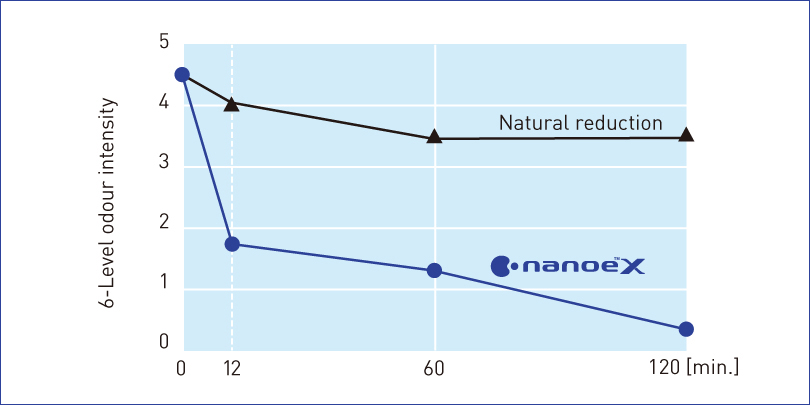

A graph showing that nanoe™ X reduced cigarette smoke odour intensity by 2.4 levels in 12 minutes

nanoe™ X can reduce cigarette smoke odour
intensity by 2.4 levels in 12 minutes.

What do you want your guests to notice?
A busy kitchen and a crowded restaurant can mean plenty of odours. nanoe™ X helps deodorise, keeping your guests happy and making your establishment a more attractive place to visit.

Effects on odours

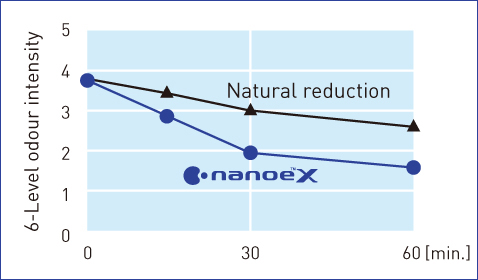

Durian odour²

nanoe™ X reduced durian odour
intensity faster than natural reduction.

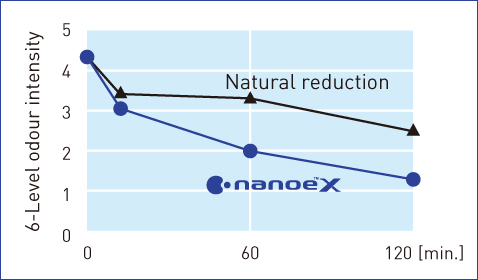

BBQ odour³

nanoe™ X reduced BBQ odour
intensity faster than natural reduction.

Do you feel like it’s truly your space?
When you check into your room, you don’t want to relive the party someone else enjoyed. Nothing makes a hotel stay more delightful than the fresh, clean, less odour air nanoe™ X helps delivers.

Effects on odours

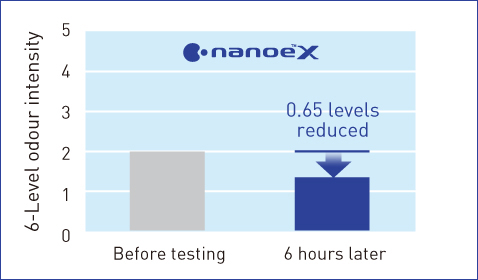

Scalp odour⁴

A graph showing that nanoe™ X reduced scalp odour intensity significantly in 6 hours

nanoe™ X reduced scalp odour
intensity massively in 6 hours.

Sweat odour⁵
Nonanoic acid

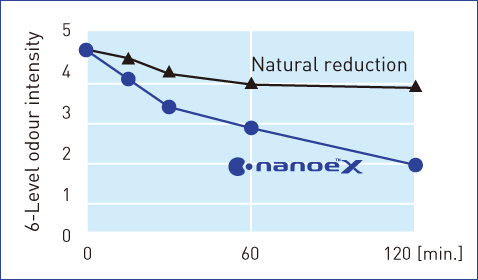

A graph showing that nanoe™ X reduced perspiration odour intensity significantly in 1 hour

nanoe™ X reduced sweat odour
intensity massively in 1 hour.

How nanoe™ X works

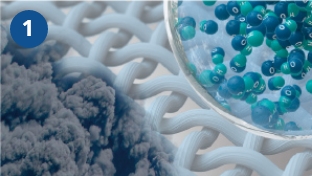

nanoe™ X reaches odours embedded in fabrics.

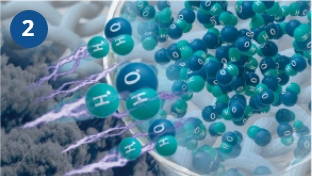

Hydroxyl radicals inhibit odour-causing substances.

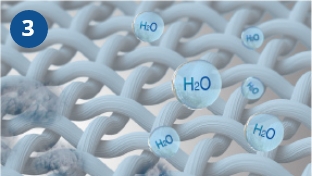

Fabrics are deodorised.

The effects of nanoe™ X products can only be expected in the room where the product is placed, and vary depending on room size, environment and usage. It may take several hours for nanoe ™ X to reach its full effect. nanoe ™ X products are not medical devices. Local building design and sanitation regulations must be respected.

¹Testing organisation: Panasonic Product Analysis Center. Testing method: Verified using the six-level odour intensity indication method in an approximately 23㎥-sized test chamber. Deodorisation method: nanoe™ released. Target odour: Surface-adhered cigarette smoke odour. Test result: Odour intensity reduced by 2.4 levels in 12 minutes. (4AA33-160615-N04)
²Testing organisation: Panasonic Product Analysis Center. Testing method: Verified using the six-level odour indication method in an approximately 23㎥-sized test chamber. Deodorisation method: nanoe™ released. Target odour: Surface-adhered durian odour. Test result: Odour intensity reduced by 1 level in 0.5 hours. (1V332-180402-K01)
³Testing organisation: Panasonic Product Analysis Center. Testing method: Verified using the six-level odour intensity indication method in an approximately 23㎥-sized test chamber. Deodorisation method: nanoe™ released. Target odour: Surface-adhered BBQ odour. Test result: Odour intensity reduced by 1.2 levels in 2 hours. (4AA33-151221-N01)
⁴Testing organisation: Odour and Aroma Design Course, Department of Integrated Informatics, Faculty of Informatics, Daido University. Testing method: Verified using the six-level odour intensity indication method in an approximately 23㎥-sized test chamber. Deodorisation method: nanoe™ released. Test substance: Simulated body odour of middle-aged and senior citizens adhered to pillow cover. Test result: Odour intensity reduced by 0.65 levels in 6 hours.
⁵Testing organisation: Panasonic Product Analysis Center. Testing method: Verified using the six-level odour intensity indication method in an approximately 23㎥-sized test chamber. Deodorisation method: nanoe™ released. Target odour: Surface-adhered perspiration odour. Test result: Odour intensity reduced by 1.1 levels in 1 hour. (Y16HM016)

Evidence

nanoe™

	Target	*Results¹**	Test space	Exposure time (hr)	Testing organisation	Report No.
Adhering	Cigarette smoke odour	Deodorised within 30 minutes	250 L	0.5	Panasonic Product Analysis Center	E02-090313MH-01
		Odour intensity reduced 1.2 levels	Approx. 23 m³	2	Panasonic Product Analysis Center	BAA33-130125-D01
		Deodorised	Approx. 23 m³	2	SGS	SHES160600431171
	Methylmercaptan (Body odour of a senior citizen, refuse odour)	Deodorised within 15 minutes	250 L	0.25	Panasonic Product Analysis Center	E02-080219MH-01
		Odour intensity reduced 1.2 levels	Approx. 24 m³	1	Panasonic Product Analysis Center	1V332-180316-K21
	Trimethylamine	Odour intensity reduced 1.0 levels	Approx. 24 m³	0.5	Panasonic Product Analysis Center	1V332-180316-K22

nanoe™ X

	Target	*Results¹**	Test space	Exposure time (hr)	Testing organisation	Report No.
Adhering	Cigarette smoke odour	Odour intensity reduced 2.4 levels	Approx. 23 m³	0.2	Panasonic Product Analysis Center	4AA33-160615-N04
		Odour intensity reduced 1.8 levels	Approx. 23 m³	0.2	SGS	SHES160600431171
		Deodorised within 30 minutes	250 L	0.5	Panasonic Product Analysis Center	E02-090313MH-01
		Deodorised	Approx. 23 m³	2	SGS	SHES160600431171
		Odour intensity reduced 0.7 levels	139.2 m³	2	Gunma Analysis Center	No.27055
		Odour intensity reduced 1.0 levels	67.7 m³	2	Panasonic Product Analysis Center	AA33-170203-A01
		Odour intersity reduced 3.2 levels	10 m²	2	Panasonic Product Analysis Center	BAA33-14078-C01
		Odour intersity reduced 0.4 levels	139 m²	2	Kaken Test Center	KT-19-015089-2
	BBQ odour	Odour intensity reduced 1.2 levels	Approx. 23 m³	2	Panasonic Product Analysis Center	4AA33-151221-N01
		Odour intensity reduced 1.2 levels	Approx. 23 m³	2	SGS	SHES160600431171
		Odour intensity reduced 0.9 levels	67.7 m³	2	Panasonic Product Analysis Center	4AA33-170203-A03
	Pet odour	Odour intensity reduced 1.5 levels	Approx. 23 m³	1	Panasonic Product Analysis Center	4AA33-160315-A34
		Odour intensity reduced 1.5 levels	Approx. 23 m³	1	SGS	SHES160600431171
		Odour intensity reduced 0.8 levels	67.7 m³	2	Panasonic Product Analysis Center	AA33-170203-A02
	Perspiration odour	Odour intensity reduced 1.1 levels	Approx. 23 m³	1	Panasonic Product Analysis Center	4AA33-160315-A35、 Y16HM016
	Damp odour	Odour intensity reduced 1.7 levels	Approx. 23 m³	0.5	Panasonic Product Analysis Center	Y16RA002
	Damp odour	Odour intensity reduced 2.1 levels	Approx. 23 m³	0.5	SGS	SHES160600431171
	Durian odour	Odour intensity reduced 1.0 levels	Approx. 23 m³	0.5	Panasonic Product Analysis Center	1V332-180402-K01
	Acetic acid (Body odour of a young person)	Odour intensity reduced 1.6 levels	Approx. 23 m³	0.5		Y18HM058
	Hexanol (Body odour of a young person)	Odour intensity reduced 1.5 levels	Approx. 23 m³	0.5		Y18HM054-2
	Hexanol (Body odour of a young person)	Odour intensity reduced 1.3 levels	Approx. 23 m³	1		Y18HM054-1
	Hexanoic acid (Body odour of a young person, perspiration odour)	Odour intensity reduced 1.4 levels	Approx. 23 m³	1	SGS	SHES160600431171
	Nonanoic acid (Body odour of a person around 30 years of age, perspiration odour)	Odour intensity reduced 1.1 levels	Approx. 23 m³	1	SGS	SHES160600431171
	Diacetyl (Body odour of a middle-aged person)	Odour intensity reduced 1.1 levels	Approx. 23 m³	2	Panasonic Product Analysis Center	Y18HM047-2
	Nonenal (Body odour of an aging person)	Odour intensity reduced 1.1 levels	Approx. 23 m³	1		Y18HM047-1
	Methylmercaptan (Body odour of a senior citizen, refuse odour)	Odour intensity reduced 1.2 levels	Approx. 24 m³	0.25		1V332-18220-K11
		Deodorised within 15 minutes	250 L	0.25		E02-080219MH-01
	Trimethylamine (Refuse odour)	Odour intensity reduced 1.4 levels	Approx. 24 m³	0.5		1V332-180220-K12
Airborne	Cigarette smoke odour	Odour intensity reduced 0.8 levels	136.5 m³	2		AA33-170117-A01
Airborne	Pet odour	Odour intensity reduced 0.4-0.7 levels	136.5 m³	2		AA33-170119-A01

nanoe™ X (nanoe™ X Generator Mark 2)

	Target	*Results¹**	Test space	Exposure time (hr)	Testing organisation	Report No.	PDF
Adhering	Nonenal (Body odour of an aging person)	Odour intensity reduced by 1.1 levels	23 m³	0.5	Panasonic Product Analysis Center	Y18HM059
Adhering	Cigarette smoke odour	Odour intensity reduced by 0.7 levels	Approx. 139m²	2	Kaken Test Center	KT-19-015089-2

nanoe™ X (nanoe™ X Generator Mark 3)

	Target	*Results¹**	Test space	Exposure time (hr)	Testing organisation	Report No.	PDF
Adhering	Cigarette smoke odour	Odour intensity reduced 1.7 levels	Approx. 139.3m³	0.5	SGS Inc	SHES210901902478
Adhering	Nonenal (Body odour of an aging person)	Odour intensity reduced 1.9 levels	Approx. 23m²	0.25	Panasonic Product Analysis Center	H21HM005-1
