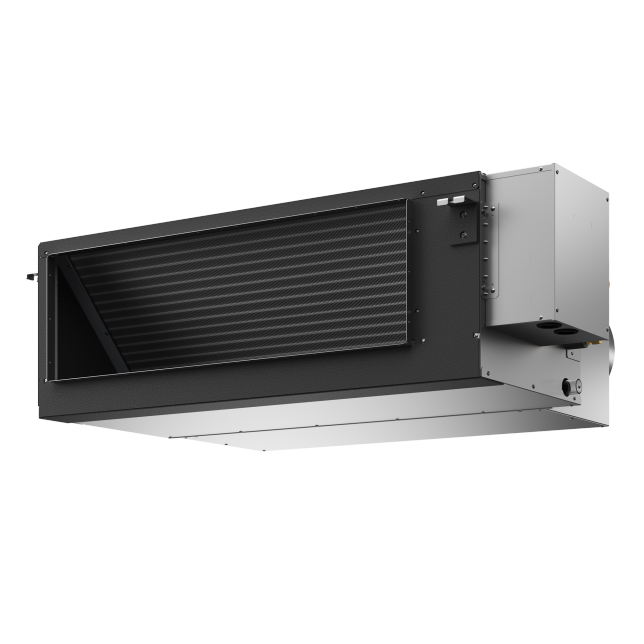

R32 Inverter NX Series Splittable Ducted

Splittable chassis design ducted for comfort throughout the house

R32 Inverter NX Series Splittable Ducted offer improved design flexibility for extended duct layouts thanks to their increased external static pressure. A new IoT remote controller also provides greater accessibility and convenience.

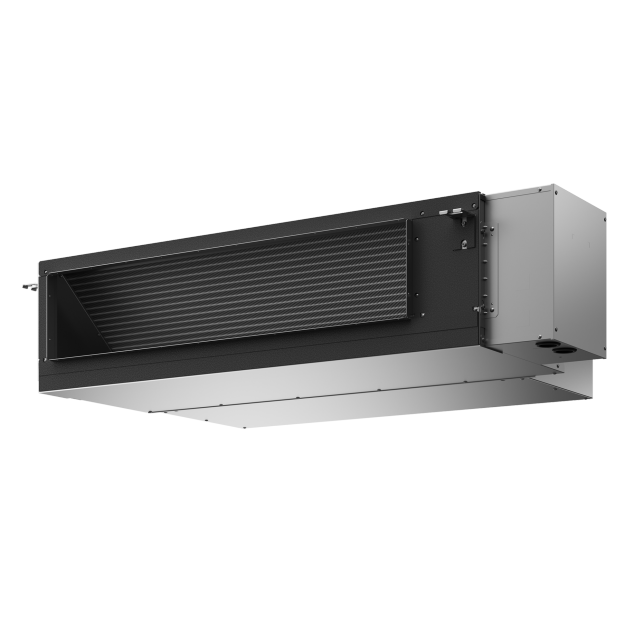

R32 Inverter NX Series Splittable Ducted

Features

Capacity (kW)	Cooling	18.0		20.0	22.4
Capacity (kW)	Heating	20.0		22.4	25.0
Phase		1Ø Phase	3Ø Phase	1Ø Phase	3Ø Phase
Indoor Unit		S-180PE4R		S-200PE4R	S-224PE4R
Outdoor Unit		U-180PZH3R5	U-180PZH3R8	U-200PZH3R8	U-224PZH3R8

Ducted Air Conditioning. Year Round Comfort

Deliver the Comfort Through Entire House

Panasonic ducted systems look very discreet and have been designed with flexibility in mind, which is extremely helpful when designing a system for your home, and also makes installation much easier. A Panasonic ducted air conditioner will provide years of comfort for you and your family, and it will add value to your home as ducted air conditioning is a highly desirable feature for home buyers.

Heat and Cool Each Room Individually Through Zoning

With individual zones for your home’s ducted air-conditioning system, everyone can enjoy their own airflow. Save on energy and running costs by turning off the airflow when rooms aren’t in use..

LEARN MORE

Heat and Cool Each Room Individually Through Zoning

A New Level of Air Quality with nanoe X Generator Mark3

24-hour nanoe™ X Air Protection

Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.

LEARN MORE

Higher Concentration, Even in Large Space

The amount of hydroxyl radicals generated increased 100 times, compared to the original nanoe™, which achieves greater effectiveness even in large spaces of 112 m².

Conditions of the simulation ･Room size: 112 m² ･Room height: 2.4 m ･Inspection model: 4-Way Cassette ･Position of IDU: Centre
Note: The result is based on the conditions for the simulation and it may differ from the concentration measured in an actual room. nanoe™ particles are extremely tiny in nano-meter size. They cannot be seen, so the concentration image is solely for illustrative purposes.

LEARN MORE

Higher Concentration, Even in Large Space

Eﬀective at Eliminating Odours in Only 30 Minutes

The nanoe X Generator Mark3 reduces odours by as much as 1.8 levels* in just 30 minutes. This is half the time required to achieve the same effect compared to the conventional nanoe X Generator Mark 2.

*A 1.8 level decrease in odour intensity is equivalent to a reduction of 95% or more. [Odour intensity] 5: Very strong odour, 4: Strong odour, 3: Easily detectable odour, 2: Weak, recognisable odour (cognitive threshold concentration), 1: Barely detectable odour (detection threshold concentration), 0: No odour

Note: The test result is obtained using a 4-Way Cassette. **Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P80U6 equipped with a nanoe X Generator Mark2 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 60 minutes (L19YK032-01) ***Testing Overview: [Testing organisation] Panasonic Product Analysis Center [Test method] Verification in a test room (approx. 230 m³ (6.8 x 8.5 x 4.0 m)) using a 6-step odour intensity display method [Method of deodorisation] Operation of a CS-P160U6 equivalent tester equipped with a nanoe X Generator Mark3 and release of nanoe™ [Target] Adhered aging odour (nonenal) [Test Result] Odour intensity reduced by 1.8 in 30 minutes (R21HM003-0)

Eﬀective at Eliminating Odours in Only 30 Minutes

Beneﬁt from nanoe™ X Even with Long, Curved Ductwork

Combined with the strong static pressure, this model ensures pristine nanoe™ X air travels unaffected, even through multiple duct shapes at lengths of 10 meters, as well as making them ideal for use in larger spaces.

Smart Power Saving with IoT

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

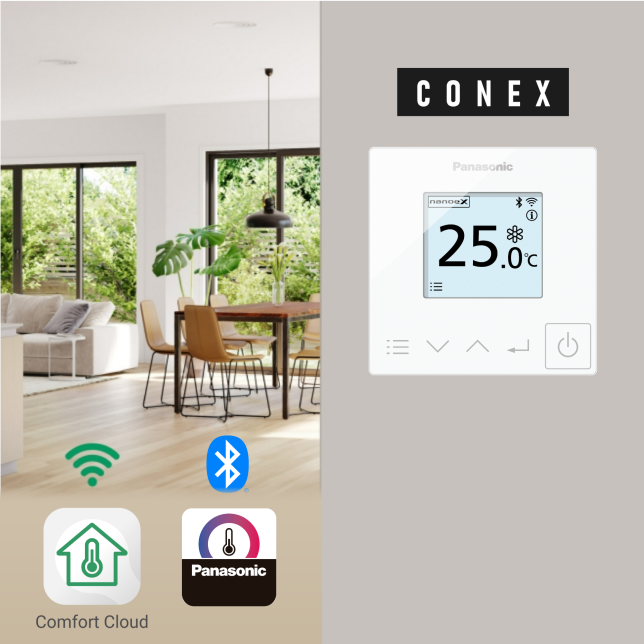

CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.

Note: A wireless remote controller is provided with the product.

A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs

Smart Management of Power Consumption

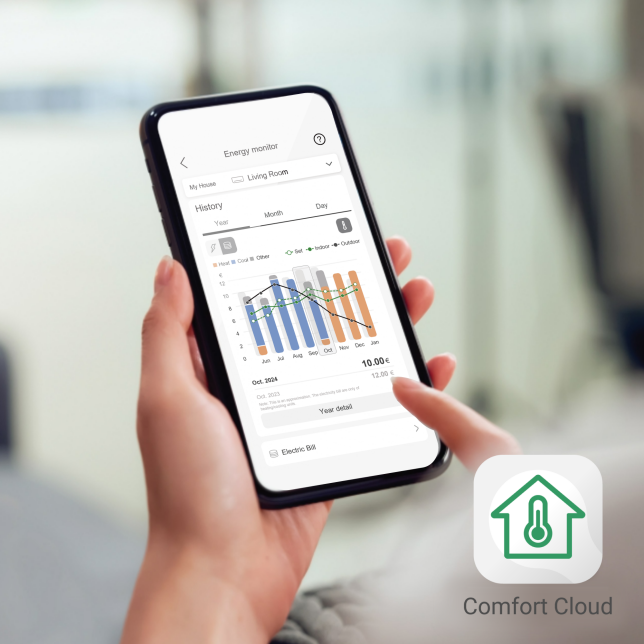

Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.

Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6WBLW/6BLW are required per unit.

LEARN MORE

Wired Remote Controller

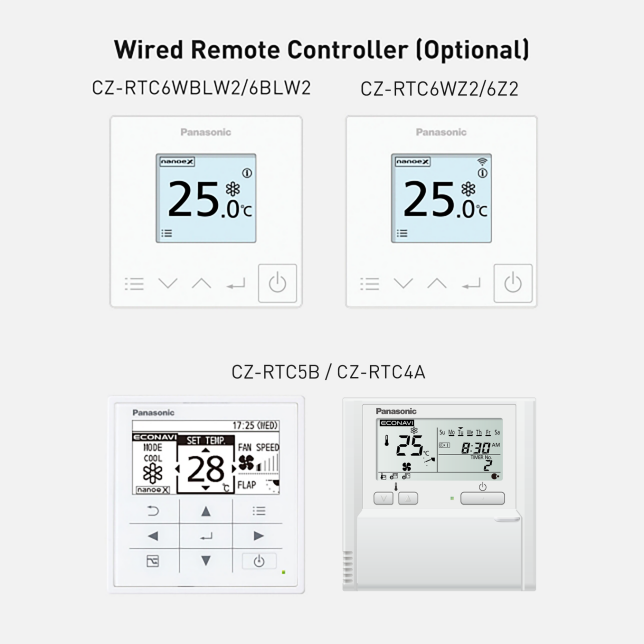

Besides Smart Control CONEX, conventional wired remote controllers CZ-RTC5B and CZ-RTC4 are also available.

LEARN MORE

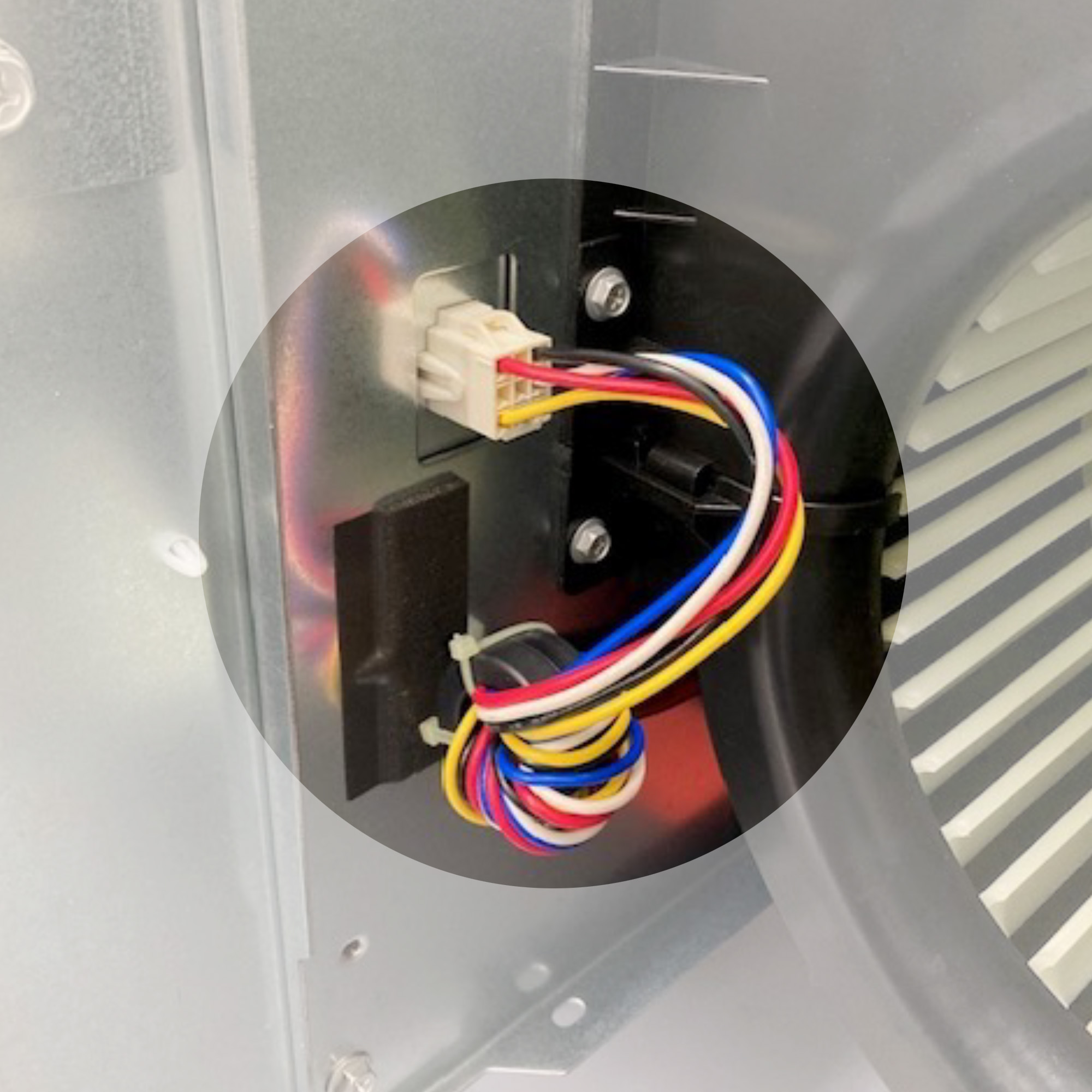

Easy Installation

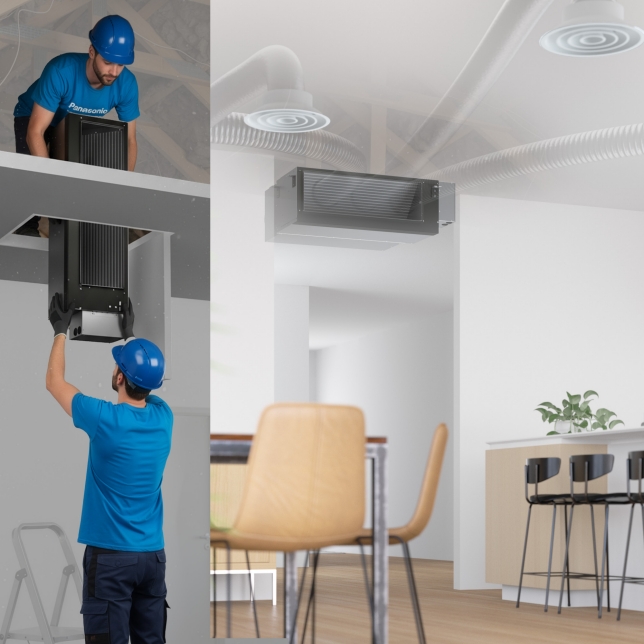

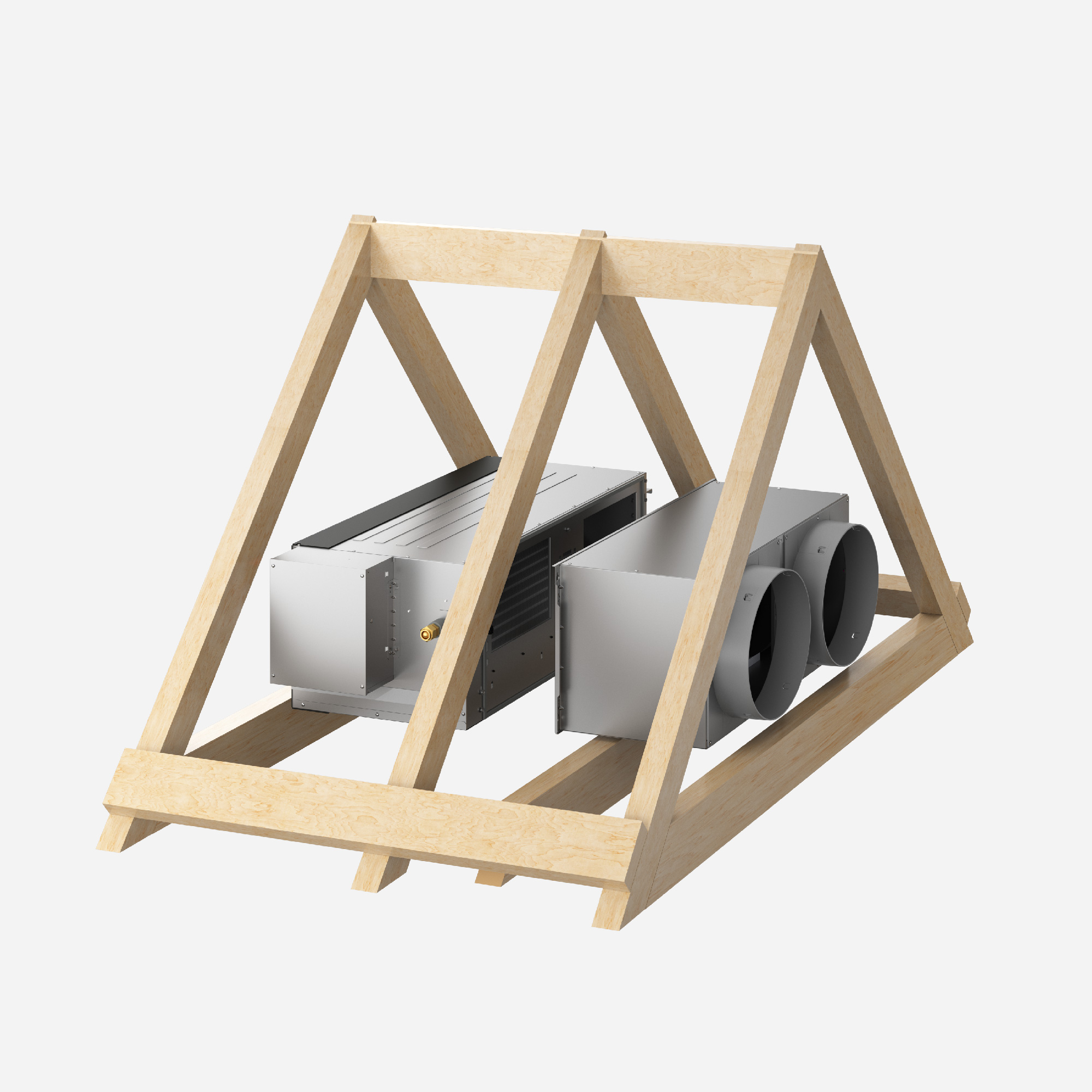

Assembly takes three easy steps, even in limited spaces.

Note: Images are for the 22.4 kW model.

Specs

S-180PE4R

nanoe™ X
Comfort Cloud App
CONEX
Inverter

Further advanced air purification technology, nanoe™ X by new Generator Mark3

nanoe™ X effectiveness proven in large space by 3rd party

CONEX: A next-generation remote control

Easy installation with splittable chassis design

Design flexibility thanks to high static pressure and large air volume

Discharge air temperature control to reduce cold drafts during heating operation

	S-180PE4R	S-200PE4R	S-224PE4R
Air Volume (Cooling) (H/M/L)	1,202/1,052/885 Ls	1,202/1,052/885 Ls	1,402/1,202/985 Ls
Air Volume (Heating) (H/M/L)	1,202/1,052/885 Ls	1,202/1,052/885 Ls	1,402/1,202/985 Ls
External Static Pressure	60 Pa (100/150 Pa)	75 Pa (120/180 Pa)	75 Pa (130/200 Pa)
Sound Pressure Level (Cooling) (H/M/L)	46/44/41 dB (A)	46/44/41 dB (A)	47/45/42 dB (A)
Sound Pressure Level (Heating) (H/M/L)	46/44/41 dB (A)	46/44/41 dB (A)	47/45/42 dB (A)
Sound Power Level (Cooling) (H/M/L)	78/76/73 dB	78/76/73 dB	79/77/74 dB
Sound Power Level (Heating) (H/M/L)	78/76/73 dB	78/76/73 dB	79/77/74 dB
Current (Cooling) (rated)	3.30/3.20 A	3.40/3.30 A	4.20/4.10 A
Current (Heating) (rated)	3.30/3.20 A	3.40/3.30 A	4.20/4.10 A
Dimension	H486 x W1,456 x D916 mm	H486 x W1,456 x D916 mm	H486 x W1,456 x D916 mm
Net Weight	82 kg	83 kg	87 kg
Number of Fan Speeds	3	3	3
Drain Piping	VP-25 mm	VP-25 mm	VP-25 mm
