R32 Inverter NX Series 4-Way Cassette
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
R32 Inverter NX Series 4-Way Cassette
Delivers superior air purification and convenience with a new IoT remote controller
R32 Inverter NX Series 4-Way Cassettes, featuring 360° comfortable airflow, deliver a cleaner environment thanks to nanoe™ X. A new IoT remote controller also provides greater accessibility and convenience.
R32 Inverter NX Series 4-Way Cassette
Features
|
Capacity (kW) |
Cooling |
6.0 |
7.1 |
10.0 |
12.5 |
14.0 |
|||
|
Heating |
6.0 |
7.1/8.0 |
10.0/11.2 |
12.5/14.0 |
14.0/16.0 |
||||
|
Phase |
1Ø Phase |
1Ø Phase |
1Ø Phase |
3Ø Phase |
1Ø Phase |
3Ø Phase |
1Ø Phase |
3Ø Phase |
|
|
Indoor Unit |
|
S-6071PU3E |
S-6071PU3E |
S-1014PU3E |
S-1014PU3E |
S-1014PU3E |
|||
|
Outdoor Unit (Deluxe) |
|
- |
U-71PZH3R5 |
U-100PZH3R5 |
U-100PZH3R8 |
U-125PZH3R5 |
U-125PZH3R8 |
U-140PZH3R5 |
U-140PZH3R8 |
|
Outdoor Unit (Compact) |
|
U-60PZ3R5 |
U-71PZ3R5 |
U-100PZ3R5 |
U-100PZ3R8 |
U-125PZ3R5 |
U-125PZ3R8 |
U-140PZ3R5 |
U-140PZ3R8 |
More Efficient Air Protection with nanoe X Generator Mark2
24-hour nanoe™ X Air Protection
Maintain quality air 24-hours a day by turning on nanoe™ X using the Panasonic Comfort Cloud app. nanoe™ X inhibits certain bacteria, viruses, pollens, allergens, mould, and hazardous substances found in PM2.5, providing effective deodorization and improving the air quality.
nanoe™ X Effectiveness Proven in Large Space
A third-party certification organization SIRIM Berhad (SIRIM), conducted the performance experiment using a 4-Way Cassette equipped with a nanoe™ X device to inhibit hexadecane, a chemical contained in PM2.5.
*(1) Testing method: Measured the amount of attached organic substances in an approximately 802 m³ sized test room. (2) Inhibition method: nanoe X Generator Mark1 released. (3) Test substance: Hexadecane (4) Test result: Inhibited 92% in 8 hours (ETRC257/16/1402 (R479/19))
Inside Cleaning Function Prevents Mould
nanoe™ X also keeps the inside of the air conditioner clean. After the cooling/drying operation, the interior of the indoor unit dries itself automatically.* nanoe™ X is activated to suppress mould growth.
*If you wish to set the inside cleaning function off, use the wireless RC to turn the function off. Please consult an authorized dealer for setting.
Note: The product image shown is for illustration purposes only and may not be an exact representation of the product.
Note: The product image shown is for illustration purposes only and may not be an exact representation of the product.
Smart Power Saving with IoT
A Next-Generation Remote Control Solution Optimised for Usability, Whatever Your Needs
CONEX goes beyond simple remote control to combine sophistication with simplicity, offering IoT integration that connects directly to a variety of apps for next-generation solutions.
Note: A wireless remote controller is provided with the product.

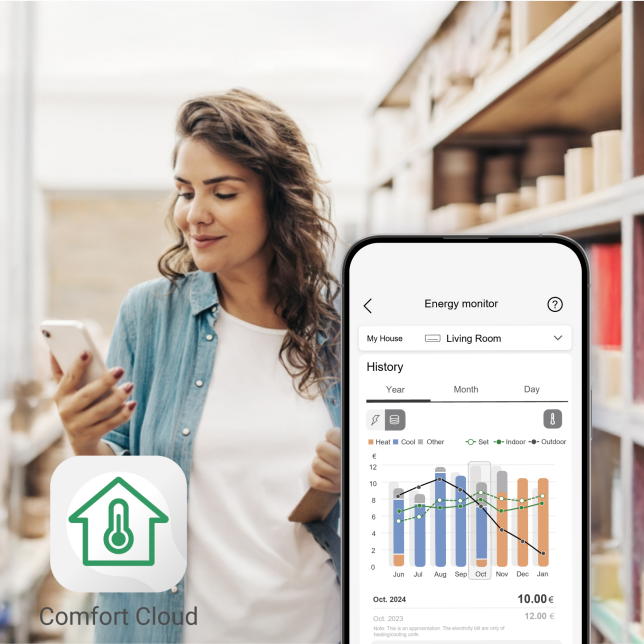

Smart Management of Power Consumption
Using the Panasonic Comfort Cloud app enables the air conditioner to be controlled from anywhere with a mobile device. Thus, there is no need to worry if someone forgets to turn off the office air conditioner. The power consumption can also be monitored to help reduce electricity waste.
Note: CZ-CAPWFC1 External WLAN Adaptor or CZ-RTC6WBLW/6BLW are required per unit.
Industry-Leading Airflow for Cooling Comfort
Cools the Area Quickly
The Turbo Fan with Twisted 3D Blades delivers big and powerful airflow that instantly makes spaces comfortable and cool.
Note: This table shows values for the airflow rate in high mode.
Delivers Cool Air from High Ceilings
A wider main flap and sub-flap increase airflow, and a wider-angle jetting port creates a longer airflow. Cool air can reach from a maximum height of 5 meters, making even spaces with high ceilings and open spaces comfortable.
Note: 4-Way Cassette 1014PU type
Cools Every Corner of Spaces
The air delivered in four directions from the wide flap creates a 360 degree airflow, spreading cool air to every corner of spacious environments. Thus, the entire room is cooled, ensuring the comfort of your customers and staff.
Double Insulation to Prevent Dew Condensation
The unit prevents water leaks due to condensation. The interior of the indoor unit of the air conditioner is cold, so when it comes into contact with hot air outside, condensation occurs, causing water leaks. Panasonic adopts insulation materials both inside and outside of the unit to guard against condensation and water leaks.
Flat Horizontal Design That Conditions the Interior
Panasonic believes that one of the most important elements of design is that it doesn’t interfere with the overall room interior. The flat horizontal design of the 4-Way Cassette achieves an elegant yet simple form. This design allows it to protrude only 33.5 mm from the ceiling, to blend naturally into a variety of interiors, including offices and restaurants.
Wired Remote Controller
Besides Smart Control CONEX, conventional wired remote controllers CZ-RTC5B and CZ-RTC4 are also available.
Flexible and Easy Installation
The drain pump can pump water up to a height of 850 mm, making the drain pipe layout easy.
The unit has been redesigned for easier installation. (1) Previously, the eye bolts were hard to attach because of the bracket’s shape. (2) By improving it to a V-shape, it is easier to install. (3) The nut has become larger, so it is easier to hold.
Specs
S-6071PU3E
S-1014PU3E
nanoe™ X- Comfort Cloud App
- CONEX
- Inverter
nanoe™ X patented air purification technology
CONEX: A next-generation remote control
Industry-leading powerful, 360° wide & comfortable airflow
Powerful drain pump gives 850 mm lift
Compact design
Wireless remote controller included
