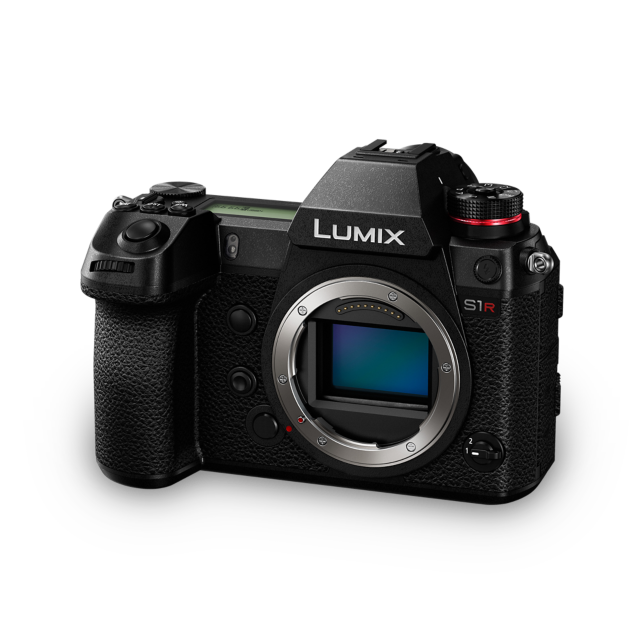

DC-S1R
超凡畫質
專業性能
全新 4730 萬畫素 CMOS 感光元件，展現驚人的逼真細節。對焦和影像穩定系統，可以無比的清晰度捕捉每個瞬間。機身設計，可順暢引導您跟隨您的拍攝主題，拍攝令人難忘的影像。這款全片幅無反光鏡數位單眼相機配備的所有這些功能和更多功能將引領您進入充滿熱情的影像創作世界。
** 圖片外觀僅供參考，請以實物為主。
功能
4730 萬畫素 CMOS 感光元件，展現絲毫不妥協的表現力
LUMIX S1R可提供極致的攝影表現能力。4730萬畫素全片幅CMOS感光元件，可表現細膩逼真的影像，不需任何低通濾波器。
這款新型感測器採用非球面晶載微鏡片和改良設計，結合同級最高畫素以及聚光率，可增加光二極體的入射光。因此造就了極高的訊噪比和ISO25600的最大感光度。這樣的全片幅影像品質，讓攝影師能突破環境侷限，追求藝術美感。
這款新型感測器採用非球面晶載微鏡片和改良設計，結合同級最高畫素以及聚光率，可增加光二極體的入射光。因此造就了極高的訊噪比和ISO25600的最大感光度。這樣的全片幅影像品質，讓攝影師能突破環境侷限，追求藝術美感。
維納斯處理引擎
全新 CMOS 感光元件與全新維納斯處理引擎的結合重現非凡的色彩細節和自然的紋理表達。多重像素亮度生成和智慧細節處理器可呈現強烈的亮度和對比。三維色彩控制可同時強化陰暗到明亮區到深色的色彩，以及高精確度的多重降噪(Multi Process NR)，讓影像即使在高 ISO感光度設定下也能栩栩如生。
5 軸 Dual I.S.2：清晰捕捉每個精彩瞬間
手持攝影很難面面俱到，但不要擔心：5軸雙重防手震Dual I.S.2(影像穩定器)*¹可適時輔助。這相當於6倍曝光時間，表示您可以使用6檔較慢的快門直到鏡頭望遠端(tele-end)。*²LUMIX S1R即使使用望遠設定，也能消除機身和鏡頭抖動，同樣的適用於相片和影片錄製．包含4K影片。
驚人的5軸Body I.S 和5.5級補償能力*³可校正所有鏡頭抖動，即使是沒有配備防震系統 O.I.S的鏡頭。
驚人的5軸Body I.S 和5.5級補償能力*³可校正所有鏡頭抖動，即使是沒有配備防震系統 O.I.S的鏡頭。
*1：自 2019 年 2 月 1 日起，5 軸 I.S.2 與鏡頭 S-R24105 和 S-R70200 搭配使用。
*2：根據 CIPA 標準（左右/俯仰方向：使用 S-R70200 時，焦距 f=200mm。）
*3：根據 CIPA 標準 ( 左右/俯仰方向：使用 S-X50 時，焦距 f=50mm。)
*2：根據 CIPA 標準（左右/俯仰方向：使用 S-R70200 時，焦距 f=200mm。）
*3：根據 CIPA 標準 ( 左右/俯仰方向：使用 S-X50 時，焦距 f=50mm。)
人體 / 動物辨識系統；0.08秒*²快速準確的自動對焦
Panasonic的先進技術可集中控制感測器、引擎和鏡頭，在各個角度提供高速準確的對焦。感測體與鏡頭以480 fps通訊，加上Panasonic的DFD (Depth From Defocus) 空間辨識技術，促成約0.08秒的高速準確自動對焦。*¹
此外，低光源自動對焦性能可達優異的-6EV。*²
更高的感光度和經過精心調教的感測器提高了亮度偵測性能，在幾近黯淡無光的拍攝環境，也能精準對焦。先進的人工智慧技術不僅可以識別人體，還能偵測犬科、貓科和禽鳥等動物；高性能的追焦系統可持續聚焦在拍攝對象
此外，低光源自動對焦性能可達優異的-6EV。*²
更高的感光度和經過精心調教的感測器提高了亮度偵測性能，在幾近黯淡無光的拍攝環境，也能精準對焦。先進的人工智慧技術不僅可以識別人體，還能偵測犬科、貓科和禽鳥等動物；高性能的追焦系統可持續聚焦在拍攝對象
*1：使用 11EV，在廣角端的 LVF 120 fps 設定時，搭配 S-R24105 (CIPA)。
*2： ISO100，F1.4，AFS 時。100% 對比目標。
*2： ISO100，F1.4，AFS 時。100% 對比目標。
576萬解析度即時觀景窗
即時觀景窗擁有世界最高的576萬解析度，是同級產品最高。*出色的清晰度和銳利度，彷彿親眼看見拍攝對象，並幫助您在拍攝時維持專注。即時觀景窗採用的鏡片中心到角落失真程度最低，放大倍率高達0.78x，支援完美的取景和精確對焦。反應式OLED顯示幕，最小延遲時間可達0.005秒，並具備120fps超高更新率 有助於追蹤快速移動的拍攝目標。此外，0.78x的放大倍率可視拍攝情況切換為0.7x或0.74x
*截至 2019 年 2 月 1 日的全片幅數位單眼無反光鏡相機。
雙記憶卡槽，進行彈性資料管理
雙記憶卡插槽與SD記憶卡(UHS-II)和XQD記憶卡相容。*Allocation Record (分配記錄)模式可讓您指定卡槽，記錄不同的影像格式，也便於錄製長時間的影片或備份。Relay Recoeding (接續錄製)模式可在影像錄製用盡第一張記憶卡的可用空間後，接續錄製到另一張記憶卡。Backup Recording(備份錄製)模式*會將相同資料記錄到兩張記憶卡。即將相容於CFexpress。
*AVCHD格式無法使用。
*XQD 是 Sony Corporation的註冊商標。
*XQD 是 Sony Corporation的註冊商標。
防潑水 / 防塵 / 抗凍*，適用在各種氣候使用
機身堅韌耐用，準備迎接各種嚴苛的拍攝環境。鎂合金全壓鑄框架極為堅固，密封則可保護每個接點、轉盤和按紐。系統整體防塵防潑水*，可在低至-10度的溫度下使用。這些功能的結合，讓各種氣候條件下的拍攝既高效又愉快 。
*防塵和防潑水不保證此相機與灰塵和水直接接觸時不會發生損害。
4K 60p/50p 流暢影片錄製
結合 Panasonic 4K 技術、CMOS 感光元件和維納斯修正引擎，帶來令人驚豔的全片幅格式 4K 60p/50p 影片。*¹優異的散熱功能，在無時間限制的情況下，可拍攝 4K 30p/25p/24p 和 FHD 的錄製影片。*²
*1： 4K 60p/50p 時，最長錄製時間為 29 分鐘 59 秒。
*2： 不含高速影片錄製。環境溫度過高，或使用連續錄影時，相機會停止錄影，保護機身不受損。請等候至相機冷卻。
*2： 不含高速影片錄製。環境溫度過高，或使用連續錄影時，相機會停止錄影，保護機身不受損。請等候至相機冷卻。
其他特色
超高的表現力加上超凡的使用性，這款全片幅無反光鏡相機 LUMIX S1R 激發您的攝影想像力。
影音圖片集
規格
尺寸和重量
- 高
- 110.0mm
- 寬
- 148.9mm
- 深
- 96.7mm
- 重量
- 1016g
所有數值皆為估計值。重量含 SD 卡及電池（含 XQD 卡和電池的重量為 1,020g）不含鏡頭。尺寸不含突出部分。
L-Mount- 4730 萬畫素
- 4K 錄影功能
- 6K 相片
- 5 軸雙重 I.S.2（影像穩定器）
- 5760K 點 OLED 即時觀景窗
- 2,100k 點三軸傾斜螢幕
- 狀態 LCD
- 防潑水、防塵和防凍
- Wi-Fi
- 藍芽
4730 萬畫素全片幅感光元件
5 軸 Dual I.S.2
快速、精準的自動對焦
DFD 技術、AI 技術、-6EV 低光源自動對焦
4K 60p/50p 流暢影片錄製
類型
-
類型
-
Digital Single Lens Mirrorless camera
-
-
錄製媒體
-
XQD Memory Card, SD Memory Card / SDHC Memory Card* / SDXC Memory Card*, CFexpress Card (CFexpress Ver2.0 Type B) ******
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
-
-
鏡頭接環
-
L-Mount
-
影像感光器
-
類型
-
35mm full-frame (36.0 x 24.0mm) CMOS sensor
-
-
相機有效畫素/總畫素
-
47.30 megapixels / 50.44 megapixels
-
-
長寬比/色彩濾鏡色彩濾鏡
-
3:2 / Primary color filter
-
-
除塵系統
-
Supersonic wave filter
-
靜態影像
-
錄製檔案格式
-
靜態影像
-
JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
-
-
6K PHOTO** / 4K PHOTO**
-
6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Extracted still images: JPEG (DCF, Exif 2.31)
-
-
-
長寬比
-
4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
-
-
檔案大小（畫素）
-
使用全片幅鏡頭/3:2
-
8368x5584(L) / 5952x3968(M) / 4272x2848(S) / 16736x11168(XL)* *High Resolution Mode. RAW file.
5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 6464x4320(HLG PHOTO, 8K-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
-
-
使用全片幅鏡頭/4:3
-
7440x5584(L) / 5296x3968(M) / 3792x2848(S) / 14880x11168(XL)* *High Resolution Mode. RAW file.
4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5760x4320(HLG PHOTO, 8K-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
-
-
使用全片幅鏡頭/16:9
-
8368x4712(L) / 5952x3352(M) / 4272x2400(S) / 16736x9424(XL)* *High Resolution Mode. RAW file.
3840x2160(4K PHOTO) / 7680x4320(HLG PHOTO, 8K-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
-
-
使用全片幅鏡頭/1:1
-
5584x5584(L) / 3968x3968(M) / 2848x2848(S) / 11168x11168(XL)* *High Resolution Mode. RAW file.
2880x2880(4K PHOTO) / 4320x4320(HLG PHOTO, 8K-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
-
-
使用全片幅鏡頭/65:24
-
8368x3088(L)
-
-
使用全片幅鏡頭/2:1
-
8368x4184(L)
-
-
使用 APS-C 鏡頭/3:2
-
5504x3664(L) / 3920x2608(M) / 2784x1856(S)
-
-
使用 APS-C 鏡頭/4:3
-
4880x3664(L) / 3472x2608(M) / 2480x1856(S)
-
-
使用 APS-C 鏡頭/16:9
-
5504x3096(L) / 3840x2160(M) / 1920x1080(S)
-
-
使用 APS-C 鏡頭/1:1
-
3664x3664(L) / 2608x2608(M) / 1856x1856(S)
-
-
-
影像品質
-
RAW / RAW+Fine / RAW+Standard / Fine / Standard
-
-
色彩空間
-
sRGB, AdobeRGB
-
動態影像
-
錄製檔案格式
-
MOV: H.265/HEVC (Audio format: LPCM (2ch 48kHz/24-bit*, 96kHz/24-bit*))******** *When attaching DMW-XLR1 (sold separately).
MP4: H.264/MPEG-4 AVC (Audio format: LPCM (2ch 48kHz/16-bit), AAC (2ch))
AVCHD Progressive (Audio format: Dolby Audio (2ch)), AVCHD (Audio format: Dolby Audio (2ch))
-
-
MP4** [4K] 3840x2160
-
59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
MP4** [FHD] 1920x1080
-
59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
AVCHD 逐行掃描** AVCHD** [FHD] 1920x1080
-
50.00p, 28Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)
50.00i, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 25.00fps)
50.00i, 17Mbps (4:2:0 8-bit LongGOP) (Dolby Audio) (Sensor output is 50.00fps)
23.98p, 24Mbps (4:2:0 8-bit LongGOP) (Dolby Audio)
-
-
MP4** 高速影片 *當選取創意影片模式時。[4K] 3840x2160
-
29.97p (Sensor output is 60fps)
25.00p (Sensor output is 50fps)
23.98p (Sensor output is 48fps)
-
-
MP4** 高速影片 *當選取創意影片模式時。[FHD] 1920x1080
-
29.97p (Sensor output is 180fps / 120fps)
25.00p (Sensor output is 150fps / 100fps)
-
-
連續可錄製時間（動態影像）**
-
Approx. 150 min (rear monitor), 140 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.
-
-
實際可錄製時間（動態影像）**
-
Approx. 75 min (rear monitor), 70 min (LVF) in [AVCHD/FHD/60p] *When using S-R24105 and SD Memory Card.
-
觀景窗
-
類型
-
OLED Live View Finder
-
-
畫素
-
Approx. 5,760k dots
-
-
視景/放大倍率
-
Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1
-
-
視點/屈光度調整
-
Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
-
-
眼部偵測
-
Yes
-
-
顯示速度
-
120fps / 60fps
-
-
顯示時間延遲
-
Approx. 0.005sec
-
背面螢幕
-
類型
-
TFT LCD monitor with static touch control
-
-
螢幕大小
-
Triaxial tilt, 3.2-inch (8.0cm), 3:2 aspect
-
-
畫素
-
Approx. 2,100k dots
-
-
視景
-
Approx. 100%
-
狀態 LCD
-
Yes
對焦
-
類型
-
Contrast AF system
-
-
DFD 技術
-
Yes
-
-
對焦模式
-
AFS (Single) / AFC (Continuous) / MF
-
-
自動對焦模式
-
Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3
(Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF.********
-
-
自動對焦偵測範圍
-
EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
-
-
自動對焦自訂
-
AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
-
-
自動對焦輔助燈
-
Yes
-
-
自動對焦鎖定
-
Set the Fn button in custom menu to AF lock
-
-
稍後對焦/對焦堆疊
-
Yes / Yes
-
-
其他
-
AF-ON, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode
-
曝光控制
-
測光系統
-
1,728-zone multi-pattern sensing system
-
-
測光模式
-
Multiple / Center Weighted / Spot / Highlight Weighted
-
-
測光範圍
-
EV0-18 (F2.0 lens, ISO100 equivalent)
-
-
曝光模式
-
Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
-
-
ISO 感光度（標準輸出感光度）
-
Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200* (Changeable to 1/3 EV step) *Extended ISO
-
-
曝光補償
-
1/3 EV step ±5EV (±3EV for motion picture)
-
-
自動曝光鎖定
-
Set the Fn button in custom menu to AE lock
-
影像穩定系統
-
ここまで7/16
白平衡
-
白平衡
-
AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
-
-
白平衡調整
-
Blue/Amber bias, Magenta/Green bias
-
-
色溫設定
-
2500-10000K in 100K
-
快門
-
類型
-
Focal-plane shutter
-
-
快門速度
-
Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
Electronic shutter: Bulb (Max. 60 sec), 1/16,000 - 60
Motion picture: 1/16,000 - 1/25
-
-
快門壽命
-
Approx. 400,000 images
-
-
自拍計時
-
10sec, 3 images / 2sec / 10sec
-
-
遠端控制
-
Remote control by DMW-RS2 (sold separately)
-
-
靜音拍攝模式/快門模式
-
Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
-
包圍
-
自動曝光包圍
-
3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
-
-
光圈包圍
-
3, 5 or all positions in 1 EV step
-
-
對焦包圍
-
1 to 999 images, focus steps can be set in 10 levels
-
-
白平衡包圍
-
3 images in blue/amber axis or in magenta/green axis, color temperature setting
-
連拍
-
連拍 -機械快門/電子前簾快門
-
AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 6 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
-
-
連拍 -電子快門
-
AFS/MF: H: 9 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
-
-
可錄製影像數量
-
RAW: More than 40 images
RAW+JPEG: More than 35 images
JPEG: More than 50 images
*Using a Panasonic Corporation CFexpress Type B 256GB (RP-CFEX256) Memory Card or a SanDisk Corporation CFexpress Type B Extreme PRO 256GB (SDCFE-256G) Memory Card. Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
-
6K PHOTO** / 4K PHOTO**
-
連拍速度
-
6K PHOTO: 30 frames/sec
4K PHOTO: 60 frames/sec, 30 frames/sec
-
-
Exif 資訊
-
Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)
-
閃光燈
-
閃光燈類型
-
TTL External Flash (sold separately)
-
-
閃光燈模式
-
Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
-
-
閃光燈同步
-
1st Curtain Sync, 2nd Curtain Sync.
-
-
閃光燈輸出調整
-
1/3EV step ±3EV
-
-
同步速度
-
Less than 1/320 second
-
-
無線控制
-
Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
-
-
閃光同步插座
-
Yes
-
擴展遠攝轉換
-
2.0x (EX S), 1.4x (EX M) *Only for still image recording.
相片風格
-
相片風格
-
Standard / Vivid / Natural / L. Classic Neo (Firmware version 1.9)* / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S (Firmware version 1.9)* / Cinelike D / Cinelike V / Like709 / Like2100 (HLG) (Firmware version 1.6 or later)* / Standard (HLG) / Monochrome (HLG) / My Photo Style 1-10 *Firmware must be updated.
-
-
相片調整
-
Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise* / Sharpness / Noise Reduction / ISO / WB (Adjustable settings vary depending on the Photo Style mode.) *Firmware must be updated to version 1.9.
-
濾鏡
-
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
*For photos only.
功能按鈕
-
錄製
-
Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode/MF / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift***** / AF-ON: Far Shift***** / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Flicker Decrease (Photo) / Post-Focus / Motion Pic. Rec Format / Motion Pic. Rec Quality / Sound Rec Level Disp. / Sound Rec Level Adj. / Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / LVF Magnification / Dial Operation Switch / Preview / Preview Aperture Effect****** / Constant Preview / Level Gauge / Histogram / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Off (Disable Press and Hold)****** / Restore to Default
-
-
播放
-
Magnify from AF Point / HLG View Assist(Monitor) / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold)****** / Restore to Default
-
Fn 桿
-
AF Mode / Photo Style / Picture Quality / Long Exposure NR / Focus Peaking / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / 6K/4K PHOTO (Pre-Burst) / Focus Ring Lock / Touch Screen / Touch Pad AF / Auto Review (Photo) / Live View Boost / Night Mode / Sheer Overlay / Front/Rear/Control Dial Lock / No Setting / Restore to Default
水平儀
-
Yes
OSD 語言
-
Japanese, English, German, French, Italian, Spanish, Chinese (Traditional), Chinese (Simplified)
列印
-
PictBridge compatible
介面
-
USB
-
SuperSpeed USB 3.1 Gen1 Type-C
-
-
HDMI*** 透過螢幕
-
4:2:2 8bit (Except for [4K/60p]/[4K/50p]*******) / 4:2:0 8bit
4:2:2 10bit******** (When [4K/60p]/[4K/50p] mode is selected in [Rec Quality], it is not possible to record motion picture or still picture on the memory card in the camera unit.)
-
-
HDMI*** 播放
-
HDMI TypeA / VIERA Link
Video: Auto / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
Audio: Stereo
-
-
音訊視訊輸出
-
No
-
-
遠端輸入
-
φ2.5mm
-
-
外接麥克風/外接音訊裝置輸入
-
φ3.5mm for external microphone / external audio device
MIC (Plug-in Power) / MIC / LINE is selectable.
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
-
-
耳機輸出
-
φ3.5mm
-
-
麥克風
-
Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
-
-
喇叭
-
Monaural
-
-
卡槽
-
Slot 1: XQD Memory Card, CFexpress Card (CFexpress Ver2.0 Type B)******
Slot 2: SD Memory Card, SDHC Memory Card*, SDXC Memory Card*
*Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
-
無線網路
-
Wi-Fi
-
2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
5GHz bands (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi is not available in some countries.
1-13, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 ch
-
-
藍牙
-
Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
-
防塵並防潑水*
-
Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
電源
-
電池
-
Li-ion Battery Pack (7.4V, 3050mAh, 23Wh) (bundled)
USB power supply, USB power charging
-
-
電池壽命（CIPA 標準）/使用 XQD 記憶卡時
-
Approx. 360 images (rear monitor), 340 images (LVF), 1,100 images (Power Save LVF mode*) with S-R24105
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
-
-
電池壽命（CIPA 標準）/使用 SD 記憶卡時
-
Approx. 380 images (rear monitor), 360 images (LVF), 1,150 images (Power Save LVF mode*) with S-R24105
*Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
-
-
電池盒
-
DMW-BGS1 (sold separately)
-
尺寸/重量
-
尺寸（寬 x 高 x 深）
-
Approx. 148.9 x 110.0 x 96.7 mm / 5.86 x 4.33 x 3.81 inch (excluding protrusions)
-
-
重量
-
Approx. 1,020g / 2.25 lb (XQD Memory Card x 1, Battery, Body)
Approx. 1,016g / 2.24 lb (SD Memory Card x 1, Battery, Body)
Approx. 898g / 1.98 lb (Body only)
-
操作環境
-
操作溫度****
-
-10oC to 40oC (14oF to 104oF)
-
-
操作濕度
-
10%RH to 80％RH
-
標準配件
-
軟體- 錄製
-
LUMIX Tether
・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording,
and save remotely recorded images to the PC. Check the site below to download and install the software.
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
-
-
軟體- 播放/編輯
-
・ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
・ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
-
-
標準配件
-
DC-S1R Kit
Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, AC Mains Lead,
USB Connection Cable (C-C), USB Connection Cable (A-C), Cable Holder
・ The DC-S1R Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.
-
注意
-
** About motion picture recording / 6K PHOTO/4K PHOTO recording
- 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.
- Use an SD memory card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [AVCHD].
- Use an XQD or SD memory card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [MP4(under 28Mbps)].
- Use an XQD or SD memory card with SD Speed Class with ""UHS-I / UHS-II UHS Speed Class 3 (U3)"" when recording motion pictures with [MP4] in [4K] [High Speed Video] [6K PHOTO/4K PHOTO] or [MOV].
(SD speed class is the speed standard regarding continuous writing.)
- Recording stops when the continuous recording time exceeds 10 minutes with [MP4] in [High Speed Video] [6K PHOTO].
- Recording stops when the continuous recording time exceeds 15 minutes with [MP4] in [4K] [4K PHOTO] or [MOV].
- Motion pictures with [MP4] in [4K] or [MOV]:
- When using an XQD memory card of 32 GB or less, or an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an XQD memory card over 32 GB, or an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- Motion pictures with [MP4] in [FHD]:
- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.
- XQD is a registered trademark of Sony Corporation.
*** For [5K] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as""4K compatible"".
**** The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
***** Firmware must be updated to version 1.2 or later.
****** Firmware must be updated to version 1.3 or later.
******* Firmware must be updated to version 1.6 or later.
MOTION PICTURE FUNCTION
-
Vertical Position Information*
-
ON / Off *Firmware must be updated to version 1.8 or later.
-
-
SS/Gain operation (*9)
-
Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
-
