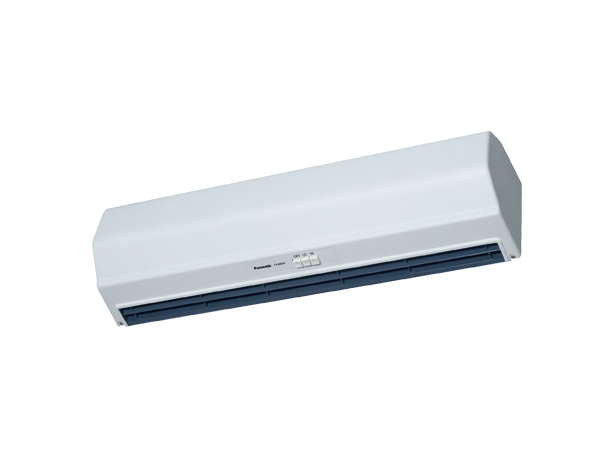

Air Curtain Standard Series

SHOP NOW
Contact Us
Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

SEE YOUR WISHLIST

Air Curtain Standard Series

Shut Out from Your Shop
Hot Air, Insects, and Dust

By using Air Curtain to minimize air exchange between the air outdoor and indoor, and Hot air, insects and dust infiltration too. Air Curtains enables resulting in superior shut-out ability.

Please Select Your User Type

Zoom In
Zoom Out
Close
Air Curtain Standard Series
Contact Us

Features

High Air Velocity so Effective

An air curtain’s shut-out ability is determined by the air velocity at the center of its airflow. The powerful discharge of Panasonic Air Curtains enables them to maintain a high level of air velocity within the curtain’s efficient distance, resulting in superior shut-out ability.
High Air Velocity so Effective

Air Stream to Create a Barrier

Shop doors are frequently opened and closed; therefore, air curtains are effective. - Heating/ Cooling Retention - Odor Shielding - Insect-proof Effect - Dust-proof Effect.
Air Stream to Create a Barrier

Highly Secure Fuse

A thermal safety fuse ensures that no accidents occur, even when there is a spike in current.
Highly Secure Fuse

Easy Maintenance

ABS resin casing provides better weather resistance. Simple structure allows convenient cleaning of the fan - just detach the front cover and metal plate to clean product interior.
Easy Maintenance

Recommended installation locations

Recommended installation locations

Specs

FY-08ESN

Photo of FY-08ESN

FY-08ELN

Photo of FY-08ELN

FY-10ESN

Photo of FY-10ESN

FY-10ELN

Photo of FY-10ELN

FY-12ESN

Photo of FY-12ESN

FY-12ELN

Photo of FY-12ELN

FY-14ESN

Photo of FY-14ESN

FY-14ELN

Photo of FY-14ELN

Fan blade with glass fiber resign for high durability

Metal blade bush for high durability

Main air inlet at top allows neat image

Easy maintenance structure

Motor insulation class: B

FY-08ESN FY-08ELN FY-10ESN FY-10ELN FY-12ESN FY-12ELN FY-14ESN FY-14ELN
Length (mm) 900 1200 900 1200 900 1200 900 1200
Air Volume (CMH [CFM]) High 690 [406] 940 [553] 860 [506] 1150 [677] 990 [583] 1340 [789] 1303 [767] 1826 [1075]
Low 560 [330] 790 [465] 600 [353] 790 [465] 940 [553] 1290 [759] 1083 [637] 1552 [913]
Outlet Velocity (m/s) High 12.1 12.4 14.9 15.1 16.1 16.2 21.3 22
Low 9.9 10.5 10.9 10.5 15.3 15.4 17.7 18.7
Power Consumption (W) High 57 74 88 116 202 258 312 423
Low 49 62 72 85 170 220 255 339
Current (A) High 0.28 0.36 0.42 0.56 0.94 1.21 1.43 1.93
Low 0.25 0.32 0.33 0.41 0.75 1.04 1.16 1.55
Noise Level (db [A]) High 43 45 50 50 54 55 61 63
Low 38 40 40 41 49 50 57 59
Effective Distance 2.5 m / 8’ 2.5 m / 8’ 3 m / 10’ 3 m / 10’ 3.5 m / 12’ 3.5 m / 12’ 4 m / 14’ 4 m / 14’
Weight (kg) 12 14 12 14 13 15 13 15
Note The value in specification table are representative characteristics value at 230V, 60Hz. The value in specification table are representative characteristics value at 230V, 60Hz. The value in specification table are representative characteristics value at 230V, 60Hz. The value in specification table are representative characteristics value at 230V, 60Hz. The value in specification table are representative characteristics value at 230V, 60Hz. The value in specification table are representative characteristics value at 230V, 60Hz. The value in specification table are representative characteristics value at 230V, 60Hz. The value in specification table are representative characteristics value at 230V, 60Hz.
