CZ-RTC6WBL/CZ-RTC6BL

CONEX: Smart Control, Smarter Comfort

CONEX is a next-gen remote that connects to two apps via Bluetooth®. The Panasonic H&C Control app offers intuitive operation for owners on their devices and quick set-up for installers. The H&C Diagnosis App aids in swift, accurate fault detection and repair.
  • CONEX
  • Bluetooth<sup>®</sup>

Please Select Your User Type

Zoom In
Zoom Out
Close
CZ-RTC6WBL/CZ-RTC6BL
Contact Us

Features

CONEX: Smart Comfort

Experience unparalleled control and convenience with Panasonic’s Bluetooth® Mobile Applications.
1) H&C Control App: Detailed operation and maintenance settings for owners and installers.
2) H&C Diagnosis App: Diagnosis and troubleshooting tools for service partners.
CONEX: Smart Comfort

Panasonic H&C Control App for Homeowners,
Business owners and Installers

Day-to-Day Comfort

Panasonic H&C Control App: User-friendly day-to-day operations via Bluetooth®.
Available functions: ON/OFF, Mode setting, Fan speed setting, Temperature setting, Air flow direction, Five simple energy-saving features for instant efficiency, Energy consumption monitoring, Weekly timer, nanoe™X ON/OFF, Key lock.
Day-to-Day Comfort

Easy Setup with Intuitive Controls

H&C Control App makes complex initial set-up visually touch and feel easy and responds swiftly to clients’ requests via Bluetooth® using a smartphone or tablet.
Available functions: Alarm display and history, Service contact registration, Filter sign, Auto-address, Test run, Rotation operation, Backup operation.
Easy Setup with Intuitive Controls

Panasonic H&C Diagnosis App
for Service Partners

True Comfort for Service Partners

The H&C Diagnosis App allows users to intuitively browse current stats and information about an air conditioner via Bluetooth® using a smartphone or tablet and without the need to use a PC.
Available functions: AC control (System view and Refrigerant circuit view), Real-time data (Indoor unit and Outdoor unit), Refrigerant cycle diagram and graph, Data recording, History data, Error code tables.
* Only available for Single split packaged air conditioner NX series.
True Comfort for Service Partners

Get Detailed Diagnostics

Outdoor diagnosis is now possible via a new service checker interface*¹. With CONEX, operation status can be checked and failure can be diagnosed from indoors too. The information you need is now available via both indoor and outdoor units even when site access may be difficult for either indoor or outdoor unit.
*1 Available as a spare part, compatible with single split packaged air conditioner NX series only.
Get Detailed Diagnostics

CONEX
New IoT Gateway

CONEX new IoT remote controller offers next generation solutions for Single Split Packaged Air Conditioner and VRF line-up.

Specs

CZ-RTC6WBL

  • Color: White: CZ-RTC6WBLWhite
Photo of CZ-RTC6WBL

CZ-RTC6BL

  • Color: Black: CZ-RTC6BLBlack

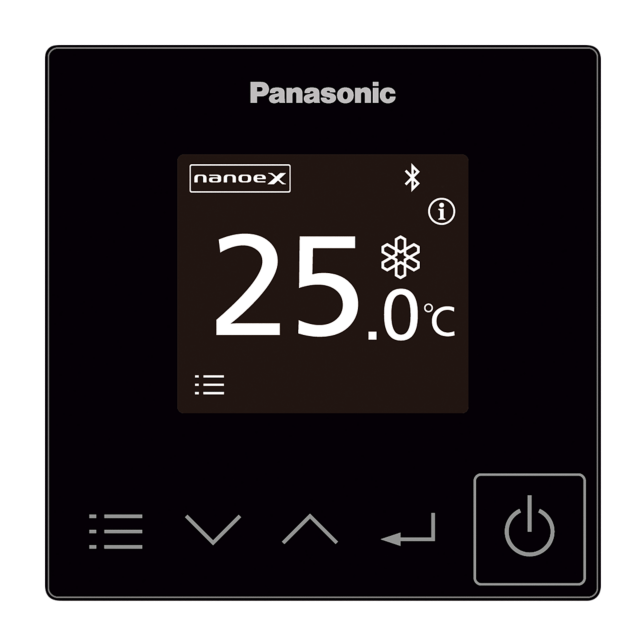

Photo of CZ-RTC6BL
  • Bluetooth<sup>®</sup>Bluetooth®

Basic function: ON/OFF, mode setting, fan speed setting, temperature setting, air flow direction.

Number of indoor units which can be connected: 1 group, 8 units.

Use limitations: Up to 2 controllers can be connected per group.*

* No combination possible with
CZ-RTC6(W)BL or CZ-RTC6(W)BLW

Panasonic H&C Control App for daily remote control operation with easy initial settings.

Panasonic H&C Diagnosis App for diagnosis and trouble shooting of your air conditioning.

CZ-RTC6WBL CZ-RTC6BL
Dimensions (mm) H 86 × W 86 × D 25 H 86 × W 86 × D 25
Weight 0.09kg 0.09kg
Temperature/Humidity Range 0 to 40˚C / 20 to 80% (No condensation)
*Indoor use only.		 0 to 40˚C / 20 to 80% (No condensation)
*Indoor use only.
Power Source DC 16V (Supplied from indoor unit) DC 16V (Supplied from indoor unit)
Clock Precision ±30 seconds/month (at normal temperature 25˚C)
*Adjust periodically.		 ±30 seconds/month (at normal temperature 25˚C)
*Adjust periodically.
Clock Holding Time 24 hours (When fully charged) (at normal temperature 25˚C)
*Approx. 8 hours are required for full charge.		 24 hours (When fully charged) (at normal temperature 25˚C)
*Approx. 8 hours are required for full charge.
Number of Connected Indoor Units Indoor unit: Up to 8 units (Within group-controlling) Indoor unit: Up to 8 units (Within group-controlling)
OS Version on the Mobile Device for “Panasonic H&C Control App” iOS: 10.0 or later
Android™: 6.0 or later		 iOS: 10.0 or later
Android™: 6.0 or later
Bluetooth® Version 4.2 or later 4.2 or later
