Full Control for Large-Scale Buildings

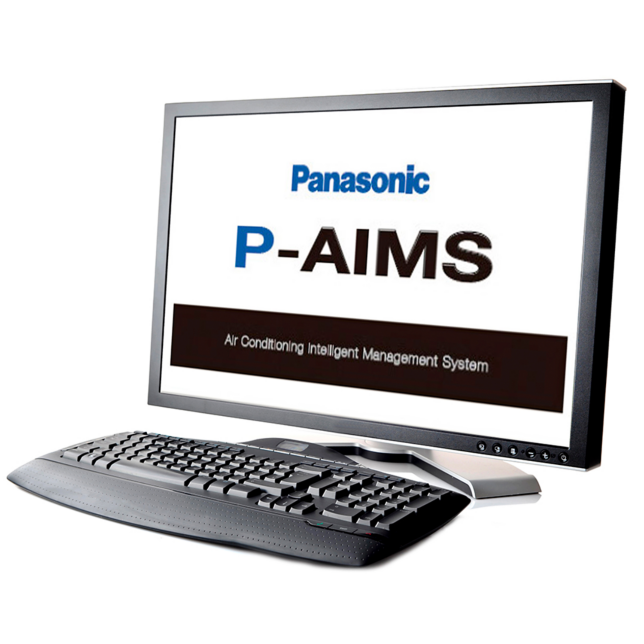

P-AIMS (Panasonic - Air Conditioning Intelligent Management System) integrates monitoring and control of air conditioners from your PC. By coupling basic software with optional ones, it enables comprehensive monitoring and control of all types of building equipment.
Please Select Your User Type
CZ-CSWKC2
Specs
CZ-CSWKC2
Control up to 1,024 indoor units centrally by one PC.
Standard remote control for all indoor units. Multiple timer schedule programs can be set on the calendar.
Detailed information display for alarms. CSV file output with alarm history and operating status. Automatic data backup to HDD.
Upgradeable with 4 optional software depending on individual requirements.
Ideal for large areas/buildings such as shopping centres, universities, office buildings, etc.
Documents
Features
Ideal for Large-Scale Buildings
Perfect solution for commercial facilities. Standard remote control for all indoor units. Various timer schedule programs can be set on the calendar. Detailed information display for alarms. CSV file output with alarm history, operating status. Automatic data backup to HDD.
Example of System Configuration
One PC installed with the “P-AIMS” can connect up to 1024 indoor units in total. (Each line : Max 8 communication adaptors and up to 512 indoor units)
1)User PC 2)USB line 3)Converter for each line (Max 8 line/Field supply) 4)RS485 (Polarised) 5)Communication adaptor A,B,n) Air Conditioning units in building
P-AIMS Optional Software
CZ-CSWAC2 for Load Distribution
Load distribution calculation for each tenant
• Air-conditioner load distribution ratio is calculated for each unit (tenant) with used energy consumption data (m³, kWh).
• Calculated data is stored with CSV type file.
• Air-conditioner load distribution ratio is calculated for each unit (tenant) with used energy consumption data (m³, kWh).
• Calculated data is stored with CSV type file.
CZ-CSWWC2 for Web Application
Web access & control from remote station
• Accessing P-AIMS software from remote PC.
• You can monitor/operate FSV systems by using web browser.
• Accessing P-AIMS software from remote PC.
• You can monitor/operate FSV systems by using web browser.
CZ-CSWGC2 for Object Layout Display
Whole system can be controlled visually
• Operating status monitor is available on the layout display.
• Object layout and indoor unit locations can be checked at once.
• Each unit can be controlled by a virtual remote controller on the display.
• Max 4 layout screens can be shown at one time.
• Operating status monitor is available on the layout display.
• Object layout and indoor unit locations can be checked at once.
• Each unit can be controlled by a virtual remote controller on the display.
• Max 4 layout screens can be shown at one time.
CZ-CSWBC2 for BACnet™ Software Interface
Connectable to BMS system
• Can communicate with other equipment by BACnet™ protocol.
• FSV systems can be controlled by both BMS and P-AIMS.
• Max 255 indoor units can be connected to 1 PC (that has P-AIMS basic & BACnet™ software).
• Can communicate with other equipment by BACnet™ protocol.
• FSV systems can be controlled by both BMS and P-AIMS.
• Max 255 indoor units can be connected to 1 PC (that has P-AIMS basic & BACnet™ software).
1)BMS/Central control PC 2)Client PC 3)Router A)AC control B)Security control C)Safety control D)Elec./Light control E)Elevator control
