CZ-64ESMC3

Optimised Control for Compact HVAC Systems

Efficient management with centralised control of up to 64 units (64 groups, 64 indoor units). This solution includes four energy-saving functions, demand control, and timer functions, all designed to improve overall management efficiency.

Please Select Your User Type

Zoom In
Zoom Out
Close
CZ-64ESMC3
Contact Us

Specs

CZ-64ESMC3

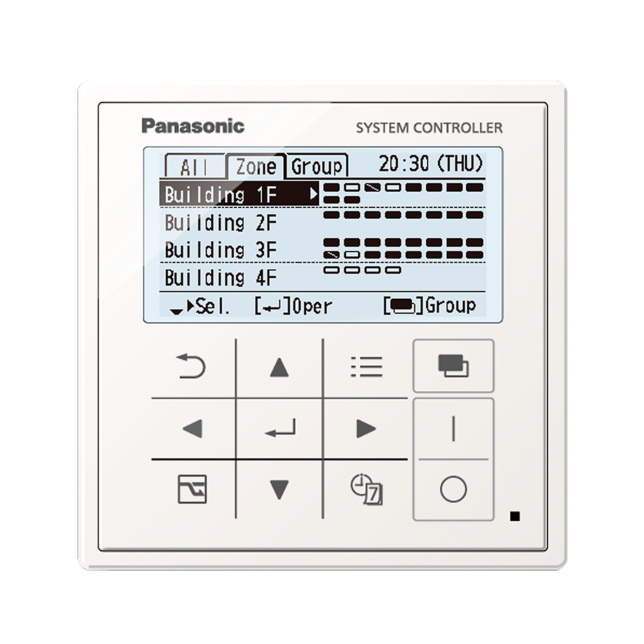

Photo of CZ-64ESMC3

Control up to 64 units (64 groups, 64 indoor units) centrally.

Control of 64 indoor units divided into 4 zones. (One zone can have up to 16 groups, and one group can have up to 8 units.)

Four energy-saving features.
Dual demand functions.

Efficient weekly AC timer (Pre-set up to 56 settings per week)

Simple, easy-to-use operation.

CZ-64ESMC3
Dimensions (mm) H 120 x W 120 x D 16 + 51.9
Weight 520g
Temperature/Humidity range 0 to 40°C / 20 to 80 % (No condensation)
*Indoor use only.
Power Source Single phase 100-240V ~ 50-60Hz
Power Consumption Max. 1.3W
Clock Precision ± 30 seconds/month (at normal temperature 25°C)
*Adjust periodically.
Clock Holding Time 100 hours (when fully charged)
*Approx. 8 hours are required for full charge.
Number of Connected Indoor Units Up to 64 groups (64 units)

Documents

Features

Fully Centralised HVAC Control

• Control up to 64 units (64 groups, 64 indoor units) centrally.
• Control of 64 indoor units divided into 4 zones. (One zone can have up to 16 groups, and one group can have up to 8 units.)
• Panasonic ERV and ERV with a microcontroller can be controlled*1 via a communication adaptor CZ-CAPC3.
*1: Please contact an authorised Panasonic dealer for details due to restrictions on available functions and operation screens. *2: The system configuration diagram is for reference purposes only. See technical documentation for details. *3: Adaptor CZ-CAPRA1 is required for Single split wall mounted and Multi split air conditioners. *4: Adaptor CZ-CAPR1 and CZ-CCERA1 are required for some Single split packaged air conditioners.
1) Signal input x 4/ Signal output x 2.
LEARN MOREOpen new window
Fully Centralised HVAC Control

Tailored Energy-Saving Functions

Four Energy-Saving Features

• Set Temperature Auto Return
• Unattended auto shutoff
• Repeat Off Timer
• Set Temperature Range limit
LEARN MORE
Four Energy-Saving Features

Dual Demand Functions

• Schedule peak cut
• External input peak cut
LEARN MOREOpen new window
Dual Demand Functions

Efficient Weekly AC Timer

Pre-programme up to 56 settings for the week.
Up to 8 settings per day: ON/OFF, mode, room temperature, and remote controller local operation prohibition.
Pre-programme up to 56 settings for the week. Up to 8 settings per day: ON/OFF, mode, room temperature, and remote controller local operation prohibition.
By setting the air conditioner according to the operating hours of offices and other facilities, employees can prevent forgetting to turn off the air conditioner, and by running the air conditioner according to the start of the working day, comfort and energy savings can be achieved.
By setting the air conditioner according to the operating hours of offices and other facilities, employees can prevent forgetting to turn off the air conditioner, and by running the air conditioner according to the start of the working day, comfort and energy savings can be achieved.

Simple, Easy-to-Use Operation

Easy operations with touch keys.
Large, full-dot LCD with user-friendly display.
Simple, Easy-to-Use Operation
