Wall-Mounted X-Deluxe Inverter R32 MXPU Series

SHOP NOW
Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

Wall-Mounted X-Deluxe Inverter R32 MXPU Series

Purify Around-the-Clock with nanoe™ X

Panasonic Wall-Mounted X-Deluxe Inverter MXPU Series comes with nanoe™ X air purification system which provides 24-hour nanoe™ X protection. Equipped with built-in Wi-Fi, connect to the Panasonic Comfort Cloud App to control air conditioning units anywhere, anytime. POWERFUL Mode offers instant cooling during start-up, while AEROWINGS offers further and faster airflow. Enjoy cooling comfort while saving energy with Inverter technology and R32 refrigerant.
  • nanoe X Generator Mark 1
  • Panasonic Comfort Cloud App
  • Inverter
  • POWERFUL Mode
Zoom In
Zoom Out
Close
Wall-Mounted X-Deluxe Inverter R32 MXPU Series

Features

Wide Cooling Capacity to Suit Your Needs and Preferences

Model

CS-MXPU9YKZ

CS-MXPU12YKZ

CS-MXPU18YKZ

CS-MXPU24YKZ

CS-MXPU28YKZ

kJ/h

10,800

12,600

18,000

21,600

25,600

kW

2.8

3.5

5.0

6.0

7.1

24-hour nanoe™ X Air Protection

24-hour nanoe™ X Air Protection

nanoe™ X technology with the benefits of hydroxyl radicals effectively inhibits adhered and airborne pollutants while reducing frequently encountered odors for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify spaces, providing a cleaner and comfortable space 24/7 for patrons, employees and you.

LEARN MORE

*Energy consumption may vary depending on models.

nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

A global contract research organization Texcell has verified the inhibitory effect of the nanoe™ X technology, with known benefits of hydroxyl radicals on the adhered novel coronavirus (SARS-CoV-2). 99.7% of adhered novel coronavirus (SARS-CoV-2) activity was inhibited within 24 hours in a 6.7m³ test space.
Notes: (1) The virus infectious titer was measured and used to calculate the inhibition rate. (2) This verification was designed to generate basic research data on the effects of nanoe™ X on the adhered novel coronavirus in laboratory conditions. Actual effects will vary depending on the environment and usage of the product.
nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

Effective in Removing 99% of Dust Particles

Effective in removing 99% of dust particles*, nanoe-G releases negative ions to capture dust particles as small as PM2.5, carrying them back to the filter to provide a cleaner indoor environment.

*Testing organization: FCG Research Institute, Inc. Testing method: nanoe-G-equipped air conditioner was operated and tested in a 23m³ sized test room. Test result: Removed 99% of particles in 202 minutes (compared to the initial concentration). (25034) Not a result of experiments in an actual use environment. Results may vary based on usage, and seasonal and environmental variables (temperature and humidity).

Effective in Removing 99% of Dust Particles

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect & Control Your Air Conditioners Anywhere, Anytime

With the built-in Wi-Fi and Panasonic Comfort Cloud App, connect up to 20 air conditioning units at 1 location (up to 10 locations), and control them from anywhere, at home or away. Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

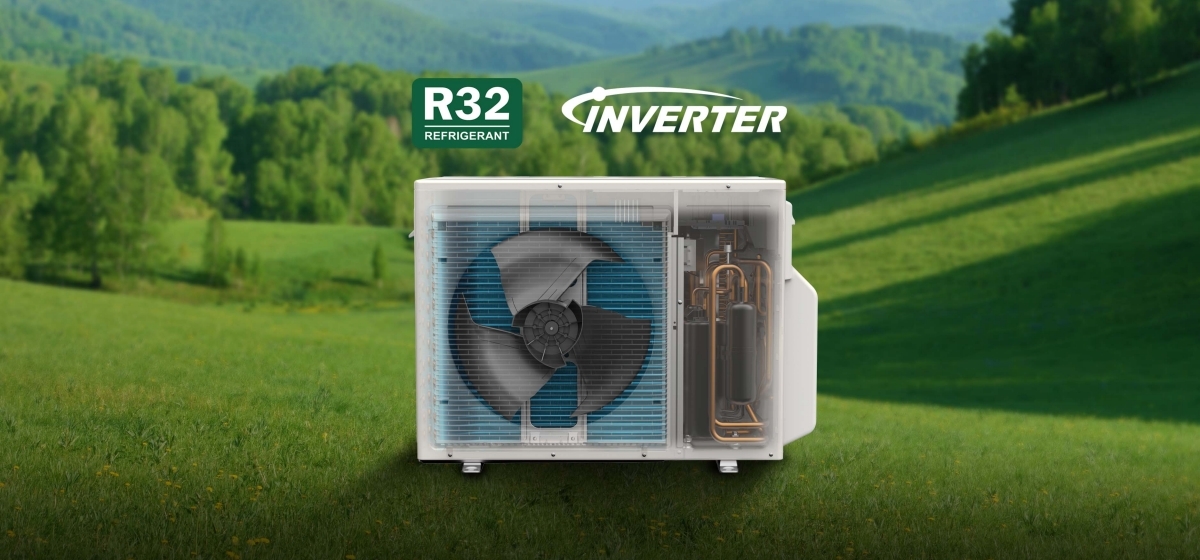

Energy-saving and Eco-friendly Technologies

Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.

LEARN MORE

Comfort Cooling Environment for Your Needs

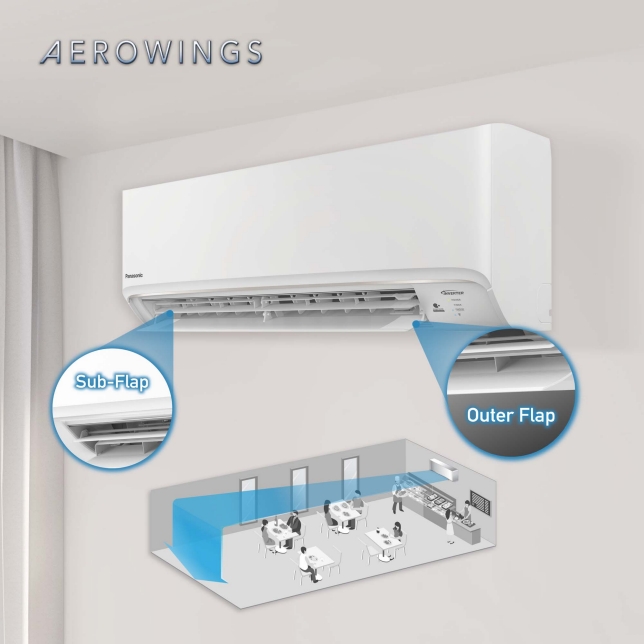

Stay Cool with Faster, Further Airflow

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
Stay Cool with Faster, Further Airflow

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode cools the place faster by decreasing the setting temperature by 2°C and operating the indoor fan at a higher speed to create powerful instant cooling during start-up.
Instant Powerful Cooling with a Push of a Button

Calm and Peaceful Environment with Quiet Mode

Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum, and noise level is reduced by 3 dB(A)* from normal settings. This mode is ideal for a calm and peaceful atmosphere at your premises.
*Noise level reduced by 3 dB(A) from normal settings is applicable to CS-MXPU9YKZ and CS-MXPU12YKZ only.
Calm and Peaceful Environment with Quiet Mode

Convenient Control at Your Fingertips

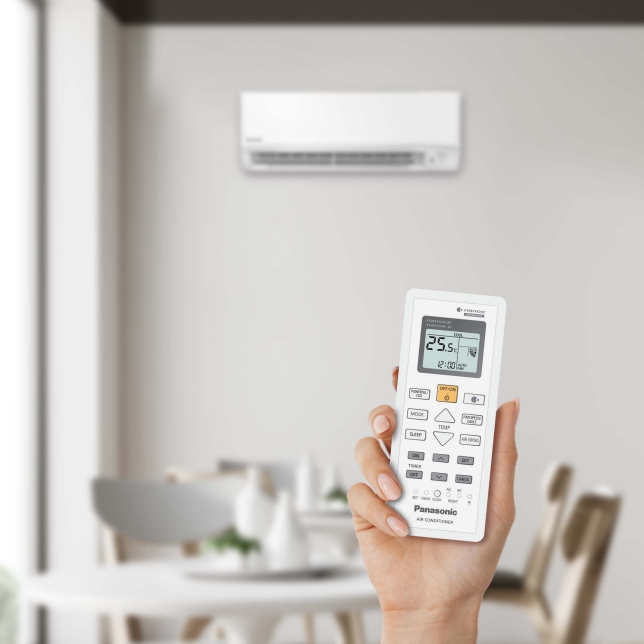

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Wireless Remote Controller

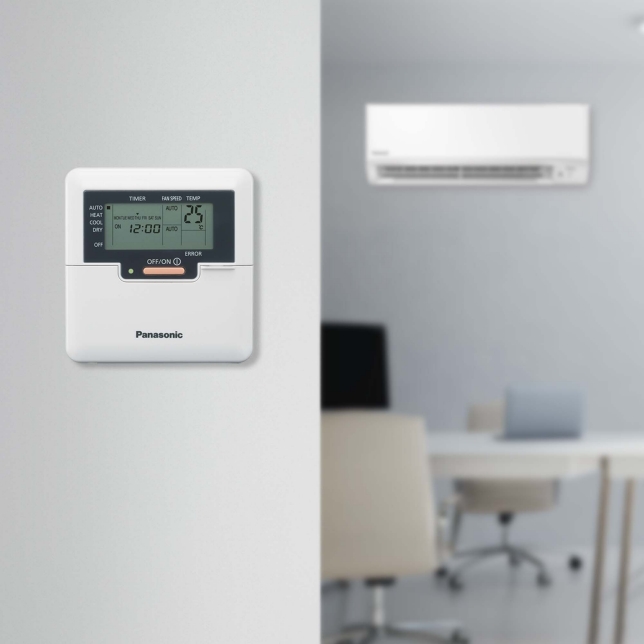

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.
Optional Wired Remote Controller

Specs

CS-MXPU9YKZ

Photo of CS-MXPU9YKZ

CS-MXPU12YKZ

Photo of CS-MXPU12YKZ

CS-MXPU18YKZ

Photo of CS-MXPU18YKZ

CS-MXPU24YKZ

Photo of CS-MXPU24YKZ

CS-MXPU28YKZ

Photo of CS-MXPU28YKZ
  • nanoe X Generator Mark 1nanoe X Generator Mark 1
  • Built-in Wi-FiBuilt-in Wi-Fi
  • POWERFUL ModePOWERFUL Mode
  • nanoe-Gnanoe-G
  • AEROWINGSAEROWINGS
  • InverterInverter
  • R32 RefrigerantR32 Refrigerant
  • Quiet ModeQuiet Mode

nanoe™ X 24-hour protection inhibits various pollutants and deodorizes odors

Manage your air conditioner using your mobile device with Comfort Cloud App

AEROWINGS concentrates cool air for further and faster airflow across the room

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Energy savings with Inverter and environmentally friendly R32 refrigerant

CS-MXPU9YKZ CS-MXPU12YKZ CS-MXPU18YKZ CS-MXPU24YKZ CS-MXPU28YKZ
Cooling Capacity (kW) 2.8 kW 3.5 kW 5.0 kW 6.0 kW 7.1 kW
Cooling Capacity (min-max) (kJ/h) 10,080 kJ/h 12,600 kJ/h 18,000 kJ/h 21,600 kJ/h 25,560 kJ/h
Power Source Single Phase, 230V, 60Hz Single Phase, 230V, 60Hz Single Phase, 230V, 60Hz Single Phase, 230V, 60Hz Single Phase, 230V, 60Hz
Sound Pressure Level (H/L) 43/28 dB(A) 44/28 dB(A) 45/34 dB(A) 49/39 dB(A) 49/39 dB(A)
Air Circulation (H) 12.7 m³/min (450 ft³/min) 13.1 m³/min (460 ft³/min) 13.3 m³/min (470 ft³/min) 20.2 m³/min (715 ft³/min) 20.5 m³/min (725 ft³/min)
Dimensions (H x W x D) (mm) 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 295 mm x 1,040 mm x 244 mm 295 mm x 1,040 mm x 244 mm
Net Weight 8 kg 8 kg 9 kg 14 kg 14 kg
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm ø 6.35 mm ø 6.35 mm ø 6.35 mm ø 6.35 mm
Refrigerant Pipe Diameter (Gas Side) ø 9.52 mm ø 9.52 mm ø 9.52 mm ø 12.70 mm* ø 12.70 mm*
Power Supply Outdoor Outdoor Outdoor Outdoor Outdoor
Inverter Control Yes Yes Yes Yes Yes
Sleep Mode Yes Yes Yes Yes Yes
Quiet Mode Yes Yes Yes Yes Yes
POWERFUL Mode Yes Yes Yes Yes Yes
ECO Mode with A.I. Yes (Temperature shift) Yes (Temperature shift) Yes (Temperature shift) Yes (Temperature shift) Yes (Temperature shift)
Soft Dry Operation Mode Yes Yes Yes Yes Yes
Personal Airflow Creation No No No Yes Yes
Airflow Direction Control (Up & Down) Yes Yes Yes No No
Manual Horizontal Airflow Direction Control Yes Yes Yes No No
nanoe™ X Yes (Generator Mark 1) Yes (Generator Mark 1) Yes (Generator Mark 1) Yes (Generator Mark 1) Yes (Generator Mark 1)
nanoe-G Yes Yes Yes Yes Yes
Odor-Removing Function Yes Yes Yes Yes Yes
Removable, Washable Panel Yes Yes Yes Yes Yes
24-Hour Dual ON & OFF Real Setting Timer Yes Yes Yes Yes Yes
LCD Wireless Remote Control Yes Yes Yes Yes Yes
Wireless LAN Remote Control For Internet Connection Yes (Built-in) Yes (Built-in) Yes (Built-in) Yes (Built-in) Yes (Built-in)
Wired Remote Control Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional)
Random Auto Restart (32 Restart Patterns) Yes Yes Yes Yes Yes
Blue Fin Condenser Yes Yes Yes Yes Yes
Top-Panel Maintenance Access Yes Yes Yes Yes Yes
Self-Diagnostic Function Yes Yes Yes Yes Yes
Note *Pipe size expander CZ-MA2PA is not required when outdoor units CU-4U34YBZ are connected to CS-MXPU24YKZ and CS-MXPU28YKZ. *Pipe size expander CZ-MA2PA is not required when outdoor units CU-4U34YBZ are connected to CS-MXPU24YKZ and CS-MXPU28YKZ.
