U Series Jet Pump Water Heater DH-3UDP1MZ

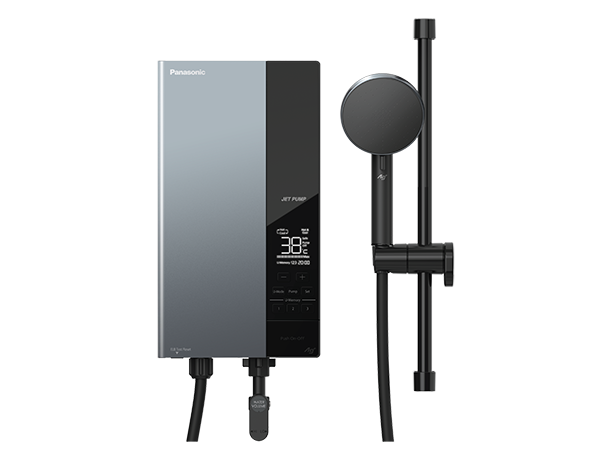

Photo of U Series Jet Pump Water Heater DH-3UDP1MZ

Basic Specification

  • PUMP/ NO PUMP

    • DC Pump
  • TYPE

    • LCD type
  • Power Supply

    • 240 V, 50 Hz
  • Rated Power

    • 3.6 kW
  • Water Pressure

    • Minimum

      • 0.05 kgf/cm²
    • Maximum

      • 3.87 kgf/cm²
  • Dimensions (h x w x d) mm

    • 385 x 210 x 78
  • Main Unit Weight (kg)

    • 2.8 kg
  • Body Colour

    • Dark Metallic Navy

Standard Regulation

  • SURUHANJAYA TENAGA (Safety)

ELB indication method

  • "SAFE" word on LCD screen

Water Stop System

  • One Push On/Off Switch

9 Safety Features

  • 1. Water Splash Prood Case Cover

    • IEC 60529 (IP2X)
  • 2. Durable Copper Heater Unit

    • Yes
  • 3. On Push On/Off Switch

    • Yes
  • 4. Insulated Structure

    • Yes. IEC 60529 (IP2X)
  • 5. Built-in Earth Leakage Breaker (ELB)

    • Yes
  • 6. Water Flow Sensor

    • Yes
  • 7. Non-flammable Material Cover

    • Yes
  • 8. Manual Reset Thermostat

    • Yes
  • 9. Auto Thermal Cut-off

    • 55ºC

Comfort Features

  • U-memory

    • Yes
  • U-mode

    • Yes (Warm Up, Cool Down, Hot & Cool Modes)
  • On/Off Pump function

    • Yes
  • Ag+ Antibacterial material

    • Yes
  • 3-way Shower

    • Normal, Wide, Spot
