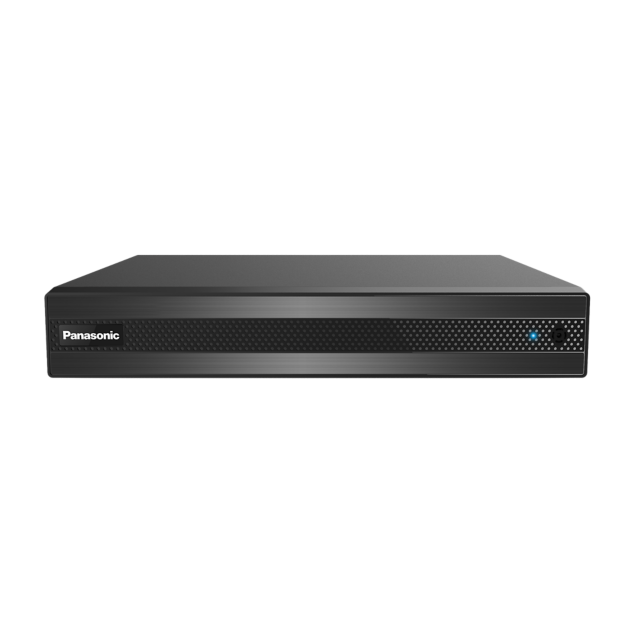

PM-EN8CH
8CH Network Video Recorder, 8PoE ports
The Panasonic network video recorder supports up to 8 input channels, ensuring high-definition recording on each channel through advanced SOC techniques.This NVR supports 8-channel of IP PoE inputs, enables simultaneous playback across all channels, and offers 1080p high-definition display capabilities. It meets diverse security requirements forhomes, shops, and offices, ensuring customer safety.
Features
Key Features
• Support 8CH6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/D1/CIF IP input
• H.265S/H.265+/H.265/H.264 coding
• Playback: 8CH simultaneous playback
• 1080P output, true high resolution display
• Remote monitoring though mobile application (iOS and Android)
• H.265S/H.265+/H.265/H.264 coding
• Playback: 8CH simultaneous playback
• 1080P output, true high resolution display
• Remote monitoring though mobile application (iOS and Android)
Download Datasheet
Panasonic CCTV App
Panasonic CCTV App offers seamless monitoring and management of surveillance cameras and NVRs, ensuring security and convenience.
Specs
Support 8CH6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/D1/CIF IP input
H.265S/H.265+/H.265/H.264 coding
Playback: 8CH simultaneous playback
1080P output, true high resolution display
Remote monitoring though mobile application (iOS and Android)
System
-
OS
-
Embedded Linux
-
Video
-
IP Video Input
-
8CH
-
-
Resolution
-
6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF
-
-
Network Bandwidth
-
64Mbps/64Mbps (incoming/outgoing)
When the AI function of the IPC is enabled, the actual incoming bandwidth (max. bitrate) is more than the set value in the NVR.
-
-
Output
-
HDMI×1:1920×1080/1280×1024/1024×768
VGA×1:1920×1080/1280×1024/1024×768
VGA and HDMI1 output the same video source
-
-
Multi-screen Display
-
1/4/6/8/9
-
-
Compression
-
H.264/H.265/H.265+/H.265S
-
Audio
-
Network input
-
8CH IPC audio input
-
-
Compression
-
G.711(U/A)
-
Record
-
Resolution
-
6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/D1/CIF
-
-
Frame Rate
-
NTSC: 30fps; PAL: 25fps
-
Playback
-
Simultaneous Playback
-
Max.8CH
-
-
Search
-
Time slice/time/event/tag/smart search
-
-
Function
-
Play, pause, FF, Rewind, digital zoom, previous frame, next frame, etc.
-
Decoding Capability
-
Live View
-
1CH 6MP/4CH1080P
-
-
Playback
-
1CH 6MP/4CH1080P
-
Alarm
-
Mode
-
Manual, sensor, motion, exception, smart events, etc.
-
-
Triggering
-
Record, snapshot, preset, e-mail, etc.
-
Network
-
Protocol
-
TCP / IP, HTTP, HTTPS, 802.1, DHCP, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IPv6, IPv4, UDP, WebSocket, PPPoE, SNMP, IGMP, ONVIF, etc.
-
-
Interface
-
RJ45 100Mbps×1
-
-
Client Connection
-
Max. 64 users access
-
PoE
-
PoE Port
-
RJ 45 100Mbps×8
-
-
Standard
-
IEEE802.3AF
-
-
Output Power
-
≤ 72W
-
Mobile Device
-
OS
-
iOS, Andriod
-
Storage
-
HDD Interface
-
SATA×1 max 10TB (HDD are not included)
-
Port
-
USB
-
USB2.0×2
-
Others
-
Power Adapter(Supplied with the package)
-
DC48V/1.8A
-
-
Consumption
-
≤50W (without HDD and PoE power supply)
-
-
Dimensions in mm
-
255×222×42 (W×D×H)
-
-
Certificate
-
EMC: CE/EN 55032:2015+A11:2020, EN IEC 61000-3-2:2019+A1:2021 EN 61000-3-3:2013+A1: 2019+A2:2021, EN 55035:2017+A11:2020
Safety: IEC 62368-1:2020+A11:2020
RoHS: 2011/65/EU
-
-
Environmental Protection
-
Complies with directive EU RoHS, WEEE(2012/19/EU), Directive 94/62/EC and REACH (EC1907/2006)
-
-
Working Environment
-
-10~50℃; Humidity: 10%~90%
-
