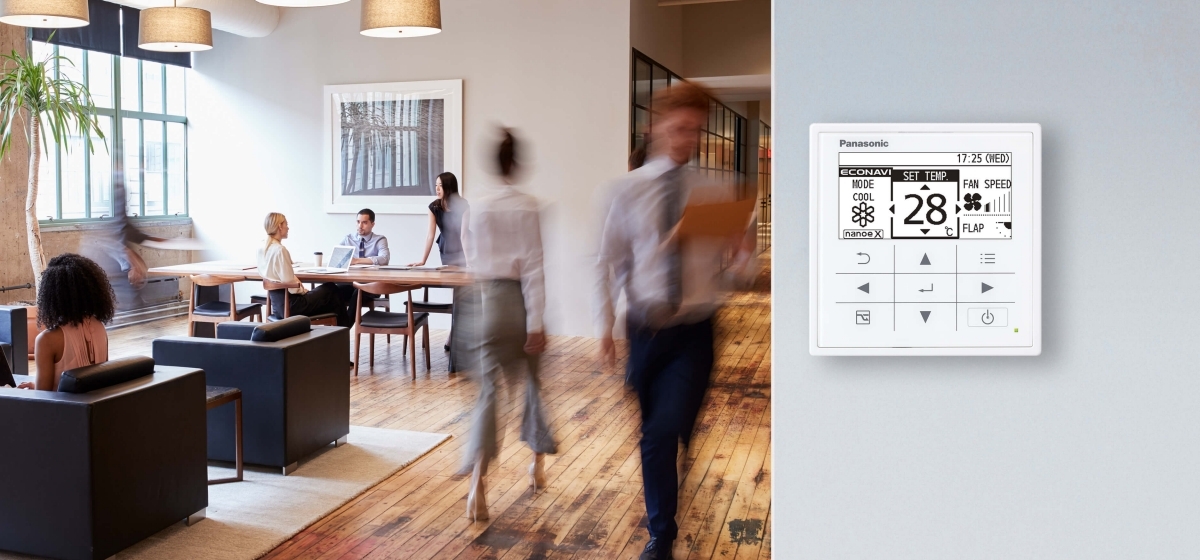

High-Spec Remote Controller

CZ-RTC5B

Deluxe Wired Controller with Energy-Saving Functions

User-friendly, sleek, clear design with energy-saving functions and convenient extra features. These distinctive characteristics set this remote control apart.
Zoom In
Zoom Out
Close

Specifications

CZ-RTC5B

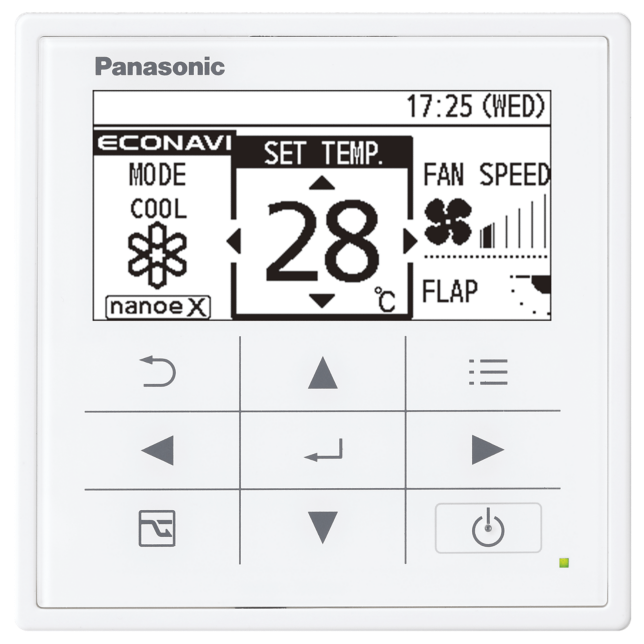

Photo of CZ-RTC5B

Basic function: ON/OFF, mode setting, fan speed setting, temperature setting, air flow direction.

Number of indoor units which can be connected: 1 group, 8 units.

Limitation: Up to 2 controllers/1 group. (When using ECONAVI, only one remote controller is possible to connect at indoor unit)

Energy saving: 5 simple energy and power saving functions, ECONAVI, energy consumption monitoring.

Maintenance: Alarm history, alarm display, service contact registration, filter sign, auto-address, test run.

Others: Weekly timer, Panasonic clean air technology nanoe™ X ON/OFF, rotation/backup operation, key lock.

CZ-RTC5B
Dimensions (mm) H 120 x W 120 x D 16
Weight 180g
Temperature/Humidity Range 0 to 40°C / 20 to 80% (No Condensation)
*Indoor Use Only
Power Source DC 16V (Supplied with indoor unit)
Clock Precision ±30 seconds/month (at normal temperature 25°C)
*Adjust periodically.
Clock Holding Time 72 hours (When fully charged)
*Approx. 8 hours are required for full charge.
Number of Connectable Indoor Units Up to 8 units (During group-controlling)

Documents

Case Studies

Features

Energy and Electricity Savings

Five Simple Energy-Saving Features for Instant Efficiency

• Set temperature auto return
• Unattended auto shutoff
• Repeat off timer
• Set temperature range limit
• Energy saving timer
Five Simple Energy-Saving Features for Instant Efficiency

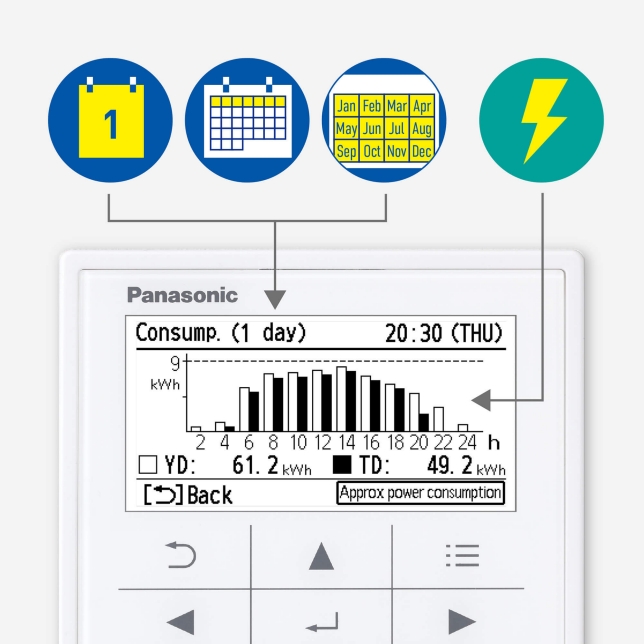

Prevent Overuse with Visible Energy Consumption

Energy consumption can be displayed for one day, one week or one year to prevent overuse.
* The energy consumption shows an approximate calculation result, which may differ from the measurement result calculated by a power meter.
Prevent Overuse with Visible Energy Consumption

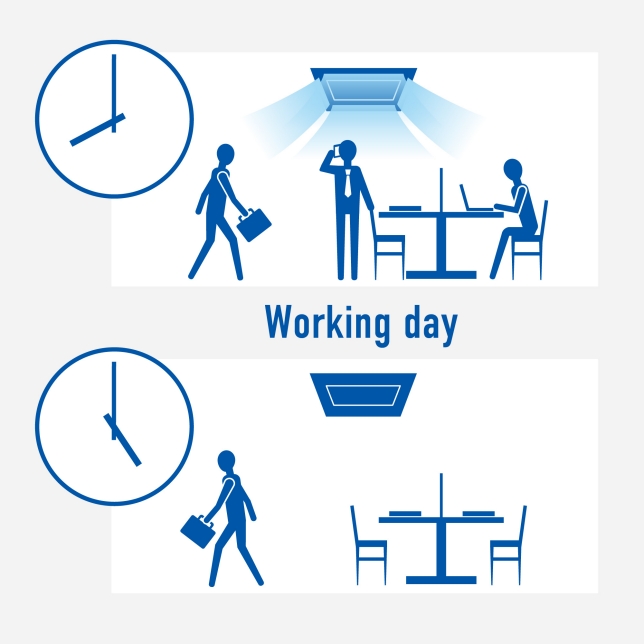

Weekly Timers for Efficient AC

Set up to 8 temperature and ON/OFF settings per day, by date or time. Total of 56 configurations are possible per week.
Set up to 8 temperature and ON/OFF settings per day, by date or time. Total of 56 configurations are possible per week.
By setting the air conditioner to match the operating hours of offices and shops, it prevents employees from forgetting to turn off the air conditioner, and by running the air conditioner at the start of the working day, it ensures comfort and saves energy.
By setting the air conditioner to match the operating hours of offices and shops, it prevents employees from forgetting to turn off the air conditioner, and by running the air conditioner at the start of the working day, it ensures comfort and saves energy.

Activate for All-Day Space Purification

Panasonic air purification function “nanoe™ X” can be turned ON or OFF with just the touch of a remote control button.
Activate for All-Day Space Purification

Rotation & Backup for Longevity

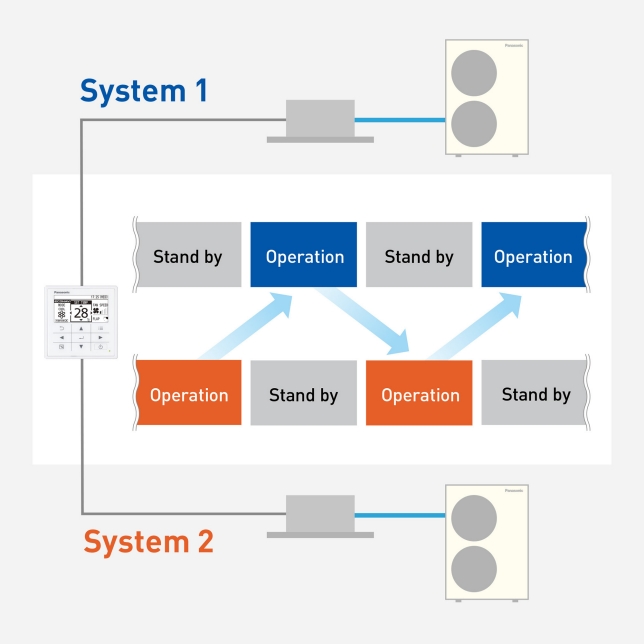

Rotation operation

Rotation operation is possible, whereby one system is rested in turn to ensure that the operating time is not unevenly distributed between machines.
Rotation operation

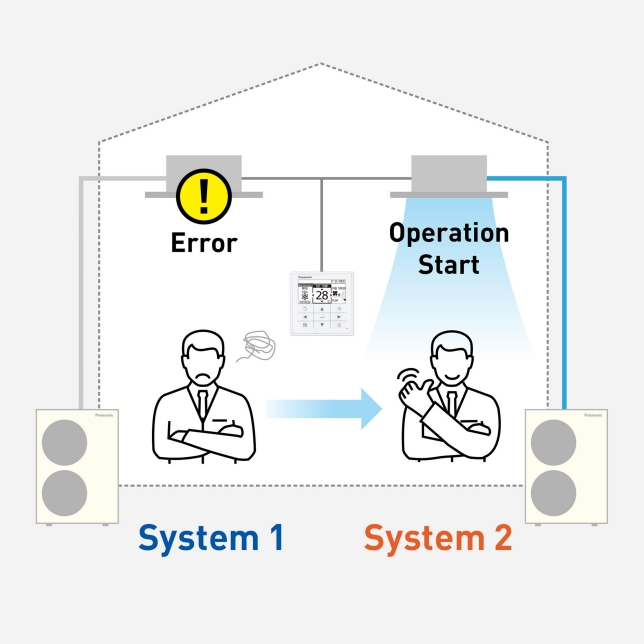

Backup operation

In the unlikely event of a problem with one system, the remaining stopped system automatically starts Backup operation. This is ideal for places where 24-hour air-conditioning is required.
Backup operation

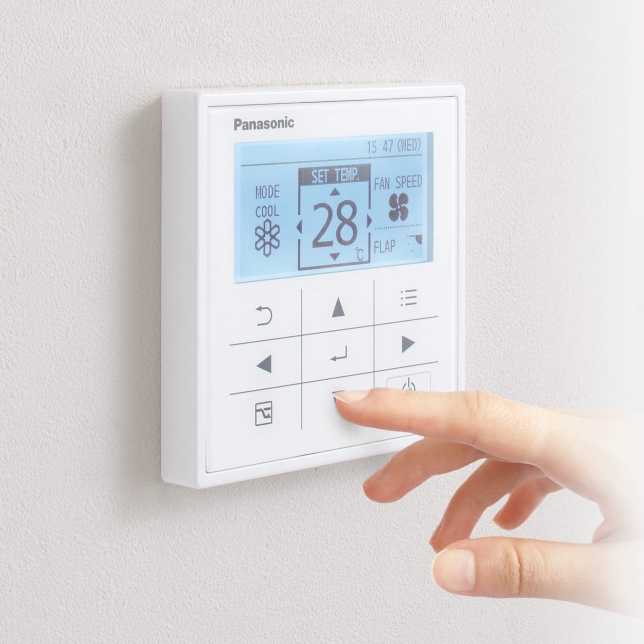

Large LCD and Flat-Touch Keys for Seamless Control

The elegant face design with large touch keys enables an intuitive operation. Icons and characters are clearly displayed on Large LCD (3.5 inch). White LED backlight for users’ convenience even during the night.
Large LCD and Flat-Touch Keys for Seamless Control
