X-Premium Inverter XU Series (XKH)

Purify Around-the-Clock with nanoe™ X

Panasonic X-Premium Inverter XU Series (XKH) integrates nanoe™ X technology with built-in Wi-Fi control for continuous 24-hour air protection with Panasonic Comfort Cloud App. Enjoy comfortable cooling with AEROWINGS, iAUTO-X and Humidity Sensor. Achieve energy efficiency without compromising comfort with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.
  • nanoe X Generator Mark 2
  • Panasonic Comfort Cloud App
  • Inverter
  • iAUTO-X with Humidity Sensor
Zoom In
Zoom Out
Close
X-Premium Inverter XU Series (XKH)

Features

24-hour nanoe™ X Air Protection

24-hour nanoe™ X Air Protection

nanoe™ X technology with the benefits of hydroxyl radicals effectively inhibits adhered and airborne pollutants while reducing frequently encountered odours for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify spaces, providing a cleaner and comfortable space 24/7 for patrons, employees and you.

LEARN MORE

*Energy consumption may vary depending on models.

nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

A global contract research organization Texcell has verified the inhibitory effect of the nanoe™ X technology, with known benefits of hydroxyl radicals on the adhered novel coronavirus (SARS-CoV-2). 99.7% of adhered novel coronavirus (SARS-CoV-2) activity was inhibited within 24 hours in a 6.7m³ test space.
Notes: (1) The virus infectious titer was measured and used to calculate the inhibition rate. (2) This verification was designed to generate basic research data on the effects of nanoe™ X on the adhered novel coronavirus in laboratory conditions. Actual effects will vary depending on the environment and usage of the product.
nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

Effective in Removing 99% of Dust Particles

Effective in removing 99% of dust particles*, nanoe-G releases negative ions to capture dust particles as small as PM2.5, carrying them back to the filter to provide a cleaner indoor environment.
*Testing organisation: FCG Research Institute, Inc. Testing method: nanoe-G-equipped air conditioner was operated and tested in a 23m³ sized test room. Test result: Removed 99% of particles in 202 minutes (compared to the initial concentration). (25034) Not a result of experiments in an actual use environment. Results may vary based on usage, and seasonal and environmental variables (temperature and humidity).
Effective in Removing 99% of Dust Particles

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect & Control Your Air Conditioners Anywhere, Anytime

With the built-in Wi-Fi and Panasonic Comfort Cloud App, control the air conditioning units from anywhere, at home or away. Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

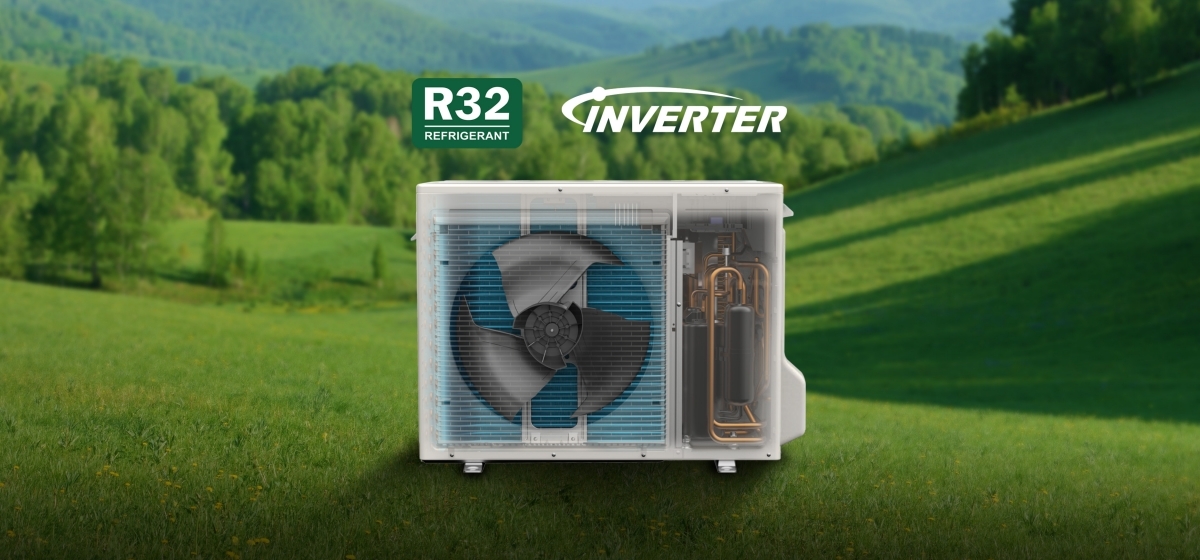

Energy-saving and Eco-friendly Technologies

Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.

LEARN MORE

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.
*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.
Intelligently Balances Energy Savings and Comfort

Humidity Sensor Optimises an Ideal Indoor Environment

Humidity Sensor Optimises an Ideal Indoor Environment

iAUTO-X together with built-in Humidity Sensor constantly monitors and adjusts relative humidity levels to below 60% for an optimal indoor environment, so you can enjoy comfortable cooling all day long.

LEARN MORE

Healthy Airflow for Your Cooling Comfort

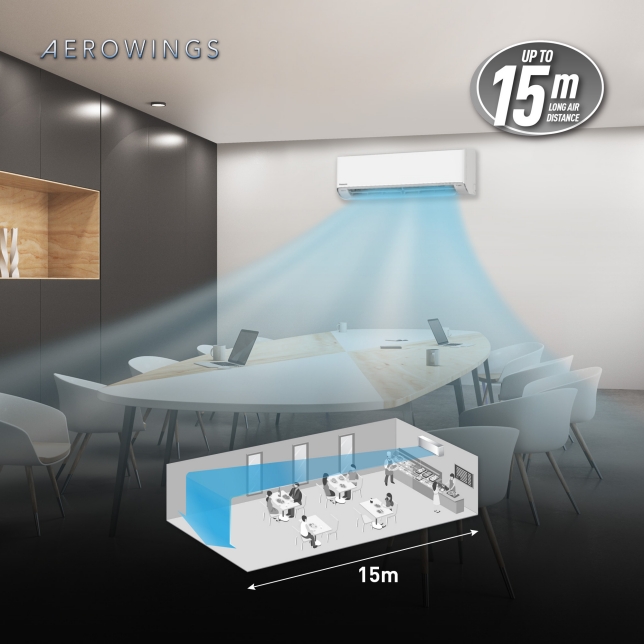

Up to 15 Meters Long Air Distance with AEROWINGS

AEROWINGS provides long air distance as far as 15 meters* by incorporating two independently controlled flaps, so you can enjoy the cooling sensation even if you are across the room.
*Tested 15 meters long airflow based on X-Premium Inverter XU Series (XKH).
Up to 15 Meters Long Air Distance with AEROWINGS

Faster Cooling with iAUTO-X

iAUTO-X provides 25%* faster cooling through the use of Panasonic Thermal Enhancement Technology (P-TECh) which enables the compressor to achieve maximum frequency quickly from start-up, allowing you to relish the cooling comfort instantly, even on a scorching hot day. This feature can also be reactivated whenever the room is getting warmer due to the increase of occupants in it, keeping everyone comfortable at all times.
*Comparison of iAUTO-X mode & normal COOL mode by using 1.5HP X-Premium Inverter XU Series (XKH) model.
Faster Cooling with iAUTO-X

Convenient Control at Your Fingertips

Wireless Remote Controller

The handheld wireless remote controller is designed for ease of operation and convenience with five quick access keys.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Wireless Remote Controller

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.
Optional Wired Remote Controller

Range

Model

Horsepower

1.0HP

1.5HP

2.0HP

2.5HP

Cooling Capacity

kW

2.85

3.67

5.30

6.25

Btu/h

9,720

12,500

18,100

21,300

Indoor Unit

CS-XU10XKH

CS-XU13XKH

CS-XU18XKH

CS-XU24XKH

Outdoor Unit

CU-XU10XKH

CU-XU13XKH

CU-XU18XKH

CU-XU24XKH

Specifications

CS-XU10XKH_CU-XU10XKH

Photo of CS-XU10XKH_CU-XU10XKH

CS-XU13XKH_CU-XU13XKH

Photo of CS-XU13XKH_CU-XU13XKH

CS-XU18XKH_CU-XU18XKH

Photo of CS-XU18XKH_CU-XU18XKH

CS-XU24XKH_CU-XU24XKH

Photo of CS-XU24XKH_CU-XU24XKH
  • nanoe X Generator Mark 2nanoe X Generator Mark 2
  • Built-in Wi-Fi ControlBuilt-in Wi-Fi Control
  • iAUTO-X with Humidity SensoriAUTO-X with Humidity Sensor
  • nanoe-Gnanoe-G
  • AEROWINGSAEROWINGS
  • InverterInverter
  • ECO Mode with A.I. ControlECO Mode with A.I. Control
  • R32 RefrigerantR32 Refrigerant

nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours

Manage your air conditioner using your mobile device with Comfort Cloud App

15 meters long air distance with AEROWINGS

iAUTO-X with Humidity Sensor lets you enjoy better indoor environment with optimal comfortable cooling

Balances energy savings and comfort using ECO Mode with A.I. Control

Energy savings with Inverter and environmentally friendly R32 refrigerant

CS-XU10XKH_CU-XU10XKH CS-XU13XKH_CU-XU13XKH CS-XU18XKH_CU-XU18XKH CS-XU24XKH_CU-XU24XKH
Cooling Capacity (min-max) (kW) 2.85 (0.92-3.40) kW 3.67 (1.02-4.20) kW 5.30 (1.10-6.21) kW 6.25 (1.12-7.18) kW
Cooling Capacity (min-max) (Btu/h) 9,720 (3,140-11,600) Btu/h 12,500 (3,480-14,300) Btu/h 18,100 (3,750-21,200) Btu/h 21,300 (3,820-24,500) Btu/h
EER (min-max) (Btu/hW) 13.32 (13.96-11.26) Btu/hW 12.50 (13.38-11.92) Btu/hW 13.71 (13.89-12.47) Btu/hW 12.68 (15.28-11.95) Btu/hW
EER (min-max) (W/W) 3.90 (4.09-3.30) W/W 3.67 (3.92-3.50) W/W 4.02 (4.07-3.65) W/W 3.72 (4.48-3.50) W/W
Voltage (V) 220-240 V 220-240 V 220-240 V 220-240 V
Current (A) 3.6-3.3 A 4.6-4.3 A 6.2-5.7 A 7.8-7.2 A
Power Input (min-max) (W) 730 (225-1,030) W 1,000 (260-1,200) W 1,320 (270-1,700) W 1,680 (250-2,050) W
Moisture Removal (L/h) 1.7 L/h 2.1 L/h 2.9 L/h 3.5 L/h
Moisture Removal (Pt/h) 3.6 Pt/h 4.4 Pt/h 6.1 Pt/h 7.4 Pt/h
Indoor Unit Air Circulation 11.1 m³/min (390 ft³/min) 12.0 m³/min (425 ft³/min) 18.7 m³/min (660 ft³/min) 19.2 m³/min (680 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo) 36/26/19 dB(A) 38/28/19 dB(A) 44/32/27 dB(A) 45/34/28 dB(A)
Indoor Unit Dimensions (H x W x D) (mm) 295 mm x 870 mm x 229 mm 295 mm x 870 mm x 229 mm 295 mm x 1,040 mm x 244 mm 295 mm x 1,040 mm x 244 mm
Indoor Unit Dimensions (H x W x D) (inch) 11-5/8 inch x 34-9/32 inch x 9-1/32 inch 11-5/8 inch x 34-9/32 inch x 9-1/32 inch 11-5/8 inch x 40-31/32 inch x 9-5/8 inch 11-5/8 inch x 40-31/32 inch x 9-5/8 inch
Indoor Unit Net Weight 10 kg (22 lb) 10 kg (22 lb) 12 kg (26 lb) 12 kg (26 lb)
Outdoor Unit Air Circulation 26.5-27.6 m³/min (940-970 ft³/min) 30.9 m³/min (1,090 ft³/min) 34.9 m³/min (1,230 ft³/min) 34.9 m³/min (1,230 ft³/min)
Outdoor Unit Noise Level (H) 46-47 dB(A) 47-48 dB(A) 50 dB(A) 51 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm) 511 mm x 650 mm x 230 mm 542 mm x 780 mm x 289 mm 619 mm x 824 mm x 299 mm 619 mm x 824 mm x 299 mm
Outdoor Unit Dimensions (H x W x D) (inch) 20-1/8 inch x 25-19/32 inch x 9-1/16 inch 21-11/32 inch x 30-23/32 inch x 11-13/32 inch 24-3/8 inch x 32-15/32 inch x 11-25/32 inch 24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Net Weight 18 kg (40 lb) 23 kg (51 lb) 30 kg (66 lb) 31 kg (68 lb)
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side) ø 9.52 mm (3/8 inch) ø 9.52 mm (3/8 inch) ø 12.70 mm (1/2 inch) ø 12.7 mm (1/2 inch)
Pipe Extension (Chargeless Pipe Length) 7.5 m 7.5 m 10 m 10 m
Pipe Extension (Maximum Pipe Length) 20 m 20 m 30 m 30 m
Pipe Extension (Maximum Elevation Length) 15 m 15 m 20 m 20 m
Pipe Extension (Additional Refrigerant Gas*) 10 g/m 10 g/m 15 g/m 15 g/m
Power Supply Indoor Indoor Indoor Indoor
iAUTO-X Yes Yes Yes Yes
iAUTO-X with Humidity Sensor Yes Yes Yes Yes
ECO Mode with A.I. Yes Yes Yes Yes
Inverter Control Yes Yes Yes Yes
Sleep Mode Yes Yes Yes Yes
Quiet Mode Yes Yes Yes Yes
Soft Dry Operation Mode Yes Yes Yes Yes
Personal Airflow Creation Yes Yes Yes Yes
nanoe™ X Yes (Generator Mark 2) Yes (Generator Mark 2) Yes (Generator Mark 2) Yes (Generator Mark 2)
nanoe-G Yes Yes Yes Yes
Odour Removing Function Yes Yes Yes Yes
Removable Washable Panel Yes Yes Yes Yes
24-Hour Dual ON & OFF Real Setting Timer Yes Yes Yes Yes
LCD Wireless Remote Control Yes Yes Yes Yes
Wireless LAN Remote Control (For Internet Connection) Yes (Built-in) Yes (Built-in) Yes (Built-in) Yes (Built-in)
Wired Remote Control Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional)
Random Auto Restart Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns)
Blue Fin Condenser Yes Yes Yes Yes
Long Piping (max.) 20 m 20 m 30 m 30 m
Top Panel Maintenance Access Yes Yes Yes Yes
Self-Diagnostic Function Yes Yes Yes Yes
Note *When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
