| Model Name |
PN9AKH |
PN12AKH |
PN18AKH |
PN24AKH |
| Cooling Capacity (min-max) (kW) |
2.65-2.70 kW |
3.49-3.54 kW |
5.15-5.15 kW |
6.83-6.87 kW |
| Cooling Capacity (min-max) (Btu/h) |
9,040-9,210 Btu/h |
11,900-12,100 Btu/h |
17,600-17,600 Btu/h |
23,300-23,400 Btu/h |
| EER (min-max) (Btu/hW) |
10.89-10.71 Btu/hW |
10.82-10.80 Btu/hW |
10.80-10.60 Btu/hW |
10.74-10.59 Btu/hW |
| EER (min-max) (W/W) |
3.19-3.14 W/W |
3.17-3.16 W/W |
3.16-3.10 W/W |
3.15-3.11 W/W |
| Voltage (V) |
220-240 V |
220-240 V |
220-240 V |
220-240 V |
| Current (A) |
3.8-3.7 A |
5.1-4.9 A |
7.6-7.3 A |
10.0-9.4 A |
| Power Input (min-max) (W) |
830-860 W |
1,100-1,120) W |
1,630-1,660 W |
2,170-2,210 W |
| Moisture Removal (L/h) |
1.6 L/h |
2.0 L/h |
2.9 L/h |
3.9 L/h |
| Moisture Removal (Pt/h) |
3.4 Pt/h |
4.2 Pt/h |
6.1 Pt/h |
8.2 Pt/h |
| Indoor Unit Air Circulation |
9.5 m³/min (340 ft³/min) |
10.3 m³/min (360 ft³/min) |
18.9 m³/min (670 ft³/min) |
22.2 m³/min (780 ft³/min) |
| Indoor Unit Noise Level (H / L) |
37/26 dB(A) |
40/29 dB(A) |
44/39 dB(A) |
47/42 dB(A) |
| Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm) |
290 mm x 765 mm x 214 mm |
290 mm x 765 mm x 214 mm |
295 mm x 1,060 mm x 249 mm |
295 mm x 1,060 mm x 249 mm |
| Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch) |
11-7/16 inch x 30-1/8 inch x 8-7/16 inch |
11-7/16 inch x 30-1/8 inch x 8-7/16 inch |
11-5/8 inch x 41-3/4 inch x 9-13/16 inch |
11-5/8 inch x 41-3/4 inch x 9-13/16 inch |
| Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm) |
266 mm x 847 mm x 373 mm |
266 mm x 847 mm x 373 mm |
314 mm x 1,168 mm x 383 mm |
314 mm x 1,168 mm x 383 mm |
| Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch) |
10-1/2 inch x 33-3/8 inch x 14-11/16 inch |
10-1/2 inch x 33-3/8 inch x 14-11/16 inch |
12-3/8 inch x 46 inch x 15-3/32 inch |
12-3/8 inch x 46 inch x 15-3/32 inch |
| Indoor Unit Net Weight |
8 kg (18 lb) |
8 kg (18 lb) |
12 kg (26 lb) |
12 kg (26 lb) |
| Outdoor Unit Air Circulation |
27.3 m³/min (960 ft³/min) |
29.4 m³/min (1,040 ft³/min) |
39.3 m³/min (1,390 ft³/min) |
40.3 m³/min (1,420 ft³/min) |
| Outdoor Unit Noise Level (H) |
48-49 dB(A) |
50-51 dB(A) |
53-54 dB(A) |
54-55 dB(A) |
| Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm) |
490 mm x 650 mm x 230 mm |
490 mm x 650 mm x 230 mm |
619 mm x 824 mm x 299 mm |
619 mm x 824 mm x 299 mm |
| Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch) |
19-9/32 inch x 25-19/32 inch x 9-1/16 inch |
19-9/32 inch x 25-19/32 inch x 9-1/16 inch |
24-3/8 inch x 32-15/32 inch x 11-25/32 inch |
24-3/8 inch x 32-15/32 inch x 11-25/32 inch |
| Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm) |
553 mm x 783 mm x 340 mm |
553 mm x 783 mm x 340 mm |
670 mm x 965 mm x 420 mm |
670 mm x 965 mm x 420 mm |
| Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch) |
21-25/32 inch x 30-27/32 inch x 13-3/4 inch |
21-25/32 inch x 30-27/32 inch x 13-3/4 inch |
26-3/4 inch x 37 inch x 16-17/32 inch |
26-3/4 inch x 37 inch x 16-17/32 inch |
| Outdoor Unit Net Weight |
21 kg (46 lb) |
25 kg (55 lb) |
33 kg (73 lb) |
40 kg (88 lb) |
| Refrigerant Pipe Diameter (Liquid Side) |
ø 6.35 mm (1/4 inch) |
ø 6.35 mm (1/4 inch) |
ø 6.35 mm (1/4 inch) |
ø 6.35 mm (1/4 inch) |
| Refrigerant Pipe Diameter (Gas Side) |
ø 9.52 mm (3/8 inch) |
ø 12.70 mm (1/2 inch) |
ø 12.70 mm (1/2 inch) |
ø 15.88 mm (5/8 inch) |
| Pipe Extension (Chargeless Pipe Length) |
7.5 m |
7.5 m |
7.5 m |
7.5 m |
| Pipe Extension (Maximum Pipe Length) |
20 m |
20 m |
30 m |
30 m |
| Pipe Extension (Maximum Elevation Length) |
15 m |
15 m |
20 m |
20 m |
| Pipe Extension (Additional Refrigerant Gas*) |
10 g/m |
10 g/m |
15 g/m |
25 g/m |
| Power Supply |
Indoor |
Indoor |
Indoor |
Indoor |
| Wi-Fi |
No |
No |
No |
No |
| 24-Hour ON & OFF Real Setting Timer |
Yes |
Yes |
Yes |
Yes |

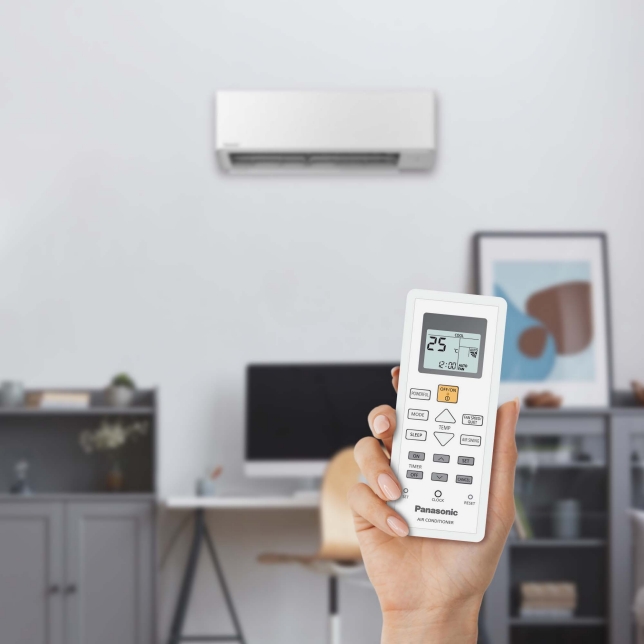

| LCD Wireless Remote Control |
Yes |
Yes |
Yes |
Yes |
| Wired Remote Control |
No |
No |
No |
No |
| Powerful Mode |
Yes |
Yes |
Yes |
Yes |
| Sleep Mode |
Yes |
Yes |
Yes |
Yes |
| Quiet Mode |
Yes |
Yes |
Yes |
Yes |
| Soft Dry Operation Mode |
Yes |
Yes |
Yes |
Yes |

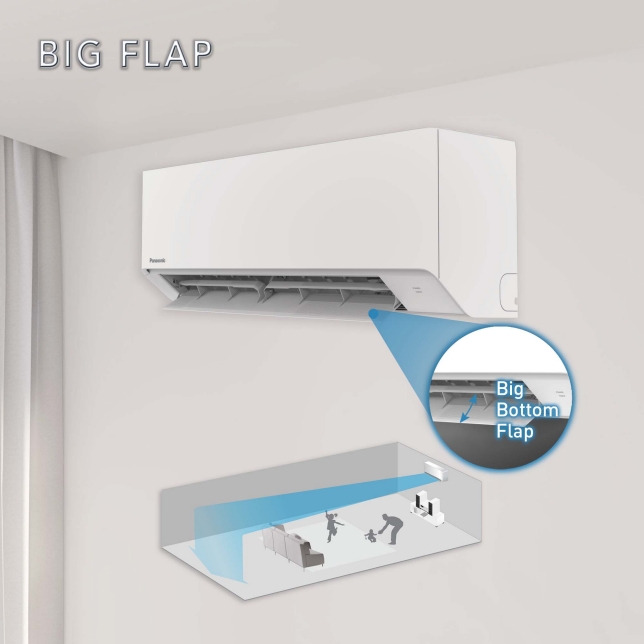

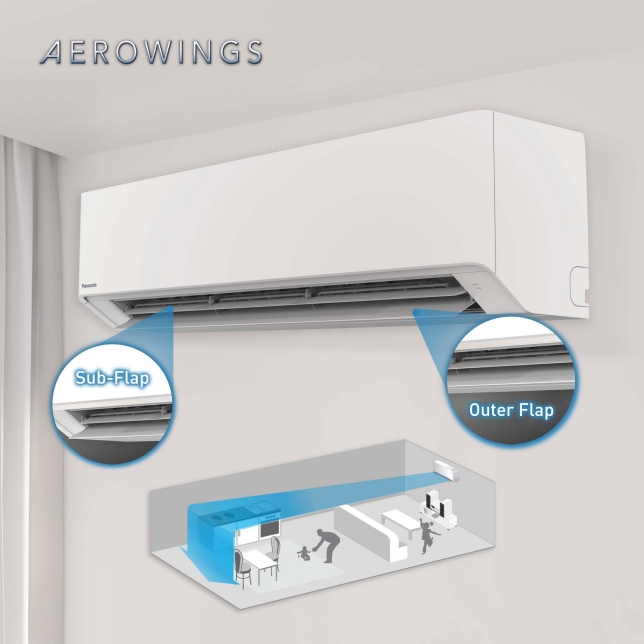

| Airflow Direction Control (Up & Down) |
Yes |
Yes |
Yes |
Yes |
| Manual Horizontal Airflow Direction Control |
Yes |
Yes |
Yes |
Yes |

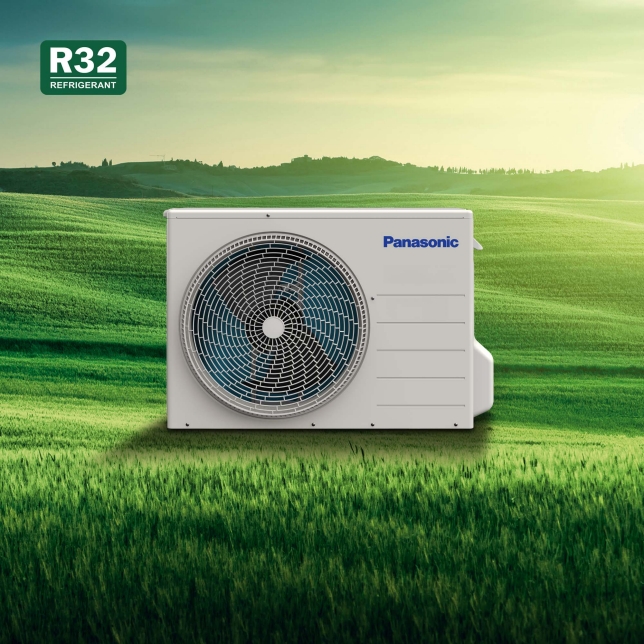

| Refrigerant Type |
R32 |
R32 |
R32 |
R32 |
| Odour Removing Function |
Yes |
Yes |
Yes |
Yes |
| Random Auto Restart |
Yes (32 Restart Patterns) |
Yes (32 Restart Patterns) |
Yes (32 Restart Patterns) |
Yes (32 Restart Patterns) |
| Blue Fin Condenser |
Yes |
Yes |
Yes |
Yes |
| Long Piping (maximum pipe length) |
20 m |
20 m |
30 m |
30 m |
| Top Panel Maintenance Access |
Yes |
Yes |
Yes |
Yes |
| Self-Diagnostic Function |
No |
No |
No |
No |
| Note |
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
|
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
