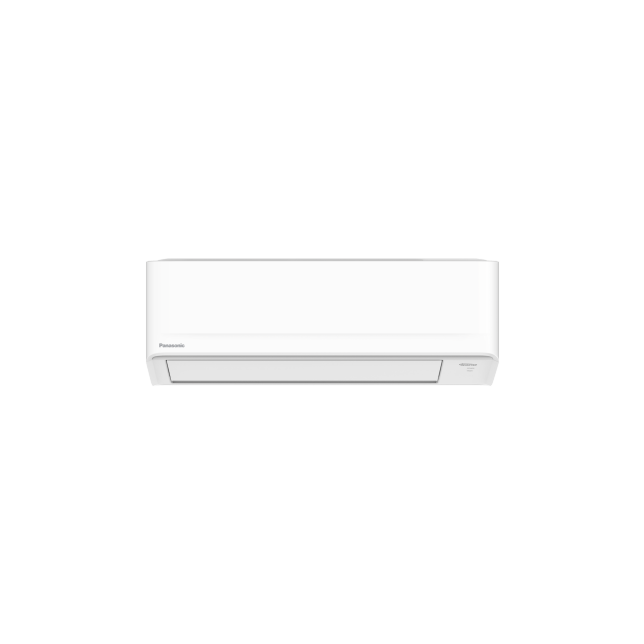

Standard Inverter QU Series (AKH)

Instantly Cool Spaces On Demand

Panasonic Standard Inverter QU Series (AKH) features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device. Achieve energy efficiency without compromising comfort with ECO Mode with A.I. Control, Inverter technology and R32 refrigerant.

*BIG FLAP is applicable to CS-QU9AKH, CS-QU12AKH and CS-QU18AKH. AEROWINGS is applicable to CS-QU24AKH.

Please Select Your User Type

Standard Inverter QU Series (AKH)

Features

Connect & Control Your Air Conditioners Anywhere, Anytime

Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

Better Living, Together with Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of energy-saving Inverter technology and environmentally friendly R32 refrigerant. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. A smarter, greener choice with energy-saving technologies for a sustainable living.

LEARN MORE

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.

*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.

LEARN MORE

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode cools your room faster by 18%*, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling even during start-up.

*Comparison of POWERFUL cool mode & normal cool mode by using 1.5HP Inverter Model.

LEARN MORE

Comfort Cooling Environment for Your Needs

Long Airflow with Big Flap

Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.

*Applicable to CS-QU9AKH, CS-QU12AKH and CS-QU18AKH only.

Stay Cool with Faster, Further Airflow

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.

*Applicable to CS-QU24AKH only.

Calm and Peaceful Environment with Quiet Mode

Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Sleep Better at Night

A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Range

Model
Horsepower	1.0 HP	1.5 HP	2.0 HP	2.5 HP
Cooling Capacity	2.65 kW	3.52 kW	5.20 kW	6.25 kW
Cooling Capacity	9,040 Btu/h	12,000 Btu/h	17,700 Btu/h	21,300 Btu/h
Indoor Unit	CS-QU9AKH	CS-QU12AKH	CS-QU18AKH	CS-QU24AKH
Outdoor Unit	CU-RU9AKH	CU-RU12AKH	CU-RU18AKH	CU-RU24AKH

Specifications

CS-QU9AKH_CU-RU9AKH

CS-QU12AKH_CU-RU12AKH

CS-QU18AKH_CU-RU18AKH

CS-QU24AKH_CU-RU24AKH

Panasonic Comfort Cloud App
POWERFUL Mode
Inverter
ECO Mode with A.I. Control
BIG FLAP
AEROWINGS
R32 Refrigerant
Quiet Mode
Sleep Mode

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Intelligently balances energy savings and comfort using ECO Mode with A.I. Control

BIG FLAP/AEROWINGS directs airflow further across the room (Applicable to selected models)

Energy savings with Inverter and environmentally friendly R32 refrigerant

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

	CS-QU9AKH_CU-RU9AKH	CS-QU12AKH_CU-RU12AKH	CS-QU18AKH_CU-RU18AKH	CS-QU24AKH_CU-RU24AKH
Cooling Capacity (min-max) (kW)	2.65 (0.90-3.40) kW	3.52 (1.02-4.10) kW	5.20 (1.10-5.60) kW	6.25 (1.12-7.18) kW
Cooling Capacity (min-max) (Btu/h)	9,040 (3,070-11,600) Btu/h	12,000 (3,480-14,000) Btu/h	17,700 (3,750-19,100) Btu/h	21,300 (3,820-24,500) Btu/h
EER (min-max) (Btu/hW)	12.05 (13.64-11.26) Btu/hW	11.65 (12.65-11.11) Btu/hW	10.35 (12.93-10.32) Btu/hW	11.83 (15.28-11.78) Btu/hW
EER (min-max) (W/W)	3.53 (4.00-3.30) W/W	3.42 (3.71-3.25) W/W	3.04 (3.79-3.03) W/W	3.47 (4.48-3.45) W/W
Voltage (V)	220-240 V	220-240 V	220-240 V	220-240 V
Current (A)	3.7-3.4 A	4.8-4.4 A	7.9-7.3 A	8.3-7.6 A
Power Input (min-max) (W)	750 (225-1,030) W	1,030 (275-1,260) W	1,710 (290-1,850) W	1,800 (250-2,080) W
Moisture Removal (L/h)	1.6 L/h	2.0 L/h	2.9 L/h	3.5 L/h
Moisture Removal (Pt/h)	3.4 Pt/h	4.2 Pt/h	6.1 Pt/h	7.4 Pt/h
Indoor Unit Air Circulation	10.3 m³/min (365 ft³/min)	11.0 m³/min (390 ft³/min)	12.6 m³/min (445 ft³/min)	19.9 m³/min (700 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	36/26/21 dB(A)	38/28/21 dB(A)	44/34/28 dB(A)	45/34/29 dB(A)
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)	290 mm x 765 mm x 214 mm	290 mm x 765 mm x 214 mm	290 mm x 765 mm x 214 mm	295 mm x 1,060 mm x 249 mm
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)	11-7/16 inch x 30-1/8 inch x 8-7/16 inch	11-7/16 inch x 30-1/8 inch x 8-7/16 inch	11-7/16 inch x 30-1/8 inch x 8-7/16 inch	11-5/8 inch x 41-3/4 inch x 9-13/16 inch
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)	260 mm x 847 mm x 364 mm	260 mm x 847 mm x 364 mm	260 mm x 847 mm x 364 mm	314 mm x 1,168 mm x 383 mm
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)	10-1/4 inch x 33-3/8 inch x 14-11/32 inch	10-1/4 inch x 33-3/8 inch x 14-11/32 inch	10-1/4 inch x 33-3/8 inch x 14-11/32 inch	12-3/8 inch x 46 inch x 15-3/32 inch
Indoor Unit Net Weight	8 kg (18 lb)	8 kg (18 lb)	9 kg (20 lb)	12 kg (26 lb)
Outdoor Unit Air Circulation	26.7 m³/min (940 ft³/min)	30.6 m³/min (1,080 ft³/min)	39.3 m³/min (1,390 ft³/min)	34.9 m³/min (1,230 ft³/min)
Outdoor Unit Noise Level (H)	47 dB(A)	48 dB(A)	51 dB(A)	51 dB(A)
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)	511 mm x 650 mm x 230 mm	542 mm x 780 mm x 289 mm	619 mm x 824 mm x 299 mm	619 mm x 824 mm x 299 mm
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)	20-1/8 inch x 25-19/32 inch x 9-1/16 inch	21-11/32 inch x 30-23/32 inch x 11-13/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)	582 mm x 793 mm x 356 mm	607 mm x 900 mm x 405 mm	684 mm x 967 mm x 425 mm	684 mm x 967 mm x 425 mm
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)	22-15/16 inch x 31-1/4 inch x 14-1/32 inch	23-29/32 inch x 35-7/16 inch x 15-31/32 inch	26-15/16 inch x 38-3/32 inch x 16-3/4 inch	26-15/16 inch x 38-3/32 inch x 16-3/4 inch
Outdoor Unit Net Weight	18 kg (40 lb)	22 kg (49 lb)	29 kg (64 lb)	32 kg (71 lb)
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)	ø 9.52 mm (3/8 inch)	ø 12.70 mm (1/2 inch)	ø 12.70 mm (1/2 inch)
Pipe Extension (Chargeless Pipe Length)	7.5 m	7.5 m	10 m	10 m
Pipe Extension (Maximum Pipe Length)	20 m	20 m	30 m	30 m
Pipe Extension (Maximum Elevation Length)	15 m	15 m	20 m	20 m
*Pipe Extension (Additional Refrigerant Gas)**	10 g/m	10 g/m	15 g/m	15 g/m
Power Supply	Indoor	Indoor	Indoor	Indoor
Odour Removing Function	Yes	Yes	Yes	Yes
Wi-Fi	Optional network adaptor is required	Optional network adaptor is required	Optional network adaptor is required	Optional network adaptor is required
24-Hour Dual ON & OFF Real Setting Timer	Yes	Yes	Yes	Yes
LCD Wireless Remote Control	Yes	Yes	Yes	Yes
Wired Remote Control	Optional	Optional	Optional	Optional
Powerful Mode	Yes	Yes	Yes	Yes
Sleep Mode	Yes	Yes	Yes	Yes
Quiet Mode	Yes	Yes	Yes	Yes
Soft Dry Operation Mode	Yes	Yes	Yes	Yes
Airflow Direction Control (Up & Down)	Yes	Yes	Yes	Yes
Manual Horizontal Airflow Direction Control	Yes	Yes	Yes	Yes
Inverter Control	Yes	Yes	Yes	Yes
Refrigerant Type	R32	R32	R32	R32
ECO Mode with A.I.	Yes	Yes	Yes	Yes
Random Auto Restart	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes	Yes	Yes	Yes
Long Piping (max.)	20 m	20 m	30 m	30 m
Top Panel Maintenance Access	Yes	Yes	Yes	Yes
Self-Diagnostic Function	Yes	Yes	Yes	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
