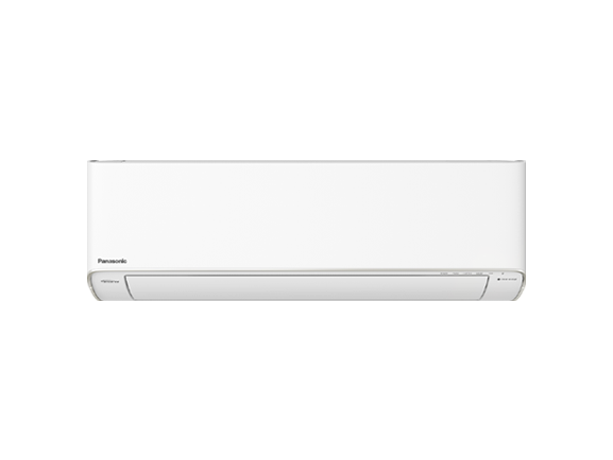

Premium Inverter U Series (AKH)

Purify Around-the-Clock with nanoe™ X

Panasonic Premium Inverter U Series (AKH) comes with nanoe™ X technology for continuous 24-hour protection. The improved Inside Cleaning cleans and dries the inside of the indoor unit. Enjoy comfortable cooling with AEROWINGS, and advanced humidity control with Dry Mode and iAUTO-X with Humidity Sensor. Achieve energy efficiency without compromising comfort with ECO Mode with A.I. Control, Inverter technology and R32 refrigerant.

Please Select Your User Type

Premium Inverter U Series (AKH)

Features

24-hour nanoe™ X Air Protection

nanoe™ X technology with the benefits of hydroxyl radicals effectively inhibits adhered and airborne pollutants while reducing frequently encountered odours for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify spaces, providing a cleaner and comfortable space 24/7 for patrons, employees and you.

LEARN MORE

*Energy consumption may vary depending on models.

Clean and Fresh Environment Every Day

2x Faster Odours Reduction and Pollens Inhibition with nanoe X Generator Mark 2

Equipped with the nanoe X Generator Mark 2 to offer greater effectiveness in deodorising odours and inhibiting pollens at 2x faster pace compared to the previous nanoe X Generator Mark 1.

Notes:
(1) Deodorization Test: •Testing organisation: Panasonic Product Analysis Center •Test subject: Adhered nonenal (body odour) • Testing volume: Approximately 23m³ laboratory • nanoe X Generator Mark 1 test result: Odour intensity reduced by 1.1 levels in 60 minutes (Test report No.: Y18HM047-1) • nanoe X Generator Mark 2 test result: Odour intensity reduced by 1.1 levels in 30 minutes (Test report No.: Y18HM059)
(2) Pollen Inhibition Test: • Testing organisation: Panasonic Product Analysis Center • Test subject: Adhered cedar pollen • Testing volume: Approximately 23m³ laboratory • nanoe X Generator Mark 1 test result: Inhibited 99% in 24 hours (Test report No.: 4AA33-151001-F01) • nanoe X Generator Mark 2 test result: Inhibited 99% in 12 hours (Test report No.: L19YA009)

2x Faster Odours Reduction and Pollens Inhibition with nanoe X Generator Mark 2

Inside Cleaning On Demand

The newly improved inside cleaning function can be activated on a need basis. It works inside of an indoor unit to remove moisture, and release nanoe™ X particles, inhibiting various pollutants while ensuring that the inside of the indoor unit is always dry and clean. Up to 99%* of bacteria and viruses inhibited on evaporator, filter and air outlet.

*Testing Organization: Protectea,Ltd • Test subject: Bacteria (Escherichia coli NBRC3301) and Virus (Escherichia coli NBRC320012) • Tested time 2.5 hours
• Test Result: 99% inhibited (compared to non operation) • Test Report No: PR190803 (Filter & Evaporator); PR191102 (Air Outlet)

LEARN MORE

Effective in Removing 99% of Dust Particles

Effective in removing 99% of dust particles*, nanoe-G releases negative ions to capture dust particles as small as PM2.5, carrying them back to the filter to provide a cleaner indoor environment.

*Testing organisation: FCG Research Institute, Inc. Testing method: nanoe-G-equipped air conditioner was operated and tested in a 23m³ sized test room. Test result: Removed 99% of particles in 202 minutes (compared to the initial concentration). (25034) Not a result of experiments in an actual use environment. Results may vary based on usage, and seasonal and environmental variables (temperature and humidity).

LEARN MORE

Effective in Removing 99% of Dust Particles

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect and control up to 200* air conditioning units with Panasonic Comfort Cloud App from anywhere, anytime (requires optional network adaptor CZ-TACG1 per unit). Remotely access all air conditioning features such as tracking and monitoring usage of air conditioning units using comprehensive energy statistics, and identifying issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

*Connects up to 200 air conditioning units (up to 10 groups, with 20 units per group). Requires optional network adaptor CZ-TACG1 per unit.

Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.

LEARN MORE

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.

*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.

LEARN MORE

Intelligently Balances Energy Savings and Comfort

Humidity Control for Better Comfort

Humidity Sensor Optimises an Ideal Indoor Environment

iAUTO-X together with built-in Humidity Sensor constantly monitors and adjusts relative humidity levels to below 60% for an optimal indoor environment, so you can enjoy comfortable cooling all day long.

LEARN MORE

Humidity Sensor Optimises an Ideal Indoor Environment

Remove Excess Moisture with Dry Mode and Humidity Sensor

Dry Mode together with built-in Humidity Sensor accurately detects and adjusts the humidity level in the room to below 55%, removing excess moisture to maintain the comfort level of its occupants.

LEARN MORE

Remove Excess Moisture with Dry Mode and Humidity Sensor

Healthy Airflow for Your Cooling Comfort

Up to 15 Meters Long Air Distance with AEROWINGS

AEROWINGS provides long air distance as far as 15 meters* by incorporating two independently controlled flaps, so you can enjoy the cooling sensation even if you are across the room.

*Tested 15 meters long airflow based on PREMIUM INVERTER.

LEARN MORE

Up to 15 Meters Long Air Distance with AEROWINGS

Faster Cooling with iAUTO-X

iAUTO-X provides 25%* faster cooling through the use of Panasonic Thermal Enhancement Technology (P-TECh) which enables the compressor to achieve maximum frequency quickly from start-up, allowing you to relish the cooling comfort instantly, even on a scorching hot day. This feature can also be reactivated whenever the room is getting warmer due to the increase of occupants in it, keeping everyone comfortable at all times.

*Comparison of iAUTO-X mode & normal COOL mode by using 1.5HP PREMIUM INVERTER Model.

LEARN MORE

Wireless Remote Controller

The handheld wireless remote controller is designed for ease of operation and convenience with five quick access keys.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Range

Model
Horsepower	1.0 HP	1.5 HP	2.0 HP	2.5 HP	3.0 HP
Cooling Capacity	2.85 kW	3.67 kW	5.30 kW	6.60 kW	7.10 kW
Cooling Capacity	9,720 Btu/h	12,500 Btu/h	18,100 Btu/h	22,500 Btu/h	24,200 Btu/h
Indoor Unit	CS-U10AKH	CS-U13AKH	CS-U18AKH	CS-U24AKH	CS-U28AKH
Outdoor Unit	CU-U10AKH	CU-U13AKH	CU-U18AKH	CU-U24AKH	CU-U28AKH

Specifications

CS-U10AKH_CU-U10AKH

nanoe X Generator Mark 2
Inside Cleaning On Demand
Dry Mode with Humidity Sensor
Panasonic Comfort Cloud App
iAUTO-X with Humidity Sensor
nanoe-G
AEROWINGS
Inverter
ECO Mode with A.I. Control
R32 Refrigerant

nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours

Inside Cleaning On Demand ensures the inside of the indoor unit is pollutant-free

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

Advanced humidity control operated by Dry Mode and iAUTO-X with built-in Humidity Sensor

15 meters long air distance with AEROWINGS

Energy efficiency with ECO Mode with A.I. Control, Inverter and environmentally friendly R32 refrigerant

	CS-U10AKH_CU-U10AKH	CS-U13AKH_CU-U13AKH	CS-U18AKH_CU-U18AKH	CS-U24AKH_CU-U24AKH	CS-U28AKH_CU-U28AKH
Cooling Capacity (min-max) (kW)	2.85 (0.92-3.40) kW	3.67 (1.02-4.20) kW	5.30 (1.10-6.21) kW	6.60 (1.12-7.18) kW	7.10 (1.25-8.50) kW
Cooling Capacity (min-max) (Btu/h)	9,720 (3,140-11,600) Btu/h	12,500 (3,480-14,300) Btu/h	18,100 (3,750-21,200) Btu/h	22,500 (3,820-24,500) Btu/h	24,200 (4,260-29,000) Btu/h
EER (min-max) (Btu/hW)	13.32 (13.96-11.26) Btu/hW	12.50 (13.38-11.92) Btu/hW	13.71 (13.89-12.47) Btu/hW	12.23 (15.28-11.95) Btu/hW	12.10 (12.17-10.74) Btu/hW
EER (min-max) (W/W)	3.90 (4.09-3.30) W/W	3.67 (3.92-3.50) W/W	4.02 (4.07-3.65) W/W	3.59 (4.48-3.50) W/W	3.55 (3.57-3.15) W/W
Voltage (V)	220-240 V	220-240 V	220-240 V	220-240 V	220-240 V
Current (A)	3.6-3.3 A	4.6-4.3 A	6.2-5.7 A	8.5-7.9 A	9.3-8.5 A
Power Input (min-max) (W)	730 (225-1,030) W	1,000 (260-1,200) W	1,320 (270-1,700) W	1,840 (250-2,050) W	2,000 (350-2,700) W
Moisture Removal (L/h)	1.7 L/h	2.1 L/h	2.9 L/h	3.7 L/h	4.1 L/h
Moisture Removal (Pt/h)	3.6 Pt/h	4.4 Pt/h	6.1 Pt/h	7.8 Pt/h	8.7 Pt/h
Indoor Unit Air Circulation	11.1 m³/min (390 ft³/min)	12.0 m³/min (425 ft³/min)	18.7 m³/min (660 ft³/min)	19.2 m³/min (680 ft³/min)	20.8 m³/min (735 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	36/26/19 dB(A)	38/28/19 dB(A)	44/32/27 dB(A)	45/34/28 dB(A)	47/37/34 dB(A)
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)	295 mm x 870 mm x 229 mm	295 mm x 870 mm x 229 mm	295 mm x 1,040 mm x 244 mm	295 mm x 1,040 mm x 244 mm	295 mm x 1,040 mm x 244 mm
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)	11-5/8 inch x 34-9/32 inch x 9-1/32 inch	11-5/8 inch x 34-9/32 inch x 9-1/32 inch	11-5/8 inch x 40-31/32 inch x 9-5/8 inch	11-5/8 inch x 40-31/32 inch x 9-5/8 inch	11-5/8 inch x 40-31/32 inch x 9-5/8 inch
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)	283 mm x 952 mm x 374 mm	283 mm x 952 mm x 374 mm	314 mm x 1,148 mm x 383 mm	314 mm x 1,148 mm x 383 mm	314 mm x 1,148 mm x 383 mm
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)	11-5/32 inch x 37-1/2 inch x 14-3/4 inch	11-5/32 inch x 37-1/2 inch x 14-3/4 inch	12-3/8 inch x 45-7/32 inch x 15-3/32 inch	12-3/8 inch x 45-7/32 inch x 15-3/32 inch	12-3/8 inch x 45-7/32 inch x 15-3/32 inch
Indoor Unit Net Weight	10 kg (22 lb)	10 kg (22 lb)	12 kg (26 lb)	12 kg (26 lb)	14 kg (31 lb)
Outdoor Unit Air Circulation	27.6 m³/min (970 ft³/min)	30.9 m³/min (1,090 ft³/min)	34.9 m³/min (1,230 ft³/min)	34.9 m³/min (1,230 ft³/min)	45.9 m³/min (1,620 ft³/min)
Outdoor Unit Noise Level (H)	47 dB(A)	48 dB(A)	50 dB(A)	51 dB(A)	53 dB(A)
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)	511 mm x 650 mm x 230 mm	542 mm x 780 mm x 289 mm	619 mm x 824 mm x 299 mm	619 mm x 824 mm x 299 mm	695 mm x 875 mm x 320 mm
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)	20-1/8 inch x 25-19/32 inch x 9-1/16 inch	21-11/32 inch x 30-23/32 inch x 11-13/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch	27-3/8 inch x 34-15/32 inch x 12-5/8 inch
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)	582 mm x 793 mm x 356 mm	607 mm x 900 mm x 405 mm	684 mm x 967 mm x 425 mm	684 mm x 967 mm x 425 mm	761 mm x 1,049 mm x 460 mm
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)	22-15/16 inch x 31-1/4 inch x 14-1/32 inch	23-29/32 inch x 35-7/16 inch x 15-31/32 inch	26-15/16 inch x 38-3/32 inch x 16-3/4 inch	26-15/16 inch x 38-3/32 inch x 16-3/4 inch	29-31/32 inch x 41-5/16 inch x 18-1/8 inch
Outdoor Unit Net Weight	18 kg (40 lb)	21 kg (46 lb)	30 kg (66 lb)	31 kg (68 lb)	43 kg (95 lb)
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)	ø 9.52 mm (3/8 inch)	ø 12.70 mm (1/2 inch)	ø 12.70 mm (1/2 inch)	ø 15.88 mm (5/8 inch)
Pipe Extension (Chargeless Pipe Length)	7.5 m	7.5 m	10 m	10 m	10 m
Pipe Extension (Maximum Pipe Length)	20 m	20 m	30 m	30 m	30 m
Pipe Extension (Maximum Elevation Length)	15 m	15 m	20 m	20 m	20 m
*Pipe Extension (Additional Refrigerant Gas)**	10 g/m	10 g/m	15 g/m	15 g/m	25 g/m
Power Supply	Indoor	Indoor	Indoor	Indoor	Indoor
nanoe™ X	Yes (Generator Mark 2)	Yes (Generator Mark 2)	Yes (Generator Mark 2)	Yes (Generator Mark 2)	Yes (Generator Mark 2)
nanoe-G	Yes	Yes	Yes	Yes	Yes
Inside Cleaning On Demand	Yes	Yes	Yes	Yes	Yes
Odour Removing Function	Yes	Yes	Yes	Yes	Yes
Wi-Fi	Optional (Network Adaptor CZ-TACG1 required)	Optional (Network Adaptor CZ-TACG1 required)	Optional (Network Adaptor CZ-TACG1 required)	Optional (Network Adaptor CZ-TACG1 required)	Optional (Network Adaptor CZ-TACG1 required)
24-Hour Dual ON & OFF Real Setting Timer	Yes	Yes	Yes	Yes	Yes
LCD Wireless Remote Control	Yes	Yes	Yes	Yes	Yes
Wired Remote Control	Optional	Optional	Optional	Optional	Optional
iAUTO-X	Yes	Yes	Yes	Yes	Yes
Humidity Sensor	Yes	Yes	Yes	Yes	Yes
Sleep Mode	Yes	Yes	Yes	Yes	Yes
Quiet Mode	Yes	Yes	Yes	Yes	Yes
Soft Dry Operation Mode	Yes	Yes	Yes	Yes	Yes
Personal Airflow Creation	Yes	Yes	Yes	Yes	Yes
Inverter Control	Yes	Yes	Yes	Yes	Yes
Refrigerant Type	R32	R32	R32	R32	R32
ECO Mode with A.I.	Yes	Yes	Yes	Yes	Yes
Random Auto Restart	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes	Yes	Yes	Yes	Yes
Long Piping (maximum pipe length)	20 m	20 m	30 m	30 m	30 m
Top Panel Maintenance Access	Yes	Yes	Yes	Yes	Yes
Self-Diagnostic Function	Yes	Yes	Yes	Yes	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
