Deluxe Inverter RU Series (YKH)

SHOP NOW

Deluxe Inverter RU Series (YKH)

Purify Around-the-Clock with nanoe™ X

Panasonic Deluxe Inverter RU Series (YKH) comes with nanoe™ X air purification system which provides 24-hour nanoe™ X protection. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device. POWERFUL Mode offers instant cooling during start-up with just a push of a button. Achieve energy efficiency without compromising comfort with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.
  • nanoe X Generator Mark 1
  • Panasonic Comfort Cloud App
  • Inverter
  • POWERFUL Mode
Zoom In
Zoom Out
Close

Features

24-hour nanoe™ X Air Protection

24-hour nanoe™ X Air Protection

nanoe™ X technology with the benefits of hydroxyl radicals effectively inhibits adhered and airborne pollutants while reducing frequently encountered odours for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify spaces, providing a cleaner and comfortable space 24/7 for patrons, employees and you.

LEARN MORE

*Energy consumption may vary depending on models.

nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

A global contract research organization Texcell has verified the inhibitory effect of the nanoe™ X technology, with known benefits of hydroxyl radicals on the adhered novel coronavirus (SARS-CoV-2). 99.7% of adhered novel coronavirus (SARS-CoV-2) activity was inhibited within 24 hours in a 6.7m³ test space.
Notes: (1) The virus infectious titer was measured and used to calculate the inhibition rate. (2) This verification was designed to generate basic research data on the effects of nanoe™ X on the adhered novel coronavirus in laboratory conditions. Actual effects will vary depending on the environment and usage of the product.
nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect and control up to 200* air conditioning units with Panasonic Comfort Cloud App from anywhere, anytime (requires optional network adaptor CZ-TACG1 per unit). Remotely access all air conditioning features such as tracking and monitoring usage of air conditioning units using comprehensive energy statistics, and identifying issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

*Connects up to 200 air conditioning units (up to 10 groups, with 20 units per group). Requires optional network adaptor CZ-TACG1 per unit.

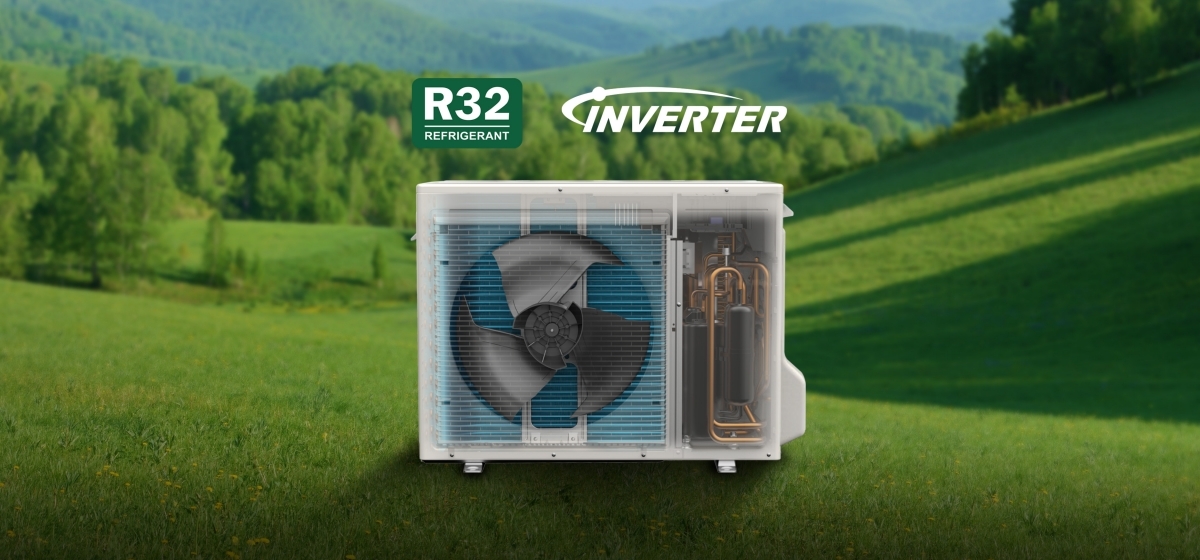

Better Living, Together with Energy-saving and Eco-friendly Technologies

Better Living, Together with Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.

LEARN MORE

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.
*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.
Intelligently Balances Energy Savings and Comfort

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode cools your room faster by 18%*, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling during start-up.
*Comparison of POWERFUL cool mode & normal cool mode by using 1.5HP Inverter Model.
Instant Powerful Cooling with a Push of a Button

Comfort Cooling Environment for Your Needs

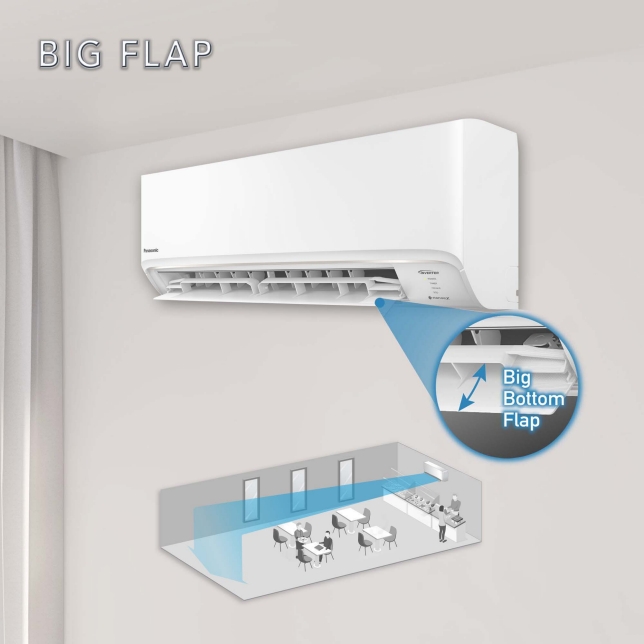

Long Airflow with Big Flap

Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-RU9YKH, CS-RU12YKH and CS-RU18YKH only.
Long Airflow with Big Flap

Stay Cool with Faster, Further Airflow

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-RU24YKH only.
Stay Cool with Faster, Further Airflow

Calm and Peaceful Environment with Quiet Mode

Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.
Calm and Peaceful Environment with Quiet Mode

Convenient Control at Your Fingertips

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Wireless Remote Controller

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.
Optional Wired Remote Controller

Model

Horsepower

1.0

1.5

2.0

2.5

Cooling Capacity

kW

2.70

3.60

5.30

6.25

Btu/h

9,210

12,300

18,100

21,300

Indoor Unit

CS-RU9YKH

CS-RU12YKH

CS-RU18YKH

CS-RU24YKH

Outdoor Unit

CU-RU9YKH

CU-RU12YKH

CU-RU18YKH

CU-RU24YKH

Specifications

CS-RU9YKH_CU-RU9YKH

Photo of CS-RU9YKH_CU-RU9YKH

CS-RU12YKH_CU-RU12YKH

Photo of CS-RU12YKH_CU-RU12YKH

CS-RU18YKH_CU-RU18YKH

Photo of CS-RU18YKH_CU-RU18YKH

CS-RU24YKH_CU-RU24YKH

Photo of CS-RU24YKH_CU-RU24YKH
  • nanoe X Generator Mark 1nanoe X Generator Mark 1
  • Panasonic Comfort Cloud AppPanasonic Comfort Cloud App
  • POWERFUL ModePOWERFUL Mode
  • BIG FLAPBIG FLAP
  • AEROWINGSAEROWINGS
  • InverterInverter
  • ECO Mode with A.I. ControlECO Mode with A.I. Control
  • R32 RefrigerantR32 Refrigerant
  • Quiet ModeQuiet Mode

nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

Big bottom flap helps direct cool air across the room (Applicable to selected models)

AEROWINGS concentrates cool air for further and faster airflow across the room (Applicable to selected models)

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Energy savings with Inverter, ECO Mode with A.I. Control, and environmentally friendly R32 refrigerant

CS-RU9YKH_CU-RU9YKH CS-RU12YKH_CU-RU12YKH CS-RU18YKH_CU-RU18YKH CS-RU24YKH_CU-RU24YKH
Cooling Capacity (min-max) (kW) 2.70 (0.84-2.90) kW 3.60 (1.02-4.00) kW 5.30 (1.10-5.40) kW 6.25 (1.12-7.18) kW
Cooling Capacity (min-max) (Btu/h) 9,720 (2,860-9,890) Btu/h 12,300 (3,480-13,600) Btu/h 18,100 (3,750-18,400) Btu/h 21,300 (3,820-24,500) Btu/h
EER (min-max) (Btu/hW) 11.81 (12.71-10.99) Btu/hW 11.94 (12.65-11.06) Btu/hW 10.97 (12.93-10.22) Btu/hW 12.68 (15.28-11.95) Btu/hW
EER (min-max) (W/W) 3.46 (3.73-3.22) W/W 3.50 (3.71-3.25) W/W 3.21 (3.79-3.00) W/W 3.72 (4.48-3.50) W/W
Voltage (V) 220-240 V 220-240 V 220-240 V 220-240 V
Current (A) 3.9-3.6 A 5.0-4.6 A 7.7-7.1 A 7.8-7.2 A
Power Input (min-max) (W) 780 (225-900) W 1,030 (275-1,230) W 1,650 (290-1,800) W 1,680 (250-2,050) W
Moisture Removal (L/h) 1.6 L/h 2.1 L/h 2.9 L/h 3.5 L/h
Moisture Removal (Pt/h) 3.4 Pt/h 4.4 Pt/h 6.1 Pt/h 7.4 Pt/h
Indoor Unit Air Circulation 10.3 m³/min (365 ft³/min) 10.8 m³/min (380 ft³/min) 12.6m³/min (445 ft³/min) 19.2 m³/min (680 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo) 36/26/21 dB(A) 38/28/21 dB(A) 44/34/28 dB(A) 45/34/29 dB(A)
Indoor Unit Dimensions (H x W x D) (mm) 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 295 mm x 1,040 mm x 244 mm
Indoor Unit Dimensions (H x W x D) (inch) 11-7/16 inch x 30-11/16 inch x 8-1/4 inch 11-7/16 inch x 30-11/16 inch x 8-1/4 inch 11-7/16 inch x 30-11/16 inch x 8-1/4 inch 11-5/8 inch x 40-31/32 inch x 9-5/8 inch
Indoor Unit Net Weight 8 kg (18 lb) 8 kg (18 lb) 9 kg (20 lb) 12 kg (26 lb)
Outdoor Unit Air Circulation 26.7-28.3 m³/min (940-1,000 ft³/min) 30.2-30.8 m³/min (1,065-1,085 ft³/min) 39.3 m³/min (1,390 ft³/min) 34.9 m³/min (1,230 ft³/min)
Outdoor Unit Noise Level (H) 47-48 dB(A) 48-49 dB(A) 51 dB(A) 51 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm) 511 mm x 650 mm x 230 mm 542 mm x 780 mm x 289 mm 619 mm x 824 mm x 299 mm 619 mm x 824 mm x 299 mm
Outdoor Unit Dimensions (H x W x D) (inch) 20-1/8 inch x 25-19/32 inch x 9-1/16 inch 21-11/32 inch x 30-23/32 inch x 11-13/32 inch 24-3/8 inch x 32-15/32 inch x 11-25/32 inch 24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Net Weight 17 kg (37 lb) 22 kg (49 lb) 28 kg (62 lb) 31 kg (68 lb)
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side) ø 9.52 mm (3/8 inch) ø 9.52 mm (3/8 inch) ø 12.70 mm (1/2 inch) ø 12.7 mm (1/2 inch)
Pipe Extension (Chargeless Pipe Length) 7.5 m 7.5 m 10 m 10 m
Pipe Extension (Maximum Pipe Length) 20 m 20 m 30 m 30 m
Pipe Extension (Maximum Elevation Length) 15 m 15 m 20 m 20 m
Pipe Extension (Additional Refrigerant Gas*) 10 g/m 10 g/m 15 g/m 15 g/m
Power Supply Indoor Indoor Indoor Indoor
Powerful Mode Yes Yes Yes Yes
ECO Mode with A.I. Yes Yes Yes Yes
Inverter Control Yes Yes Yes Yes
Sleep Mode Yes Yes Yes Yes
Quiet Mode Yes Yes Yes Yes
Soft Dry Operation Mode Yes Yes Yes Yes
nanoe™ X Yes (Generator Mark 1) Yes (Generator Mark 1) Yes (Generator Mark 1) Yes (Generator Mark 1)
Odour Removing Function Yes Yes Yes Yes
Removable Washable Panel Yes Yes Yes Yes
24-Hour Dual ON & OFF Real Setting Timer Yes Yes Yes Yes
LCD Wireless Remote Control Yes Yes Yes Yes
Wireless LAN Remote Control (For Internet Connection) Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional)
Wired Remote Control Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional)
Random Auto Restart Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns)
Blue Fin Condenser Yes Yes Yes Yes
Long Piping (max.) 20 m 20 m 30 m 30 m
Top Panel Maintenance Access Yes Yes Yes Yes
Self-Diagnostic Function Yes Yes Yes Yes
Note *When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
