Deluxe Inverter RU Series (AKH)

Purify Around-the-Clock with nanoe™ X

Panasonic Deluxe Inverter RU Series (AKH) comes with nanoe™ X air purification system for 24-hour nanoe™ X protection. The improved Inside Cleaning cleans and dries the inside of the indoor unit. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device. POWERFUL Mode offers instant cooling during start up. BIG FLAP/AEROWINGS* directs airflow further across the room. Enjoy cooling comfort while saving energy with ECO Mode with A.I. Control, Inverter technology and environmentally friendly R32 refrigerant.

*BIG FLAP is applicable to CS-RU9AKH, CS-RU12AKH, CS-RU18AKH. AEROWINGS is applicable to CS-RU24AKH.

Please Select Your User Type

Deluxe Inverter RU Series (AKH)

Features

Stay Safe Indoors with 24-hour nanoe™ X Air Protection

nanoe™ X technology with the benefits of hydroxyl radicals effectively inhibits adhered and airborne pollutants while reducing frequently encountered odors for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify spaces, providing a cleaner and comfortable space 24/7 for patrons, employees and you.

LEARN MORE

*Energy consumption may vary depending on models.

Clean and Fresh Environment Every Day

2x Faster Odours Reduction and Pollens Inhibition with nanoe X Generator Mark 2

Equipped with the nanoe X Generator Mark 2 to offer greater effectiveness in deodorising odours and inhibiting pollens at 2x faster pace compared to the previous nanoe X Generator Mark 1.

Notes:
(1) Deodorization Test: •Testing organisation: Panasonic Product Analysis Center •Test subject: Adhered nonenal (body odour) • Testing volume: Approximately 23m³ laboratory • nanoe X Generator Mark 1 test result: Odour intensity reduced by 1.1 levels in 60 minutes (Test report No.: Y18HM047-1) • nanoe X Generator Mark 2 test result: Odour intensity reduced by 1.1 levels in 30 minutes (Test report No.: Y18HM059)
(2) Pollen Inhibition Test: • Testing organisation: Panasonic Product Analysis Center • Test subject: Adhered cedar pollen • Testing volume: Approximately 23m³ laboratory • nanoe X Generator Mark 1 test result: Inhibited 99% in 24 hours (Test report No.: 4AA33-151001-F01) • nanoe X Generator Mark 2 test result: Inhibited 99% in 12 hours (Test report No.: L19YA009)

2x Faster Odours Reduction and Pollens Inhibition with nanoe X Generator Mark 2

Inside Cleaning On Demand

The newly improved inside cleaning function can be activated on a need basis. It works inside of an indoor unit to remove moisture, and release nanoe™ X particles, inhibiting various pollutants while ensuring that the inside of the indoor unit is always dry and clean. Up to 99%* of bacteria and viruses inhibited on evaporator, filter and air outlet.

*Testing Organisation: Protectea,Ltd • Test subject: Bacteria (Escherichia coli NBRC3301) and Virus (Escherichia coli NBRC320012) • Tested time 2.5 hours
• Test Result: 99% inhibited (compared to non operation) • Test Report No: PR190803 (Filter & Evaporator); PR191102 (Air Outlet)

Learn more

nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

A global contract research organization Texcell has verified the inhibitory effect of the nanoe™ X technology, with known benefits of hydroxyl radicals on the adhered novel coronavirus (SARS-CoV-2). 99.7% of adhered novel coronavirus (SARS-CoV-2) activity was inhibited within 24 hours in a 6.7m³ test space.

Notes: (1) The virus infectious titer was measured and used to calculate the inhibition rate. (2) This veriﬁcation was designed to generate basic research data on the effects of nanoe™ X on the adhered novel coronavirus in laboratory conditions. Actual effects will vary depending on the environment and usage of the product.

LEARN MORE

nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect and control up to 200* air conditioning units with Panasonic Comfort Cloud App from anywhere, anytime (requires optional network adaptor CZ-TACG1 per unit). Remotely access all air conditioning features such as tracking and monitoring usage of air conditioning units using comprehensive energy statistics, and identifying issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

*Connects up to 200 air conditioning units (up to 10 groups, with 20 units per group). Requires optional network adaptor CZ-TACG1 per unit.

Cost-efficient Solutions for a Greener Environment

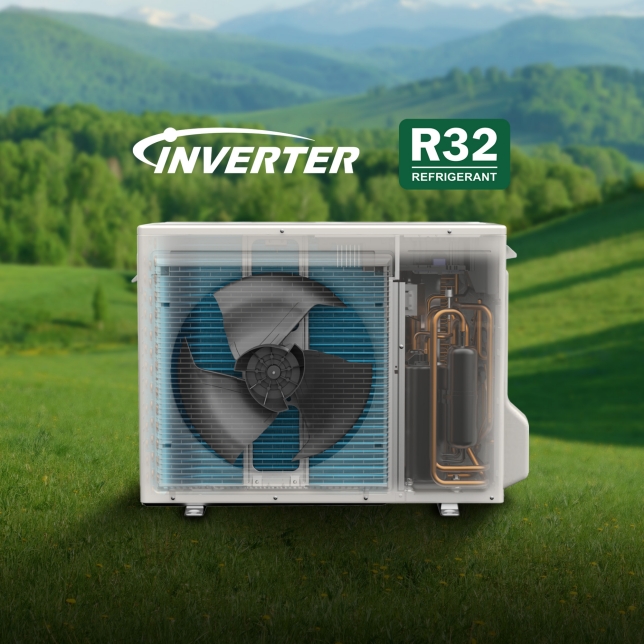

Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of energy-saving Inverter technology and environmentally friendly R32 refrigerant. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. A smarter, greener choice with energy-saving technologies for a sustainable living.

LEARN MORE

Energy-saving and Eco-friendly Technologies

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.

*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.

LEARN MORE

Intelligently Balances Energy Savings and Comfort

Comfort Cooling Environment for Your Needs

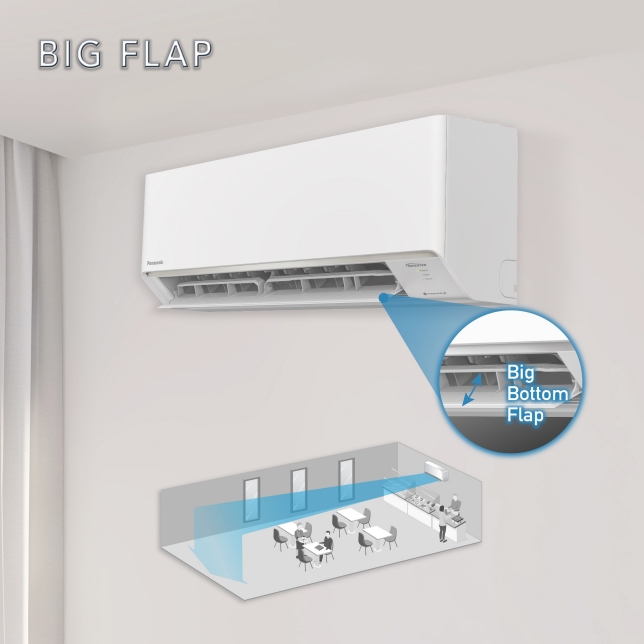

Long Airflow with Big Flap

Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.

*Applicable to CS-RU9AKH, CS-RU12AKH and CS-RU18AKH only.

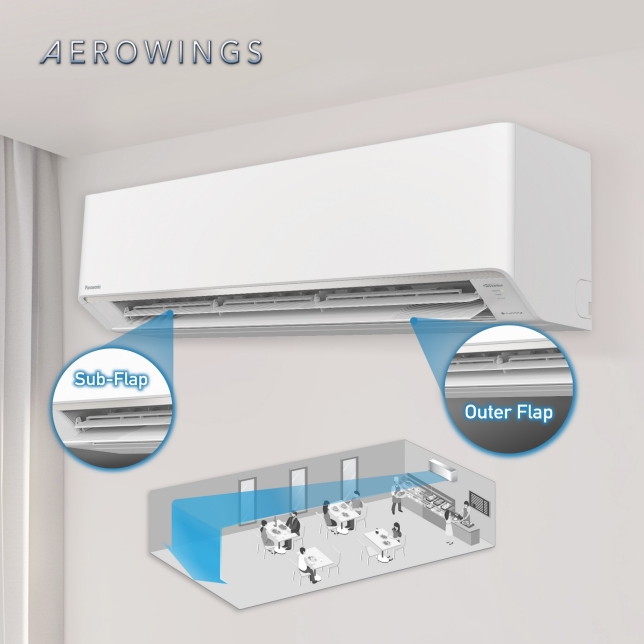

Stay Cool with Faster, Further Airflow

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.

*Applicable to CS-RU24AKH only.

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode cools your room faster by 18%*, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling even during start-up.

*Comparison of POWERFUL cool mode & normal cool mode by using 1.5HP Inverter Model.

LEARN MORE

Instant Powerful Cooling with a Push of a Button

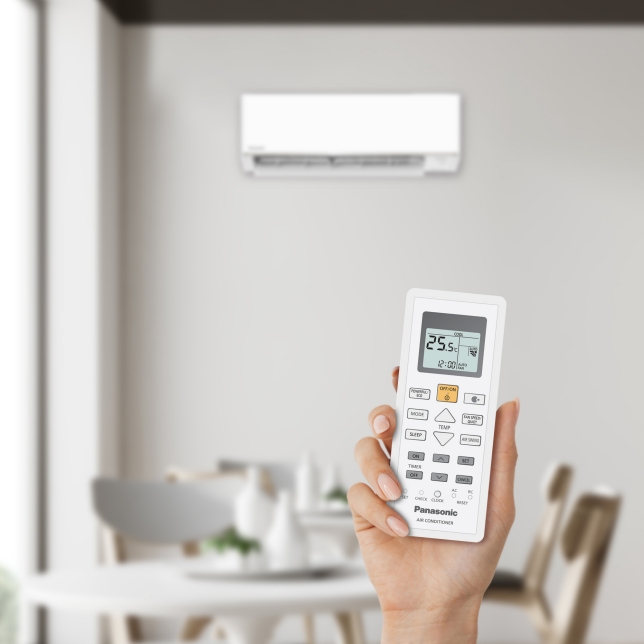

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

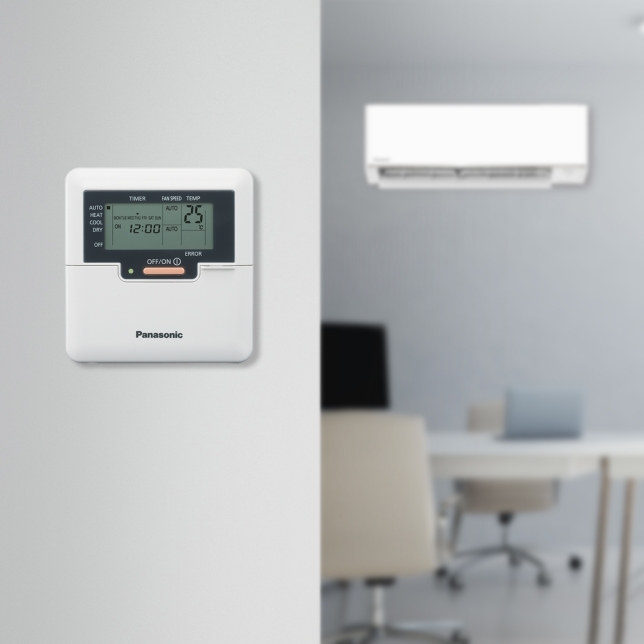

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Range

Model
Horsepower	1.0 HP	1.5 HP	2.0 HP	2.5 HP
Cooling Capacity	2.65 kW	3.52 kW	5.20 kW	6.25 kW
Cooling Capacity	9,040 Btu/h	12,000 Btu/h	17,700 Btu/h	21,300 Btu/h
Indoor Unit	CS-RU9AKH	CS-RU12AKH	CS-RU18AKH	CS-RU24AKH
Outdoor Unit	CU-RU9AKH	CU-RU12AKH	CU-RU18AKH	CU-RU24AKH

Specifications

CS-RU9AKH_CU-RU9AKH

nanoe X Generator Mark 2
Inside Cleaning On Demand
Panasonic Comfort Cloud App
Inverter
BIG FLAP
AEROWINGS
ECO Mode with A.I. Control
POWERFUL Mode
R32 Refrigerant
Quiet Mode
Sleep Mode

nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours

Inside Cleaning On Demand ensures the inside of the indoor unit is pollutant-free

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

BIG FLAP/AEROWINGS directs airflow further across the room (Applicable to selected models)

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Energy efficiency with ECO Mode with A.I. Control, Inverter and environmentally friendly R32 refrigerant

	CS-RU9AKH_CU-RU9AKH	CS-RU12AKH_CU-RU12AKH	CS-RU18AKH_CU-RU18AKH	CS-RU24AKH_CU-RU24AKH
Cooling Capacity (min-max) (kW)	2.65 (0.90-3.40) kW	3.52 (1.02-4.10) kW	5.20 (1.10-5.60) kW	6.25 (1.12-7.18) kW
Cooling Capacity (min-max) (Btu/h)	9,040 (3,070-11,600) Btu/h	12,000 (3,480-14,000) Btu/h	17,700 (3,750-19,100) Btu/h	21,300 (3,820-24,500) Btu/h
EER (min-max) (Btu/hW)	12.05 (13.64-11.26) Btu/hW	11.65 (12.65-11.11) Btu/hW	10.35 (12.93-10.32) Btu/hW	11.83 (15.28-11.78) Btu/hW
EER (min-max) (W/W)	3.53 (4.00-3.30) W/W	3.42 (3.71-3.25) W/W	3.04 (3.79-3.03) W/W	3.47 (4.48-3.45) W/W
Voltage (V)	220-240 V	220-240 V	220-240 V	220-240 V
Current (A)	3.7-3.4 A	4.8-4.4 A	7.9-7.3 A	8.3-7.6 A
Power Input (min-max) (W)	750 (225-1,030) W	1,030 (275-1,260) W	1,710 (290-1,850) W	1,800 (250-2,080) W
Moisture Removal (L/h)	1.6 L/h	2.0 L/h	2.9 L/h	3.5 L/h
Moisture Removal (Pt/h)	3.4 Pt/h	4.2 Pt/h	6.1 Pt/h	7.4 Pt/h
Indoor Unit Air Circulation	10.3 m³/min (365 ft³/min)	11.0 m³/min (390 ft³/min)	12.6 m³/min (445 ft³/min)	19.9 m³/min (700 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	36/26/21 dB(A)	38/28/21 dB(A)	44/34/28 dB(A)	45/34/29 dB(A)
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)	290 mm x 765 mm x 214 mm	290 mm x 765 mm x 214 mm	290 mm x 765 mm x 214 mm	295 mm x 1,060 mm x 249 mm
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)	11-7/16 inch x 30-1/8 inch x 8-7/16 inch	11-7/16 inch x 30-1/8 inch x 8-7/16 inch	11-7/16 inch x 30-1/8 inch x 8-7/16 inch	11-5/8 inch x 41-3/4 inch x 9-13/16 inch
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)	260 mm x 847 mm x 364 mm	260 mm x 847 mm x 364 mm	260 mm x 847 mm x 364 mm	314 mm x 1,168 mm x 383 mm
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)	10-1/4 inch x 33-3/8 inch x 14-11/32 inch	10-1/4 inch x 33-3/8 inch x 14-11/32 inch	10-1/4 inch x 33-3/8 inch x 14-11/32 inch	12-3/8 inch x 46 inch x 15-3/32 inch
Indoor Unit Net Weight	8 kg (18 lb)	8 kg (18 lb)	9 kg (20 lb)	12 kg (26 lb)
Outdoor Unit Air Circulation	26.7 m³/min (940 ft³/min)	30.6 m³/min (1,080 ft³/min)	39.3 m³/min (1,390 ft³/min)	34.9 m³/min (1,230 ft³/min)
Outdoor Unit Noise Level (H)	47 dB(A)	48 dB(A)	51 dB(A)	51 dB(A)
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)	511 mm x 650 mm x 230 mm	542 mm x 780 mm x 289 mm	619 mm x 824 mm x 299 mm	619 mm x 824 mm x 299 mm
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)	20-1/8 inch x 25-19/32 inch x 9-1/16 inch	21-11/32 inch x 30-23/32 inch x 11-13/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)	582 mm x 793 mm x 356 mm	607 mm x 900 mm x 405 mm	684 mm x 967 mm x 425 mm	684 mm x 967 mm x 425 mm
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)	22-15/16 inch x 31-1/4 inch x 14-1/32 inch	23-29/32 inch x 35-7/16 inch x 15-31/32 inch	26-15/16 inch x 38-3/32 inch x 16-3/4 inch	26-15/16 inch x 38-3/32 inch x 16-3/4 inch
Outdoor Unit Net Weight	18 kg (40 lb)	22 kg (49 lb)	29 kg (64 lb)	32 kg (71 lb)
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)	ø 9.52 mm (3/8 inch)	ø 12.70 mm (1/2 inch)	ø 12.70 mm (1/2 inch)
Pipe Extension (Chargeless Pipe Length)	7.5 m	7.5 m	10 m	10 m
Pipe Extension (Maximum Pipe Length)	20 m	20 m	30 m	30 m
Pipe Extension (Maximum Elevation Length)	15 m	15 m	20 m	20 m
*Pipe Extension (Additional Refrigerant Gas)**	10 g/m	10 g/m	15 g/m	15 g/m
Power Supply	Indoor	Indoor	Indoor	Indoor
nanoe™ X	Yes (Generator Mark 2)	Yes (Generator Mark 2)	Yes (Generator Mark 2)	Yes (Generator Mark 2)
Inside Cleaning On Demand	Yes	Yes	Yes	Yes
Odour Removing Function	Yes	Yes	Yes	Yes
Wi-Fi	Optional network adaptor is required	Optional network adaptor is required	Optional network adaptor is required	Optional network adaptor is required
24-Hour Dual ON & OFF Real Setting Timer	Yes	Yes	Yes	Yes
LCD Wireless Remote Control	Yes	Yes	Yes	Yes
Wired Remote Control	Optional	Optional	Optional	Optional
Powerful Mode	Yes	Yes	Yes	Yes
Sleep Mode	Yes	Yes	Yes	Yes
Quiet Mode	Yes	Yes	Yes	Yes
Soft Dry Operation Mode	Yes	Yes	Yes	Yes
Airflow Direction Control (Up & Down)	Yes	Yes	Yes	Yes
Manual Horizontal Airflow Direction Control	Yes	Yes	Yes	Yes
Inverter Control	Yes	Yes	Yes	Yes
Refrigerant Type	R32	R32	R32	R32
ECO Mode with A.I.	Yes	Yes	Yes	Yes
Random Auto Restart	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes	Yes	Yes	Yes
Long Piping (max.)	20 m	20 m	30 m	30 m
Top Panel Maintenance Access	Yes	Yes	Yes	Yes
Self-Diagnostic Function	Yes	Yes	Yes	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
