Wall-Mounted Standard Inverter R32 MPU Series

SHOP NOW

Wall-Mounted Standard Inverter R32 MPU Series

Instantly Cool Spaces On Demand

Panasonic Wall-Mounted Standard Inverter MPU Series features POWERFUL Mode for instant powerful cooling with just a push of a button. BIG FLAP/AEROWINGS* directs airflow further across the room. Conveniently control and manage your air conditioners from mobile devices with Panasonic Comfort Cloud App (optional network adaptor is required). Achieve energy efficiency without compromising comfort with Inverter technology and R32 refrigerant.
*BIG FLAP is applicable to CS-MPU9YKZ, CS-MPU12YKZ and CS-MPU18YKZ. AEROWINGS is applicable to CS-MPU24YKZ and CS-MPU28YKZ.
  • Panasonic Comfort Cloud App
  • POWERFUL Mode
  • Inverter
  • Quiet Mode
Zoom In
Zoom Out
Close
Wall-Mounted Standard Inverter R32 MPU Series

Features

Wide Cooling Capacity to Suit Your Needs and Preferences

Model

CS-MPU9YKZ

CS-MPU12YKZ

CS-MPU18YKZ

CS-MPU24YKZ

CS-MPU28YKZ

Btu/h

9,550

11,900

17,100

20,500

24,200

kW

2.8

3.5

5.0

6.0

7.1

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect & Control Your Air Conditioners Anywhere, Anytime

Control multiple air conditioning units with Panasonic Comfort Cloud App anywhere, anytime (optional network adaptor CZ-TACG1 is required). Remotely access all air conditioning features such as tracking and monitoring usage of air conditioning units using comprehensive energy statistics, and identifying issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

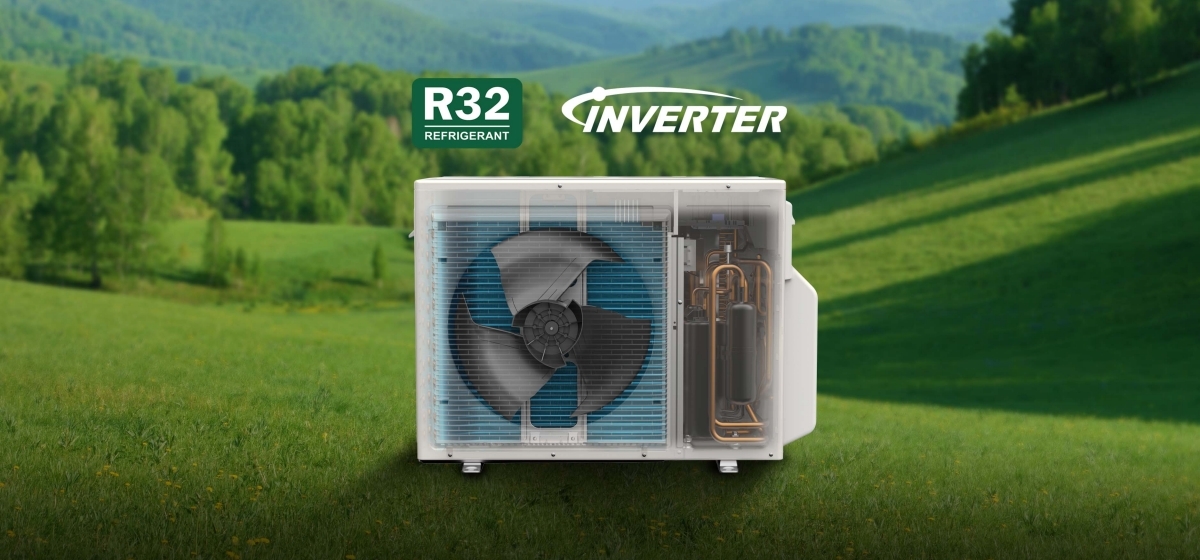

Better Living, Together with Energy-saving and Eco-friendly Technologies

Better Living, Together with Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.

LEARN MORE

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode cools the place faster by decreasing the setting temperature by 2ºC and operating the indoor fan at a higher speed to create powerful instant cooling during start-up.
Instant Powerful Cooling with a Push of a Button

Comfort Cooling Environment for Your Needs

Long Airflow with Big Flap

Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.
*Applicable to CS-MPU9YKZ, CS-MPU12YKZ and CS-MPU18YKZ only.
Long Airflow with Big Flap

Stay Cool with Faster, Further Airflow

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
*Applicable to CS-MPU24YKZ and CS-MPU28YKZ only.
Stay Cool with Faster, Further Airflow

Calm and Peaceful Environment with Quiet Mode

Loud noises can be a bother, no matter the time of the day. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum, and noise level is reduced by 3 dB(A)* from normal settings. This mode is ideal when you require a quiet, peaceful environment.
*Noise level reduced by 3 dB(A) from normal settings is applicable to CS-MPU9YKZ and CS-MPU12YKZ only.
Calm and Peaceful Environment with Quiet Mode

Convenient Control at Your Fingertips

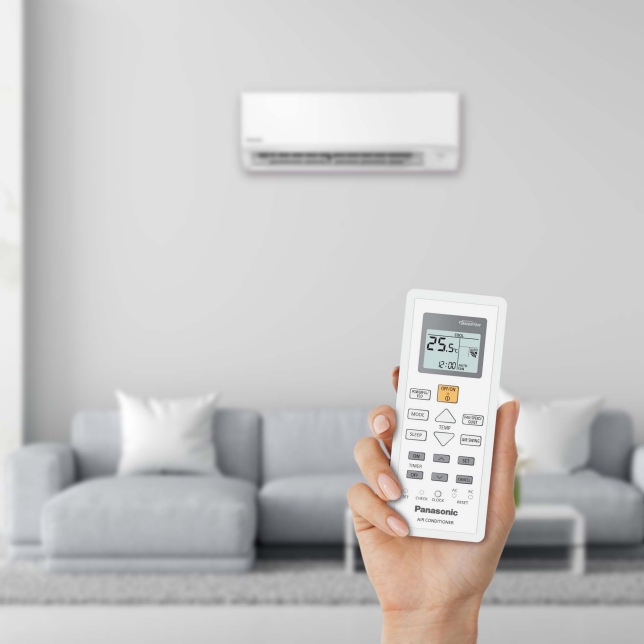

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Wireless Remote Controller

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.
Optional Wired Remote Controller

Specifications

CS-MPU9YKZ

Photo of CS-MPU9YKZ

CS-MPU12YKZ

Photo of CS-MPU12YKZ

CS-MPU18YKZ

Photo of CS-MPU18YKZ

CS-MPU24YKZ

Photo of CS-MPU24YKZ

CS-MPU28YKZ

Photo of CS-MPU28YKZ
  • Panasonic Comfort Cloud AppPanasonic Comfort Cloud App
  • POWERFUL ModePOWERFUL Mode
  • InverterInverter
  • Quiet ModeQuiet Mode
  • BIG FLAPBIG FLAP
  • AEROWINGSAEROWINGS
  • R32 RefrigerantR32 Refrigerant

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Big bottom flap helps direct cool air across the room (Applicable to selected models)

AEROWINGS concentrates cool air for further and faster airflow across the room (Applicable to selected models)

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Energy savings with Inverter and environmentally friendly R32 refrigerant

CS-MPU9YKZ CS-MPU12YKZ CS-MPU18YKZ CS-MPU24YKZ CS-MPU28YKZ
Cooling Capacity (kW) 2.8 kW 3.5 kW 5.0 kW 6.0 kW 7.1 kW
Cooling Capacity (Btu/h) 9,550 Btu/h 11,900 Btu/h 17,100 Btu/h 20,500 Btu/h 24,200 Btu/h
Power Source Single Phase, 220V - 240V, 50Hz Single Phase, 220V - 240V, 50Hz Single Phase, 220V - 240V, 50Hz Single Phase, 220V - 240V, 50Hz Single Phase, 220V - 240V, 50Hz
Sound Pressure Level (H/L) 43/28 dB(A) 44/28 dB(A) 45/34 dB(A) 49/39 dB(A) 49/39 dB(A)
Air Circulation (H) 12.7 m³/min (450 ft³/min) 13.1 m³/min (460 ft³/min) 13.3 m³/min (470 ft³/min) 20.2 m³/min (715 ft³/min) 20.5 m³/min (725 ft³/min)
Dimensions (H x W x D) (mm) 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 295 mm x 1,040 mm x 244 mm 295 mm x 1,040 mm x 244 mm
Net Weight 8 kg 8 kg 9 kg 14 kg 14 kg
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm ø 6.35 mm ø 6.35 mm ø 6.35 mm ø 6.35 mm
Refrigerant Pipe Diameter (Gas Side) ø 9.52 mm ø 9.52 mm ø 9.52 mm ø 12.70 mm* ø 12.70 mm*
Power Supply Outdoor Outdoor Outdoor Outdoor Outdoor
Inverter Control Yes Yes Yes Yes Yes
Sleep Mode Yes Yes Yes Yes Yes
Quiet Mode Yes Yes Yes Yes Yes
POWERFUL Mode Yes Yes Yes Yes Yes
ECO Mode with A.I. Yes (Temperature shift) Yes (Temperature shift) Yes (Temperature shift) Yes (Temperature shift) Yes (Temperature shift)
Soft Dry Operation Mode Yes Yes Yes Yes Yes
Personal Airflow Creation No No No Yes Yes
Airflow Direction Control (Up & Down) Yes Yes Yes No No
Manual Horizontal Airflow Direction Control Yes Yes Yes No No
Odour-Removing Function Yes Yes Yes Yes Yes
Removable, Washable Panel Yes Yes Yes Yes Yes
24-Hour Dual ON & OFF Real Setting Timer Yes Yes Yes Yes Yes
LCD Wireless Remote Control Yes Yes Yes Yes Yes
Wireless LAN Remote Control For Internet Connection Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional)
Wired Remote Control Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional)
Random Auto Restart (32 Restart Patterns) Yes Yes Yes Yes Yes
Blue Fin Condenser Yes Yes Yes Yes Yes
Top-Panel Maintenance Access Yes Yes Yes Yes Yes
Self-Diagnostic Function Yes Yes Yes Yes Yes
Note *Pipe size expander CZ-MA2PA is not required when outdoor unit CU-4U34YBZ is connected to CS-MPU24YKZ and CS-MPU28YKZ. *Pipe size expander CZ-MA2PA is not required when outdoor unit CU-4U34YBZ is connected to CS-MPU24YKZ and CS-MPU28YKZ.
