R32 Multi-Split Air Conditioning System

Energy-Efficient Multi-Split System

Panasonic R32 Multi-Split Air Conditioning System is a high efficiency multi-split system. A single outdoor unit offers flexibility up to 11.5kW and connects up to 4 ports with independent operational control. Mix and match with a selection of 3 types of indoor units, including Wall-Mounted X-Deluxe Inverter MXPU Series equipped with nanoe™ X technology to inhibit pollutants round-the-clock, Wall-Mounted Standard Inverter MPU Series and Slim Ducted Inverter MU Series. The outdoor unit’s compact design and long piping, along with the increased cooling capacity of the indoor units provide greater installation flexibility to accommodate large spaces or high occupancy levels. Indoor units can be controlled with mobile devices when connected to the internet.

Please Select Your User Type

R32 Multi-Split Air Conditioning System

Features

One System that Houses All

Panasonic R32 Multi-Split Air Conditioning System with the environmentally friendly R32 refrigerant offers flexible multi-zone cooling solutions with just one outdoor unit. Connect up to 4 indoor units with independent indoor operational control and a vast selection of indoor types from a wide cooling capacity range.

LEARN MORE

Wide Cooling Capacity Range to Meet Different Space Requirements

Panasonic R32 Multi-Split Air Conditioning System offers a wide range of outdoor cooling capacity up to 11.5kW. This enables flexible indoor unit combinations according to different applications and room sizes, from small to large rooms.

Stay Safe Indoors with nanoe™ X Air Protection

Panasonic nanoe™ X technology offers the benefits of hydroxyl radicals contained in water which can inhibit bacteria, viruses, and other pollutants as well as deodorise odours. The X-Deluxe Inverter R32 high cooling capacity range enables purification of large spaces.

*nanoe™ X feature is available for indoor unit Wall-Mounted X-Deluxe Inverter Series only.

Stay Safe Indoors with nanoe™ X Air Protection

Better Living, Together with Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.

LEARN MORE

Multi-Zone Control with Comfort Cloud App Anywhere, Anytime

Conveniently control multiple air conditioning units via mobile devices when connected to the internet with Panasonic Comfort Cloud App.

LEARN MORE

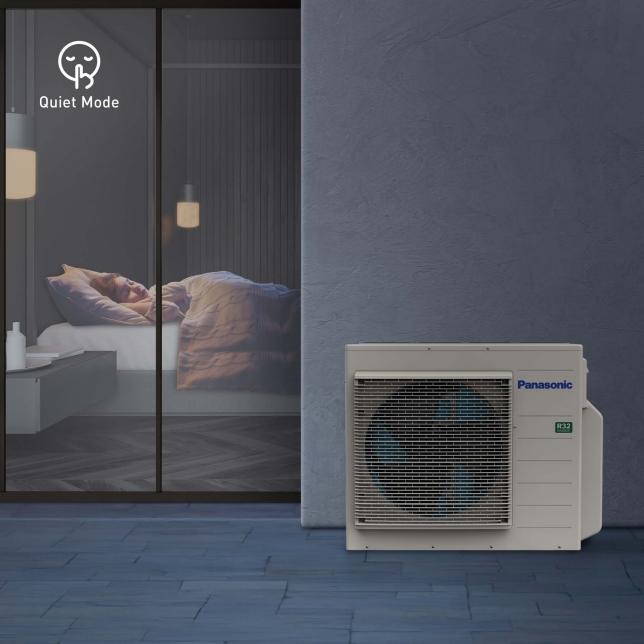

A Good Night Rest with Quiet Operation

The outdoor quiet operation will be activated automatically when Quiet mode is switched on for all the operating indoor units. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment.

High Durability, Made to Last Under Harsh Weather Conditions

Panasonic’s outdoor unit provides high durability for an extended period of time under a wide range of conditions to achieve excellent performance.

Connection of Outdoor and Indoor Units

R32 Multi-Split Air Conditioning System

System 2

System 3

System 4

Model

CU-2U18YBZ

CU-3U27YBZ

CU-4U28YBZ

CU-4U34YBZ

Outdoor Cooling Capacity Range
(min-max)

5.1kW (1.5kW - 6.1kW)

7.5 kW (2.8 kW - 9.5kW)

8.0kW (2.8kW - 10.2kW)

9.5kW (2.9kW - 11.5kW)

Indoor Units Combination Range

5.6kW ~ 8.5kW

5.6kW ~ 14.8kW

5.6kW ~ 16.2kW

5.6kW ~ 17.6kW

Maximum Connectable Indoor

2 units

3 units

4 units

Indoor Units

Selectable Indoor Units

Model

Wall-Mounted X-Deluxe
Inverter R32

Wall-Mounted Standard
Inverter R32

Slim Ducted Inverter R32

Air Purification

nanoe™ X, nanoe-G

–

Air Connectivity
(Comfort Cloud App)

Built-in Wi-Fi

–

Comfort

Quiet Mode, POWERFUL Mode,
AEROWINGS

Quiet Mode, POWERFUL Mode,
BIG FLAP/AEROWINGS

Quiet Mode, POWERFUL Mode,
Air Towards Ceiling

Specs

CU-2U18YBZ

CU-3U27YBZ

CU-4U28YBZ

CU-4U34YBZ

nanoe™ X
Panasonic Comfort Cloud App
Inverter
R32 Refrigerant
Blue Fin Condenser
Copper Tube Condenser

Wide cooling capacity range of up to 11.5kW

Energy savings with Inverter

Environmentally friendly R32 refrigerant

Quiet mode reduces the noise level of the indoor unit for a quiet, peaceful environment

Durable under harsh conditions

Compact design that fits perfectly anywhere

	CU-2U18YBZ	CU-3U27YBZ	CU-4U28YBZ	CU-4U34YBZ
Cooling Capacity (min-max) (kW)	5.10 (1.50-6.10) kW	7.50 (2.80-9.50) kW	8.00 (2.80-10.20) kW	9.50 (2.90-11.50) kW
Cooling Capacity (min-max) (Btu/h)	17,400 (5,120-20,800) Btu/h	25,600 (9,550-32,400) Btu/h	27,300 (9,550-34,800) Btu/h	32,400 (9,890-39,200) Btu/h
Power Source	Single Phase, 220V - 240V, 50Hz	Single Phase, 220V - 240V, 50Hz	Single Phase, 220V - 240V, 50Hz	Single Phase, 220V - 240V, 50Hz
Maximum Indoor Connectable Capacity (kW)	8.5 kW	14.8 kW	16.2 kW	17.6 kW
Maximum Connectable Indoor	2 units	3 units	4 units	4 units
Running Current (A)	6.1-5.6 A	9.2-8.4 A	9.4-8.6 A	11.3-10.4 A
Power Input (min-max) (W)	1,310 (250-1,900) W	1,980 (540-2,740) W	2,000 (540-3,200) W	2,430 (560-3,100) W
EER (min-max) (Btu/hW)	13.28 (20.48-10.95) (Btu/hW)	12.93 (17.69-11.82) Btu/hW	13.65 (17.69-10.88) Btu/hW	13.33 (17.66-12.65) Btu/hW
EER (min-max) (W/W)	3.89 (6.00-3.21) W/W	3.79 (5.19-3.47) W/W	4.00 (5.19-3.19) W/W	3.91 (5.18-3.71) W/W
Sound Pressure Level (H/L)	50/45 dB(A)	49/44 dB(A)	49/44 dB(A)	54/49 dB(A)
Maximum Current (A)	10.4 A	16.2 A	16.6 A	16.6 A
Starting Current (A)	6.1 A	9.2 A	9.4 A	11.3 A
Compressor Output (W)	900 W	1,500 W	1,500 W	1,500 W
Dimensions (H x W x D) (mm)	542 mm x 780 (+70) mm x 289 mm	695 mm x 875 (+95) mm x 320 mm	695 mm x 875 (+95) mm x 320 mm	795 mm x 875 (+95) mm x 320 mm
Net Weight	33 kg	48 kg	48 kg	58 kg
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm x2	ø 6.35 mm x3	ø 6.35 mm x4	ø 6.35 mm x4
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm x2	ø 9.52 mm x3	ø 9.52 mm x4	ø 9.52 mm x3, ø 12.70 mm x1
Pipe Extension (Maximum Pipe Length) (1 room)	20 m	30 m	30 m	30 m
Pipe Extension (Maximum Pipe Length) (Total)	30 m	60 m	70 m	70 m
Pipe Extension (Maximum Elevation Length)	15 m	15 m	15 m	15 m
Pipe Extension (Additional Refrigerant Gas)	Chargeless	Chargeless	Chargeless	Chargeless
