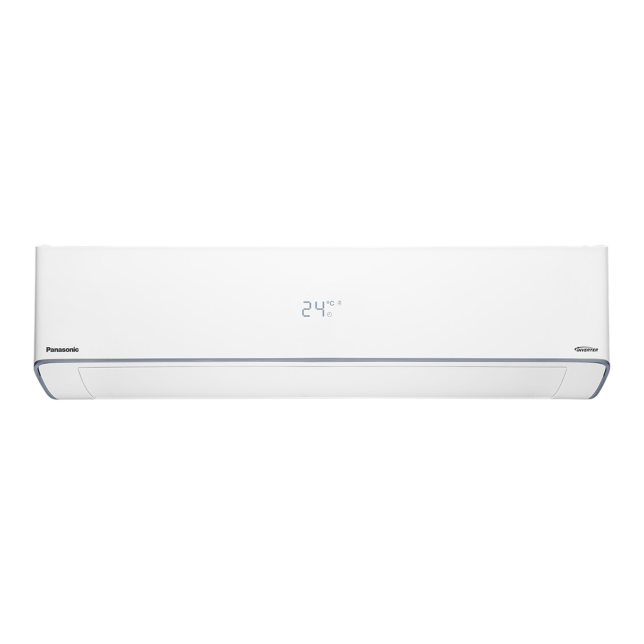

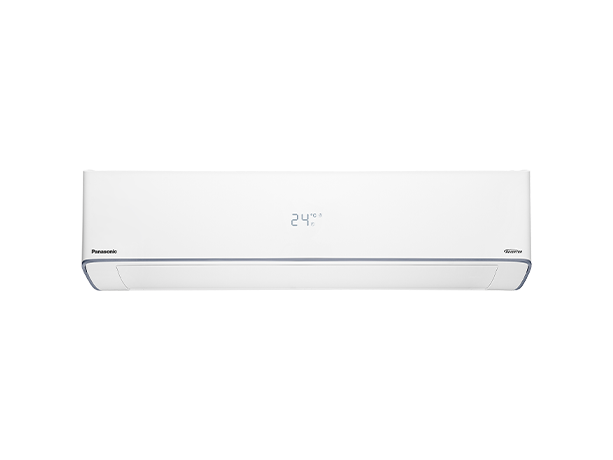

CS/CU-EU12AKY3F
MRP(Inclusive of all Taxes):₹ 52,900.00
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CS/CU-EU12AKY3F
Features
7-in-1 Convertible AC
While Panasonic Inverter Air Conditioners are truly auto convertible, there is a provision to manually adjust the AC for up to 7 stages of cooling performance ranging from 45% to more than 100%, this can be done via Converti7 button on the remote or on the Miraie app
Eco-Tough Casing
The outdoor unit of Panasonic ACs is made of special "superdyma" material casing from Japanese steel that safeguards it from tough weather condition. Panasonic designs its products to be user friendly so our customers can use them for a long time with confidence. Exceptionally crafted to resist tough weather conditions like rain, direct sunlight and strong winds.
Crystal Clean
Through defrosting, frosting, cold expansion, and a mechanism to remove all filth that enters the unit, the AC performs self-cleaning with its Crystal Clean feature. The dust particles accumulated in Evaporator / Indoor coil are cleaned by the process & provides better cooling.
2-Way Air Swing
This Air conditioner comes with 2-Way Air Swing (Vertical) ensures perfect cooling across the space
Powerful Mode
As temperatures rise outside, so will indoor temperatures. Being outdoors can keep you uncomfortable and sweaty. But that doesn't mean you have to prolong that discomfort after you set foot indoors. Panasonic air conditioners with POWERFUL mode delivers powerful cooling with strong airflow to cool a room quickly, providing an instant relief during hot days.
Shield Blu+ / 100% Copper
Enjoy life long comfort with Panasonic AC that feature 100% pure copper coils for faster heat transfer and resistance to corrosion. Panasonic designs its products to be user friendly so our customers can use them for a long time with confidence. Panasonic air conditioners come with Shield Blu technology, an extra anti-corrosive coating on both the indoor and outdoor unit. This prevents leakage & protects the copper tubing and doubles the life of heat exchangers.
Specs
Type
-
Cooling Only
Tonnage Class (TR)
-
1.0
Model [50Hz]
-
CS/CU-EU12AKY3F
Cooling Capacity Standard [Min. - Max.] (Btu/h)
-
11765 [5303 - 12965]
Cooling Capacity Standard [Min. - Max.] (W)
-
3450 [1555 - 3800]
Heating Capacity Standard [Min. - Max.] (Btu/h)
-
-
Heating Capacity Standard [Min. - Max.] (W)
-
-
ISEER
-
3.90
Annual Power Consumption (kWh)
-
685.08
Star Rating (★)
-
3★
Electrical Data
-
Voltage (V-AC)
-
230
-
-
Frequency (Hz)
-
50
-
-
Phase (Φ)
-
Single Phase
-
-
Running Current (A)
-
5.1
-
-
Power Input, Standard Cooling [Min. - Max.] (W)
-
1110 [374 - 1498]
-
-
Power Input, Standard Heating [Min. - Max.] (W)
-
-
-
Moisture Removal Rate (l/h)
-
1.0
Moisture Removal Rate (Pt/h)
-
2.1
Air Circulation (Indoor) (mᵌ/min)
-
14.0
Air Circulation (Indoor) (ftᵌ/min)
-
494
Dimensions of the Indoor Unit
-
Length (L) (cm)
-
87.0
-
-
Breadth (B) (cm)
-
22.9
-
-
Height (H) (cm)
-
29.5
-
Dimensions of the Outdoor Unit
-
Length (L) (cm)
-
67.2
-
-
Breadth (B) (cm)
-
24.0
-
-
Height (H) (cm)
-
52.0
-
Noise Level
-
Indoor (H/Q) [dB-A]
-
44/32
-
-
Outdoor [dB-A]
-
53
-
Net Weight
-
IDU [ODU] (kg)
-
9 [20]
-
-
IDU [ODU] (lb)
-
19.8 [44.1]
-
Gross Weight
-
IDU [ODU] (kg)
-
11 [24]
-
-
IDU [ODU] (lb)
-
24.3 [52.9]
-
Refrigerant
-
R-32
Operating Temp. Range (℃)
-
16 ~ 52
Operating Volt. Range (V)
-
145-285
Refrigerant Pipe Diameter
-
Liquid Side (cm)
-
Ø0.635
-
-
Gas Side (cm)
-
Ø0.952
-
Pipe Extension
-
Chargeless Pipe Length * (m)
-
7.5
-
-
Maximum Pipe Length * (m)
-
10
-
-
Maximum Elevation Length * (m)
-
5
-
-
Additional Refrigerant Gas * (g/m)
-
10
-
Power Supply Source
-
Indoor
In The Box
-
Indoor Unit: 1N, Outdoor Unit: 1N, Remote: 1N, AAA Batteries: 2N, User Manual: 1N
