S-48PUY8H5YD

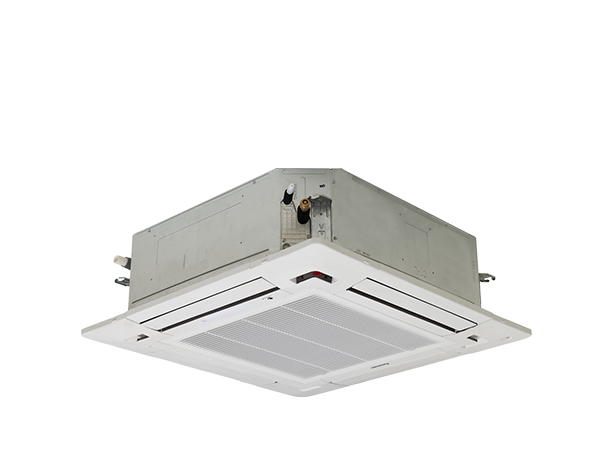

Cassette AC- Inverter, Hot & Cold

Add to WishlistRemove from Wishlist

S-48PUY8H5YD

BUY NOW

Features

• Active Air Purification nanoeX
• Simplistic Design
• LCD Wireless Remote Controller
• Easy Installation Design
• Operation Range from -6°C up to 52°C
• Maintenance Function Time Display will show "FC" code for Air Filter Cleaning

Specs

Model Indoor Unit

S-48PUY8H5YD

Model Outdoor Unit

U-48PZB8H5Y

Panel

CZ-KPUB7HY

Capacity Rated

Cooling
- W [Min. ~ Max.]
  - 13400 (6030-13900)
- Btu/hr [Min. ~ Max.]
  - 45723 (20575-47448)
Heating
- W [Min. ~ Max.]
  - 13100 (5900-13600)
- Btu/hr [Min. ~ Max.]
  - 44699 (20115-46386)

ISEER

3.50

Star Rating

Electrical Rating

Cooling
- Running Current A [Rated~Max.]
  - 24.9~30.0
- Power Input W [Min. ~ Max.]
  - 5120 (1900-5900)
Heating
- Running Current A [Rated~Max.]
  - 21.5~27.5
- Power Input W [Min. ~ Max.]
  - 4780 (1770-5500)

Power Source

V/Phase/Hz
- 230V / 1ɸ / 50Hz

Indoor Unit

Air Volume
- H/M/L (CMH)
  - 2150/2050/1950
Sound Pressure Level
- H/M/L db (A)
  - 52/51/49
Dimension
- Indoor LxBxH (cm)
  - 84.5 x 84.5 x 29.0
- Panel LxBxH (cm)
  - 95.0 x 95.0 x 4.2
Net Weight
- Indoor Unit / Panel (Kg)
  - 26.5/5.5

Outdoor Unit

Sound Pressure Level
- dB(A)
  - 64
Dimension
- LxBxH (cm)
  - 103.0x38.0x78.8
Net Weight
- Kg
  - 76.5
Refrigerant Type
- R-32

Piping Connection

Gas (Flare)
- cm (inches)
  - 1.588 (5/8")
Liquid (Flare)
- cm (inches)
  - 0.952 (3/8'')
Drain
- cm
  - 3.2

Ambient Temperature Operating Range

°C
- up to -6°C (Heating)
  up to 52°C (Cooling)

Standard Remote Controller

LCD Wireless Type

Compressor Type

Twin Rotary
