LUMIX S 14-28mm F4-5.6 MACRO (S-R1428) L-Mount Lens
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
S-R1428GC

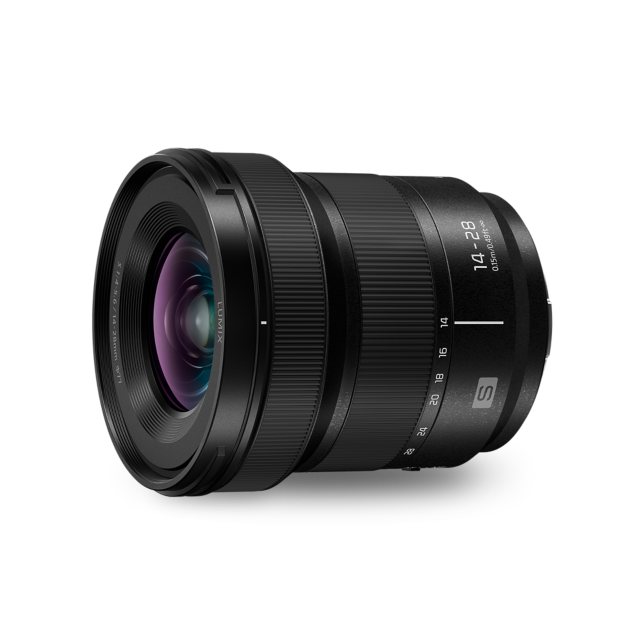

LUMIX S 14-28mm F4-5.6 MACRO
14-28mm ultra wide-angle zoom lens with close focusing capability optimised for both video and photo capture.
*Maximum magnification of 0.5x (at focal length 28mm)
Features
A lens that meets many needs
This versatile ultra wide-angle 14 - 28mm lens captures wide vistas in sharp detail across the image plane. It is ideal for macro photography, streetscapes and environmental portraiture.
Its compact design makes it more portable perfect for lightweight cameras like LUMIX S5II and S5IIX.
The advantage of a 77mm filter thread means creators can use traditional filters without complex holder systems.
Its compact design makes it more portable perfect for lightweight cameras like LUMIX S5II and S5IIX.
The advantage of a 77mm filter thread means creators can use traditional filters without complex holder systems.
Half life-size macro photography
Utilises a maximum magnification of 0.5x (at focal length 28mm) and a closes focusing distance of 0.15m, for excellent close-ups from flowers to insects.
Dust, splash and freeze-resistant design
The LUMIX S 14-28mm Lens is designed to withstand the toughest conditions thanks to its dust and splash-resistant* structure that allows you to shoot in temperatures as low as -10 °C.
･Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Ideal for video recording
The lens offers fast, accurate and silent autofocus with smooth aperture changes, critical for the modern content creators. Capture beautiful 4k video and stills with minimum focus breathing.
14-28mm lens construction
The optimised configuration has 14 elements in 10 groups, including 1 ASPH/ED, 1 ASPH, 3 ED and 1 UHR lenses to minimise aberrations and ensure superb resolution.
12-28 mm lens MTF chart
Offering outstanding sharpness and resolution throughout the entire zoom range, this is an ideal lens for the LUMIX full-frame system, and provides creative opportunities without compromise.
･For lenses that are capable of compensating distortion, the horizontal axis shows the distance from the center of the corrected image.
Get Inspired
Specs
Size and Weight
- Height
- 84.0mm
- Width
- 84.0mm
- Depth
- 89.8mm
- Weight
- 345g
Approximately. Weight excluding lens cap, lens rear cap and lens hood. Depth from the tip of the lens to the base side of the lens mount.
L-Mount- Dust / Splash / Freeze Resistant
14-28mm ultra wide-angle zoom lens with a compact, lightweight design
Excellent close-up performance with a closest focusing distance of 0.15m and a maximum magnification 0.5x (at focal length 28mm)
φ77mm filter attachable
Lens Construction
-
14 elements in 10 groups (1 aspherical ED lens, 1 aspherical lens, 3 ED lenses, 1 UHR lens)
Mount
-
L-Mount
Focal Length
-
f=14-28mm
Aperture Type
-
7 diaphragm blades / Circular aperture diaphragm
Maximum Aperture
-
F4 (Wide) - F5.6 (Tele)
Minimum Aperture
-
F22
Closest Focusing Distance
-
0.15m / 0.49ft
Maximum Magnification
-
0.5x (at focal length 28mm)
Diagonal Angle of View
-
114°(Wide) - 75°(Tele)
Dust and Splash Resistant
-
Yes*
*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
Recommended Operating Temperature
-
-10℃ to 40℃ (14℉ to 104℉)
Filter Size
-
φ77mm
Max. Diameter
-
φ84.0mm / 3.31inch
Overall Length
-
Approx. 89.8mm / 3.54inch (from the tip of the lens to the base side of the lens mount)
Weight
-
Approx. 345g / 0.77lb (excluding lens cap, lens rear cap and lens hood)
Standard Accessories
-
Lens cap, Lens rear cap, Lens hood
