Standard Inverter with nanoe™ X XPU Series

Recommended price:from 12,750,000 VND

*Inclusive of VAT

Energy Labels

Model Number	CU_CS-XPU9XKH-8	CU_CS-XPU12XKH-8	CU_CS-XPU18XKH-8	CU_CS-XPU18XKH-8B	CU_CS-XPU24XKH-8
Horsepower	1.0 HP	1.5 HP	2.0 HP	2.0 HP	2.5 HP
Energy Efficiency Label

Purify Around-the-Clock with nanoe™ X

Panasonic Standard Inverter with nanoe™ X XPU Series comes with nanoe™ X air purification system which provides 24-hour nanoe™ X protection. POWERFUL Mode offers instant powerful cooling with just a push of a button. Enjoy cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.

Please Select Your User Type

Standard Inverter with nanoe™ X XPU Series

Recommended price:from 12,750,000 VND

*Inclusive of VAT

SHOP NOW

Features

Stay Safe Indoors with 24-hour nanoe™ X Air Protection

nanoe™ X technology with the benefits of hydroxyl radicals effectively inhibits adhered and airborne pollutants while reducing frequently encountered odours for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify your living spaces, providing a cleaner and comfortable space for you and your loved ones - making your home a safe haven 24/7.

LEARN MORE

*Energy consumption may vary depending on models.

nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

A global contract research organization Texcell has verified the inhibitory effect of the nanoe™ X technology, with known benefits of hydroxyl radicals on the adhered novel coronavirus (SARS-CoV-2). 99.7% of adhered novel coronavirus (SARS-CoV-2) activity was inhibited within 24 hours in a 6.7m³ test space.

Notes: (1) The virus infectious titer was measured and used to calculate the inhibition rate. (2) This veriﬁcation was designed to generate basic research data on the effects of nanoe™ X on the adhered novel coronavirus in laboratory conditions. Actual effects will vary depending on the environment and usage of the product.

LEARN MORE

nanoe™ X is Effective in Inhibiting Adhered Novel Coronavirus (SARS-CoV-2)

Effective in Removing 99% of Dust Particles

Effective in removing 99% of dust particles*, nanoe-G releases negative ions to capture dust particles as small as PM2.5, carrying them back to the filter to provide a cleaner indoor environment.

*Testing organisation: FCG Research Institute, Inc. Testing method: nanoe-G-equipped air conditioner was operated and tested in a 23m³ sized test room. Test result: Removed 99% of particles in 202 minutes (compared to the initial concentration). (25034) Not a result of experiments in an actual use environment. Results may vary based on usage, and seasonal and environmental variables (temperature and humidity).

LEARN MORE

Effective in Removing 99% of Dust Particles

Better Living, Together with Energy-saving and Eco-friendly Technologies

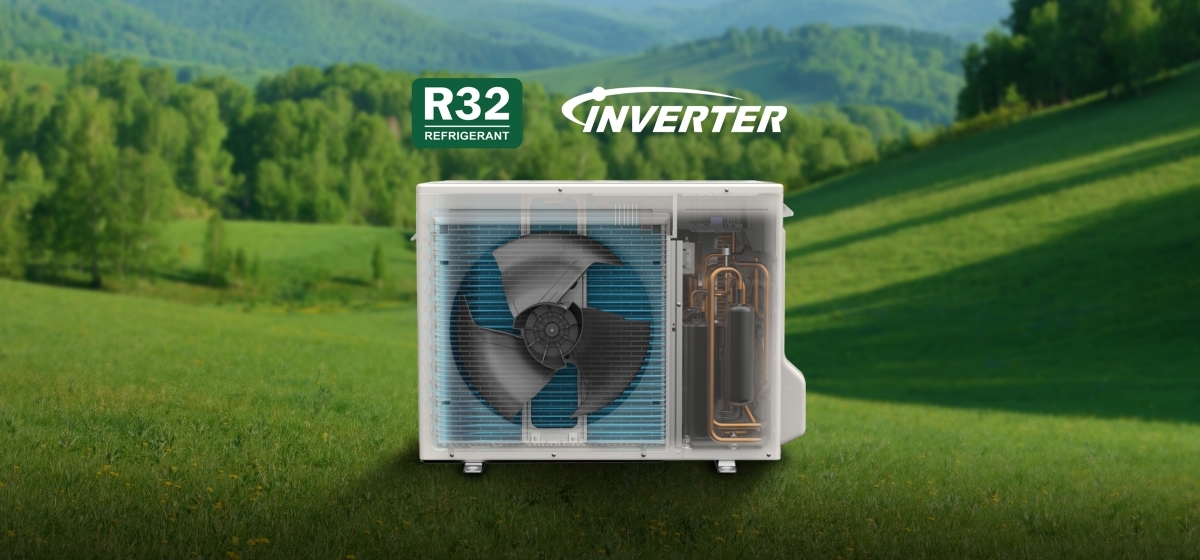

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.

LEARN MORE

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.

*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.

LEARN MORE

Intelligently Balances Energy Savings and Comfort

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode cools your room faster by 18%*, running both the compressor and indoor fan at super high speed for you to enjoy instant powerful cooling during start-up.

*Comparison of POWERFUL cool mode & normal cool mode by using 1.5HP Inverter Model.

LEARN MORE

Instant Powerful Cooling with a Push of a Button

Comfort Cooling Environment for Your Needs

Long Airflow with Big Flap

Big bottom flap directs cooling and comforting air across the room for an optimal cooling sensation.

*Applicable to CS-XPU9XKH-8, CS-XPU12XKH-8 and CS-XPU18XKH-8 only.

Stay Cool with Faster, Further Airflow

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.

*Applicable to CS-XPU18XKH-8B and CS-XPU24XKH-8 only.

Calm and Peaceful Environment with Quiet Mode

Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.

Range

Model
Horsepower		1.0	1.5	2.0	2.0	2.5
Cooling Capacity	kW	2.65	3.50	5.00	5.15	6.10
Cooling Capacity	Btu/h	9,040	11,900	17,100	17,600	20,800
Indoor Unit		CS-XPU9XKH-8	CS-XPU12XKH-8	CS-XPU18XKH-8	CS-XPU18XKH-8B	CS-XPU24XKH-8
Outdoor Unit		CU-XPU9XKH-8	CU-XPU12XKH-8	CU-XPU18XKH-8	CU-XPU8XKH-8B	CU-XPU24XKH-8
Recommended Price (inclusive of VAT)		12,750,000 VND	15,510,000 VND	23,450,000 VND	23,450,000 VND	31,610,000 VND
Detailed Page		See More	See More	See More	See More	See More

Specs

CU_CS-XPU9XKH-8

nanoe X Generator Mark 1
POWERFUL Mode
nanoe-G
BIG FLAP
AEROWINGS
Inverter
ECO Mode with A.I. Control
R32 Refrigerant
Quiet Mode
Sleep Mode

nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours

Big bottom flap helps direct cool air across the room (Applicable to selected models)

AEROWINGS concentrates cool air for further and faster airflow across the room (Applicable to selected models)

POWERFUL Mode lets you enjoy instant powerful cooling during start-up

Energy savings with Inverter and environmentally friendly R32 refrigerant

Balances energy savings and comfort using ECO Mode with A.I. Control

	CU_CS-XPU9XKH-8	CU_CS-XPU12XKH-8	CU_CS-XPU18XKH-8	CU_CS-XPU18XKH-8B	CU_CS-XPU24XKH-8
Model Name	XPU9XKH-8	XPU12XKH-8	XPU18XKH-8	XPU18XKH-8B	XPU24XKH-8
Cooling Capacity (min-max) (kW)	2.65 (0.84-2.90) kW	3.50 (1.02-4.00) kW	5.00 (1.10-5.40) kW	5.15 (1.10-5.80) kW	6.10 (1.12-7.18) kW
Cooling Capacity (min-max) (Btu/h)	9,040 (2,860-9,890) Btu/h	11,900 (3,480-13,600) Btu/h	17,100 (3,750-18,400) Btu/h	17,600 (3,750-19,800) Btu/h	20,800 (3,820-24,500) Btu/h
EER (min-max) (Btu/hW)	11.30 (12.71-10.99) Btu/hW	11.12 (12.65-11.06) Btu/hW	10.30 (12.93-10.22) Btu/hW	11.35 (12.93-11.25) Btu/hW	12.61 (15.28-11.95) Btu/hW
EER (min-max) (W/W)	3.31 (3.73-3.22) W/W	3.27 (3.71-3.25) W/W	3.01 (3.79-3.00) W/W	3.32 (3.79-3.30) W/W	3.70 (4.48-3.50) W/W
CSPF (W/W)	4.81 W/W	5.07 W/W	5.09 W/W	5.96 W/W	6.24 W/W
Voltage (V)	220 V	220 V	220 V	220 V	220 V
Current (A)	3.9 A	5.0 A	7.7 A	7.1 A	7.7 A
Power Input (min-max) (W)	800 (225-900) W	1,070 (275-1,230) W	1,660 (290-1,800) W	1,550 (290-1,760) W	1,650 (250-2,050) W
Moisture Removal (L/h)	1.6 L/h	2.0 L/h	2.8 L/h	2.9 L/h	3.4 L/h
Moisture Removal (Pt/h)	3.4 Pt/h	4.2 Pt/h	5.9 Pt/h	6.1 Pt/h	7.2 Pt/h
Indoor Unit Air Circulation	10.3 m³/min (365 ft³/min)	11.0 m³/min (390 ft³/min)	12.6 m³/min (445 ft³/min)	18.7 m³/min (660 ft³/min)	19.2 m³/min (680 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)	36/26/21 dB(A)	37/28/21 dB(A)	44/34/28 dB(A)	44/32/28 dB(A)	45/34/29 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)	290 mm x 779 mm x 209 mm	290 mm x 779 mm x 209 mm	290 mm x 779 mm x 209 mm	295 mm x 1,040 mm x 244 mm	295 mm x 1,040 mm x 244 mm
Indoor Unit Dimensions (H x W x D) (inch)	11-7/16 inch x 30-11/16 inch x 8-1/4 inch	11-7/16 inch x 30-11/16 inch x 8-1/4 inch	11-7/16 inch x 30-11/16 inch x 8-1/4 inch	11-5/8 inch x 40-31/32 inch x 9-5/8 inch	11-5/8 inch x 40-31/32 inch x 9-5/8 inch
Indoor Unit Net Weight	8 kg (18 lb)	8 kg (18 lb)	9 kg (20 lb)	12 kg (26 lb)	12 kg (26 lb)
Outdoor Unit Air Circulation	26.7 m³/min (940 ft³/min)	30.2 m³/min (1,065 ft³/min)	39.3 m³/min (1,390 ft³/min)	39.3 m³/min (1,385 ft³/min)	34.9 m³/min (1,230 ft³/min)
Outdoor Unit Noise Level (H)	47 dB(A)	48 dB(A)	51 dB(A)	50 dB(A)	51 dB(A)
Outdoor Unit Dimensions (H x W x D) (mm)	511 mm x 650 mm x 230 mm	542 mm x 780 mm x 289 mm	619 mm x 824 mm x 299 mm	619 mm x 824 mm x 299 mm	619 mm x 824 mm x 299 mm
Outdoor Unit Dimensions (H x W x D) (inch)	20-1/8 inch x 25-19/32 inch x 9-1/16 inch	21-11/32 inch x 30-23/32 inch x 11-13/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch	24-3/8 inch x 32-15/32 inch x 11-25/32 inch
Outdoor Unit Net Weight	18 kg (40 lb)	23 kg (51 lb)	29 kg (64 lb)	29 kg (64 lb)	32 kg (71 lb)
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)	ø 9.52 mm (3/8 inch)	ø 12.70 mm (1/2 inch)	ø 12.70 mm (1/2 inch)	ø 12.70 mm (1/2 inch)
Pipe Extension (Chargeless Pipe Length)	7.5 m	7.5 m	10 m	10 m	10 m
Pipe Extension (Maximum Pipe Length)	20 m	20 m	30 m	30 m	30 m
Pipe Extension (Maximum Elevation Length)	15 m	15 m	20 m	20 m	20 m
*Pipe Extension (Additional Refrigerant Gas)**	10 g/m	10 g/m	15 g/m	15 g/m	15 g/m
Power Supply	Indoor	Indoor	Indoor	Indoor	Indoor
Inverter Control	Yes	Yes	Yes	Yes	Yes
Powerful Mode	Yes	Yes	Yes	Yes	Yes
ECO Mode with A.I.	Yes	Yes	Yes	Yes	Yes
Sleep Mode	Yes	Yes	Yes	Yes	Yes
Quiet Mode	Yes	Yes	Yes	Yes	Yes
Soft Dry Operation Mode	Yes	Yes	Yes	Yes	Yes
Personal Airflow Creation	No	No	No	Yes	Yes
Airflow Direction Control (Up & Down)	Yes	Yes	Yes	No	No
Manual Horizontal Airflow Direction Control	Yes	Yes	Yes	No	No
nanoe™ X	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)	Yes (Generator Mark 1)
nanoe-G	Yes	Yes	Yes	Yes	Yes
Odour Removing Function	Yes	Yes	Yes	Yes	Yes
Removable Washable Panel	Yes	Yes	Yes	Yes	Yes
24-Hour Dual ON & OFF Real Setting Timer	Yes	Yes	Yes	Yes	Yes
LCD Wireless Remote Control	Yes	Yes	Yes	Yes	Yes
Wired Remote Control	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)
Random Auto Restart	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes	Yes	Yes	Yes	Yes
Long Piping (max.)	20 m	20 m	30 m	30 m	30 m
Top Panel Maintenance Access	Yes	Yes	Yes	Yes	Yes
Self-Diagnostic Function	Yes	Yes	Yes	Yes	Yes
Note	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
