R32 Non-Inverter

High energy-saving performance, compact, and easy to install

R32 Non-Inverter with environmentally friendly refrigerant delivers powerful performance with energy-efficiency. These compact outdoor units are designed to fit into any space or layout.

Please Select Your User Type

R32 Non-Inverter

Promotion

Reach out to Panasonic-Affiliated Installers through Zalo

A must-see if you’re considering installing air conditioner for your office, store, or large residential buildings. You can easily request a quote or inquire with a highly experienced installer directly who will take care of your needs.

FIND INSTALLERS

Reach out to Panasonic-Affiliated Installers through Zalo

Features

Btu/h (rated)	18,500	25,000	30,000	30,000	36,000	42,000	48,500
Phase	1Ø Phase	1Ø Phase	1Ø Phase	3Ø Phase	3Ø Phase	3Ø Phase	3Ø Phase
Indoor Unit	S-19PU1H5B	S-25PU1H5B	S-30PU1H5B	S-30PU1H5B	S-36PU1H5B	S-42PU1H5B	S-50PU1H5B
Outdoor Unit	U-19PN1H5	U-25PN1H5	U-30PN1H5	U-30PN1H8	U-36PN1H8	U-42PN1H8	U-50PN1H8

Eco-Friendly R32 Refrigerant

Panasonic recommends R32 because it is comparably environmentally friendly. Compared to R22 and R410A, R32 has a very low potential impact on the depletion of the ozone layer and global warming.

High Durable Outdoor Unit

Prevents Unit Stoppages Due to Short Circuits Caused by Geckos

One of the common causes of failures of the outdoor unit is geckos entering the unit. In this unit, the internal PCB has been removed to prevent electrical short circuits, thus eliminating any operation stoppages.

Note
･Supports for U-19PN1H5-1, U-25PN1H5-1, U-30PN1H5-1. Single phase only.
･The product image shown is for illustration purposes only and may not be an exact representation of the product.

Prevents Unit Stoppages Due to Short Circuits Caused by Geckos

In-House Manufactured Compressor with Outstanding Durability

Compressors are the heart of the air conditioner. Panasonic takes responsibility for the manufacture of all of its own products to ensure their durability.

Note: The product image shown is for illustration purposes only and may not be an exact representation of the product.

In-House Manufactured Compressor with Outstanding Durability

Rust-resistant and Easy to Maintain

Panasonic heat exchangers feature Blue Fin technology to prevent corrosion and ensure long-lasting performance. Panasonic uses a copper tube condenser, which makes it easy to repair and maintain.

Note
･Selecting this unit does not completely eliminate the possibility of rust developing. For details concerning unit installation and maintenance, please consult an authorised dealer.
･The product image shown is for illustration purposes only and may not be an exact representation of the product.

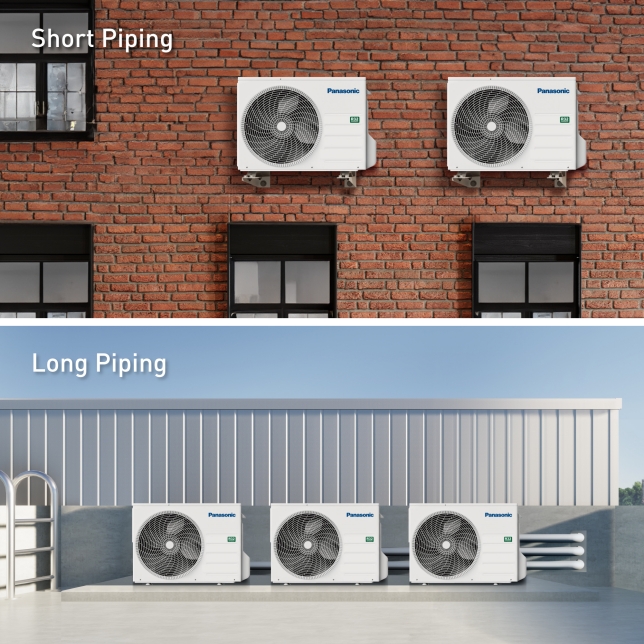

Long Piping Allows Flexible Installation

The maximum chargeless piping length is 7.5 m, but it can be extended up to 50 m with additional gas charging for greater installation flexibility.

*Supports for U-42PN1H8-1, U-50PN1H8-1, U-55PN1H8-1 **Supports for U-30PN1H5-1, U-30PN1H8-1, U-36PN1H8-1, U-42PN1H8-1, U-50PN1H8-1, U-55PN1H8-1

Long Piping Allows Flexible Installation

Easy Installation

The maximum chargeless piping length is 7.5 m, but it can be extended up to 50 m with additional gas charging for greater installation flexibility.

*Supports for U-42PN1H8-1, U-50PN1H8-1, U-55PN1H8-1 **Supports for U-30PN1H5-1, U-30PN1H8-1, U-36PN1H8-1, U-42PN1H8-1, U-50PN1H8-1, U-55PN1H8-1

Panasonic outdoor units are designed to be compact enough to fit into any layout.

*Comparison between U-35PV1H8-1 and U-36PN1H8-1. **Comparison between U-55PV1H8-1 and U-55PN1H8-1. ***42PN: 75 kg, 50PN: 77 kg

A Compact Outdoor Unit for Places Where Space Is Limited

Specs

U-19PN1H5

U-25PN1H5

U-30PN1H5

U-30PN1H8

U-36PN1H8

U-42PN1H8

U-50PN1H8

R32 Refrigerant

Next generation R32 refrigerant

Space-saving outdoor unit

Flexible installation

High efficiency

Long piping

High durability outdoor unit

	U-19PN1H5	U-25PN1H5	U-30PN1H5	U-30PN1H8	U-36PN1H8	U-42PN1H8	U-50PN1H8
Sound Pressure Level	50 dB (A)	52 dB (A)	54 dB (A)	54 dB (A)	55 dB (A)	58 dB (A)	58 dB (A)
Sound Power Level	66 dB	68 dB	69 dB	69 dB	70 dB	72 dB	72 dB
Dimension	H619 x W824 x D299 mm	H619 x W824 x D299 mm	H695 x W875 x D320 mm	H695 x W875 x D320 mm	H695 x W875 x D320 mm	H996 x W980 x D370 mm	H996 x W980 x D370 mm
Net Weight	36 kg	42 kg	56 kg	56 kg	56 kg	75 kg	78 kg
Piping Connection (Gas Pipe)	12.70 mm (1/2 inch)	12.70 mm (1/2 inch)	15.88 mm (5/8 inch)	15.88 mm (5/8 inch)	15.88 mm (5/8 inch)	15.88 mm (5/8 inch)	15.88 mm (5/8 inch)
Piping Connection (Liquid Pipe)	6.35 mm (1/4 inch)	6.35 mm (1/4 inch)	9.52 mm (3/8 inch)	9.52 mm (3/8 inch)	9.52 mm (3/8 inch)	9.52 mm (3/8 inch)	9.52 mm (3/8 inch)
Pipe Length (Min-Max)	7.5-30 m	7.5-30 m	7.5-45 m	7.5-45 m	7.5-45 m	7.5-50 m	7.5-50 m
Elevation Difference	20 m	20 m	30 m	30 m	30 m	30 m	30 m
Maximum Chargeless Length (Max)	7.5 m	7.5 m	7.5 m	7.5 m	7.5 m	7.5 m	7.5 m
Refrigerant Type, Additional Gas	R32, 15 g/m	R32, 15 g/m	R32, 25 g/m	R32, 25 g/m	R32, 25 g/m	R32, 25 g/m	R32, 25 g/m
Operation Range, Outdoor (Min-Max)	16-43 °C	16-43 °C	16-43 °C	16-43 °C	16-43 °C	16-43 °C	16-43 °C

Documents

Combination

R32 Non-Inverter 4-Way Cassette

R32 Non-Inverter 4-Way Cassettes, featuring 360° comfortable airflow, deliver a cleaner environment thanks to nanoe™ X. With their ease of installation and sleek exterior, they are a perfect match for modern interiors. They are also more environmentally friendly thanks to their use of R32 refrigerant.
