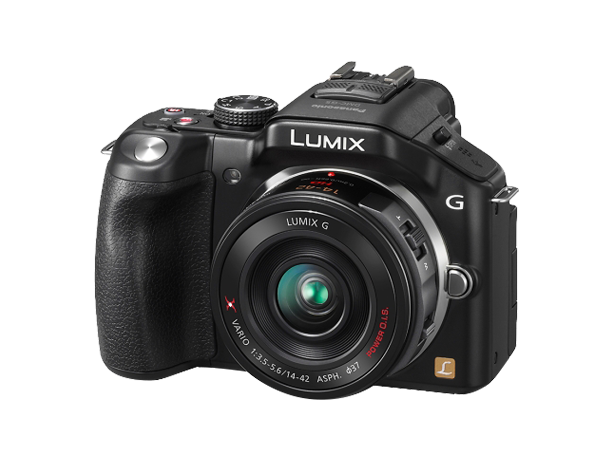

DMC-G5 Compact System Camera
| TYPE | Type | Digital Single Lens Mirrorless camera | |
|---|---|---|---|
| Recording media | SD memory card, SDHC memory card, SDXC memory card (Compatible with UHS-I standard SDHC/SDXC memory cards) | ||
| Image sensor size | 17.3 x 13.0 mm (in 4:3 aspect ratio) | ||
| Lens Mount | Micro Four Thirds mount | ||
| IMAGE SENSOR | Type | Live MOS Sensor | |
| Total pixels | 18.31 Megapixels | ||
| Camera effective pixels | 16.05 Megapixels | ||
| Colour filter | Primary color filter | ||
| Dust reduction system | Supersonic wave filter | ||
| RECORDING SYSTEM | Recording file format | Still Image: JPEG(DCF, Exif 2.3), RAW, | |
| Aspect ratio | 4:3, 3:2, 16:9, 1:1 | ||
| Image quality | RAW, RAW+Fine, RAW+Standard, Fine, Standard, | ||
| Color Space | sRGB, Adobe RGB | ||
| File size(Pixels) | Still Image | [4:3] 4608x3456(L) / 3264x2448(M) / 2336x1752(S) / 1824x1368(When attaching 3D lens in Micro Four Third System standard) | |
| Motion Image (MP4*1 : NTSC area) | [Full HD]1920×1080, 30fps (sensor output is 30p) | ||
| Motion Image (MP4*1 : PAL area) | [Full HD] 1920×1080, 25fps (sensor output is 25p) | ||
| Motion Image (AVCHD Progressive*2:NTSC area) | [Full HD] 1920x1080, 60p (sensor output is 60p) (PSH: 28Mbps) | ||
| Motion Image (AVCHD*1 : NTSC area) | [Full HD] 1920x1080, 60i (sensor output is 60p) (FSH: 17Mbps) | ||
| Motion Image (AVCHD*1 : PAL area) | [Full HD] 1920x1080, 50i (sensor output is 50p) (FSH : 17Mbps) | ||
| Motion Image (AVCHD Progressive*2:PAL area) | [Full HD] 1920×1080, 50p (sensor output is 50p) (PSH : 28Mbps) | ||
| Continuous recordable time (Motion images)*3 | AVCHD with picture quality set to [FSH]: Approx. 150 min with H-PS14042 | ||
| Flicker reduction | [1/50] / [1/60] / [1/100] / [1/120] / OFF | ||
| Actual recordable time (Motion images) | AVCHD with picture quality set to [FSH]: Approx. 75 min with H-PS14042 | ||
| VIEWFINDER | Type | Live View Finder (1,440,000 dots equivalent) | |
| Field of view | Approx. 100% | ||
| Magnification | Approx. 1.4x / 0.7x (35mm camera equivalent) with 50mm lens at infinity; -1.0 m -1 | ||
| Eye point | Approx.17.5mm from eyepiece lens | ||
| Diopter adjustment | -4.0~+4.0（dpt） | ||
| Eye sensor | Yes | ||
| Eye sensor adjustment | High / Low | ||
| FOCUS | Type | Contrast AF system | |
| Focus mode | AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF | ||
| AF detective range | EV 0 - 18 (ISO100 equivalent) | ||
| AF assist lamp | YES | ||
| AF lock | Set the Fn button in custom menu to AF lock | ||
| Others | Quick AF, Continuous AF (during motion image recording), AF+MF, Eye Sensor AF, Touch AF, Touch Pad AF, Touch shutter, Touch MF Assist, | ||
| AF mode | Face detection / AF Tracking / 23-area-focusing / 1-area-focusing / Pinpoint | ||
| EXPOSURE CONTROL | Light metering system | 144-zone multi-pattern sensing system | |
| Light metering mode | Intelligent Multiple / Center Weighted / Spot | ||
| Metering range | EV 0 - 18 (F2.0 lens, ISO100 equivalent) | ||
| Exposure mode | Program AE, Aperture Priority AE, Shutter Priority AE, Manual, | ||
| ISO sensitivity (Standard Output Sensitivity) | Auto / Intelligent ISO / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 | ||
| Exposure compensation | 1/3EV Step ±5EV | ||
| AE lock | Set the Fn button in custom menu to AE lock | ||
| AE bracket | 3,5,7 frame, in 1/3 or 2/3 or 1EV Step, ±3 EV | ||
| WHITE BALANCE | White balance | Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2 / Color temperature setting | |
| White balance adjustment | Blue/amber bias, Magenta/green bias | ||
| Color temperature setting | 2500-10000K in 100K | ||
| White balance bracket | 3 exposures in blue/ amber axis or in magenta/ green axis | ||
| SHUTTER | Type | Focal-plane shutter | |
| Shutter speed | Still Images: Bulb (Max.120), 1/4000 ~ 60 | ||
| Self timer | 10sec, 3 images/ 2sec / 10sec | ||
| BURST SHOOTING | Burst speed | SH : 20.0 frames/sec, H: 6.0 frames/sec(with AFS), M: 3.7 frames/sec (with Live View), L: 2.0 frames/sec (with Live View) | |
| Number of recordable images | 9 images (when there are RAW files with the particular speed) | ||
| SCENE GUIDE | Still image | Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Glistening Water / Clear Nightscape / Cool Night Sky / | |
| Video | Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Clear Nightscape / Cool Night Sky / | ||
| FLASH | Flash Mode | Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction, | |
| Synchronization speed | Less than 1/160 second | ||
| Flash synchronization | 1st. Curtain Sync, 2nd Curtain Sync. | ||
| MONITOR | Type | TFT LCD with Touch panel | |
| Monitor size | Free-angle 3.0inch (7.5cm)/ 3:2 Aspect / Wide-viewing angle | ||
| Pixels | 920K dots | ||
| Filed of view | Approx. 100% | ||
| Monitor adjustment | Brightness (7 levels), Contrast and Saturation (7 levels), Red tint (7 levels), Blue tint (7 levels) | ||
| LIVE VIEW | Digital zoom | 2x, 4x | |
| Extra Tele Conversion | Still image: Max.2x (Aspect ratio sets at 4:3. Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.) | ||
| Other functions | Guide Lines (3 patterns) | ||
| LEVEL GAUGE | Level Gauge | Yes (Built-in 3 shaft accelerometer sensor) | |
| PHOTO STYLE | Still image and Video | Standard / Vivid / Natural / Monochrome / Scenery / Portrait / Custom | |
| CREATIVE CONTROL | Still image | Expressive / Retro / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Miniature Effect / Soft Focus / Star Filter / One Point Color | |
| Video | Expressive / Retro / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Miniature Effect / One Point Color | ||
| DIRECTION DETECTION FUNCTION | Direction Detection Function | Yes | |
| FUNCTION BUTTON | Fn1, Fn2, Fn3, Fn4, Fn5 | One Push AE / Preview / Level Gauge / Focus Area Set / Photo Style / Aspect Ratio / Picture Size / Quality / Focus Mode / Metering Mode / HDR / Flash / | |
| FUNCTION LEVER | FUNCTION LEVER | Yes (AUTO/Zoom/EXP.) | |
| PLAYBACK | Playback mode | Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (16x Max.), Slideshow (duration & effect is selectable), Playback Mode (Normal/Picture/Video/3D Play/Category/Favorite), | |
| IMAGE PROTECTION / ERASE | Protection | Single / Multi, Cancel | |
| Erase | Single / Multi / All / Except Favorite | ||
| Direct Print | PictBridge compatible（Print size, Layout, Date setting are selectable ） | ||
| INTERFACE | USB | USB 2.0 High Speed | |
| HDMI | miniHDMI TypeC | ||
| Audio video output | Monaural Type, NTSC/PAL, NTSC only for North America | ||
| Microphone | Stereo, Wind-cut: Off / Auto | ||
| Speaker | Monaural | ||
| LANGUAGE | OSD language | Japanese, English, German, French, Italian, Spanish(English) | |
| POWER | Battery | Li-ion Battery Pack (7.2V, 1200mAh) (Included) | |
| Battery life (CIPA standard) | Approx. 320 images with H-PS14042 | ||
| Dimensions/ Weight | Dimensions (W x H x D) | 119.9 x 83.2 x 70.8 mm / 4.72 x 3.28 x 2.79 inch (excluding protrusions) | |
| Weight | Approx. 396g / 0.87 lb （SD card, Battery, Body) | ||
| OPERATING ENVIRONMENT | Operating temperature | 0℃ to 40℃ (32°F to 104°F) | |
| Operating humidity | 10% RH to 80％ RH | ||
| STANDARD ACCESSORIES | Software | PHOTOfunSTUDIO 8.2 PE | |
| Standard accessories | Battery pack, Battery Charger, Body Cap, | ||
| NOTE | *1 Use a card with SD Speed Class with "Class4" or higher | ||
