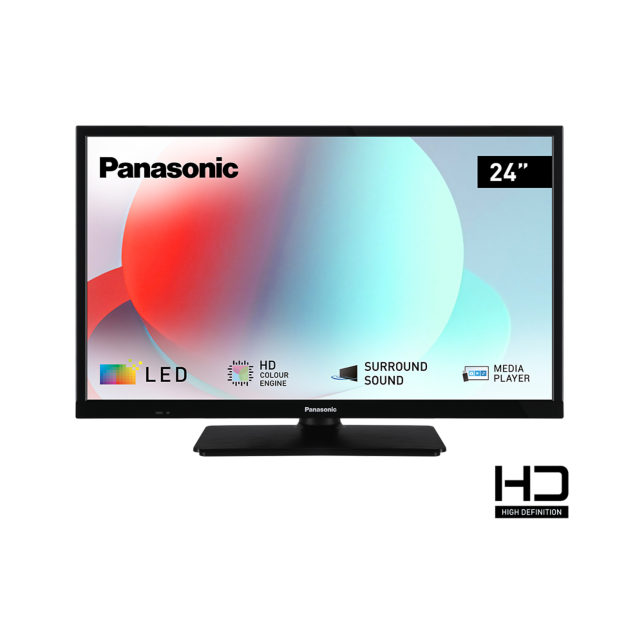

Panasonic N30 Series HD LED TVs
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
TS-24N30AEY
HD LED TV with unbeatable
HD performance at affordable price
The N30 HD LED Series with HD resolution offers attractive black design and unbeatable performance. Enjoy home entertainment with this straight-forward easy-to-use model. Smooth access and play your personal content such as videos, music, photos and more via USB Media Player. HDR compatibility ensures a high contrast picture.
*Design, functions and specifications are subject to change without notice.
Features
HD Picture Performance
TV model N30 with the High Definition offers an more Enhanced visual quality from TV broadcasting – if you’re upgrading from a standard definition model. Nature programmes look more real and dramas will pop from the screen – all helped with high contrast technology.
High Contrast Images
N30 Series TVs offer improved contrast performance. Blacks are deeper and whites brighter for more dynamic images, while the colour palette is expanded when viewing from compatible sources.
USB Media Player
With the USB Media Player you can decide what is played on your TV. Just connect a USB drive to the socket and access personal content stored on USB: music, videos or photos. This feature makes this TV an ideal companion also for the kids-room.
Flexible Viewing Options
Enjoy TV for example in your bedroom without any hassle, thanks to the versatile viewing features of the N30 Series: With DVB digital terrestrial, satellite and cable all built-in – HD Triple Tuner offers many routes to a great picture. It can also easily be connected via HDMI.
Wallmount Option
The most significant benefit of wall mounted TVs is the space it saves you. Because the N30 Series has this option you don‘t need to take up floor space with a table or bulky TV furniture.
Space Saving &
Elegant Thin Frame
The N30 Series TVs feature a slim screen border, allowing them to fit seamlessly into any space while maintaining an elegant appearance. Since they are also available in compact sizes they are the ideal TVs for study, guest or small rooms.
Specs
Size and Weight
- Height
- 372mm
- Width
- 553mm
- Depth
- 134mm
- Weight
- 3.75kg
HD Resolution with LED for sharp and beautiful images
Deep blacks and bright whites for more dynamic images
Wallmount option to save floor space
Compact TV sizes fitting smaller rooms
USB Media Player to easily access personal content stored on USB
Digital TV: up-to-date with all present and future DVB transmission standards
-
Panel Technology
-
2K LCD
-
-
Resolution (W x H)
-
HD Ready/1,366 x 768
-
-
Panel Refresh Rate
-
60Hz
-
-
Smooth Motion Drive Pro
-
—
-
-
Multi HDR Support*²
-
—
-
-
Dimming/Contrast
-
High Contrast
-
-
Colour Space
-
N
-
-
Dolby Vision IQ
-
N
-
-
HDR10+ Adaptive
-
N
-
-
Filmmaker Mode
-
N
-
-
Processor/Engine
-
HD Colour engine
-
-
Auto AI for Picture
-
N
-
-
Picture Mode
-
Natural, Dynamic, Cinema, Sport
-
-
isf Mode
-
N
-
-
Calman READY
-
N
-
Sound
-
Dolby Atmos
-
N
-
-
Surround
-
Surround Sound
-
-
Speaker Output
-
5 W (2.5 W x 2)
-
-
Auto AI for Sound
-
N
-
-
Sound Mode
-
Smart, Movie, Music, News, Off
-
Smart Features*¹
-
Smart TV
-
Non Smart
-
-
TiVo Voice Assistant built-in
-
N
-
-
Works with Google Assistant
-
N
-
-
Alexa Built-in*⁴
-
N
-
-
Works with Alexa
-
N
-
-
Ambient Mode
-
N
-
-
Apple AirPlay*⁵
-
N
-
-
Apple Home*⁵
-
N
-
-
Home Network*⁶
-
N
-
-
IP Home Control
-
N
-
-
In-House TV Streaming (SATIP/DVB-IP)
-
N
-
-
Easy Mirroring/Chromecast built-in
-
N
-
-
Media Player
-
Y*¹⁸
-
Gaming
-
Game Mode
-
N
-
-
HDMI 2.1 VRR Support
-
N
-
-
HDMI 2.1 HFR Support
-
N
-
-
AMD Freesync Premium*⁷
-
N
-
-
G-Sync Compatible*⁸
-
N
-
Connectivity
-
Wireless LAN Built-in*⁹
-
N
-
-
Bluetooth*¹⁰
-
Y (5.0) (audio, HID)
-
-
Bluetooth Audio Link*¹¹
-
N
-
Terminal
-
HDMI Inputs*¹²
-
1 (side), 1 (rear)
-
-
HDCP
-
Y (HDCP1.4)
-
-
HDMI Support Feature
-
Audio Return Channel (Input 2,rear)
HDMI1.4
-
-
HDMI Signal Power Link
-
N
-
-
USB
-
1 (1 side, USB 2.0 x 1)
-
-
Ethernet
-
—
-
-
CI (Common Interface)
-
1 (CI Plus, Version 1.4, ECP)
-
-
Analogue Video Input
-
—
-
-
Component Video Input shared with Composite
-
RCA type x 1 (rear)
-
-
Digital Audio Output (Optical)
-
—
-
-
Digital Audio Output (Coax)
-
1 (rear)
-
-
PC input (VGA) + PC Audio In
-
—
-
-
Headphone Output
-
1 (side)
-
Broadcasting
-
Digital Tuner
-
DVB-T/T2/DVB-S2/DVB-C
-
-
Analogue Tuner
-
Y
-
-
Data Broadcasting
-
N
-
-
USB-HDD Recording*¹³
-
N
-
-
Multi Window
-
N
-
-
HDAVI Control
-
Y
-
-
Voice Guidance
-
Y
-
-
EPG
-
Y
-
-
Twin Tuner
-
—
-
Design
-
—
Energy Data
-
Suppliers Trademark
-
Panasonic
-
-
Model ID
-
TS-24N30AEY
-
-
Energy Efficiency Class
-
SDR: E; HDR: G
-
-
Visible Screen Size (diagonal)
-
60 cm / 24 inches
-
-
On mode Average Power Consumption*¹⁴
-
SDR: 16 kWh/1,000h
-
-
Annual Energy Consumption*¹⁵
-
—
-
-
Standby Power Consumption
-
<0.5W
-
-
Off mode Power Consumption
-
NA
-
-
Screen Resolution
-
1,366 x 768
-
-
Power Supply
-
AC 220 - 240 V, 50/60 Hz
-
-
Rated Power Consumption
-
—
-
-
Ambient Sensor (CATS)
-
N
-
General
-
Included Accessory*¹⁶
-
TV Remote
-
-
Dimensions (W x D x H) (w/o stand)
-
553 x 63 x 334 mm
-
-
Dimensions (W x D x H) (with stand)*¹⁷
-
553 x 134 x 372 mm
-
-
Weight (w/o stand)
-
3.60 kg
-
-
Weight (with stand)
-
3.75 kg
-
-
Dimension Pedestal (W x D x H)
-
280 x 134 x 24 mm
-
-
VESA Compatible
-
Y
-
-
VESA Dimension (W x D x H)
-
75x75(M4)
-
-
Outer Boxed Unit (W x H x D)
-
629 x 468 x 114 mm
-
-
Total Boxed Weight
-
5.00 kg
-
Note
-
*1 Features and specifications are subject to change without prior notification. Internet connection is required with smart functions.
*2 All models: Supporting HDR does not increase the peak brightness capabilities of the TV panel.
Full HD & HD models: The ability to send a non 4K HDR signal via HDMI depends fully on the playback device. The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR. Please check the HDCP version of HDMI inputs. Not all HDR contents are guaranteed to be enjoyed on the TV.
*3 Google, Google TV and Chromecast built-in are trademarks of Google LLC. Google Assistant is not available in certain languages and countries
Requires internet connection. Subscriptions for services may be required.
*4 Amazon, Alexa is not available in certain languages and countries. Requires internet connection. Subscriptions for services may be required. Amazon, Fire, Alexa and all related marks are trademarks of Amazon.com, Inc. or its affiliates.
*5 Apple, Apple Home, AirPlay, and HomeKit are trademarks of Apple Inc., registered in the U.S. and other countries and regions. To use AirPlay and HomeKit, the latest version of iOS, iPadOS, or macOS is recommended.
*6 File formats that are not supported by your Network Contents server (DLNA compatible server, etc.) cannot be played.
*7 ©2023 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, FreeSync, and combinations thereof are trademarks of Advanced Micro Devices, Inc.
*8 ©2021 NVIDIA, the NVIDIA logo, and NVIDIA G-SYNC are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries.
*9 In case the password of the registered device or user is known by a third party, there is a risk of unauthorized entries. Keep your password safe. Panasonic will make no warranty for the unauthorised entries.
To prevent a risk of interception, unauthorised entries and hacking, set up the proper security settings (encryption setting).
*10 HID (Human Interface Device Profile) compliant keyboards are available. A2DP (Advanced Audio Distribution Profile) compliant audio devices are available. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.
*11 When a Bluetooth device is connected to the TV, it is possible that the Bluetooth audio output may not be synchronized (i.e. be delayed) with relation to the images on the screen. This is not a defect of the TV or the device. The delay time will differ depending on the device.
*12 The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
*13 This feature requires a USB hard drive or flash drive with a capacity of at least 160 GB.
*14 Based on (EU) 2019/2021 transitional measurement method.
*15 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
*16 Not all the accessories are listed here.
*17 Dimension with recommended pedestal style.
*18 To playback HDR, a HDR source is required (H.264 or H.265(ST2084 or HLG format)).
*19 39 Languages (Danish, German, Estonian, English, Spanish, Greek, French, Gaelic, Gallegan, Croatian, Italian, Latvian, Lithuanian, Luxembourgish, Hungarian, Dutch, Norwegian, Polish, Portuguese, Russian, Romanian, Albanian, Slovenian, Slovak, Serbian, Finnish, Swedish, Turkish, Czech, Ukrainian, Bulgarian, Arabic, Persian, Hebrew, Belarusian, Flemish, Macedonian, Montenegrin, Kazakh)
