Panasonic 48 inch 4K OLED Android TV TX-48MZ800B

TX-48MZ800B

Panasonic 4K OLED Android TV™ with brilliant colours and immersive sound

This MZ800 Series 4K 48 inch OLED Android TV brings content to life. Enjoy accurate detail, brilliant colours and deep blacks, thanks to the OLED panel. Experience the best picture and sound quality thanks to built-in subwoofer. Discover 400,000+ movies and shows in one place. Ask Google to control your TV with your voice. And cast your photos, videos, and music from devices to your TV easily with Chromecast built-in™.

*Subscription for services may be required

Add to WishlistRemove from Wishlist

TX-48MZ800B

Features

Superior OLED images for an incredibly cinematic experience

4K OLED TVs have individually illuminated cells, to create natural colour and high contrast – where black, really is black. The 4K Colour Engine Pro finesses colour accuracy, contrast and clarity for great picture performance. Enjoy next-level cinematic picture performance.

Put your small screen on your big screen

Go from your phone, tablet, or laptop to your TV in an instant. With Chromecast built-in, you can cast all your favourite movies, shows, apps, games, and more directly to your TV.

*Casting optimised for selected services only.

Put your small screen on your big screen

State-of-the-art picture and sound quality

With ultravivid colours, sharper contrasts, and richer details, Dolby Vision® and HDR10+ gives you spellbinding picture quality. A great picture is one thing, but it’s so much more exciting when you add great sound. Our sound processing, with added immersive Dolby Atmos® technology, can make it feel like you’re sitting in the best seat in the stadium and the front firing speakers, including a built-in subwoofer to drive the bass, offer an immersive sound – elevating entertainment to new levels.

Convenient Bluetooth Connectivity

Equipped with Bluetooth® our MZ800 Series 48 inch OLED TV allows you to pair your TV with any Bluetooth enabled audio device, such as soundbars, headphones or speakers wirelessly and thus enhance your audio experience even further.

Ready for Gaming

Want to switch from watching TV to gaming? No problem, just select Game Mode using the TV remote to reduce input lag so the on-screen action reacts instantly to your commands, thanks to the “Auto Low Latency Mode” (ALLM) covered by HDMI 2.1. As a gamer you will also appreciate our Media player and access to TWITCH via Google Play.

Beautiful Frameless Design

This TV not only brings together smartness with high standards of picture and sound quality, it is also something for the eyes with its beautiful discreet frameless design: a perfect centrepiece for every living room.

Get Inspired

Specs

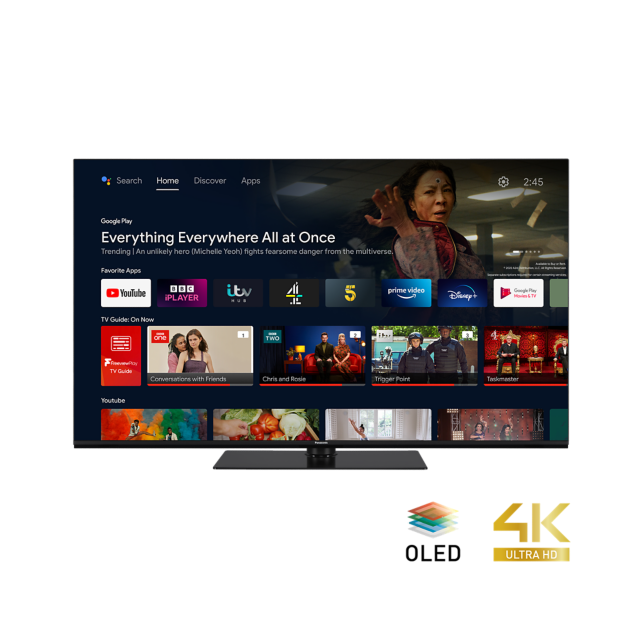

Photo of Panasonic 48 inch 4K OLED Android TV TX-48MZ800B

Size and Weight

Height: 659mm

Width: 1068mm

Depth: 221mm

Weight: 18.7kg

Google, Google Play, Android TV, Chromecast built-in and other marks are trademarks of Google LLC.
Google Assistant is not available in certain languages and countries. Availability of services varies by country and language.
Subscription required for Streaming Services.

Android TV – A smarter way to watch

Google Assistant – Do more on your TV with your voice

Chromecast built-in – Put your small screen on your big screen

Dolby Atmos – For immersive sound, thanks to built-in subwoofer

Dolby Vision/HDR10+/HLG – For the best picture performance

Frameless Design – An elegant eye catcher for an unobstructed view

Picture Quality

Display
- Panel
  - OLED 4K
- Resolution (W x H)
  - 4K Ultra HD/3,840 x 2,160 (up to 120Hz)
- Panel Drive
  - Smooth Motion Drive PRO
- Picture Mode
  - Standard/Vivid/Sport/Movie/Game/Dolby Vision
- Muti HDR Support*²
  - HDR10+/HDR10/HLG/Dolby Vision
- HDR Brightness Enhancer
  - Y
- Dynamic HDR Effect
  - N
- Contrast
  - Ultimate Contrast
- Colour Space
  - Wide Colour Spectrum
- Advanced Video Processor/Engine
  - 4K Colour engine PRO
- Local Dimming
  - N
- Adaptive Backlight Dimming
  - N
- Filmmaker Mode
  - N
- THX Certified Display*³
  - N
- isf Mode
  - N
Sound Quality
- Dolby Atmos
  - Y
- Surround
  - Y
- Speaker Output
  - 20 W (10 W x 2) + 12W woofer
- Sound Mode
  - User, Standard, Vivid, Sport, Movie, Music, News
    Dolby DAP: Game, Movie, Music, News, Stadium, Smart

Smart Features

Smart TV
- Android TV (v.11)
Voice Personal Assistant
- Google Assistant Built-In
Voice Guidance
- Y
EPG
- Y
On Screen Display Menu Languages
- 35 Languages*¹⁶
Digital TV
- DVB-T/T2/C/S/S2 - HEVC
Twin Tuner
- —
Wireless LAN Built-in
- Y
In-House TV Streaming (DVB-IP)
- —
Panasonic TV Remote Apps
- —
Swipe & Share
- —
Web Browser*⁵
- N
  (Web Browser can be downloaded from Google Play Store)
Mirroring
- Chromecast built in
Home Network*⁶
- N
Bluetooth*⁷
- Y
Bluetooth Audio Link*⁸
- N
IP Home Control
- N
Media Player
- Y
Support Format
- Video:.mpg/.mpeg/.dat/.vob/.mkv/.mp4/.m4v/.mov/.flv/.3gp/.3gpp/.ts/.trp/.tp/.rmvb/.rm/.avi/.265/.asf/.wmv/.webm/.ogm/.264/.avs/.vc1
  Audio:.mp3/.avi/.asf/.wmv/.divx/.mkv/.mka/.3gpp/.3gp/.mp4/.mov/.m4a/.ts/.trp/.tp/.mts/.m2ts/.dat/.vob/.mpg/.mpeg/.flv/.wav/.ogm/.ac3/.ec3/.aac/.wav/.rm/.rmvb/.ra/.ogg/.dts/.flac/.webm/.ac4
  Photo: .jpeg/.bmp/.png/.gif/.webP/.heif
Data Broadcasting
- Hbb TV 2.0.2
Teletext Reception
- 1000P
USB-HDD Recording*⁹
- Y
Multi Window
- N
HDAVI Control
- Y (CEC only)

Energy Data

Suppliers Trademark
- Panasonic
Model ID
- TX-48MZ800B
Visible Screen Size (diagonal)
- 121 cm / 48 inches
Resolution (W x H)
- 4K Ultra HD/3,840 x 2,160 (up to 120Hz)
Power Supply
- AC 220 - 240 V, 50/60 Hz
Rated Power Consumption
- -
Ambient Sensor (CATS)
- N

Design

Switch Design
- —

Terminal

Digital Tuner Reception
- DVB-T/T2/C (side)
  DVB-S/S2 (back)
Analogue Tuner
- Y
HDMI*¹²
- 2 (side), 1 (back)
HDMI (4K 60/50p with HDCP2.2)
- 3
Support Feature
- HDMI2.1
  eARC (enhanced Audio Return Channel) (Input 2)
  ALLM (Auto Low Latency Mode ) (All inputs)
USB
- 2 (2 side, USB 2.0 x 2) - USB Recording
Ethernet
- 1 (back)
CI (Common Interface)
- 1 (CI Plus, Version 1.4, ECP)
Scart Connector
- —
Component Video Input shared with Composite
- —
Digital Audio Output (Coax)
- —
Digital Audio Output (Optical)
- 1 (back)
PC input(VGA) + PC Audio In
- —
Headphone Output
- 1 (back)

General

Included Accessory*¹³
- TV Remote (Bluetooth/embedded microphone)
Dimensions (W x H x D) (w/o stand)
- 1068 x 625 x 46
Dimensions (W x H x D) (with stand)*¹⁴
- 1068 x 659 x 221
Dimension Pedestal
- 441 x 9 x 221
Weight (w/o stand)
- 15.0 kg
Weight (with stand)
- 18.7 kg
VESA Compatible
- Y
VESA Dimension
- 200x200 (M6)
Outer Boxed Unit (W x H x D)
- 1200 x 756 x 165
Total Boxed Weight
- 22,7 kg

Note

*2 All models: Supporting HDR does not increase the peak brightness capabilities of the TV panel.
Full HD & HD models: The ability to send a non 4K HDR signal via HDMI depends fully on the playback device. The majority of 4K Blu-ray discs require HDCP2.2 on TV to play back HDR, whereas the HDMI input on this TV support only HDCP1.4; accordingly not all HDR contents are guaranteed to be enjoyed on the TV.
*3 THX and the THX logo are trademarks of THX Ltd. which are registered in some jurisdictions. The THX 3D logo is a trademark of THX Ltd. All rights reserved.
*4 Due to network conditions or certain broadcaster restrictions, this function may not be available.
*5 The Web Browser is not available as pre-installed. However, end-user can download from Google Play store. And viewable contents by the Web Browser are subject to the following conditions;
- viewable contents may vary depend on models,
- viewable contents may differ from those for PC,
- viewable contents may be limited.
*6 File formats that are not supported by your Network Contents server (DLNA compatible server, etc.) cannot be played.
*7 HID (Human Interface Device Profile) compliant keyboards are available. A2DP (Advanced Audio Distribution Profile) compliant audio devices are available. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.
*8 When a Bluetooth device is connected to the TV, it is possible that the Bluetooth audio output may not be synchronized (i.e. be delayed) with relation to the images on the screen. This is not a defect of the TV or the device. The delay time will differ depending on the device.
*9 This feature requires a USB hard drive or flash drive with a capacity of at least 160 GB.
*10 Based on IEC 62087 Ed.2 measurement method.
*11 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
*12 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.
*13 Not all the accessories are listed here.
*14 Dimension with recommended pedestal style.
*15 Supporting HSP standardized by CTA-2072 (HDR Still Photo Interface)
*16 35 Languages (English, German, French, Danish, Finnish, Norwegian, Swedish, Croatian, Czech, Dutch, Greek, Bulgarian, Hungarian, Italian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Spanish, Turkish, Lithuanian, Latvian, Estonian, Ukrainian, Serbian, Arabic, Persian, Hebrew, Gaelic, Macedonian, Kazakh, Thai, Belarussian)
*17 To playback HDR, a HDR source is required (H.264 or H.265(ST2084 or HLG format)).
