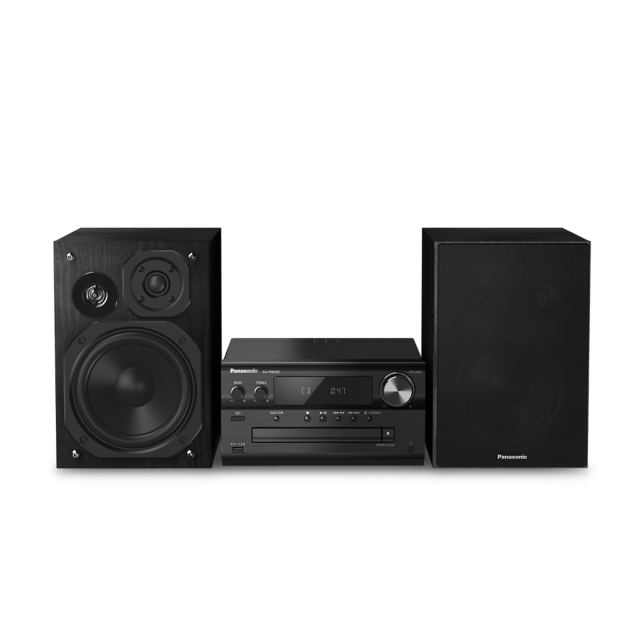

SC-PMX92 High-Resolution Audio System with DAB+ Radio, CD Player & Bluetooth
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
SC-PMX92
True High-Resolution Audio Quality
The PMX92 enriches your music listening experience more than ever before. The LincsD-Amp and 3-way speakers with Silk Dome Tweeters provide rich sound from a variety of music sources, while the USB DAC port makes it easy to enjoy Hi-Res audio. AUX-IN Auto Play function allows it to work with various devices, and an Optical Input has been added for easy connection with your TV.
Features
Clear and dynamic sound
The PMX92 produces a beautifully expressive, dynamic sound perfectly suited to high-resolution audio. This is thanks to its combination of a 3-way speaker design and a silk dome tweeter capable of reaching frequencies as high as 50kHz.
Natural sound with minimal interference or distortion
Experience music exactly as it was meant to be heard thanks to the LincsD-Amp. The latest innovative version of this technology manages to correct issues such as jitter and power supply noise that usually cause distortion in digital music playback.
High quality audio parts
Unlocking the full potential of Hi-Res sound
To get the best sound quality from today‘s Hi-Res audio formats, you need to use the best quality components. This is why Panasonic has left no stone unturned in sourcing only the finest materials for the PMX92 to ensure it’s built to make a genuine HiFi difference.
Top-grade audio aluminum electrolyte capacitors
Synthetic mica powder is blended into electrolytic paper, and copper clad steel wires are used for the lead wires in these audio aluminum electrolyte capacitors. The resulting sound is crisp and clear with a powerful presence.
Metallized polyester film capacitors
These film capacitors are designed specially for audio use, with excellent frequency response and temperature characteristics, using metal deposited electrodes.
Rich sound from Hi-Res sources
The PMX92 uses a unique DAC controller and USB driver system to ensure you get to hear all the detail and richness of today’s high-resolution audio formats such as DSD, FLAC, WAV and AIFF.
Rich sound expression
Bluetooth® Re-Master compensates the signals that are lost due to data compression when streaming Bluetooth® sounds. It gives you high-quality playback of sound sources from Bluetooth®-compatible devices such as smartphones and tablets.
AUX-IN Auto Play for audio and streaming devices
Simply connect your existing audio device or streaming device, such as Chromecast Audio, to AUX-IN. Even if the PMX92 power is turned off, the sound signal from the device will be recognized, the power will be automatically turned on, and music will be played from the AUX terminal.
Experience TV with greatly improved sound quality
The PMX92 is equipped with Optical Input terminals for easy connection with a TV. You can enjoy superb quality sound along with images on screen.
Elegant, compact design
Aluminum is used in the main unit’s front panel, top panel, and sound volume dial, to provide a simple, high-grade appearance. The speaker box is made of high-quality lumber. This high-quality, universal design matches a wide range of room décor.
Specs
Size and Weight
- Height
- 114mm
- Width
- 211mm
- Depth
- 267mm
- Weight
- 2.8kg
The size of the speaker is H238 × W161 × D262 mm and its weight is approximately 2.6 kg.
Hi-Res audio- LincsD-Amp
- 3-way Speaker
- USB DAC
- Bluetooth®
- DAB+
- AUX-IN Auto Play
- Panasonic Music Streaming App
- Total Output Power 120W
High quality components ensure you get the most out of Hi-Res audio sources
Dynamic 3-way speakers with silk dome tweeters reaching up to 50kHz
The USB DAC port makes it easy to enjoy Hi-Res audio
AUX-IN Auto Play for audio devices and streaming devices
AMPLIFIER
-
Amp Type
-
Lincs D-Amp™ (3rd generation)
-
-
RMS Output Power
-
Front Ch
-
60 W Per channel (3 ohms, 1 kHz, 10 % THD)
-
-
Total RMS Stereo mode power
-
120 W
-
-
SPEAKER SYSTEM
-
Bass Expand
-
Bass Reflex Port
-
-
Front Speaker
-
Type
-
3 Way, 3 Speaker system (Bass reflex)
-
-
Speaker Unit
-
Bamboo Charcoal PP 14 cm
Silk Dome Tweeter 1.9cm
Piezo Tweeter 1.5cm
-
-
CD / DVD
-
Playback Disc *1
-
CD-R / RW
-
-
Format
-
CD-DA / MP3
-
USB
-
USB Standard
-
USB 2.0 High-speed
-
-
Playback Format
-
DSD (2.8MHz *Not Support 5.6MHz), MP3, AIFF, AAC, FLAC(up to 192 kHz/24 bit), WAV(up to 192 kHz/24 bit)
-
-
Playback
-
yes *2
-
-
Battery Charge
-
Other portable device (1.5 A)
-
-
USB-DAC function
-
Playback Format
-
DSD (2.8MHz *Not Support 5.6MHz), MP3, AIFF,FLAC(up to 192 kHz/24 bit), WAV(up to 192 kHz/24 bit)
-
-
Player Application (Windows / Mac OS)
-
yes
-
-
RADIO
-
Auto Tuning
-
yes
-
-
Antenna Terminal
-
75 ohm unbalanced
-
-
Station Presets
-
FM
-
30 stations
-
-
DAB Plus
-
20 stations
-
-
NETWORK
-
AUX-In Auto Play
-
yes
-
-
Bluetooth
-
Version
-
Bluetooth® Ver 2.1 + EDR
-
-
Class
-
Class 2 (2.5mW)
-
-
Wireless audio playback
-
yes
-
-
Remote control
-
yes
-
-
Codec
-
SBC, AAC
-
-
Multi-Pairing
-
yes (MAX 8 Devices)
-
-
SMARTPHONE APP
-
Panasonic Music Streaming App
-
Supported OS
-
iOS*3(Bluetooth), Android*3(Bluetooth)
-
-
SOUND FUNCTION
-
Super Sound EQ, Super Bass Sound
-
D.Bass
-
-
Surround
-
yes
-
-
XBS Master
-
yes
-
-
High-Res AUDIO
-
yes
-
-
EQ
-
Preset EQ
-
4 Preset
-
-
Manual EQ
-
Bass / Treble
-
-
-
Re-Master
-
Bluetooth Re-Master
-
yes
-
-
TERMINALS
-
USB Port
-
USB Type-A x1 / USB Type-B x1
-
-
Audio IN
-
RCA Pin Jack (AUDIO IN) / 3.5 mm Stereo mini (AUX IN) / Opt-In (for LPCM)
-
-
Audio OUT
-
Phones (3.5 mm)
-
-
Speaker Terminal
-
Screw type
-
GENERAL
-
Power Supply
-
AC 220 - 240 V, 50 Hz
-
-
Dimmer
-
yes
-
-
Auto Off
-
yes
-
-
Power Consumption
-
Normal Use
-
40 W*4
-
-
Normal Standby
-
0.35 W*4
-
-
Bluetooth Standby
-
0.45 W*4
-
-
-
Timer
-
Sleep
-
yes
-
-
Clock
-
yes
-
-
Play Timer
-
yes
-
-
DIMENSIONS, WEIGHT
-
Main Unit
-
Dimensions (W x H x D)
-
211 x 114 x 267 mm
-
-
Weight
-
2.8 kg
-
-
-
Speaker Unit
-
Dimensions (W x H x D)
-
161 x 238 x 262 mm
-
-
Weight
-
2.6 kg
-
-
NOTIFICATIONS
-
NOTE
-
*1 Playability may vary depending on the contents, discs and quality of the recording.
*2 Only a USB flash drive. Playback is not possible from a portable device (Apple, Android, etc.) using a USB extension cable.
*3 Download on the App Store. Download on Google Play™.
*4 Specifications are subject to change without notice. All numbers given here are approximate.
-
-
