LUMIX Box-Style Camera DC-BS1H

DC-BS1H

Unbox Your Creativity

Full-frame Box-Style Mirrorless Live & Cinema camera featuring compact body with 6K 24p / 5.9K 30p 10-bit unlimited video recording capability.

Qualifying to LUMIX Pro program.
Learn more about Product, Technology, Trick and Tip at LUMIX Academy.

Add to WishlistRemove from Wishlist

DC-BS1H

Features

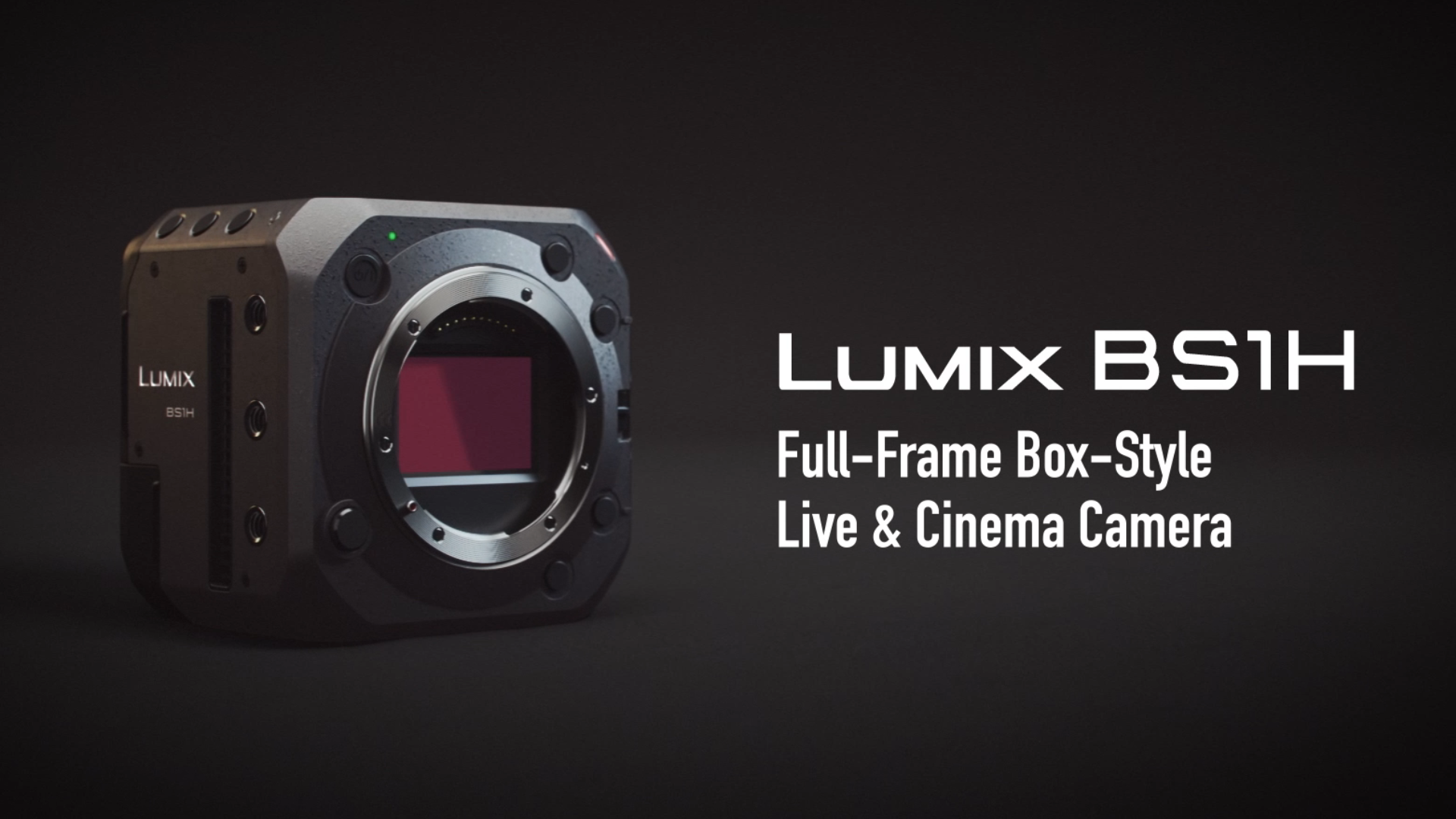

Box-Style Live & Cinema Full-frame Camera

A full-frame sensor and 6K 24p video recording performance condensed in a surprisingly compact box-style for everything from live streaming to multi-camera control and shooting using a gimbal or drone. A device that will innovate the video production workflow.

System Chart
(Incl Verified Accessories)

Box-Style Live & Cinema Full-frame Camera

24.2MP full-frame sensor with Dual Native ISO technology

The 24.2-megapixel full-frame CMOS sensor delivers high sensitivity and top image quality in both still photos and videos. Dual Native ISO technology further enhances video performance.

6K video recording performance and multiple recording modes

Equipped with 6K 24p 4:2:0 10-bit (3:2) and 5.9K 30p/25p/24p 4:2:0 10-bit in addition to C4K/4K 60p/50p* 4:2:0 10-bit, C4K/4K 30p/25p/24p 4:2:2 10-bit and anamorphic 4K recording. Meets the diverse video production needs of professionals with a wide array of recording modes.

*In S35mm and PIXEL/PIXEL settings.

6K video recording performance and multiple recording modes

Heat management = unlimited recording

The LUMIX BS1H realizes unlimited video recording in all modes. The rise in the camera’s temperature can be suppressed with the cooling fan and can be used for an unlimited time within the guaranteed operating temperature range.

Flexible expandability with wired LAN connection

• Remote control with LUMIX Tether for Multicam enabled by Ethernet cable.
• Ethernet / PoE+ compatible camera
• IP streaming with PC (RTP/RTSP protocol)
• Simultaneous SDI/HDMI output
• Genlock IN and Timecode IN/OUT

Simultaneous internal / external recording supported

Simultaneous 6K 24p 4:2:0 10-bit (3:2) / 5.9K 30p/25p/24p 4:2:0 10-bit (16:9) internal recording and 4K 4:2:2 10-bit HDMI Live Output external recording are supported.

･HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Learn More

Simultaneous internal / external recording supported

RAW video data output

The LUMIX BS1H enables the output of maximum 29.97p 5.9K (5888x3312, 16:9) / 59.94p 4K (4128x2176, 17:9) and Anamorphic 3.5K (3536x2656, 4:3) 12-bit RAW video data over HDMI to save it as Apple ProRes RAW on the Atomos Ninja V 4K HDR monitor-recorder.* The Blackmagic RAW can also be recorded on Video Assist 12G HDR.**

*[Apple ProRes RAW] ･Selectable recording mode depends on the firmware version of Atomos Ninja V. ･Please refer to the Atomos website for the information on the corresponding firmware version of Atomos Ninja V. ･Software that supports Apple ProRes RAW is required to edit RAW video recorded with NINJA V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ･All functions may not be available depending on the situation.

**[Blackmagic RAW] ･Selectable recording mode depends on the firmware version of Video Assist 12G HDR. ･Please refer to the Blackmagic website for the information on the corresponding firmware version of the Video Assist 12G HDR. ･DaVinci Resolve or DaVinci Resolve Studio is required to play back the Blackmagic RAW data. DaVinci Resolve Studio is required to edit the Blackmagic RAW data. ･All functions may not be available depending on the situation.

**[Blackmagic RAW] ･Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR. ･Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR. ･DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160. ･All functions may not be available depending on the situation.

Get Inspired

Specs

Size and Weight

Height: 93.0mm

Width: 93.0mm

Depth: 78.8mm

Weight: 585g

All values are approximate. Weight is the body only. Dimensions exclude protrusions.

L-Mount
24.2 Megapixels
4K Video Recording Capability
6K 24p video in 3:2 aspect ratios
14+ stops V-Log
HDMI Output and SDI Output
Genlock IN and Timecode IN/OUT
Ethernet and PoE+ Compatible
Live Streaming
Wi-Fi
Bluetooth
HEVC Advance

24.2MP full-frame CMOS sensor with Dual Native ISO technology

6K/24p 3:2 10-bit video, C4K/4K 60p/50p 10-bit video and unlimited recording time

HDMI RAW video data output - Apple ProRes RAW and Blackmagic RAW

Ethernet / PoE+ (IEEE802.3at compliant) compatible

Qualifying to LUMIX Pro program

TYPE

Type
- Digital Single Lens Mirrorless camera
Lens mount
- L-Mount
Recording media
- SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

IMAGE SENSOR

Type
- 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels
- 24.20 megapixels / 25.28 megapixels
AR (Anti Reflection) coating
- Yes
Aspect ratio / Color filter
- 3:2 / Primary color filter
Dust reduction system
- -

LATITUDE

Latitude
- 14+ stops (V-Log)

STILL IMAGE

Recording file format
- JPEG (DCF, Exif 2.31) *Tethered photo shooting with LUMIX Tether for Multicam software
Aspect ratio
- 3:2
File size (Pixels)
- When using full-frame lenses: 6000x4000(L) / 4272x2848(M) / 3024x2016(S)
  When using APS-C/Super 35mm lenses: 3888x2592(L) / 2784x1856(M) / 1968x1312(S)
Image quality
- Fine / Standard
Color space
- sRGB
Burst shooting
- -

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
  MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
System frequency
- 59.94Hz / 50.00Hz / 24.00Hz
MOV (*2) (*3)
- 59.94Hz FULL
  - [6K] 5952x3968 (3:2), 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [5.4K] 5376x3584 (3:2), 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [5.9K] 5888x3312 (16:9), 29.97p, 200Mbps (4:2:0 10-bit LongGOP)(H.265/HEVC, LPCM, High-Res Audio) (*1)
    [5.9K] 5888x3312 (16:9), 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 23.98p,100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [FHD] 1920x1080, 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [FHD] 1920x1080, 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 59.94i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [FHD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
- 59.94Hz S35mm / PIXEL/PIXEL
  - [C4K] 4096x2160, 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [C4K] 4096x2160, 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [C4K] 4096x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [4K] 3840x2160, 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [4K] 3840x2160, 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [4K] 3840x2160, 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [Anamorphic 4K] 3328x2496 (4:3), 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [Anamorphic 4K] 3328x2496 (4:3), 29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [Anamorphic 4K] 3328x2496 (4:3), 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [Anamorphic 4K] 3328x2496 (4:3), 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [Anamorphic 4K] 3328x2496 (4:3), 23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [Anamorphic 4K] 3328x2496 (4:3), 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [Anamorphic 4K] 3328x2496 (4:3), 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [FHD] 1920x1080, 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    *When S35mm is selected. HLG is selectable.
    [FHD] 1920x1080, 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 59.94p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [FHD] 1920x1080, 59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 59.94i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [FHD] 1920x1080, 23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
- 50.00Hz FULL
  - [5.4K] 5376x3584 (3:2), 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [5.9K] 5888x3312 (16:9), 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [FHD] 1920x1080, 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [FHD] 1920x1080, 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 50.00i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
- 50.00Hz S35mm / PIXEL/PIXEL
  - [C4K] 4096x2160, 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [C4K] 4096x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [4K] 3840x2160, 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [4K] 3840x2160, 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [Anamorphic 4K] 3328x2496 (4:3), 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [Anamorphic 4K] 3328x2496 (4:3), 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [Anamorphic 4K] 3328x2496 (4:3), 25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [Anamorphic 4K] 3328x2496 (4:3), 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [Anamorphic 4K] 3328x2496 (4:3), 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [FHD] 1920x1080, 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    *When S35mm is selected. HLG is selectable.
    [FHD] 1920x1080, 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 50.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [FHD] 1920x1080, 50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 50.00i, 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
- 24.00Hz FULL
  - [6K] 5952x3968 (3:2), 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [5.9K] 5888x3312 (16:9), 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [FHD] 1920x1080, 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
- 24.00Hz S35mm / PIXEL/PIXEL
  - [C4K] 4096x2160, 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [C4K] 4096x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [4K] 3840x2160, 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [4K] 3840x2160, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [Anamorphic 4K] 3328x2496 (4:3), 48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [Anamorphic 4K] 3328x2496 (4:3), 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [Anamorphic 4K] 3328x2496 (4:3), 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [Anamorphic 4K] 3328x2496 (4:3), 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    [FHD] 1920x1080, 48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) (*1)
    [FHD] 1920x1080, 24.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
MP4 (*3)
- 59.94Hz FULL
  - [4K] 3840x2160, 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
    [4K] 3840x2160, 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
    [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080, 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080, 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080, 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 59.94Hz S35mm / PIXEL/PIXEL
  - [4K] 3840x2160, 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
    [4K] 3840x2160, 29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
    [4K] 3840x2160, 23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
    [4K] 3840x2160, 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [4K] 3840x2160, 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080, 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080, 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080, 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 50.00Hz FULL
  - [4K] 3840x2160, 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
    [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080, 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080, 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 50.00Hz S35mm / PIXEL/PIXEL
  - [4K] 3840x2160, 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
    [4K] 3840x2160, 25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC) (*1)
    [4K] 3840x2160, 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080, 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    [FHD] 1920x1080, 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 24.00Hz
  - -
Variable frame rate, MOV (*3)
- 59.94Hz FULL
  - [FHD] 1920x1080, 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    [FHD] 1920x1080, 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    [FHD] 1920x1080, 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 59.94Hz S35mm
  - [C4K] 4096x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [C4K] 4096x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3), 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3), 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080, 59.94p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    [FHD] 1920x1080, 29.97p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    [FHD] 1920x1080, 23.98p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 59.94Hz PIXEL/PIXEL
  - [C4K] 4096x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [C4K] 4096x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3), 29.97p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3), 23.98p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080, 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080, 23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz FULL
  - [FHD] 1920x1080, 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    [FHD] 1920x1080, 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 50.00Hz S35mm
  - [C4K] 4096x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3), 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080, 50.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    [FHD] 1920x1080, 25.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 50.00Hz PIXEL/PIXEL
  - [C4K] 4096x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3), 25.00p (Maximum output of sensor is 50fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080, 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz FULL
  - [FHD] 1920x1080, 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 24.00Hz S35mm
  - [C4K] 4096x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3), 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080, 24.00p (Maximum output of sensor is 180fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
- 24.00Hz PIXEL/PIXEL
  - [C4K] 4096x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [4K] 3840x2160, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [Anamorphic 4K] 3328x2496 (4:3), 24.00p (Maximum output of sensor is 48fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    [FHD] 1920x1080, 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)

HDMI RAW DATA OUTPUT

Compatible external devices
- ATOMOS Ninja V 4K HDR Monitor-Recorder
  *Selectable recording mode depends on the firmware version of Atomos Ninja V.
  *Please refer to the Atomos website for the information on the corresponding firmware version of Atomos Ninja V.
  *Software that supports Apple ProRes RAW is required to edit RAW video recorded with NINJA V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
  https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
  *All functions may not be available depending on the situation.

  Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR
  *Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR.
  *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
  *DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
  *All functions may not be available depending on the situation.
Rec quality
- 59.94Hz FULL
  - [5.9K] 5888x3312 (16:9), 29.97p, 12-bit (LPCM)
    [5.9K] 5888x3312 (16:9), 23.98p, 12-bit (LPCM)
- 59.94Hz S35mm
  - [4K] 4128x2176 (17:9), 59.94p, 12-bit (LPCM)
    [4K] 4128x2176 (17:9), 29.97p, 12-bit (LPCM)
    [4K] 4128x2176 (17:9), 23.98p, 12-bit (LPCM)
    [Anamorphic 3.5K] 3536x2656 (4:3), 29.97p, 12-bit (LPCM)
    [Anamorphic 3.5K] 3536x2656 (4:3), 23.98p, 12-bit (LPCM)
- 50.00Hz FULL
  - [5.9K] 5888x3312 (16:9), 25.00p, 12-bit (LPCM)
- 50.00Hz S35mm
  - [4K] 4128x2176 (17:9), 50.00p, 12-bit (LPCM)
    [4K] 4128x2176 (17:9), 25.00p, 12-bit (LPCM)
    [Anamorphic 3.5K] 3536x2656 (4:3), 50.00p, 12-bit (LPCM)
    [Anamorphic 3.5K] 3536x2656 (4:3), 25.00p, 12-bit (LPCM)
Audio format
- LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*) *High-res audio is selectable only when using the DMW-XLR1 (sold separately).

IP STREAMING

Protocol
- RTP / RTSP
Streaming quality
- 59.94Hz
  - [4K] 3840x2160, 59.94p, 50Mbps / 25Mbps (H.265)
    [4K] 3840x2160, 59.94p, 50Mbps / 25Mbps (H.264)
    [4K] 3840x2160, 29.97p, 25Mbps / 12.5Mbps (H.265)
    [4K] 3840x2160, 29.97p, 25Mbps / 12.5Mbps (H.264)
    [FHD] 1920x1080, 59.94p, 20Mbps / 16Mbps (H.265)
    [FHD] 1920x1080, 59.94p, 16Mbps / 8Mbps (H.264)
    [FHD] 1920x1080, 29.97p, 12Mbps / 6Mbps (H.265)
    [FHD] 1920x1080, 29.97p, 6Mbps / 3Mbps (H.264)
    [HD] 1280x720, 59.94p, 6Mbps (H.264)
    [HD] 1280x720, 29.97p, 4Mbps (H.264)
- 50.00Hz
  - [4K] 3840x2160, 50.00p, 50Mbps / 25Mbps (H.265)
    [4K] 3840x2160, 50.00p, 50Mbps / 25Mbps (H.264)
    [4K] 3840x2160, 25.00p, 25Mbps / 12.5Mbps (H.265)
    [4K] 3840x2160, 25.00p, 25Mbps / 12.5Mbps (H.264)
    [FHD] 1920x1080, 50.00p, 20Mbps / 16Mbps (H.265)
    [FHD] 1920x1080, 50.00p, 16Mbps / 8Mbps (H.264)
    [FHD] 1920x1080, 25.00p, 12Mbps / 6Mbps (H.265)
    [FHD] 1920x1080, 25.00p, 6Mbps / 3Mbps (H.264)
    [HD] 1280x720, 50.00p, 6Mbps (H.264)
    [HD] 1280x720, 25.00p, 4Mbps (H.264)
RTSP port
- Change (Up to 65535) / Default (554)

MONITOR

Viewfinder
- -
Rear monitor
- -
Status LCD
- -

FOCUS

Type
- Contrast AF system
DFD technology
- Yes
Focus mode
- AF / MF
AF detective range
- EV -6 - 20 (F1.4, ISO100 equivalent, AF)
AF mode
- Motion picture: Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Oval) / 1-Area
  Still image: Auto Detection (Face, Eye, Body, Animal) / 225-Area /1-Area *Tethered photo shooting with LUMIX Tether for Multicam software
AF custom setting (Video)
- AF Speed, AF Sensitivity
AF lock
- Set the Fn button in custom menu to AF lock
Focus ring control
- Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.
Others
- AF-ON, Continuous AF, AF+MF, MF Assist, MF Guide, 1-Area AF Moving Speed, Focus Ring Lock, Focus Peaking, Lens Focus Resume

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Exposure mode
- Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
Exposure compensation
- Motion picture: 1/3 EV step ±3EV
  Still image: 1/3 EV step ±5EV *Tethered photo shooting with LUMIX Tether for Multicam software
ISO sensitivity (Standard output sensitivity)
- Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
Dual Native ISO
- [Normal]
  Native ISO: 100, 640
  Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 50* / 100-800 *Extended ISO
  High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO

  [V-Log]
  Native ISO: 640, 4000
  Auto: Auto / 320* / 640-51200 *Extended ISO
  Low: Auto / 320* / 640-5000 *Extended ISO
  High: Auto / 2000* / 4000-51200 *Extended ISO

  [HLG]
  Native ISO: 400, 2500
  Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 400-3200
  High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO

  [Cinelike D2 / Cinelike V2]
  Native ISO: 200, 1250
  Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
  Low: Auto /100* / 200-1600 *Extended ISO
  High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

Body I.S.
- -
Boost I.S. (Video)
- Yes *When a compatible lens equipped with O.I.S. is attached.

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- -
Shutter speed
- Motion picture: 1/16,000 - 1/2
  Still image: 1/8,000 - 1 *Tethered photo shooting with LUMIX Tether for Multicam software

PHOTO STYLE / FILTER

Photo style
- Standard / Vivid / Natural / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Like2100 (HLG) / My Photo Style 1-10
  Picture adjustment: Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Sharpness / Noise Reduction / Dual native ISO / ISO / WB *Adjustable settings vary depending on the Photo Style mode.
Filter
- Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color

OTHER FUNCTIONS

Vertical position information
- ON / OFF
SS/Gain operation
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level
- 8-bit: 0-255 / 16-235 / 16-255
  10-bit: 0‒1023 / 64‒940 / 64‒1023
Synchro scan
- Yes
Master pedestal level
- 31 steps
Knee control
- Yes (in Like709 mode)
Level Gauge
- Yes
V-Log view assist
- Rec / Playback: HDMI / SDI
HLG view assist
- Rec / Playback: HDMI (AUTO / MODE1 / MODE2 / OFF) / SDI (MODE1 / MODE2 / OFF)
Anamorphic desqueeze display
- 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
  Rec: SDI
  Playback: HDMI / SDI
Color bars / 1kHz test tone
- Yes (SMPTE / EBU / ARIB) / Yes
Other functions
- Red REC Frame Indicator, Streaming Blue Frame Indicator
Function button
- REC
  - Exposure Mode / Aperture Value / Shutter Speed / Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / i.Dynamic Range / Filter Effect / One Push AE / Synchro Scan / Focus Mode / AF Mode / AF Custom Setting (Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Rec File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / HDMI RAW Data Output / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Display Information / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Zebra Pattern / LUT View Assist (HDMI) / LUT View Assist (SDI) / LUT Select / HLG View Assist (HDMI) / HLG View Assist (SDI) / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / Destination Card Slot / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
- PLAY
  - Anamorphic Desqueeze Display / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / Video Record / Display Information / Card Slot Change / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / LUT View Assist (HDMI) / LUT View Assist (SDI) / HLG View Assist (HDMI) / HLG View Assist (SDI) / No Setting / Off (Disable Press and Hold) / Restore to Default
Operation lock
- Yes with Operation Lock Switch

INTERFACE

USB
- SuperSpeed USB 3.1 Gen1 Type-C
DC IN
- DC 12V (11.4-12.6V), EIAJ Type4
HDMI (*4)
- HDMI TypeA
  Audio: Stereo

  Monitor-through
  4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
  4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
  Down Convert: Auto / 4K/30p/25p / 1080p / 1080i / OFF

  Playback
  59.94Hz: Auto / C4K/59.94p / C4K/29.97p / C4K/23.98p / 4K/59.94p / 4K/29.97p / 4K/23.98p / 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 720/59.94p / 480/59.94p
  50.00Hz: Auto / C4K/50.00p / C4K/25.00p / 4K/50.00p / 4K/25.00p / 1080/50.00p / 1080/25.00p / 1080/50.00i / 720/50.00p / 576/50.00p
  24.00Hz: Auto / C4K/24.00p / 4K/24.00p / 1080/24.00p
SDI
- BNC Terminal, 0.8V [p-p], 75Ω, 3G-SDI Level-A / HD-SDI
  Audio: Stereo, SDI Sound Output Gain Adj.: 0dB / -6dB / -8dB

  Monitor-through
  4:2:2 10bit *The bit accuracy is 8 bits when the 8-bit recording mode is selected.

  Playback
  59.94Hz: 1080/59.94p LEVEL-A / 1080/29.97p / 1080/23.98p / 1080/59.94i / 1080/29.97PsF / 1080/23.98PsF / 720/59.94p
  50.00Hz: 1080/50.00p LEVEL-A / 1080/25.00p / 1080/50.00i / 1080/25.00PsF / 720/50.00p
  24.00Hz: 1080/24.00PsF
Ethernet
- Remote Control: LAN Terminal (RJ-45)
  Power Supply: PoE+ (IEEE802.3at compliant)
  *Use an IEC60950-1 or IEC62368-1 compliant PoE+ (IEEE802.3at compliant) hub or power supplying device.
Remote input
- φ2.5mm
Microphone
- Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
Speaker
- -
External microphone / external audio device input
- φ3.5mm for external microphone / external audio device
  MIC (Plug-in Power) / MIC / LINE is selectable.
  Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
XLR microphone
- Yes with DMW-XLR1 (sold separately)
Headphone output
- φ3.5mm
SD card slot
- Slot 1, Slot 2
TC IN/OUT
- Count up
  - Rec Run / Free Run
- Time code mode
  - Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
- HDMI time code output
  - ON / OFF
- SDI time code output
  - ON / OFF
- External TC setting
  - TC Synchronization / TC Output Reference
Genlock IN
- Genlock IN
  - ON / OFF
- Horizontal phase synchronization
  - -206 - +49
Fan
- Auto1 / Auto2 / Normal / Slow
Lamp
- Tally Lamp (front/rear) / Card Access Lamp / Power LED / Network LED
Flash
- -

WIRELESS

Wi-Fi
- 2.4GHz (STA/AP), IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
Bluetooth
- Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

POWER

Direct power supply
- AC Adaptor (12V, 3A) (bundled)
  Li-ion Battery Pack (7.28V) (sold separately)
  PoE+ (IEEE802.3at compliant) (sold separately)
Battery
- Li-ion Battery Pack AG-VBR59 (7.28V, 5900mAh, 43Wh) (sold separately)
  Li-ion Battery Pack AG-VBR89 (7.28V, 8850mAh, 65Wh) (sold separately)
  Li-ion Battery Pack AG-VBR118 (7.28V, 11800mAh, 86Wh) (sold separately)
Continuous recordable time (Motion picture) (*3)
- MP4 [4K/60p]: Approx. 230 min (S35mm), MP4 [FHD/60p]: Approx. 300 min (FULL) *When using S-R24105 and AG-VBR59 (sold separately). When the battery is fully charged.
  MP4 [4K/60p]: Approx. 360 min (S35mm), MP4 [FHD/60p]: Approx. 470 min (FULL) *When using S-R24105 and AG-VBR89 (sold separately). When the battery is fully charged.
  MP4 [4K/60p]: Approx. 480 min (S35mm), MP4 [FHD/60p]: Approx. 630 min (FULL) *When using S-R24105 and AG-VBR118 (sold separately). When the battery is fully charged.
Actual recordable time (Motion picture) (*3)
- MP4 [4K/60p]: Approx. 115 min (S35mm), MP4 [FHD/60p]: Approx. 150 min (FULL) *When using S-R24105 and AG-VBR59 (sold separately). When the battery is fully charged.
  MP4 [4K/60p]: Approx. 180 min (S35mm), MP4 [FHD/60p]: Approx. 235 min (FULL) *When using S-R24105 and AG-VBR89 (sold separately). When the battery is fully charged.
  MP4 [4K/60p]: Approx. 240 min (S35mm), MP4 [FHD/60p]: Approx. 315 min (FULL) *When using S-R24105 and AG-VBR118 (sold separately). When the battery is fully charged.

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 93.0 x 93.0 x 78.8 mm / 3.66 x 3.66 x 3.1 inch (excluding protrusions)
Weight
- Approx. 585g / 1.29 lb (Body only)

OPERATING ENVIRONMENT

Operating temperature (*5)
- -10℃ to 40℃ (14˚F to 104˚F)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software
- LUMIX Tether for Multicam
  ･This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
  http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
Standard accessories
- AC Adaptor, AC Cable, Cable Lock Band, Body Cap, Hot Shoe Cover, AUDIO Terminal Cover, DC IN Terminal Cover, BNC Terminal Cover, HDMI Terminal Cover, REMOTE Terminal Cover
  ･The DC-BS1H Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

NOTE

(*1) HLG is selectable.

(*2) High-res audio is selectable only when using the DMW-XLR1 (sold separately).

(*3) About motion picture recording
- Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures in [MP4(under 28Mbps)].
- Use a card with SD Speed Class with "UHS-I / UHS-II UHS Speed Class 3 (U3)" when recording motion pictures with [MP4] in [4K] or [MOV].
(SD speed class is the speed standard regarding continuous writing.)
- Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
- MP4 motion pictures with [MP4] in [4K]:
- When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
- When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- MP4 motion pictures with [MP4] in [FHD]:
- You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
- 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
It may cause problems such as freezing when played on these devices.
- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

(*4) For [6K] [5.9K] [5.4K] [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

(*5) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.
