CS-UV12ZKD, Split Air Conditioner

See product page

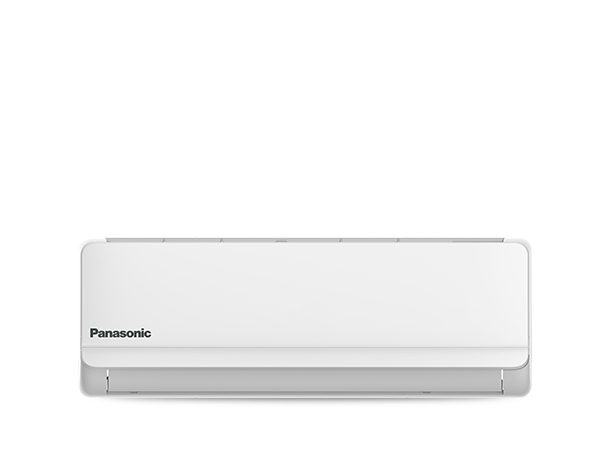

Photo of CS-UV12ZKD, Split Air Conditioner

Type

  • Cool only/ Non Inverter

Power Supply

  • V/Ph/Hz

    • 220-240V/1/50Hz

Cooling

  • Capacity

    • Btu/h

      • 12000

    • W

      • 3500

  • Rated Power Consumption

    • W

      • 1150

  • Rated Running Current

    • A

      • 5.3

  • Max. Input Power

    • W

      • 1700

  • Max. Input Current

    • A

      • 8.5

  • EER Cooling

    • W/W

      • 3.04

Air Flow Volume

  • m³/h

    • 580

Indoor Unit

  • Dimension(W*D*H)

    • mm

      • 750×285×200

  • Dimension cbm

    • m³

      • 0.04275

  • Packing(W*D*H)

    • mm

      • 820×345×280

  • Packing cbm

    • m³

      • 0.079212

  • Net Weight

    • kg

      • 7.5

Outdoor Unit

  • Dimension(W*D*H)

    • mm

      • 660×500×240

  • Dimension cbm

    • m³

      • 0.0792

  • Packing(W*D*H)

    • mm

      • 780×570×345

  • Packing cbm

    • m³

      • 0.153387

  • Net Weight

    • kg

      • 23.5

Refrigerant Type

  • R410a/kg

    • R410a/0.42kg

Connection(Stop Valve)

  • Gas Valve

    • Inches

      • Dg8(φ9.52)

  • Liquid Valve

    • Inches

      • Dg4(φ6.35)

Refrigerant Piping

  • Max refrigerant pipe length

    • m

      • 9

  • Max difference in level

    • m

      • 10
