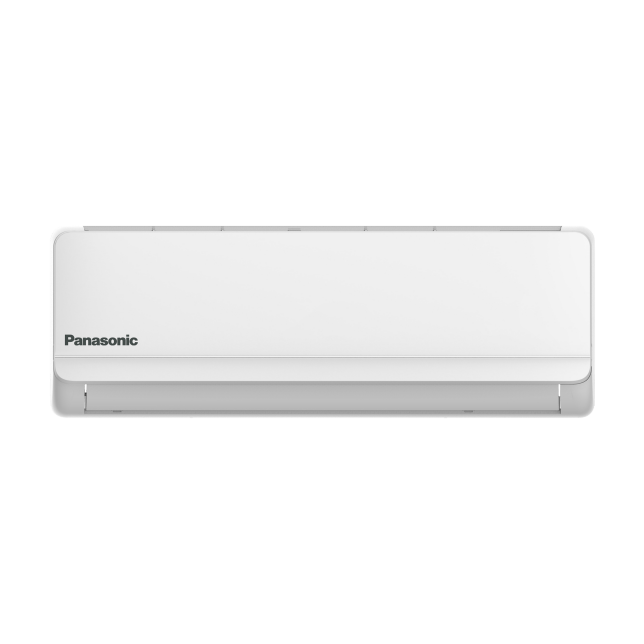

CS-UV12ZKD, Split Air Conditioner
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CS-UV12ZKD
Quick Comfort, Durable Performance
Experience rapid, powerful cooling with healthier air quality and enhanced durability. Our eco-friendly refrigerant ensures a safer, greener planet while protecting against corrosion for long-lasting performance.
Features
Turbo Cooling
When switching to Turbo mode the AC will deliver fast and powerful cooling when needed.
PM2.5 Filter
Effectively traps and inhibits PM2.5 pollutants in the air providing better and healthier air quality.
Blue Fin Condenser
The condenser fins are specially blue-coated to enhance its durability. These specially coated layers serves as protection against corrosion from air, water and other types of corrossions.
The Safest Refrigerant Gas
The R410A environment-friendly refrigerant contributes to greener planet as it has no harmful effects on the Ozone layer.
65+ years of Manufacturing Experience.
Our R&D focuses on ease of use, and our history of rigorous quality control is unmatched in the industry. As a result, with more than 60+ years of experience, Panasonic has sold over 70 million air conditioner units in Japan and around the world.
Operating Test in Harsh Conditions
The operating noise of the indoor and outdoor units is measured in a high-performance anechoic chamber. The noise test verifies that the operating noise is low enough to allow the user to talk and sleep comfortably while the product is operating.
Environmental Test
An air conditioner is operated in a test room simulating a living room testing cooling speed, cooling efficiency, and temperature and humidity differences throughout the room.
Noise Test
The operating noise of the indoor and outdoor units is measured in a high-performance anechoic chamber. The noise test verifies that the operating noise is low enough to allow the user to talk and sleep comfortably while the product is operating.
Waterproof Test
Potential problems are checked by tests such as showering the unit for a predetermined amount of time. Contact sections on printed circuit boards are also resin-potted to prevent adverse effects caused by an unlikely exposure of droplets to water.
Specs
Size and Weight
- Height
- 200mm
- Width
- 750mm
- Depth
- 285mm
- Weight
- 7.5kg
*Note: Indoor Unit Dimensions
Turbo Cooling
PM2.5 Filter
Blue Fin Condenser
Type
-
Cool only/ Non Inverter
Power Supply
-
V/Ph/Hz
-
220-240V/1/50Hz
-
Cooling
-
Capacity
-
Btu/h
-
12000
-
-
W
-
3500
-
-
-
Rated Power Consumption
-
W
-
1150
-
-
-
Rated Running Current
-
A
-
5.3
-
-
-
Max. Input Power
-
W
-
1700
-
-
-
Max. Input Current
-
A
-
8.5
-
-
-
EER Cooling
-
W/W
-
3.04
-
-
Air Flow Volume
-
m³/h
-
580
-
Indoor Unit
-
Dimension(W*D*H)
-
mm
-
750×285×200
-
-
-
Dimension cbm
-
m³
-
0.04275
-
-
-
Packing(W*D*H)
-
mm
-
820×345×280
-
-
-
Packing cbm
-
m³
-
0.079212
-
-
-
Net Weight
-
kg
-
7.5
-
-
Outdoor Unit
-
Dimension(W*D*H)
-
mm
-
660×500×240
-
-
-
Dimension cbm
-
m³
-
0.0792
-
-
-
Packing(W*D*H)
-
mm
-
780×570×345
-
-
-
Packing cbm
-
m³
-
0.153387
-
-
-
Net Weight
-
kg
-
23.5
-
-
Refrigerant Type
-
R410a/kg
-
R410a/0.42kg
-
Connection(Stop Valve)
-
Gas Valve
-
Inches
-
Dg8(φ9.52)
-
-
-
Liquid Valve
-
Inches
-
Dg4(φ6.35)
-
-
Refrigerant Piping
-
Max refrigerant pipe length
-
m
-
9
-
-
-
Max difference in level
-
m
-
10
-
-
