CZ-RTC4A

A Basic Controller for Small Business Owners

In addition to basic air conditioner functions and timer, the remote control also enables ON/OFF control of Panasonic's purifying nanoe™ X technology, and energy-saving ECONAVI technology.
Zoom In
Zoom Out
Close

Features

Weekly Timers for AC Management

A maximum of 6 settings/day and 42 settings/week can be programmed.
A maximum of 6 settings/day and 42 settings/week can be programmed.
Setting the air conditioner to match the operating hours of offices and shops prevents employees from forgetting to turn off the air conditioner, and ensures comfort and energy savings by running the air conditioner in time with the start of the working day.
Setting the air conditioner to match the operating hours of offices and shops prevents employees from forgetting to turn off the air conditioner, and ensures comfort and energy savings by running the air conditioner in time with the start of the working day.

Nighttime Comfort Control

Sleeping function leads you to a comfortable sleep and adjusting the room temperature during your sleep.
Nighttime Comfort Control

Activate for All-Day Space Purification

Panasonic air purification function “nanoe™ X” can be turned ON or OFF with just the touch of a remote control button.
Activate for All-Day Space Purification

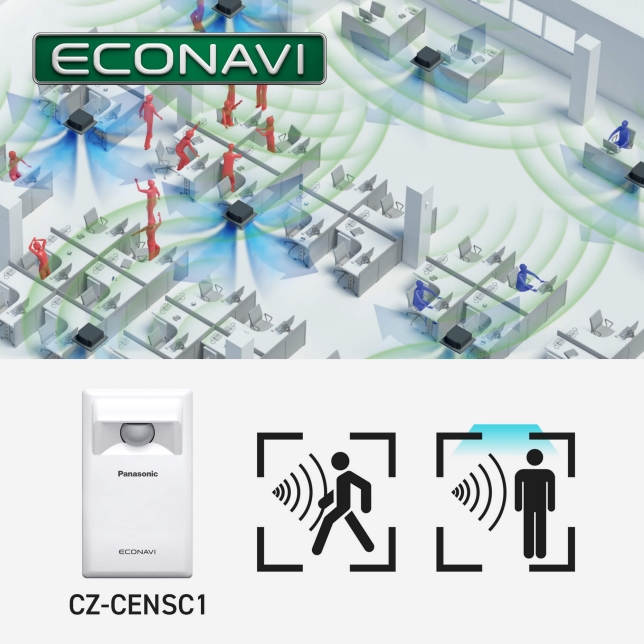

Activity-Based Energy Control

The ECONAVI sensor detects human motion and operates in energy-saving mode according to activity level.
* ECONAVI Sensor CZ-CENSC1 required (sold separately).
* This feature is available on certain models only.
Activity-Based Energy Control

Specifications

CZ-RTC4A

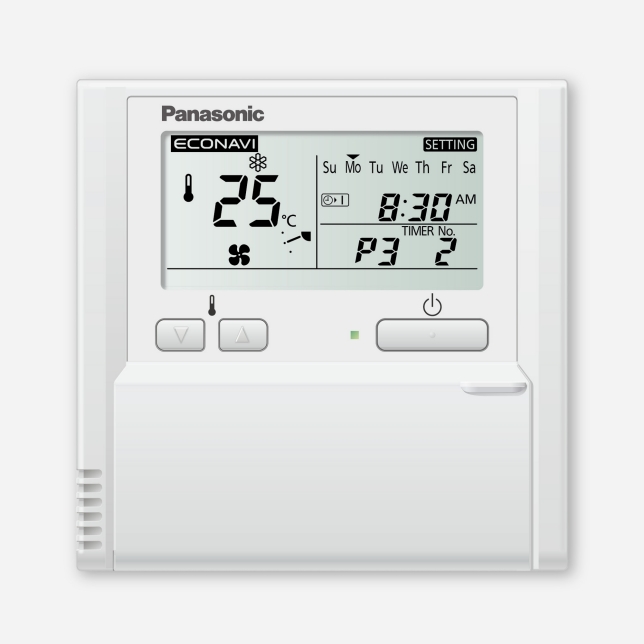

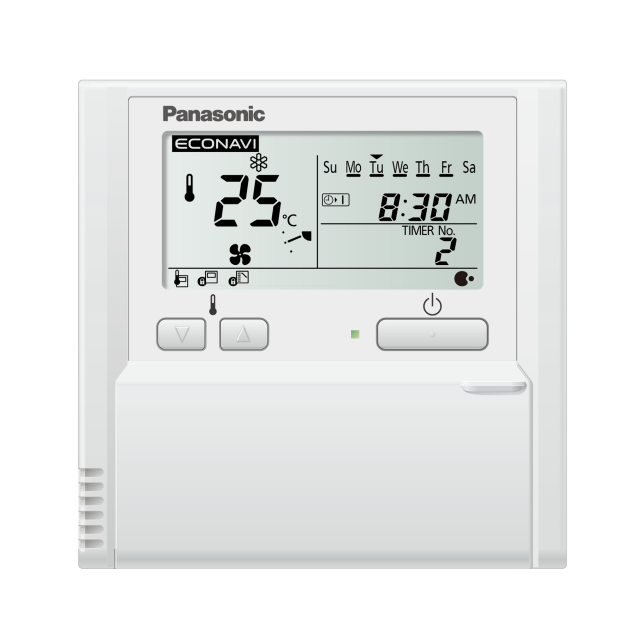

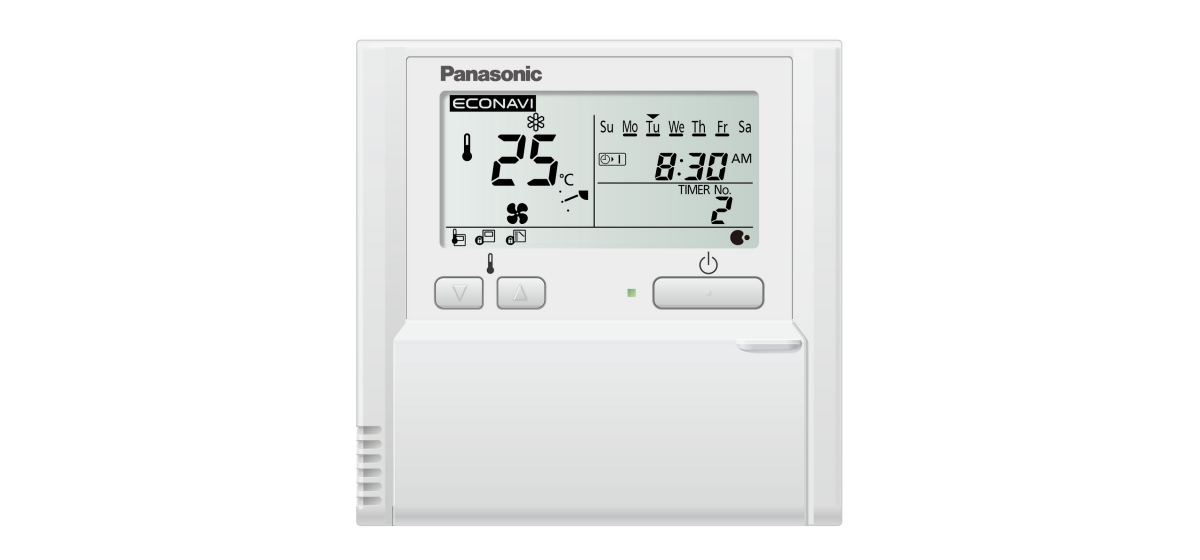

Photo of CZ-RTC4A

Basic function: ON/OFF, mode setting, fan speed setting, temperature setting, air flow direction.

Number of indoor units which can be connected: 1 group, 8 units.

Limitation: Up to 2 controllers/1 group. (When using ECONAVI, only one remote controller is possible to connect at indoor unit)

Energy saving: Outing Function, Panasonic energy-saving technology ECONAVI.

Maintenance: Filter sign, test run.

Others: Weekly timer, sleeping function, Panasonic clean air technology nanoe™ X ON/OFF.

CZ-RTC4A
Dimensions (mm) H 120 x W 120 x D 20 + 4.75
Weight 160g
Temperature/Humidity Range 0 to 40 °C / 20 to 80 % (No condensation)
*Indoor use only.
Power Source DC 16V (Supplied with indoor unit)
Clock Precision ±30 seconds/month (at normal temperature 25°C)
*Adjust periodically.
Clock Holding Time 24 hours (When fully charged)
*Approx. 8 hours are required for full charge.
Number of Connected Indoor Units Up to 8 units
