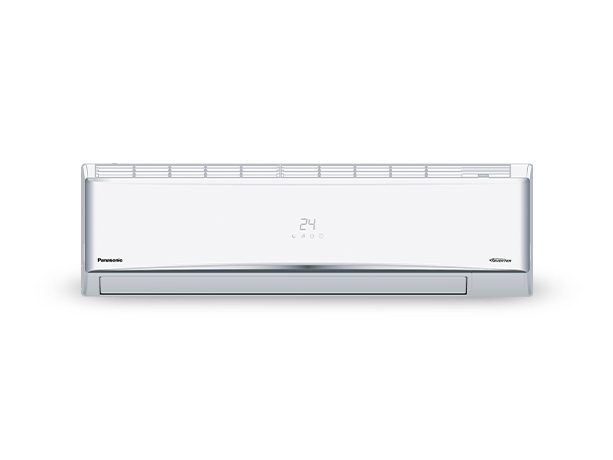

CS/CU-RU18AKY
Type
-
Cooling Only
Tonnage Class (TR)
-
1.5
Model [50Hz]
-
CS/CU-RU18AKY
Cooling Capacity Standard [Min. - Max.] (Btu/h)
-
17391 [7826 - 19141]
Cooling Capacity Standard [Min. - Max.] (W)
-
5100 [2295 - 5610]
Heating Capacity Standard [Min. - Max.] (Btu/h)
-
-
Heating Capacity Standard [Min. - Max.] (W)
-
-
ISEER
-
3.95
Annual Power Consumption (kWh)
-
1000.53
Star Rating (★)
-
3★
Electrical Data
-
Voltage (V-AC)
-
230
-
-
Frequency (Hz)
-
50
-
-
Phase (Φ)
-
Single Phase
-
-
Running Current (A)
-
7.7
-
-
Power Input, Standard Cooling [Min. - Max.] (W)
-
1690 [527 - 2282]
-
-
Power Input, Standard Heating [Min. - Max.] (W)
-
-
-
Moisture Removal Rate (l/h)
-
1.2
Moisture Removal Rate (Pt/h)
-
2.5
Air Circulation (Indoor) (mᵌ/min)
-
18.4
Air Circulation (Indoor) (ftᵌ/min)
-
650
Dimensions of the Indoor Unit
-
Length (L) (cm)
-
100.0
-
-
Breadth (B) (cm)
-
23.0
-
-
Height (H) (cm)
-
29.5
-
Dimensions of the Outdoor Unit
-
Length (L) (cm)
-
78.1
-
-
Breadth (B) (cm)
-
28.1
-
-
Height (H) (cm)
-
55.5
-
Noise Level
-
Indoor (H/Q) [dB-A]
-
48/38
-
-
Outdoor [dB-A]
-
53
-
Net Weight
-
IDU [ODU] (kg)
-
11.5 [24]
-
-
IDU [ODU] (lb)
-
25.4 [52.9]
-
Gross Weight
-
IDU [ODU] (kg)
-
13.5 [28]
-
-
IDU [ODU] (lb)
-
29.8 [61.7]
-
Refrigerant
-
R-32
Operating Temp. Range (℃)
-
16 ~ 52
Operating Volt. Range (V)
-
145-285
Refrigerant Pipe Diameter
-
Liquid Side (cm)
-
Ø0.635
-
-
Gas Side (cm)
-
Ø1.270
-
Pipe Extension
-
Chargeless Pipe Length * (m)
-
7.5
-
-
Maximum Pipe Length * (m)
-
15
-
-
Maximum Elevation Length * (m)
-
10
-
-
Additional Refrigerant Gas * (g/m)
-
15
-
Power Supply Source
-
Indoor
In The Box
-
Indoor Unit: 1N, Outdoor Unit: 1N, Remote: 1N, AAA Batteries: 2N, User Manual: 1N
